Vonyx WM522B - Dual VHF Wireless Microphone System with Headset and Lavalier
The Vonyx WM522B is a comprehensive wireless audio solution designed for professionals and speakers who require complete freedom of movement without sacrificing sound quality. This dual-channel system operates in the VHF band, ensuring stable transmission and resistance to common interference from other household electronics. Its plug-and-play setup makes it an ideal choice for users who need equipment ready to use in seconds, without complex technical configurations.

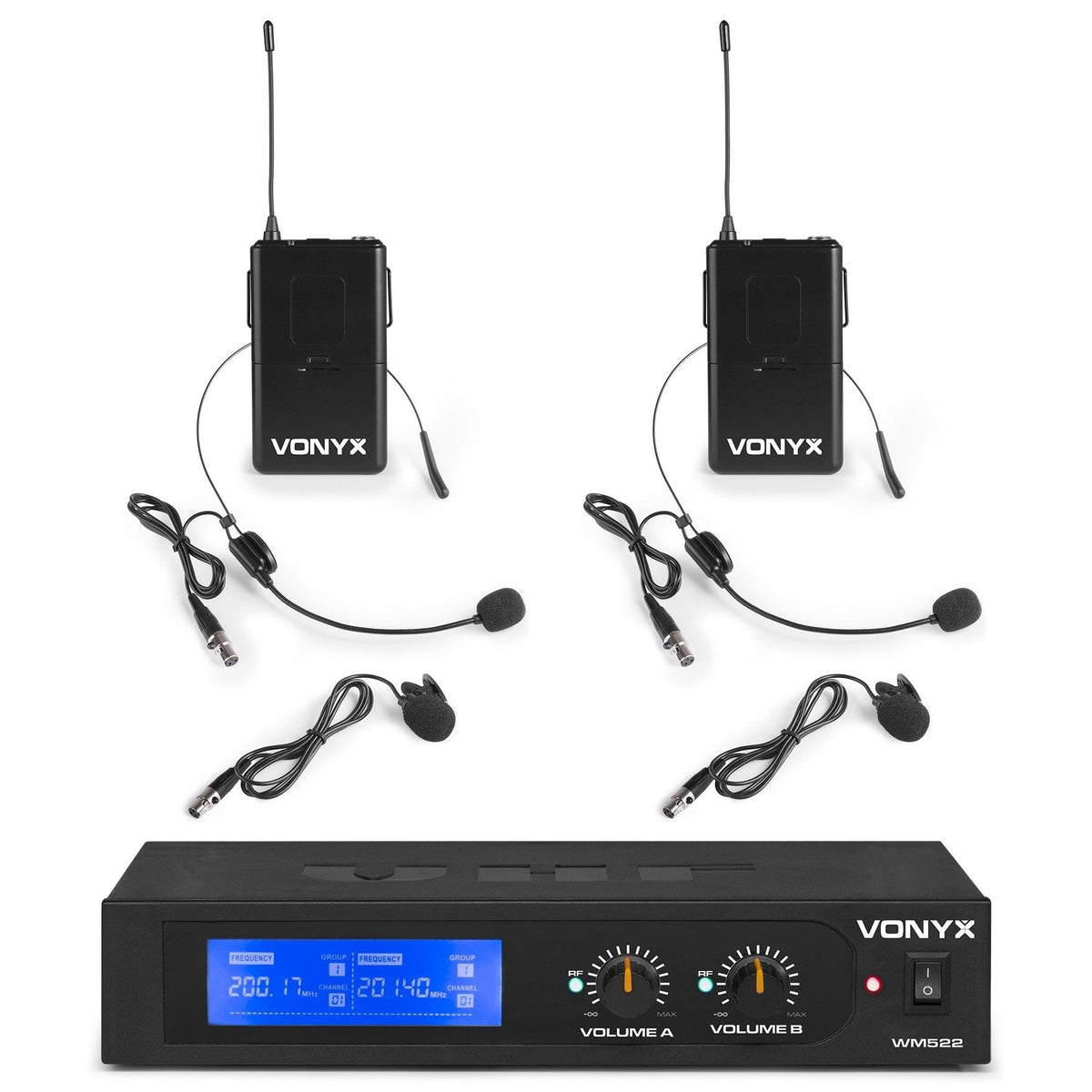

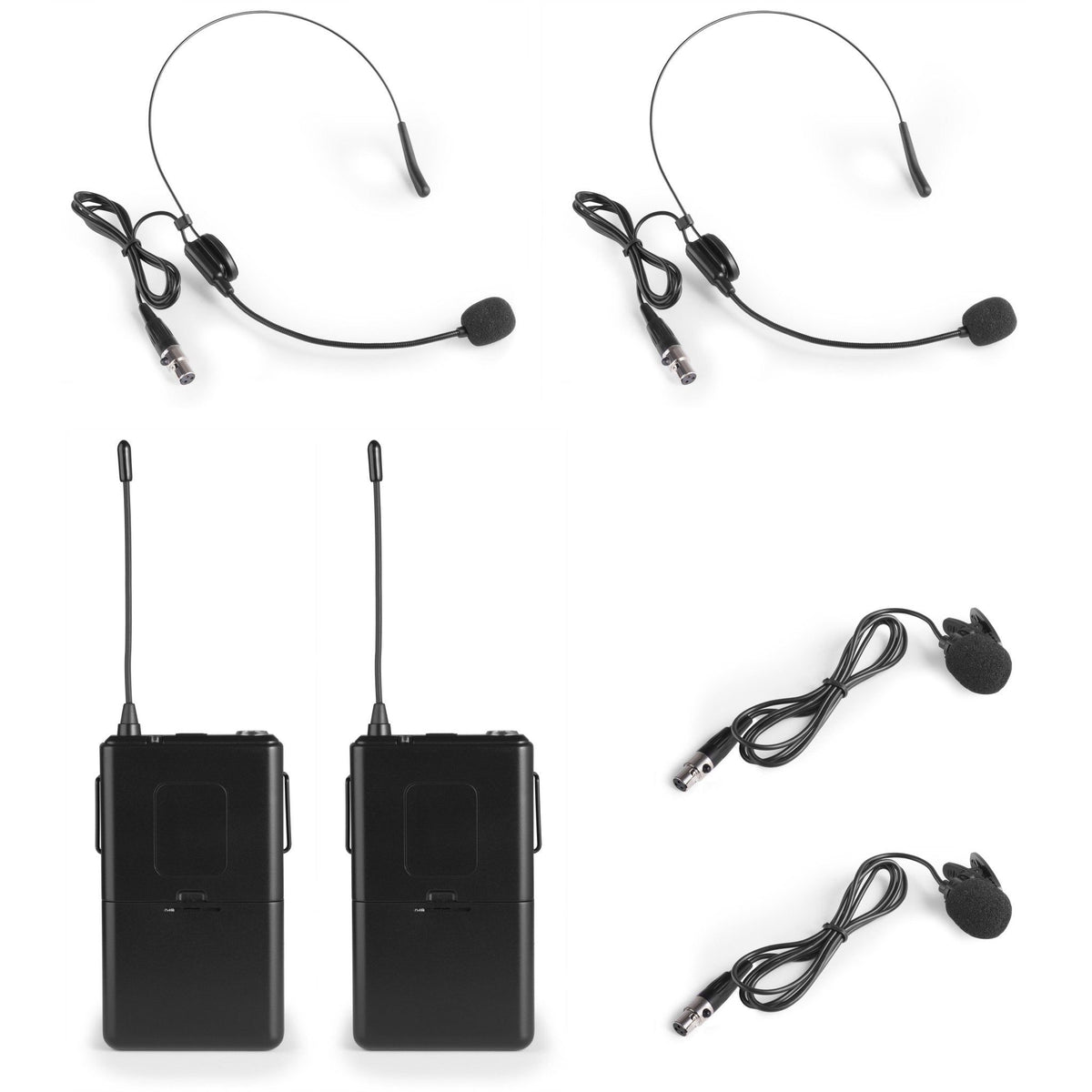

Unlike conventional handheld systems, the WM522B stands out for its ergonomic versatility. The set includes two robust and lightweight bodypack transmitters, along with two headset microphones and two lavalier microphones . This allows the user to choose the most suitable configuration for each situation: the headset for dynamic activities where a secure fit is paramount, or the lavalier for a more discreet look in formal presentations. The system automatically manages the mix of both signals, delivering clear and crisp audio through a single output.
Main features

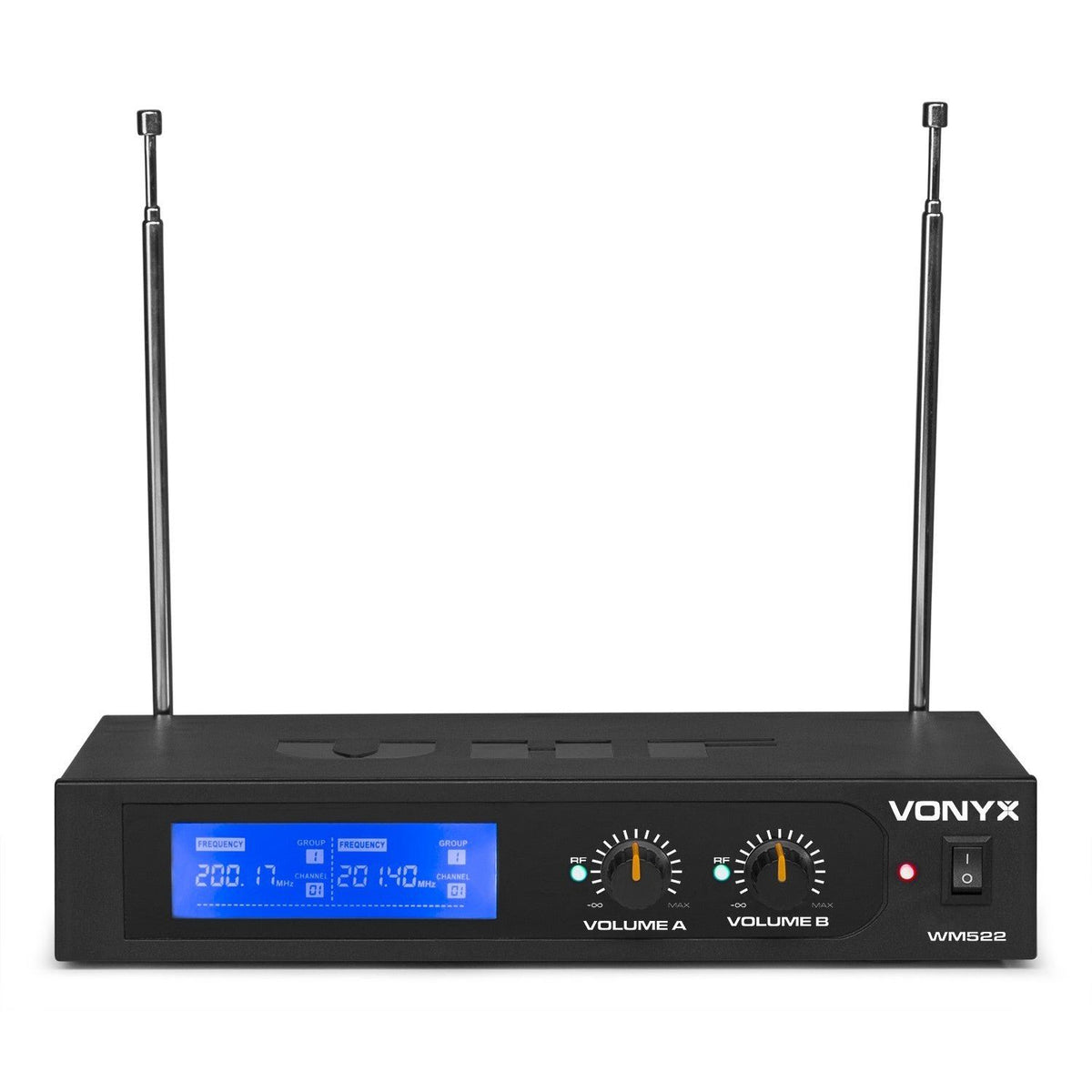

The system has been engineered with durability and ease of use in mind. The desktop receiver features an intuitive design that allows for quick system status monitoring thanks to its blue front display .
-
Total microphone versatility: Includes both headset and lavalier microphones with Mini XLR connection, allowing the equipment to be adapted to the type of speaker or event.
-
Dual channel VHF system: Operates on two different fixed frequencies (200.175 MHz and 201.400 MHz), allowing the use of two microphones simultaneously without signal crossing.
-
Clean transmission: Incorporates background noise reduction technology and a high signal-to-noise ratio (>85dB), ensuring that the voice is heard above the ambient noise.
-

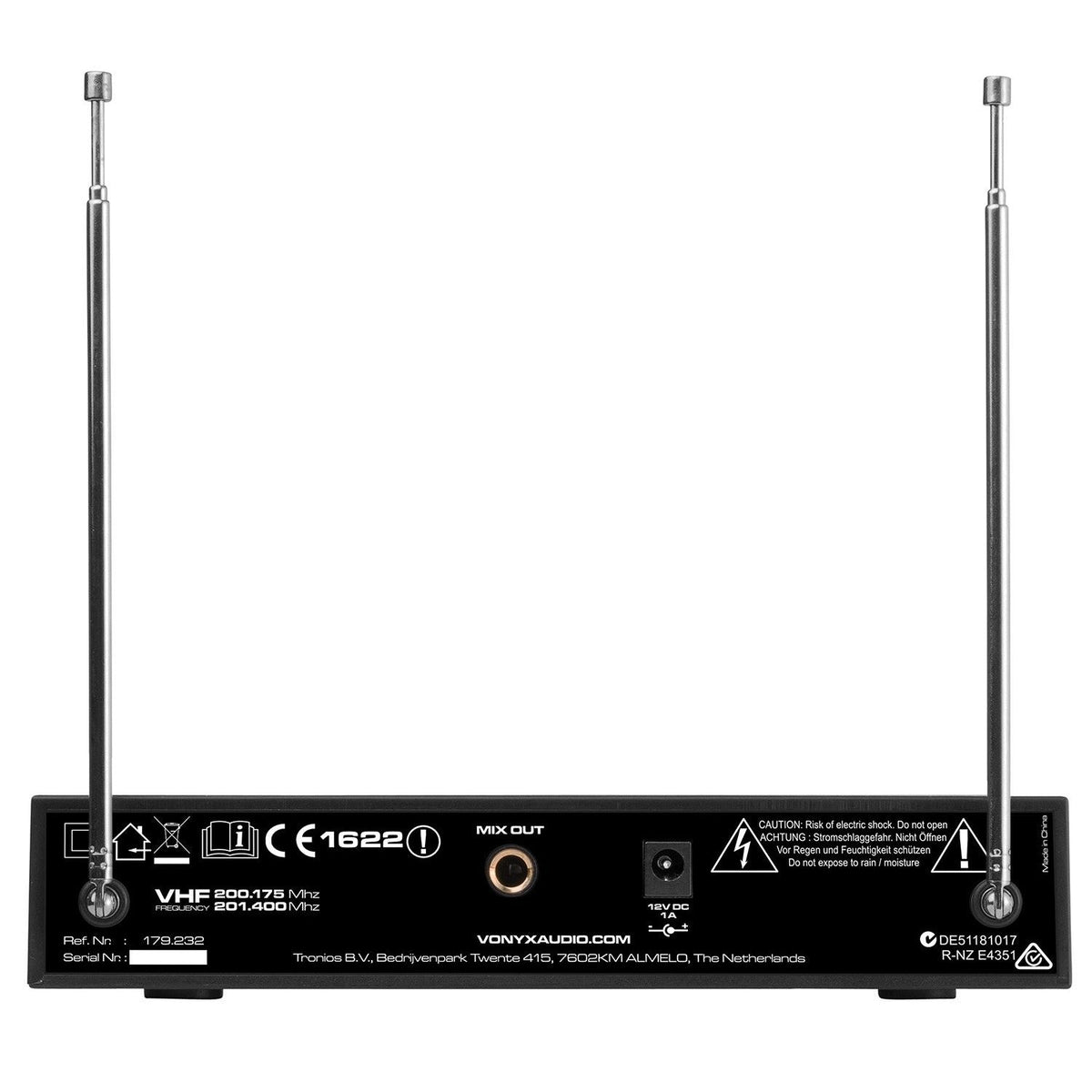

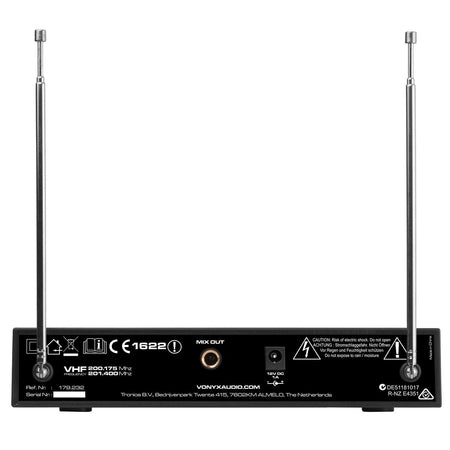

Centralized receiver: Compact receiving unit with independent volume controls and 6.3mm jack mix output for direct connection to amplifiers, mixing consoles or active speakers.
-

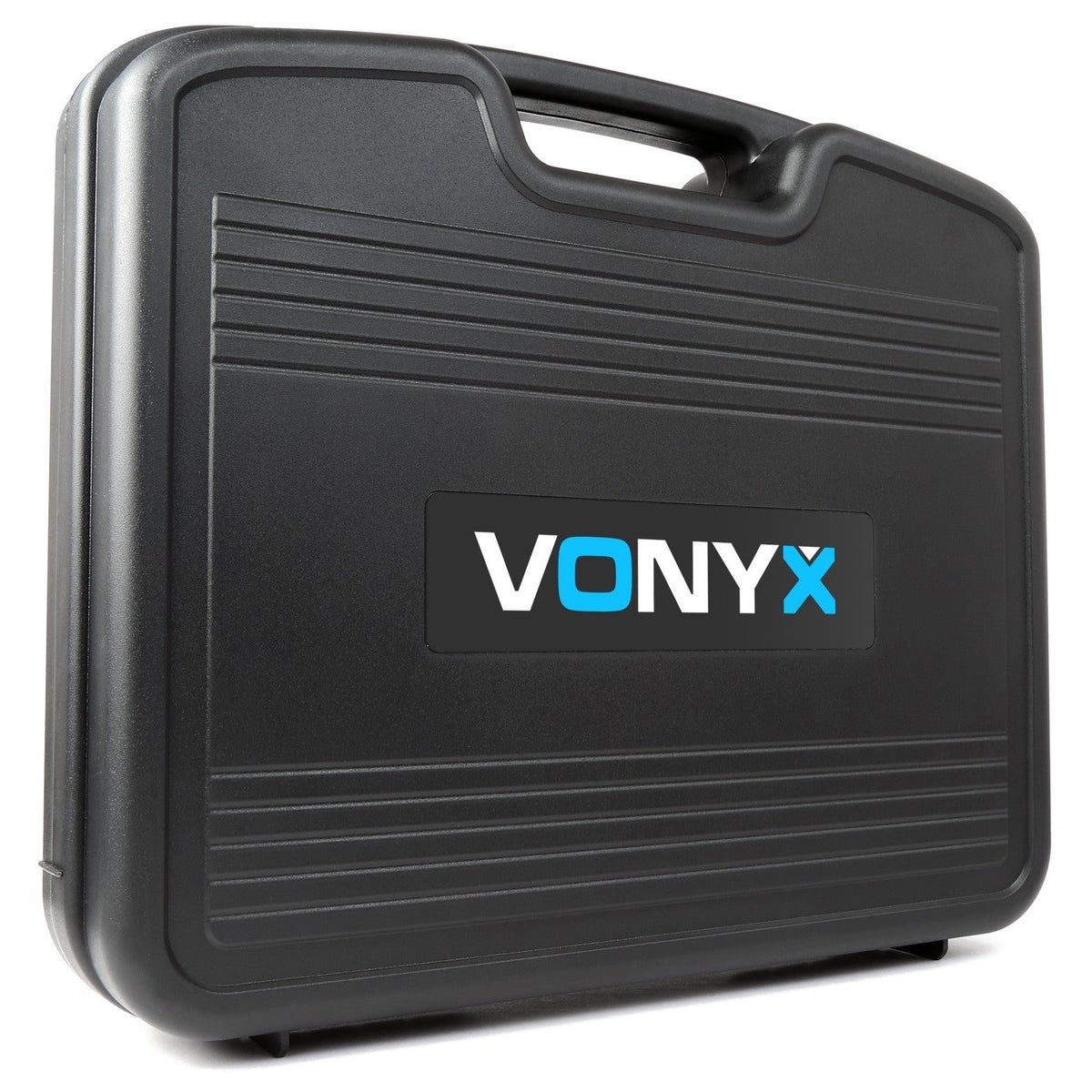

Portability assured: The entire system is supplied in a rigid plastic case with a padded interior, protecting the components during transport and storage.
Benefits for the user
The main advantage of the Vonyx WM522B is hands-free operation . By eliminating cables and handheld microphones, the user can gesture, manipulate objects, write on whiteboards, or perform physical exercises without restrictions. Furthermore, the energy efficiency of its bodypack transmitters, which run on standard AA batteries, ensures long, uninterrupted use, making it an economical system to maintain.
Use cases
Thanks to its dual design and multiple microphone options, this system adapts to various scenarios:
-
Fitness Instructors and Gyms: The use of the headset allows for sudden movements and aerobic exercises while keeping the microphone in its optimal position.
-
Conferences and Corporate Presentations: The lapel microphone offers a professional and discreet image for speakers who need to move around the stage.
-
School and Theatre Events: Ideal for amateur theatre plays or school events where amplification is required for two actors simultaneously.
-
Entertainers and Tour Guides: Allows you to address large groups while keeping your hands free to point out points of interest or give demonstrations.
Frequently Asked Questions
Can I use both microphones at the same time?
Yes, the system is dual channel and is designed so that both transmitters operate simultaneously on their respective frequencies without interfering with each other.
What type of batteries do flasks use?
Each transmitter pack operates on 2 standard AA batteries, which are easy to acquire and replace at any time.
How do I connect the system to my speaker?
The receiver has a 6.3mm jack output (an audio standard). You only need to connect a cable from this output to the microphone or line input of your powered speaker, amplifier, or mixing console.
What is the range of the microphones?
Being a VHF system, the effective range depends on the environment and obstacles, but it offers solid coverage for standard scenarios, classrooms and conference rooms without signal cuts in direct line of sight.
Project description
Dual VHF fixed-frequency wireless microphone system (200.175 MHz / 201.400 MHz) consisting of a desktop receiver and two bodypack transmitters. The set includes two headset microphones and two lavalier microphones with Mini XLR connectors. The receiver offers a signal-to-noise ratio greater than 85dB, total harmonic distortion (THD) less than 0.2%, and a frequency response of 40Hz to 20kHz. It features an unbalanced mixed audio output via a 6.3mm jack and a blue display for status indication. The receiver is powered by 220-240VAC, and the transmitters by two AA (3V) batteries. It is supplied in a rigid plastic carrying case.
