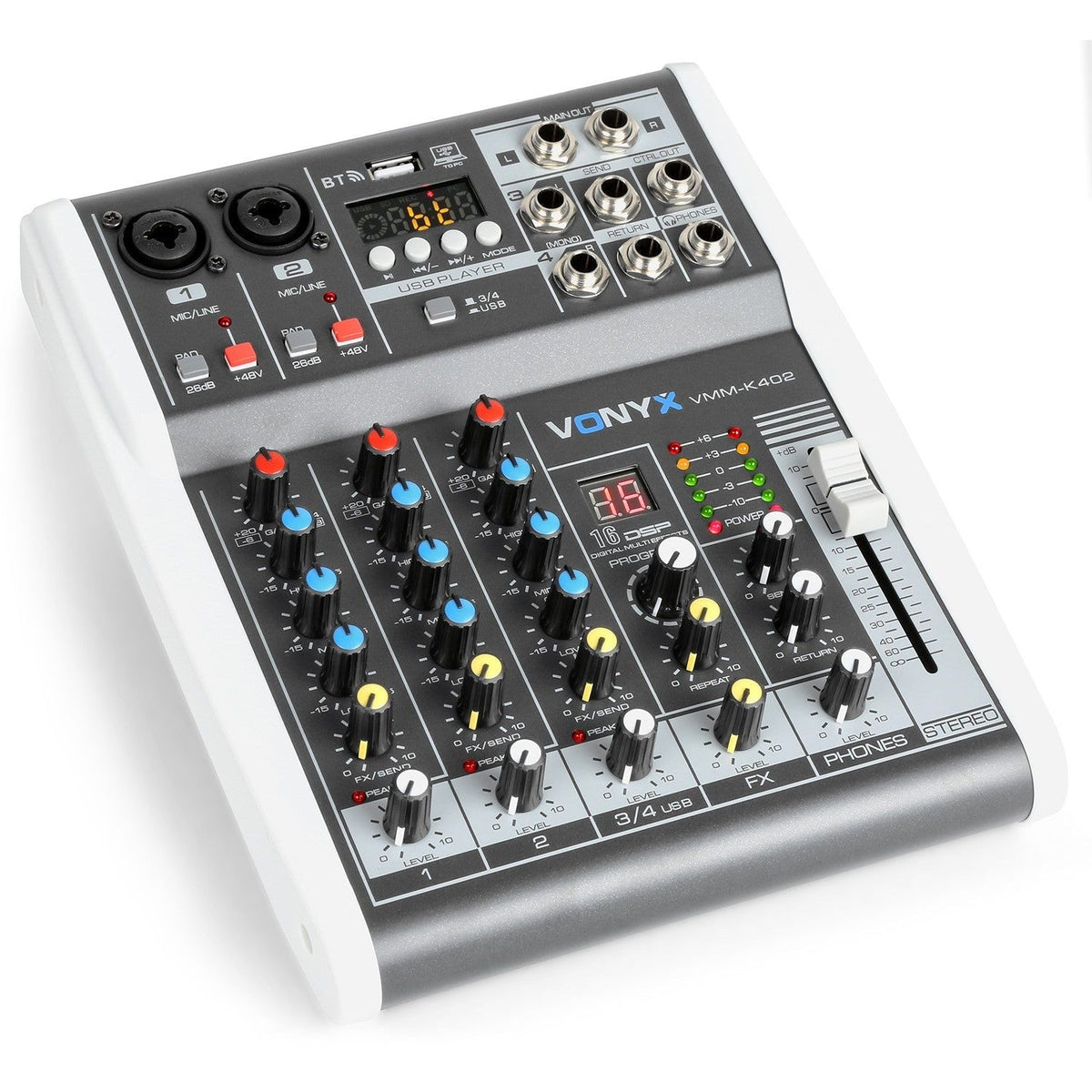

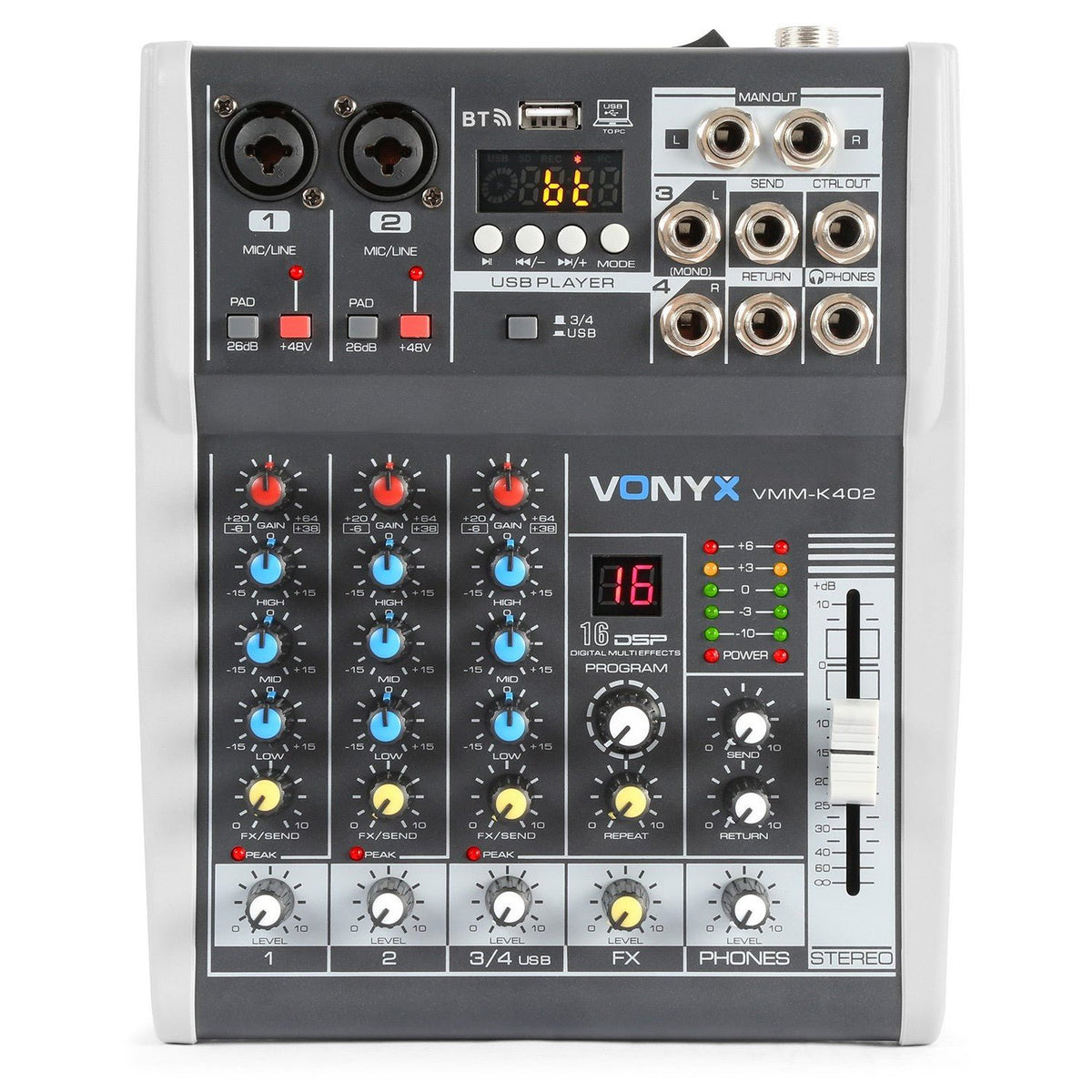

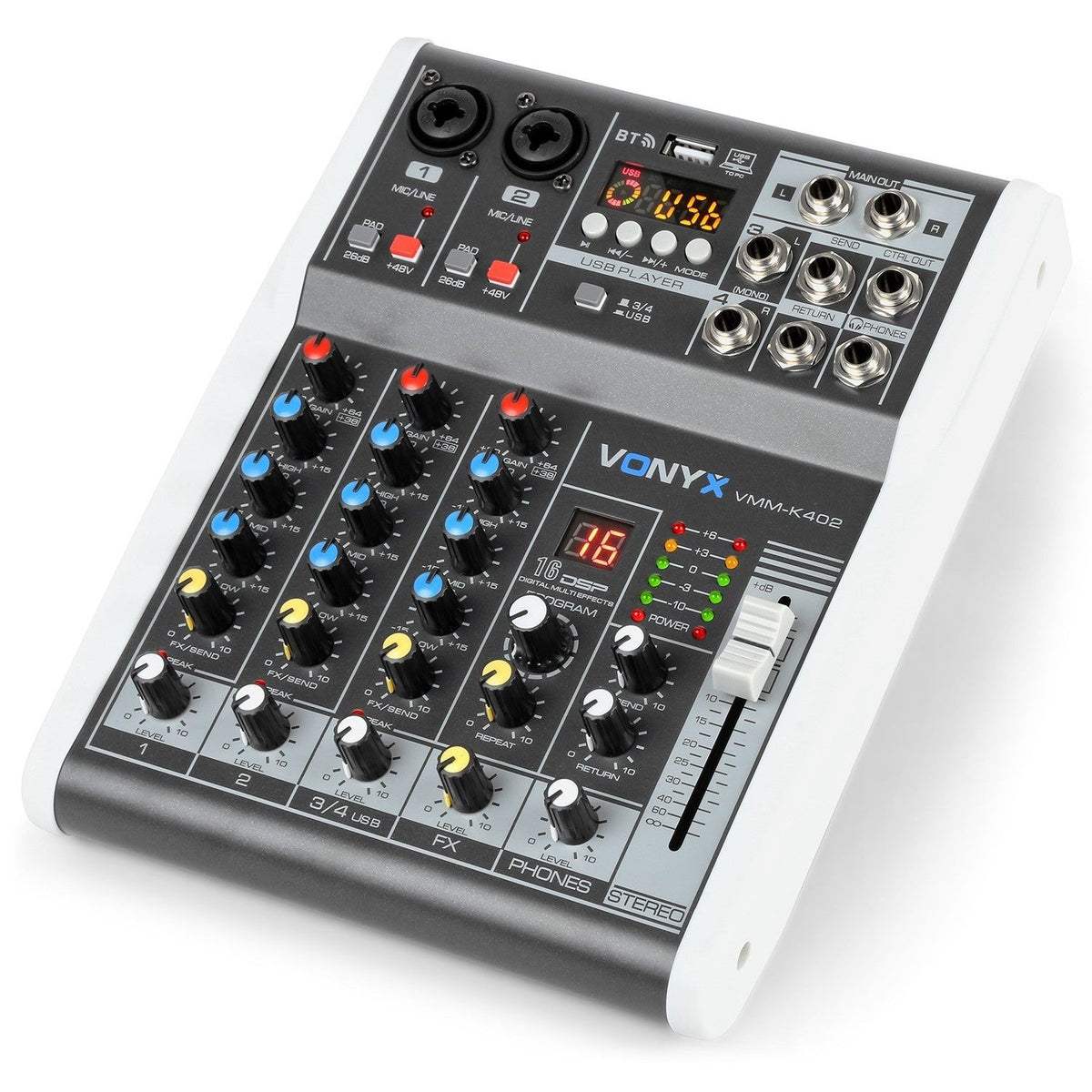

Vonyx VMM-K402 - 4-Channel Live Mixer with DSP and USB Interface
Discover the perfect balance between traditional analog mixing and modern digital connectivity with the Vonyx VMM-K402 . This 4-channel mixer is more than just a tool for combining audio signals; it's a complete production hub designed for musicians, podcasters, and small live events. Its robust construction and intuitive design allow anyone, from beginners to experienced technicians, to set up a professional sound system in minutes.
What truly sets the VMM-K402 apart from other compact mixers is its hybrid capability. Not only does it handle microphones and instruments with crystal-clear quality thanks to its high-end preamps, but it also functions as an integrated USB sound card . This means you can connect it directly to your computer to record your mixes in real time or play back digital audio without the need for external interfaces. Combined with its Bluetooth receiver, you have complete freedom to stream music from your smartphone or tablet directly to the main mix.
Professional Audio Control in a Compact Format
Despite its compact size, the VMM-K402 doesn't skimp on control. Unlike many mixers in its class that only offer basic two-band EQ, this model incorporates a 3-band EQ (Treble, Mid, and Bass) per channel . This gives you precise control over the tone of each voice or instrument, allowing you to easily clean up unwanted frequencies or bring out the body of a guitar.
In addition, the unit features a digital effects processor (DSP) with 16 pre-programmed presets . You no longer need to carry around external effects modules; with just the turn of a knob, you can add depth and dimension to your vocals or instruments using high-quality reverbs and delays, instantly enhancing the production value of your live performances or recordings.
Versatile Connectivity for Any Scenario
Input flexibility is key to the VMM-K402. It features two combo mono inputs (XLR/Jack) ideal for microphones or instruments, equipped with +48V phantom power for use with studio condenser microphones. It also offers a stereo line input for keyboards or external players. The balanced 6.3mm jack outputs ensure clean signal transmission to your speakers or amplifiers, minimizing noise and interference.
Main Features
-
USB Audio Interface: Works as a sound card for direct recording and playback with PC/Mac.
-
Integrated Bluetooth Receiver: Enables wireless audio streaming from mobile devices.
-
Complete Equalization: 3-band tone control (High, Mid, Low) on each channel for detailed mixing.
-
DSP Processor: 16 built-in digital effects to enrich the mix.
-
High Quality Preamps: Microphone inputs with individual +48V phantom power and -26dB attenuation pad.
-
Balanced Outputs: Master outputs on 6.3mm jack for a professional connection.
Product Benefits
The Vonyx VMM-K402 is designed to simplify the user's workflow. Its biggest benefit is equipment consolidation : it eliminates the need to purchase a separate audio interface, effects unit, and Bluetooth receiver. Furthermore, its individual phantom power per channel protects your dynamic microphones while powering condenser microphones, and the -26dB pad ensures that very strong signals don't distort the input, guaranteeing a clean sound at all times.
Use Cases
-
Home Studio and Podcasting: Connect it via USB to your computer to record studio-quality voices and manage the audio of your guests.
-
Live Performances (Duos/Soloists): Ideal for singer-songwriters who need to mix their voice, guitar and backing tracks via Bluetooth.
-

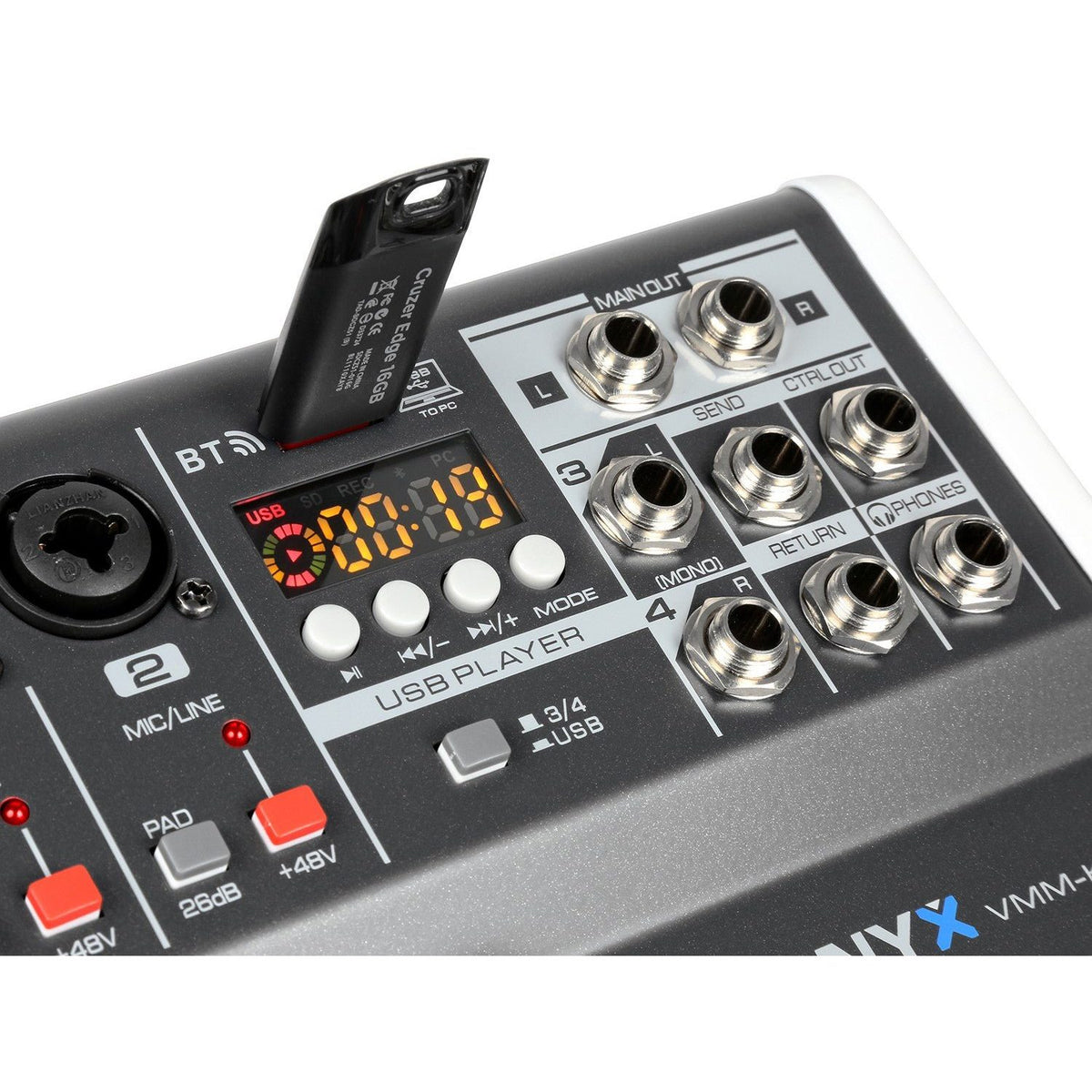

Karaoke and Events: Use the DSP to add echo to voices and mix background music from a USB flash drive or mobile device.
-
Multimedia Presentations: Easily and reliably mix speaker microphones with presentation audio.
Frequently Asked Questions
-
Do I need to install drivers to use it with my computer?
Generally, the VMM-K402 is automatically recognized (Plug & Play) by modern operating systems as a USB audio device, facilitating immediate recording.
-
Can I use condenser microphones?
Yes, the console has +48V phantom power, which is necessary for the operation of professional condenser microphones.
-
Can Bluetooth be used to send audio to wireless speakers?
No, the Bluetooth receiver is an input device , designed to receive music from a mobile phone or tablet and play it through the table to the wired speakers.
-
How do DSP effects work?
The mixer includes 16 presets. You select the desired effect with the digital control and adjust the amount of effect you want to apply to each channel using the FX Send controls.
Project description
Compact 4-channel analog mixer with integrated bidirectional USB audio interface. It features two mono inputs (XLR/Jack combo jack) and one stereo line input (6.3mm jack). It includes a DSP effects processor with 16 presets, a 3-band EQ (Treble, Mid, Bass) per channel, a Bluetooth receiver for audio streaming, and a USB MP3 player with digital display. It offers +48V phantom power, a -26dB pad on mono channels, balanced stereo main outputs (6.3mm jack), and a headphone output with independent level control. Frequency response is 15Hz to 22kHz, and THD is <0.01%.
