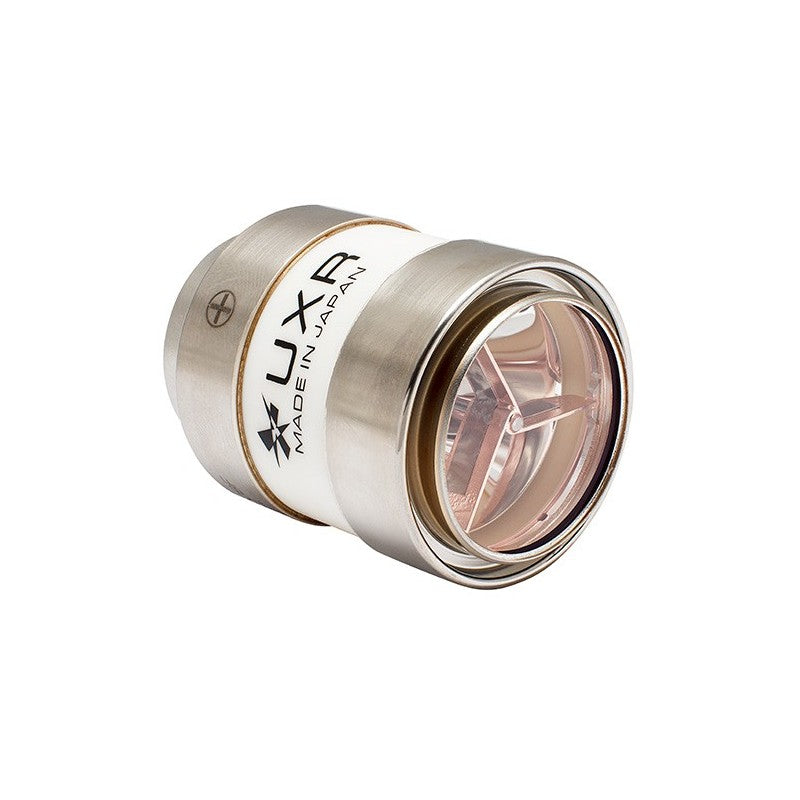

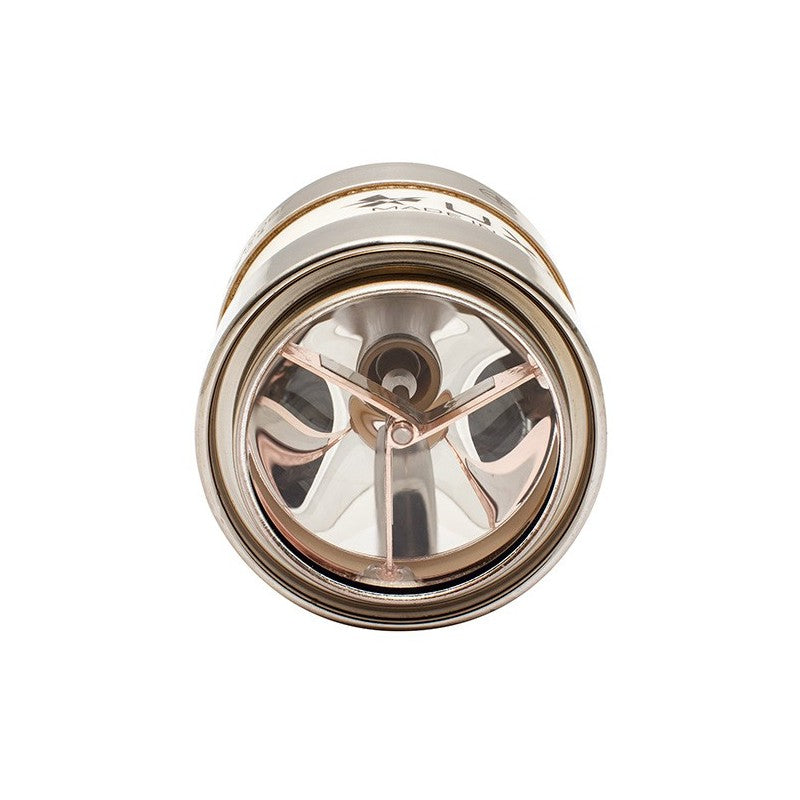

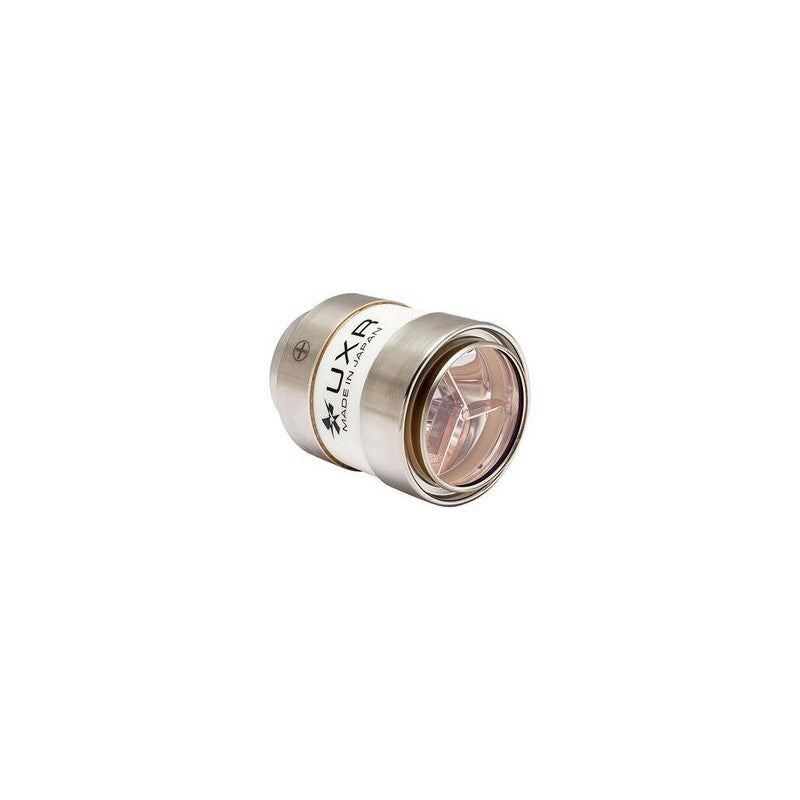

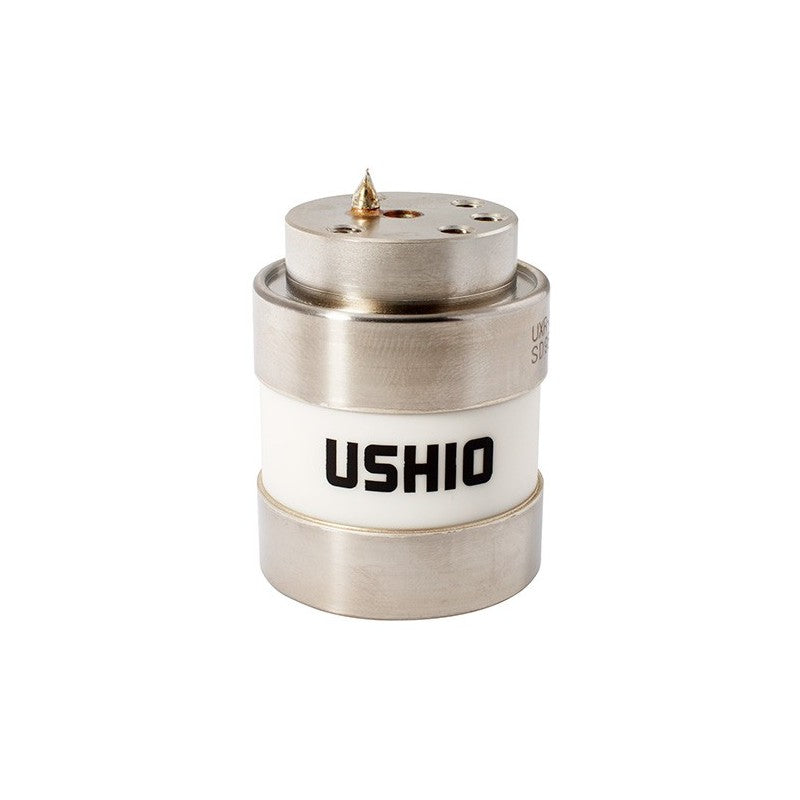

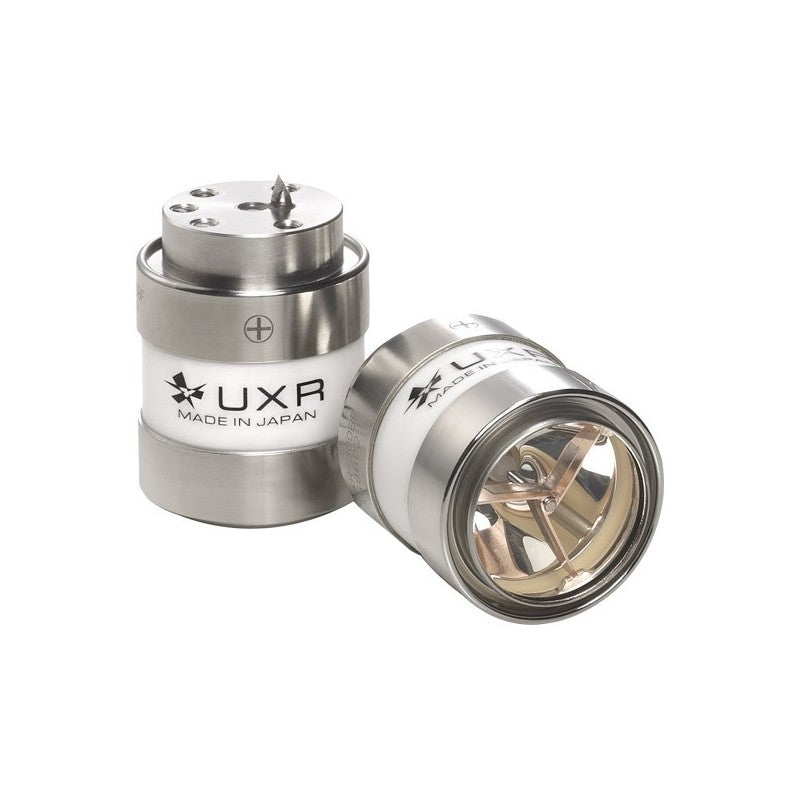

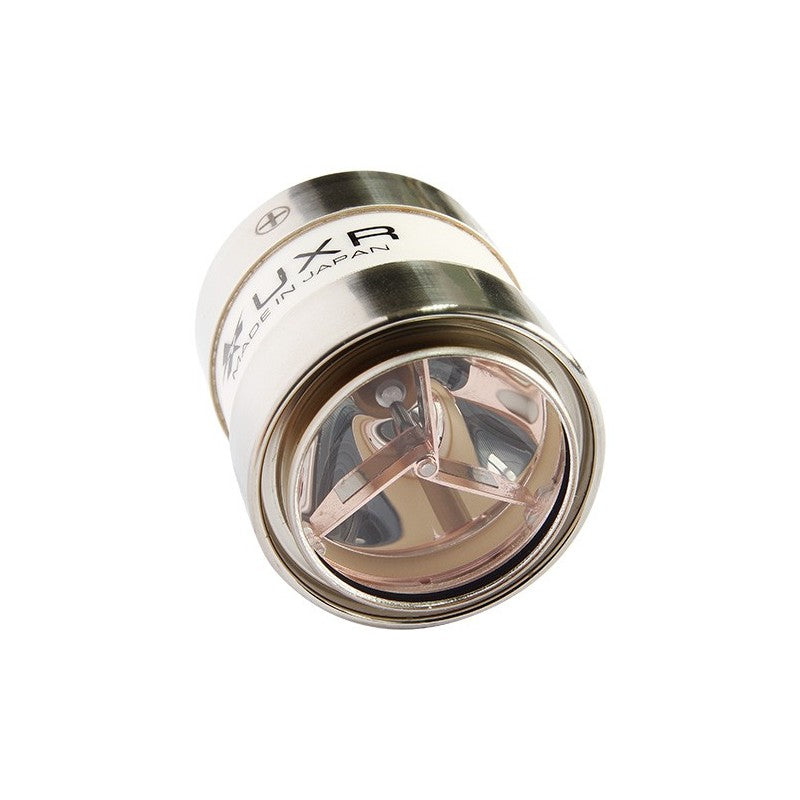

Ushio UXR-300BF - 300W (15V, 20A) Ceramic Xenon Lamp with Parabolic Reflector for Endoscopy and Microscopy
The Ushio UXR-300BF is a short-arc xenon lamp with a pre-aligned ceramic parabolic reflector designed for medical, scientific, and industrial light sources. It offers a continuous spectrum with a stable color temperature of 6100 K , superior luminous flux maintenance , and a window design that protects against scratches and contamination. Manufactured in an ISO- certified facility, it ensures lamp-to-lamp consistency and high reliability in demanding applications such as endoscopy , surgical lighting , microscopy , borescopy , spectroscopy , machine vision , solar simulation , and projection .
It operates at 300 W with 15 V and 20 A (range 18–21 A), delivering 4500 lm of visible output ( 1830 lm measured through a 5 mm aperture ) and 50 W of radiant output. It is ozone-free , requires forced cooling , and its operating position is horizontal . Mounting is achieved using a standard pattern of three 6-32 UN-2B threads at 120°, with a Ø25.4 mm window , a total length of 42.6 mm , and a body diameter of 32.8 mm .
Main features
-
Technology: Short arc xenon with pre-aligned ceramic parabolic reflector.
-
Power / supply: 300 W; 15 V; 20 A (range 18–21 A).
-
Color and spectrum: 6100 K; continuous visible-NIR spectrum; ozone-free .
-
Output: 4500 lm total; 1830 lm at 5 mm aperture; radiant output 50 W.
-
Life: 500 h (guarantee criteria, ≥60% of lumens) and up to 1000 h useful (≥50% of lumens).
-
Geometry: arc gap 1.5 mm; window Ø25.4 mm; total length 42.6 mm; body Ø 32.8 mm.
-
Operating conditions (lamp): horizontal position; forced cooling required ; max. body temperature 150 °C and base temperature 200 °C.
-
Power supply conditions: constant current/power control; ripple ≤5% pp; ignition voltage ≥ AC 23 kV ; minimum supply voltage 140 V.
-
Construction and quality: robust metal-ceramic sealing and protected window design for greater durability; manufactured under ISO standards.
Benefits for the user
-
Stable color and intensity for consistent medical imaging and optical analysis.
-
Fewer adjustments thanks to the pre-aligned reflector and repeatability between units.
-
Greater availability : controlled lumen degradation and specified life of up to 1000 h (useful).
-
Safety and cleanliness : front window protected against scratches and contamination.
Compatibility and typical uses
Suitable for endoscopy , surgical lighting , microscopy , borescopy , spectroscopy , machine vision , solar simulation , and projection . Used as a replacement in numerous 300W light sources from manufacturers such as Olympus , Storz , Stryker , Luxtec , ConMed/Linvatec , Pentax , Snowden-Pencer , and Isolux , among others (always verify the equipment's mounting, orientation, and electrical requirements).
It is frequently referenced in the market as a replacement for the Excelitas/PerkinElmer Cermax® PE300BF in compatible systems; prior verification of the mechanical and electrical equivalence of the assembly is recommended.
Frequently Asked Questions
Is it "300W" real? Yes, the UXR-300BF model operates at 300W (15V, 20A) with constant current/power control.
What should I consider during installation? Horizontal orientation, adequate forced cooling , AC ≥ 23 kV ignition, ripple ≤5% pp and fixing using the 3 thread pattern 6-32 UN-2B at 120°.
Project description
Ushio UXR-300BF ceramic xenon lamp with parabolic reflector (code 5002534): power 300 W; voltage 15 V; current 20 A (range 18–21 A); visible output 4500 lm (1830 lm at 5 mm aperture); radiant output 50 W; color temperature 6100 K; arc gap 1.5 mm; ozone-free spectrum; horizontal position; forced cooling; ripple ≤5 % pp; ignition ≥ AC 23 kV; minimum supply voltage 140 V; window Ø25.4 mm; total length 42.6 mm; body Ø 32.8 mm; parabolic reflector; life 500 h (warranty) / 1000 h (useful).
