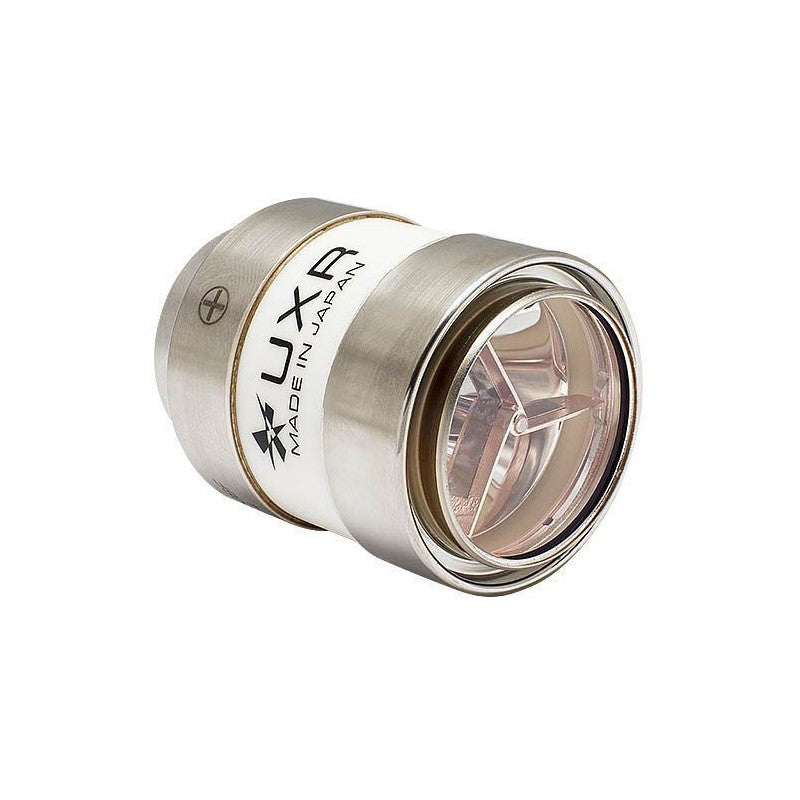

Ushio UXR-175BF Z1 - 175W (12.5V) Ozone-Free Ceramic Xenon Lamp with Parabolic Reflector for Endoscopy and Scientific Lighting
The Ushio UXR-175BF is a short-arc xenon lamp with a pre-aligned ceramic parabolic reflector designed to deliver continuous spectral output and stable color at 6100 K , with superior lumen maintenance and lamp-to-lamp repeatability. Its protected front window minimizes scratches and contamination, and the compact metal-ceramic body ensures robustness in demanding environments. Operating at 175 W with 12.5 V DC and a nominal current of 14 A (range 12.5–16 A), it offers 1900 lm of visible output ( 950 lm through a 5 mm aperture) and a total radiation of 30 W. It is ozone-free and requires a horizontal working position with forced cooling .
It is indicated for endoscopy , surgical lighting , microscopy , borescopy , spectroscopy , machine vision , solar simulation , and projection . The standard geometry ( 25.4 mm window diameter , 42.6 mm overall length , 32.8 mm body diameter , 1.1 mm arc gap ) and the 3× 6-32 UN-2B threaded mounting pattern at 120° facilitate its integration into numerous 175 W power supplies used in medical and industrial environments.
Main features
-
Technology: Short arc xenon with ceramic parabolic reflector (pre-aligned).
-
Power / supply: 175 W; 12.5 V DC ; 14 A nominal (range 12.5–16 A).
-
Spectrum and color: continuous visible-NIR output; 6100 K ; ozone-free .
-
Luminous output: 1900 lm initial; 950 lm through 5 mm aperture; radiant output: 30 W.
-
Lifespan: 500 h (guarantee criterion at 60% lumens) and 1000 h useful (50%).
-
Operating conditions (lamp): horizontal position ; forced cooling required ; max. body 150 °C and base 200 °C.
-
Power supply conditions: constant current and/or power control; ripple ≤ 5% pp ; ignition voltage ≥ AC 23 kV ; minimum supply voltage 140 V.
-
Construction and assembly: protected window; window Ø25.4 mm ; total length 42.6 mm ; body diameter 32.8 mm ; arc gap 1.1 mm ; fixing 3× 6-32 UN-2B at 120°.
-
Quality: Production with demanding quality control for consistent performance.
Product benefits
-
Xenon's characteristic color reproduction and stability with a continuous spectrum, ideal for medical imaging and optical analysis.
-
Sustained performance thanks to lumen maintenance and window protection.
-
Quick integration thanks to its pre-aligned reflector and standard mounting pattern.
-
Operational reliability with clearly defined electrical requirements (ripple, ignition and cooling).
Compatibilities and equivalencies
-
Reported compatibilities (examples): Luxtec 1900, 7000 (175 W), 9175 ; Olympus XLS (175 W), Y1176 ; Isolux XSB 180W Illuminator ; Sunoptics SolarMaxx 180, Titan 180 ; Zeiss Superlux 175. Always verify the orientation, mounting, and electrical requirements of the equipment before replacing.
-
Common equivalents: Excelitas/PerkinElmer PE175BF/PE175BFA and other Cermax® 175 W references with equivalent parameters and geometry (preliminary check recommended).
Use cases
-
Endoscopy and surgical beacons in clinical settings.
-
Microscopy , borescopy and machine vision in R&D and production.
-
Spectroscopy , solar simulation and projection in laboratories and optical benches.
Frequently Asked Questions
Is this version “ozone-free”? Yes. The UXR-175BF is specified with an ozone-free spectrum , reducing <200 nm emissions and ozone generation within the housing.
Does it replace PE175BF? In many systems, yes. They share power (175 W), horizontal orientation, 25.4 mm window, and 3-hole mounting pattern; always verify the mechanical and electrical compatibility of your equipment.
Project description
Ushio UXR-175BF parabolic ceramic xenon lamp (code 5003096): power 175 W; voltage 12.5 V DC; current 14 A (range 12.5–16 A); visible output 1900 lm (950 lm at 5 mm aperture); radiant output 30 W; color temperature 6100 K; ozone-free spectrum; life 500 h (60% lumens) / 1000 h useful (50%); horizontal position ; forced cooling; ripple ≤ 5% pp; ignition ≥ AC 23 kV; minimum supply voltage 140 V; window Ø25.4 mm ; total length 42.6 mm; body diameter 32.8 mm; arc gap 1.1 mm; mounting 3× 6-32 UN-2B thread at 120°.
