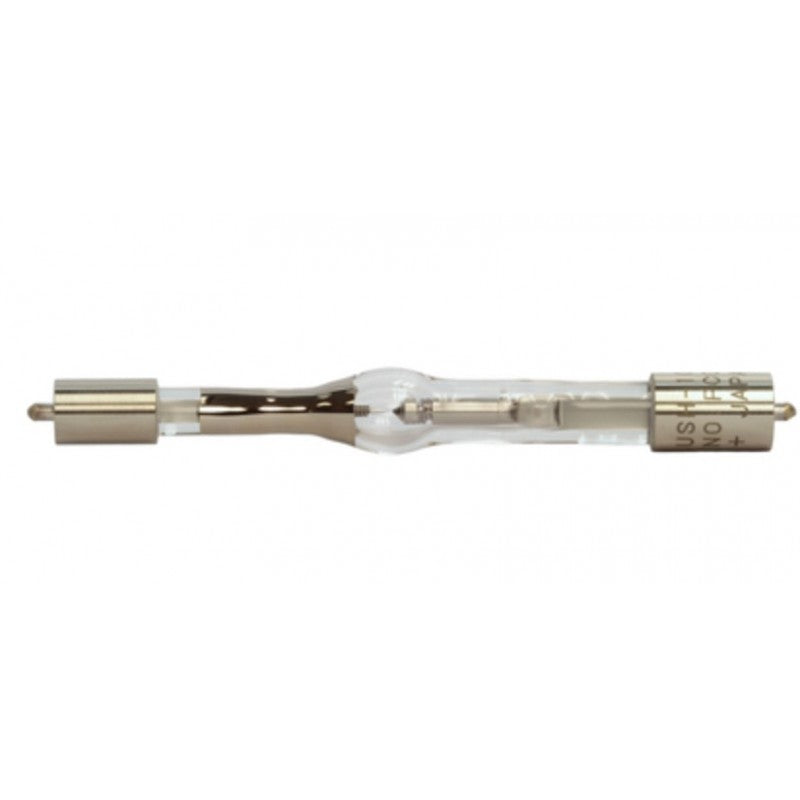

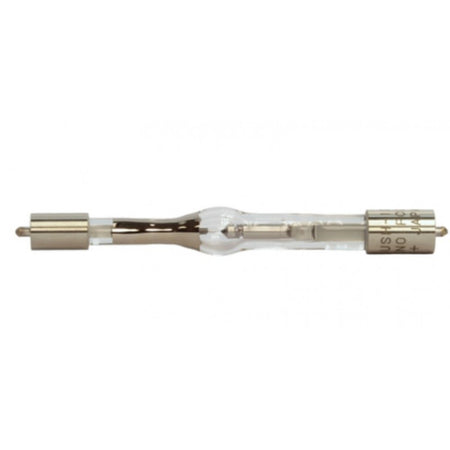

USHIO MERCURY LAMP USH-103D 100W 20V 3300 LM

USHIO USH-103D Lamp

• Improved electrode design for precise positioning and high arc stability
• Improved manufacturing process allows for extended lifespan (300 hours)
• USHIO developed products with strictly controlled ISO quality processes
• Designed for use on all 100W fluorescent microscope systems

Characteristics

• Power: 100W
• Voltage: 20V
• Intensity: 5A
• Luminous flux: 3000lm
• Lifespan: 300h

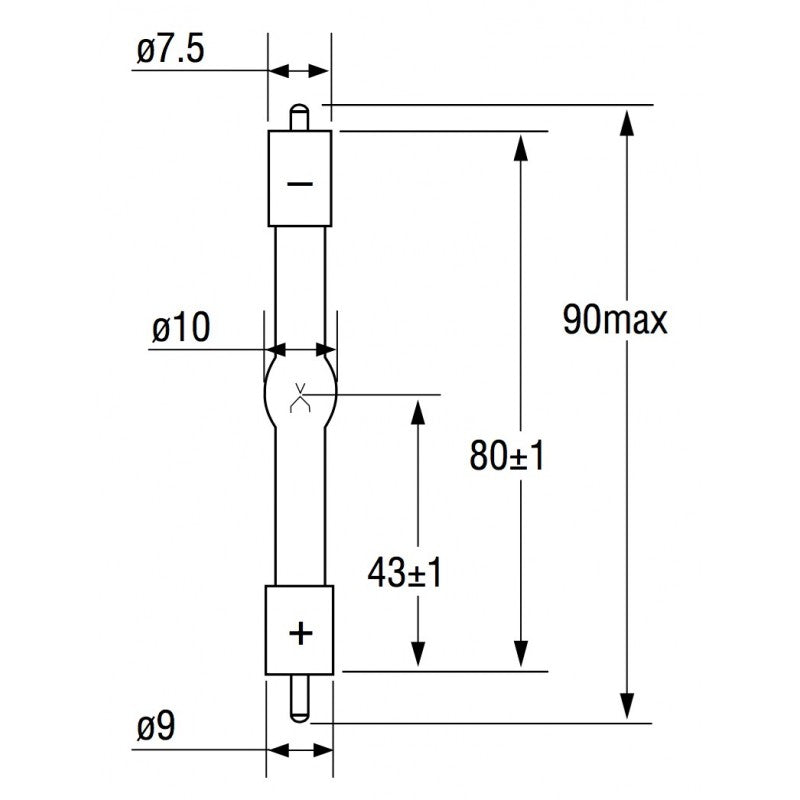

• Diameter: 10mm

ID

• Brand: USHIO
• Type: Mercury
• Model: MERCURY SHORT-ARC LAMP (USH-103D)
• Description: USH-103D, Hg 100W
• Code: 5001329

Applications. This lamp model is used for the following equipment, among others:

• Dental instruments
• • Dentsply brand for the Ultra Cure 100 model
  • Efos brand for the Ultra Cure 100 model
  • Ld Caulk brand for the Ultra Cure 100 model
• Microscopes
  • Leitz brand for model 500-138
  • Leitz brand for the LH100Z model
  • Leitz brand for model LH102Z
  • Olympus brand for model 8B192
  • Olympus brand for model BH2RFL
  • Olympus brand for the BHRFL model
  • Olympus brand for model IMT2RFL
  • Zeiss brand for model 3800184060
  • Zeiss brand for model 381613
  • Zeiss brand for Axiolab, Axioskop, Axioplan, Axiopho models
  • Zeiss brand for model 3803019350

Note: Continuous updates in electrode material technology and investments in cutting-edge manufacturing processes allow manufacturer USHIO to further improve light degradation characteristics versus lifetime.

Equivalents: This lamp model is equivalent to other manufacturers such as Osram with the Osram HBO 103W/2 model.
