Electro-Voice TXA - TA4 to XLR Adapter with Preamp and High-Pass Filter for EV/Telex Microphones

Electro-Voice TXA - TA4 to XLR Adapter with Preamp and High-Pass Filter for EV/Telex Microphones

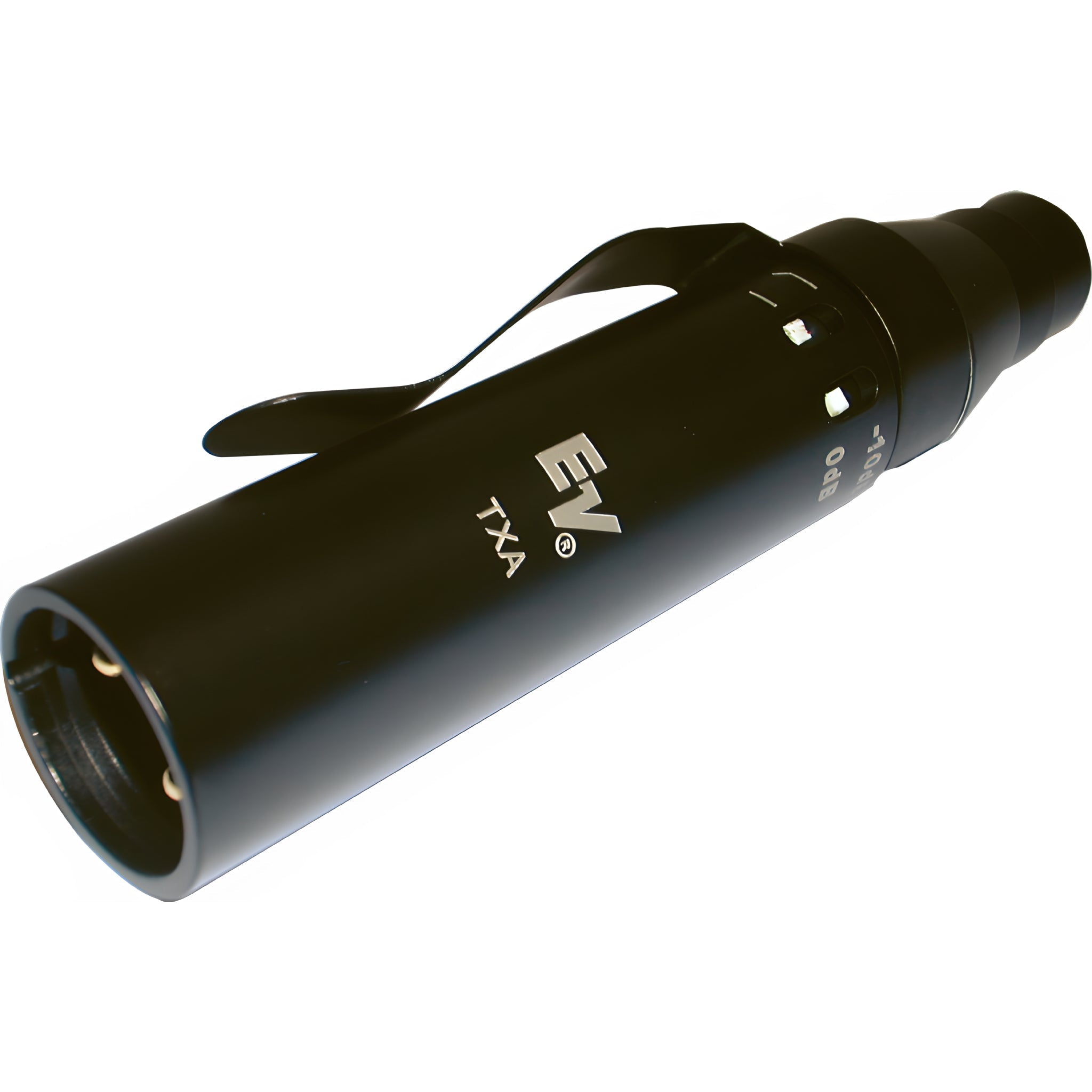

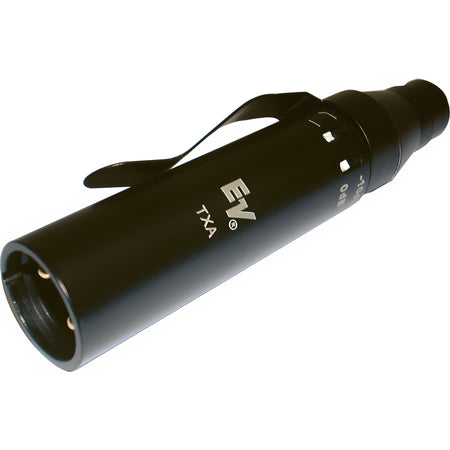

The Electro-Voice TXA is an in-line adapter/preamplifier that allows wired (XLR) use of TA4F-terminated lavalier and headset microphones—such as the RE920TX , RE97TX / RE97-2TX , RE97LTx , or HM7 —by connecting them directly to a phantom-powered mixing console or interface. The TXA converts standard console phantom power (9–52 V) to the correct bias voltage for back-electret condenser capsules used by EV/Telex bodypack microphones, and delivers a balanced signal via XLR, with additional high-pass filter control and −10 dB pad for level matching and low-frequency rumble.

Its plug-and-play design streamlines your workflow for rental, live, theater, or corporate applications: connect the TA4F microphone to the TXA's TA4M connector , power it from the mixer, and connect the male XLR output to the appropriate channel. A belt clip is included for securing it to the performer or a music stand.

Main features

• EV/Telex Universal Interface: TA4M input for TA4F (wireless lavalier/headset) microphones and balanced male XLR output.
• Power: Operates on 9–52 V phantom power and supplies +5 V bias to the microphone (max. current 2 mA ).
• Integrated Bass Control: Switchable high-pass filter (typical cutoff at 100 Hz , −6 dB) to minimize rumbles/pops.
• Level management: switchable −10 dB attenuator for high-level sources or voices.
• Wide response: 20 Hz–20 kHz to maintain the microphone's tonal quality.
• Ergonomics: In-line format with included belt clip .

Product benefits

• Convert your wireless mic to wired: use your TA4F lavaliers/headsets directly to XLR without a beltpack or receiver.
• Consistent sound: Correct polarization and HPF filter preserve clarity and intelligibility in voice and instruments.
• Instant integration: compatibility with standard mixers thanks to phantom power and balanced XLR output.

Compatibility and use cases

• Compatible EV/Telex microphones (TA4F): RE920TX , RE97TX , RE97-2TX , RE97LTx , HM7 , among other headband and lavalier models for bodypacks.
• Applications: corporate speech and presentations, theater and worship, vocal reinforcement at events, and AV rentals.

Frequently Asked Questions

• Does it require external power? Yes, it requires 9–52 V phantom power from the console/interface.
• Does it work with XLR dynamic mics? No. The TXA is designed for EV/Telex TA4F (bodypack type) condenser mics.
• Does it include a bass control and pad? Yes, it has a switchable HPF (100 Hz) and a −10 dB attenuation .

Description for projects

Electro-Voice TXA in-line adapter/preamplifier; TA4M input (for TA4F EV/Telex mics); balanced male XLR output; 9–52 V phantom power; +5 V microphone bias (max. 2 mA ); switchable high-pass filter (100 Hz, −6 dB); −10 dB pad ; 20 Hz–20 kHz response; includes belt clip ; weight approx. 58.5 g .
