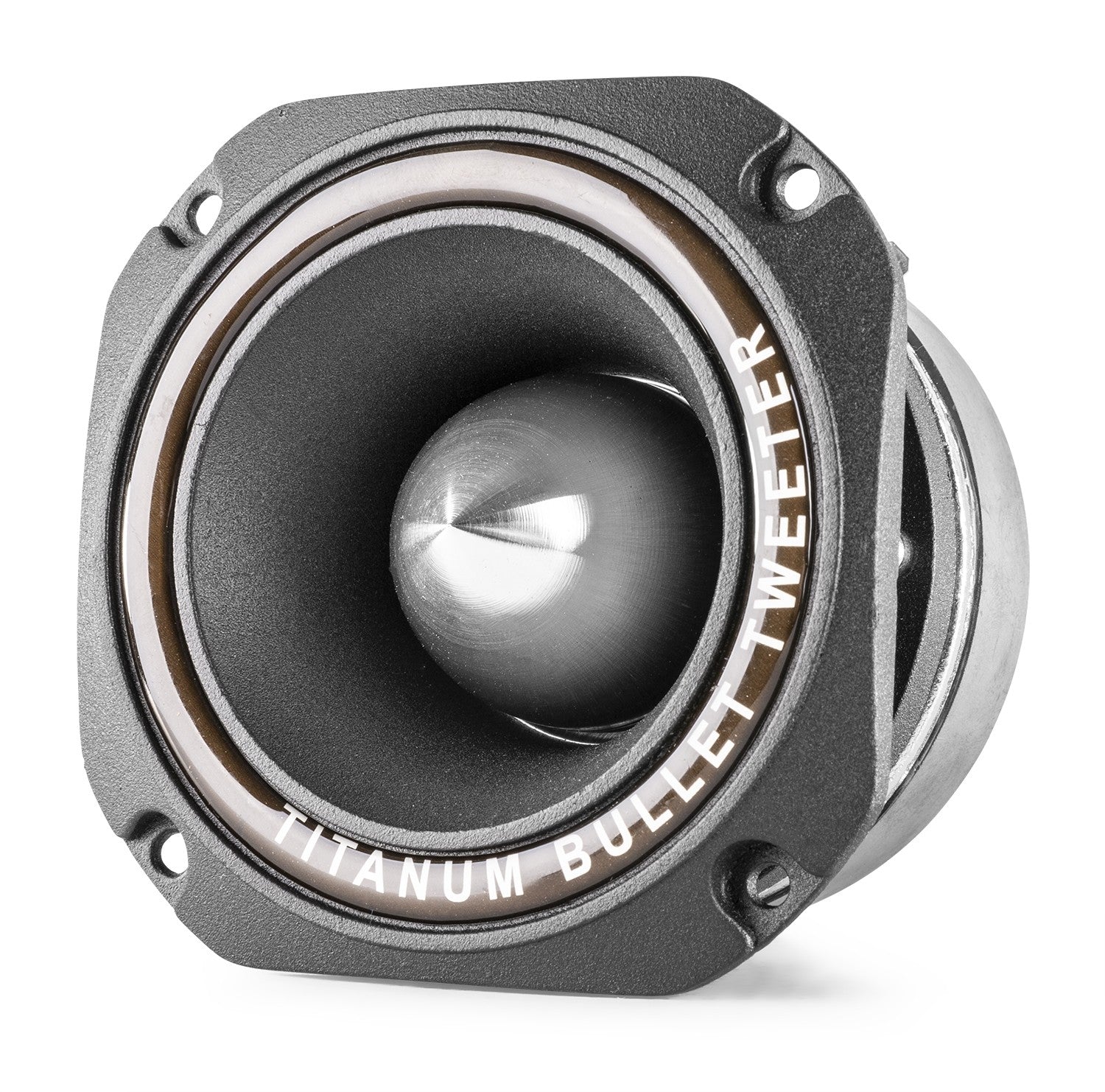

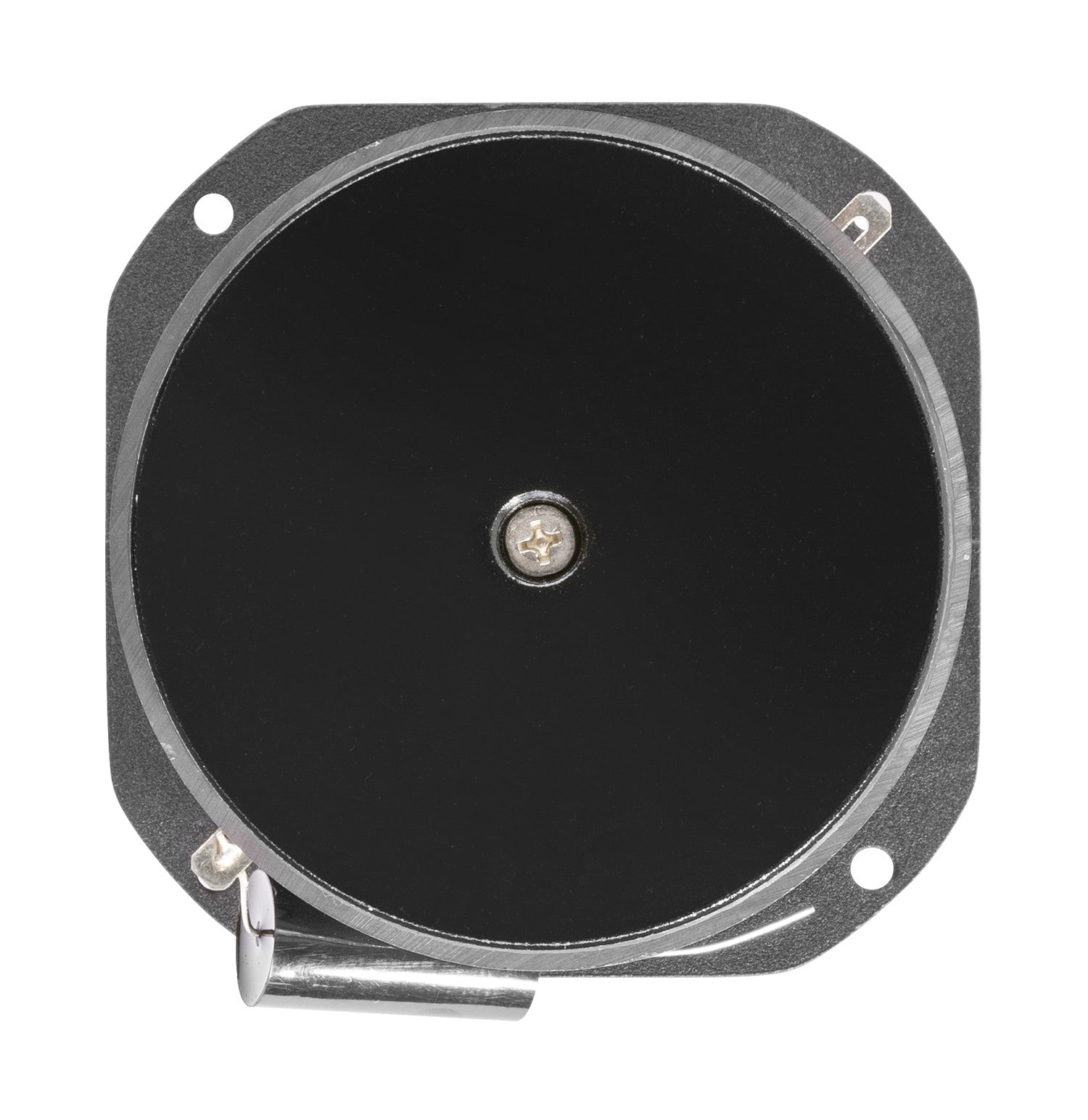

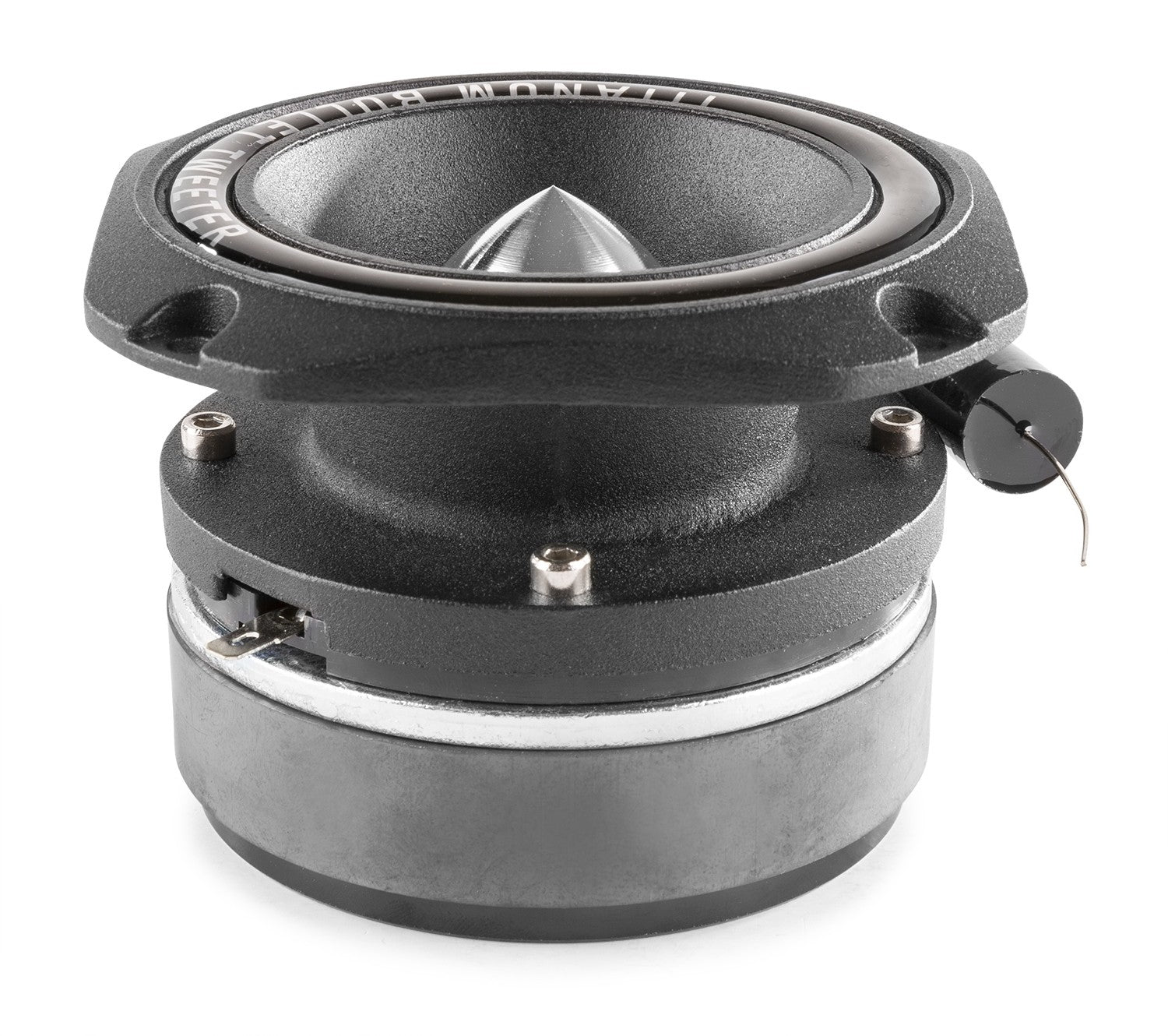

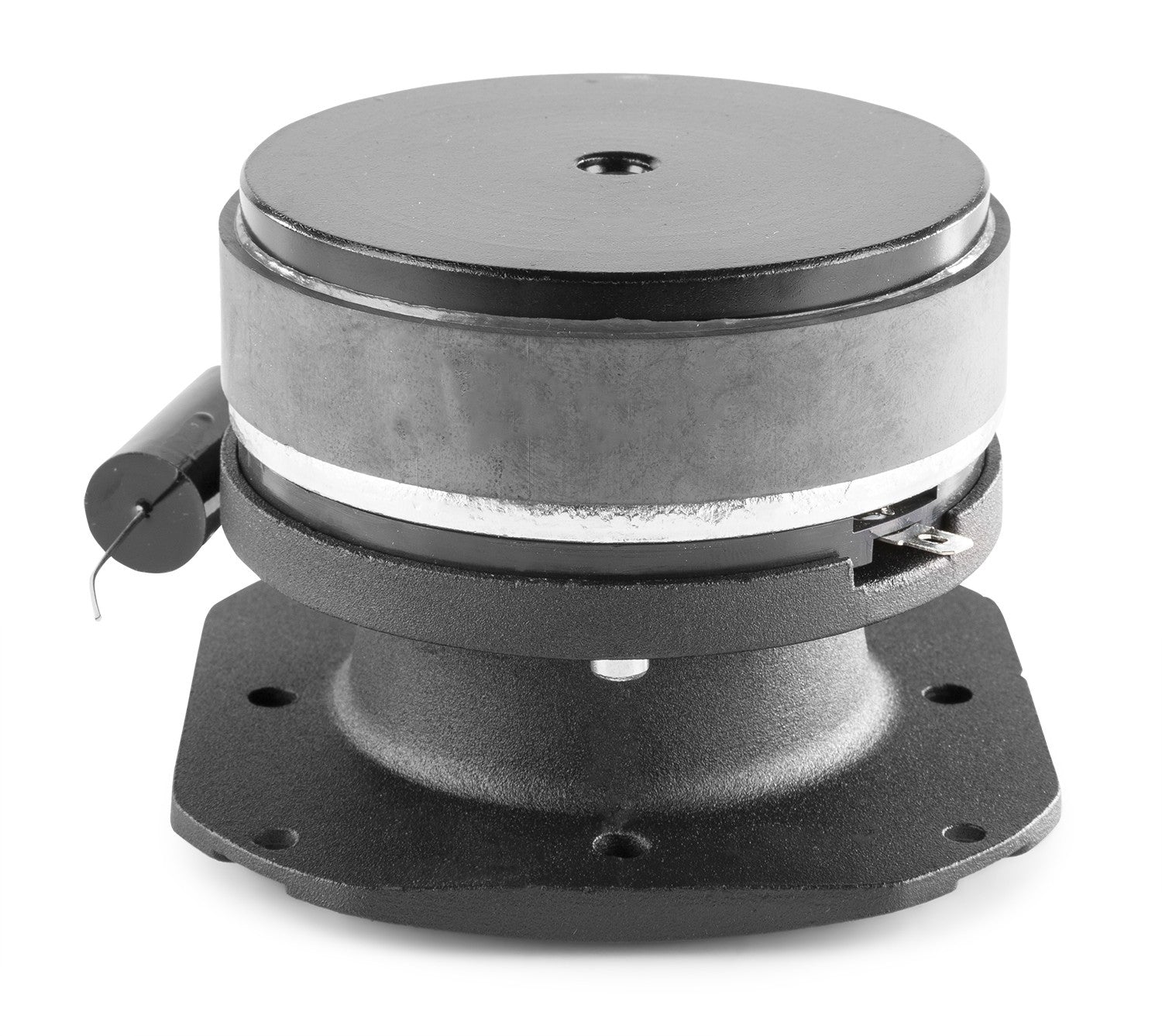

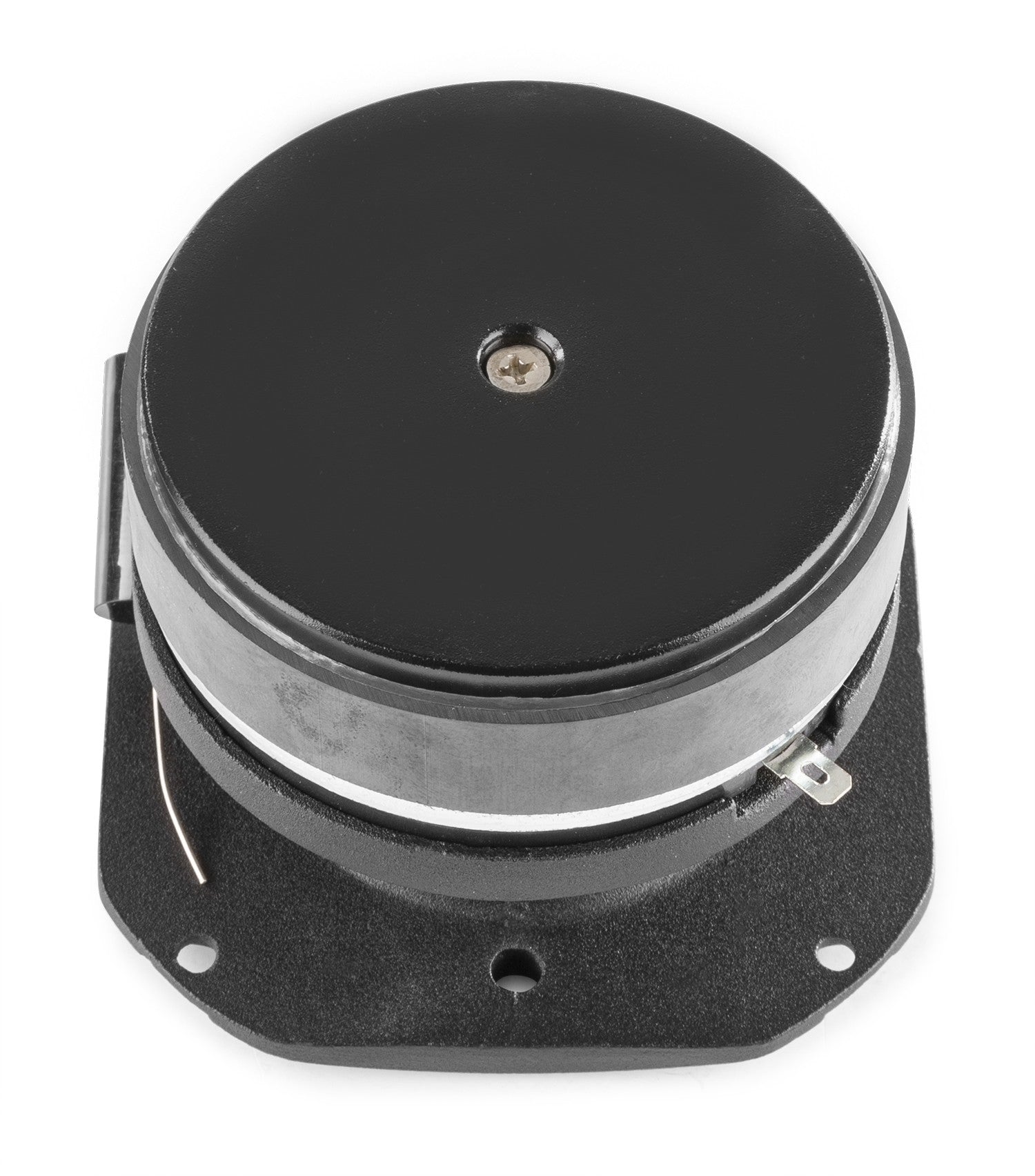

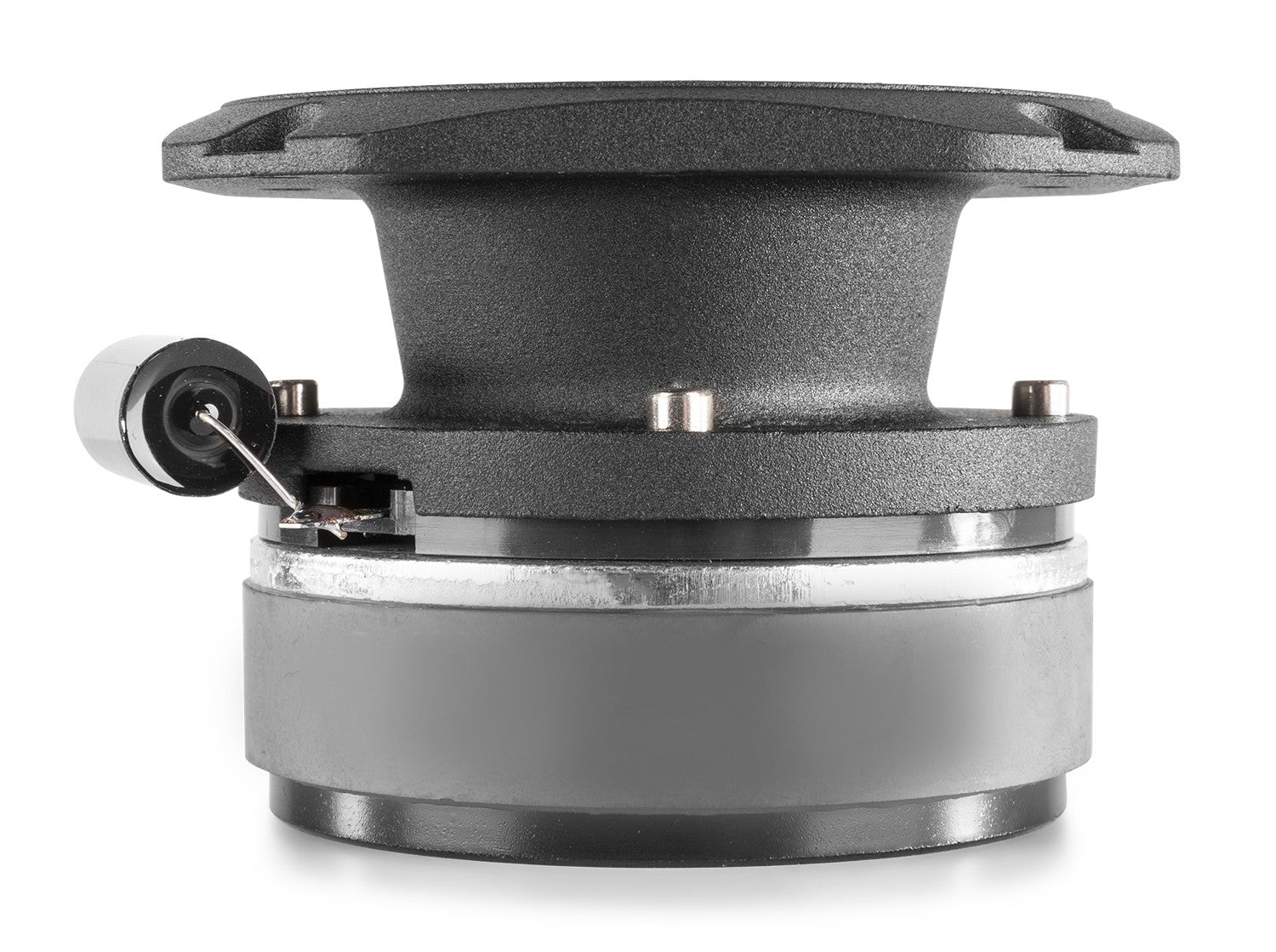

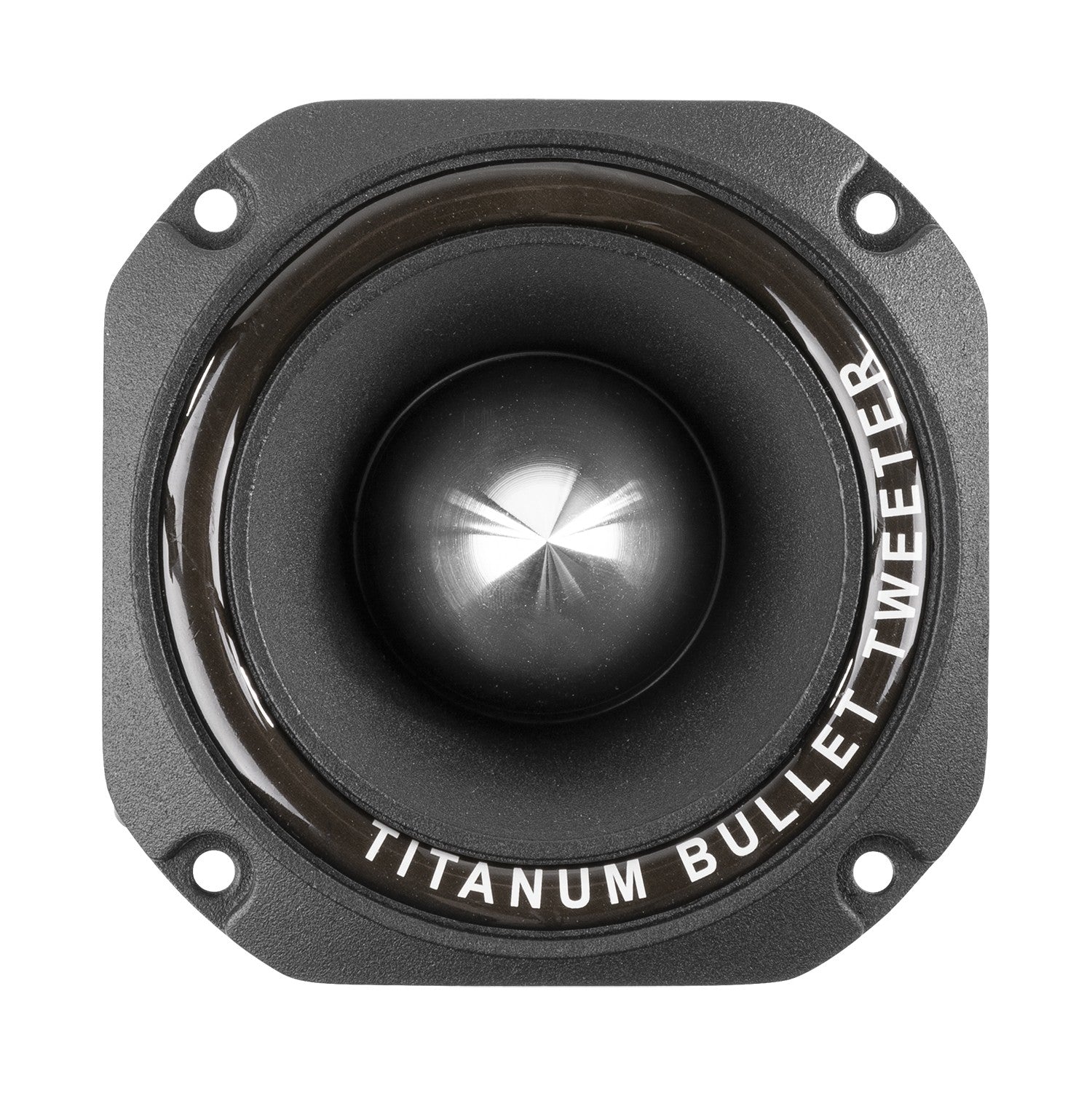

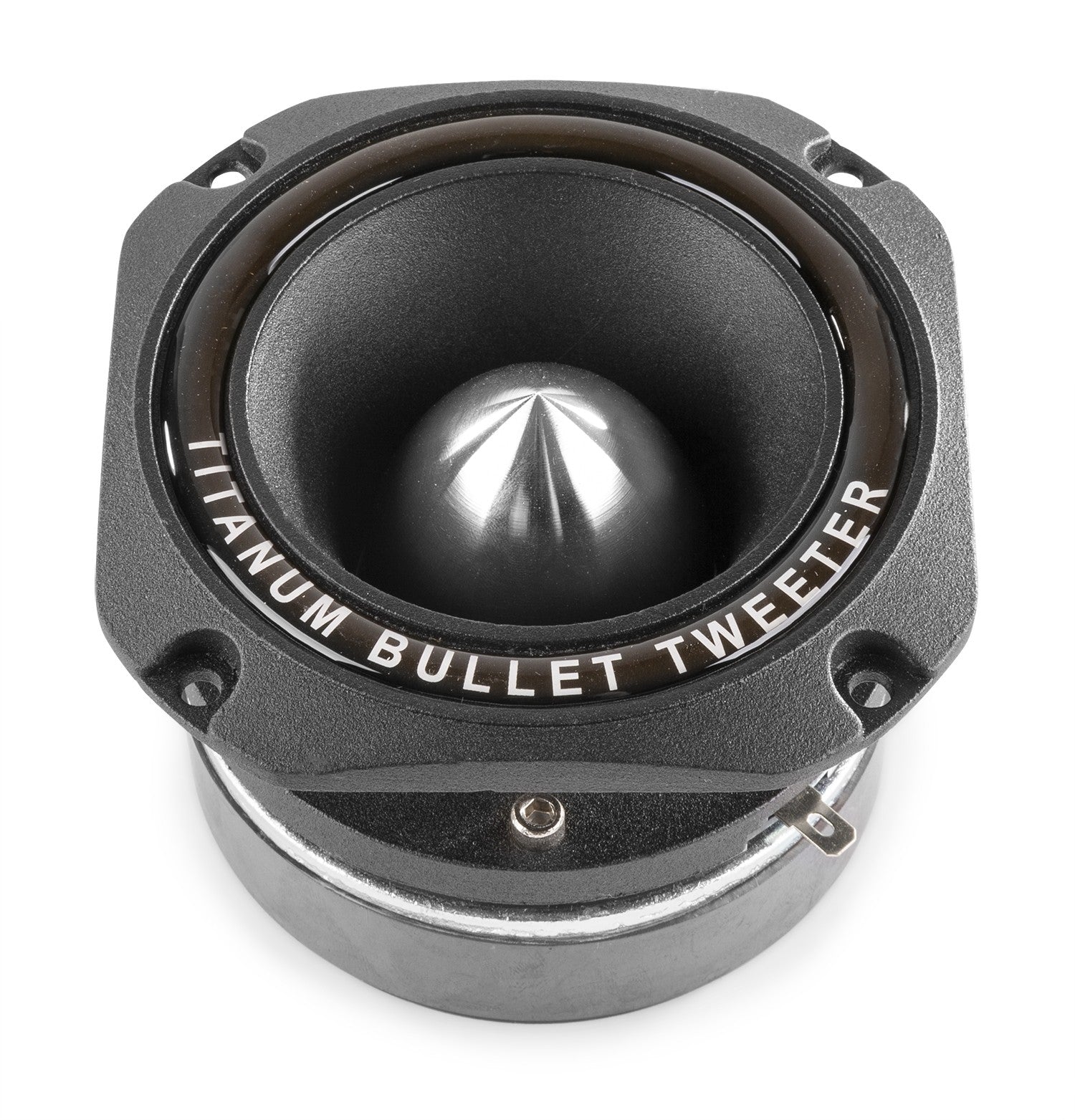

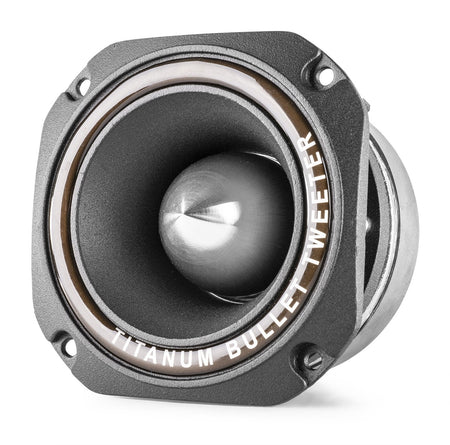

Vonyx 902.346 - Professional Titanium Pro Series Tweeter 100W

Vonyx 902.346 - Professional Titanium Pro Series Tweeter 100W

The Vonyx 902.346 is a high-performance tweeter from the PRO series, designed to meet the demands of professional sound systems. This component is meticulously crafted to deliver exceptional clarity and power in high-frequency reproduction. Its core features a titanium diaphragm and a 44 mm (1.75 inch) voice coil, driven by a powerful magnet. This combination ensures a crisp, detailed, and distortion-free response, even at high volumes, making it the perfect choice for building, repairing, or upgrading professional loudspeakers.

Main Features

This tweeter has been developed with high-quality components to ensure durability and superior sound performance in intensive use environments.

• Titanium Diaphragm: The use of titanium in the 1.75-inch diaphragm provides exceptional rigidity with minimal weight. This results in extremely accurate, fast, and detailed treble reproduction, capable of reaching up to 30,000 Hz to capture all the harmonics and nuances of the sound.
• High Sensitivity and Power: With a maximum power of 100W and an impressive sensitivity of 105 dB (1W/1m), this tweeter is incredibly efficient. It is capable of generating high sound pressure levels with very little amplifier power, ensuring impactful and clear sound.
• 44mm Voice Coil: The robust 1.75-inch voice coil is designed for effective heat dissipation, allowing it to withstand power spikes without damage and maintain stable performance during long usage sessions.
• Robust Construction: Equipped with a powerful 15-ounce magnet, this tweeter offers precise control over diaphragm movement, resulting in lower distortion and superior transient response. Its solid chassis ensures secure installation and a long lifespan.

Benefits for Professional Sound

Integrating the Vonyx 902.346 tweeter into an audio system offers significant advantages. Its ability to reproduce high frequencies with clarity makes it indispensable for a complete and balanced sound mix. Its high efficiency reduces the load on amplifiers, allowing the overall system to sound louder and cleaner. It is a reliable and powerful solution for both fixed installations and portable sound systems.

Use Cases

The versatility and performance of the Vonyx 902.346 make it ideal for a wide range of professional audio applications, including:

• PA (Public Address) Systems: Perfect for venues, live events and conferences where speech intelligibility and instrument clarity are crucial.
• DJ Speakers: Provides the brilliance and detail needed for electronic music, energetically reproducing hi-hats, synthesizers and high-frequency effects.
• Stage Monitors: Provides musicians on stage with a clear and accurate sound return so they can hear their performance in detail.
• DIY Audio Projects: An excellent option for enthusiasts and professionals who build their own hi-fi or sound reinforcement speakers, seeking professional-level performance.

Frequently Asked Questions

What type of amplifier is recommended for this tweeter?
A quality amplifier capable of delivering stable power to a 4-ohm load is recommended. It is essential to use it with a suitable filter or crossover for protection.

Do I need to install a filter or crossover?
Yes, it's absolutely essential. This tweeter must be protected from low and mid frequencies. A high-pass filter with a recommended cutoff frequency of 3,800 Hz or higher should be used to prevent damage and ensure optimal performance.

Is the 100W power RMS or peak?
The manufacturer's specification indicates a power rating of 100W. Generally, with this type of component, this refers to the maximum or programmed power. It is recommended not to exceed the continuous operating power to ensure its longevity.

Is it a dome tweeter or a bullet tweeter?
This component uses a dome-shaped diaphragm made of titanium, which is integrated into a compression driver. This design gives it the appearance and projection characteristics of a bullet or diffuser tweeter, combining the precision of a dome with the high efficiency of a horn.

Project description

Professional compression tweeter with titanium diaphragm. Power output: 100W. Impedance: 4 ohms. Voice coil: 44 mm (1.75 in). Frequency response: 3,800 - 30,000 Hz. Sensitivity (SPL @ 1W/1m): 105 dB. Mounting diameter: 91 mm. Overall dimensions: 100 x 100 x 73 mm. Magnet weight: 425 g (15 oz). Total weight: 1.35 kg.
