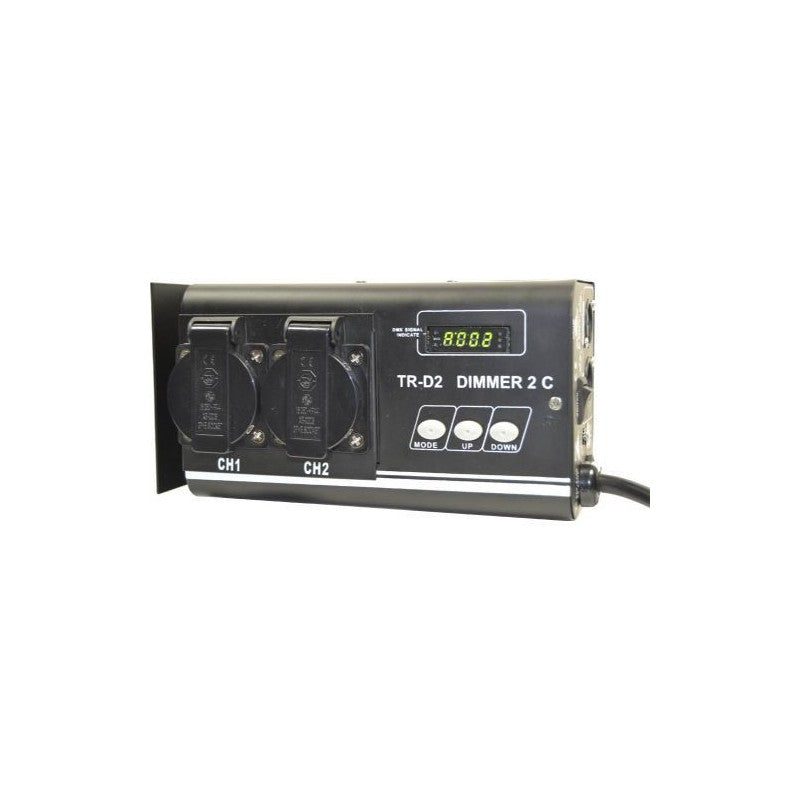

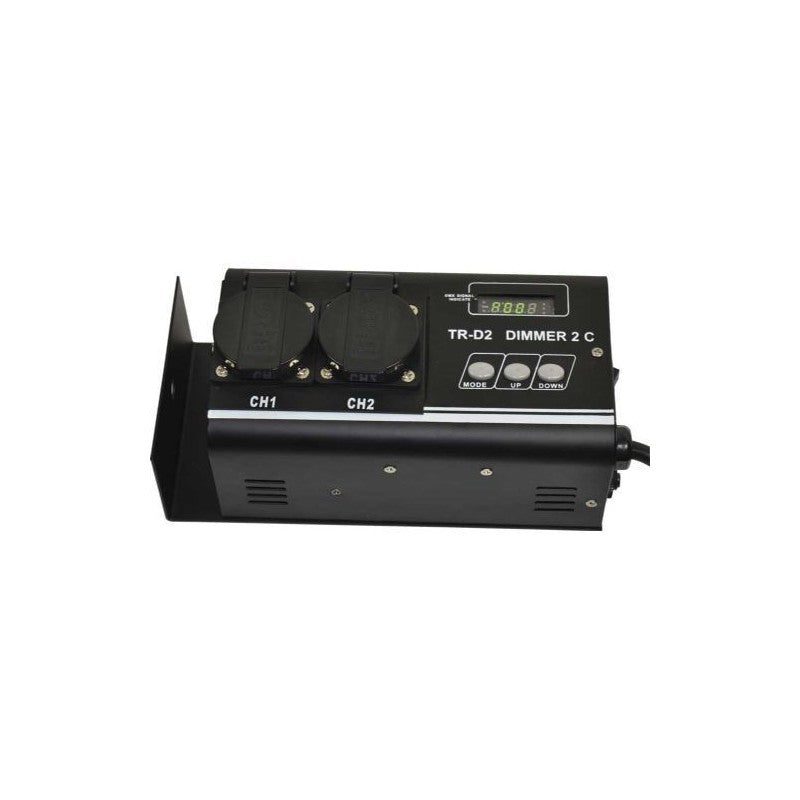

Triton Blue TR-D2 - TRITON BLUE DIMMER 2 DMX CHANNELS

2-channel DMX dimmer TR-D2

• Stand-alone operation or via DMX control.

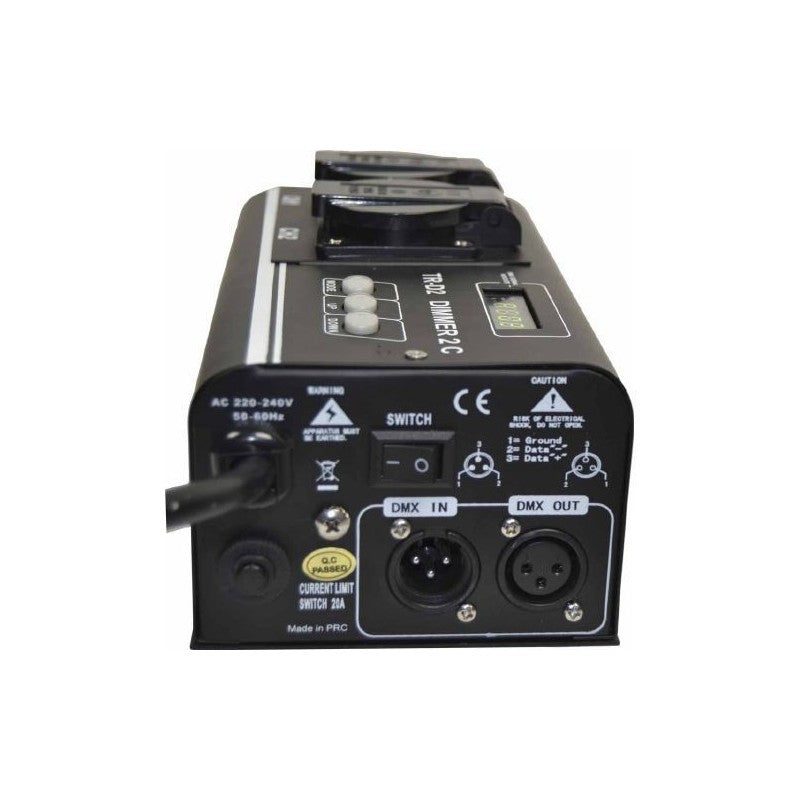

• Two Schuco connectors with a total of 16A for the dimmed channel output. Female and male XLR connections for DMX compatibility.
• Housing design makes it ideal for fixed or mobile applications.
• For small installations where a DMX dimming channel is required, it can be used for shop windows, art galleries, Christmas lighting, theater companies, lighting equipment rental companies, etc.

• Characteristics
  • 2-channel DMX dimmer.
  • Possibility of autonomous operation without DMX signal.

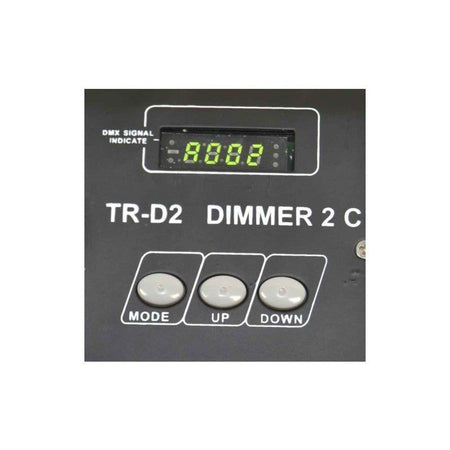

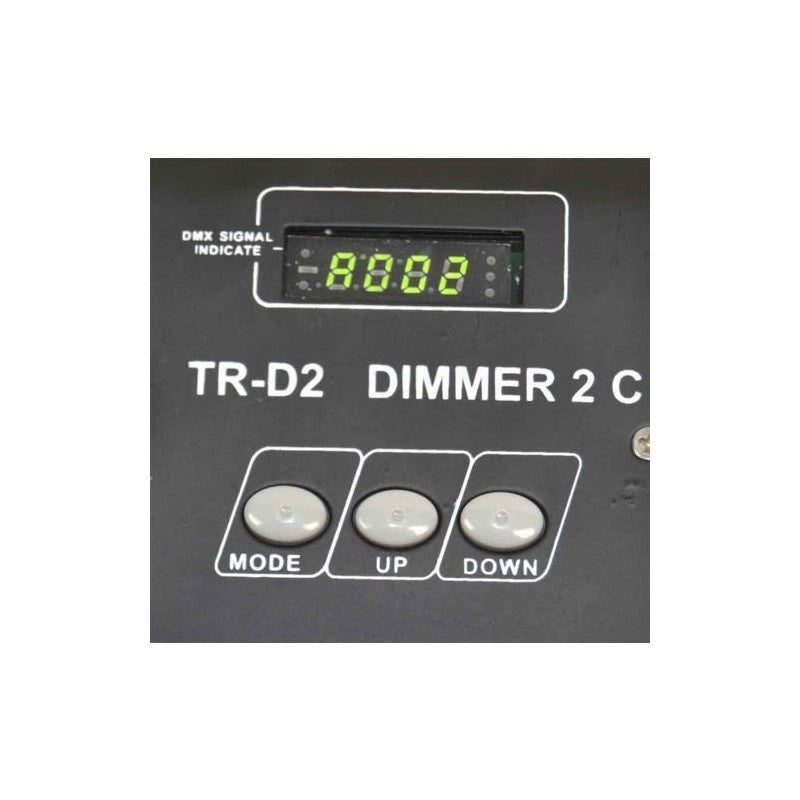

  • LCD display for parameter setting.
  • Power output via 2 16A Schuco connectors.
  • Easy mounting with wall bracket.
  • Maximum power 3500W.
  • Power supply 220-240V - 50-60 Hz.
  • Measurements (L x W x H) 182 x 92 x 65mm.
  • Weight 1.1 kg.

• Description for projects and tenders
  • 2-channel TR-D2 Triton-Blue dimmer with stand-alone operation via on-board pushbuttons monitored via integrated LCD display or via DMX 512 signal, DMX signal input and output via 2 x 3-pin male and female XLRs and a power output of up to 16 Amps (3,500 Watts) via 2 x 16 Amp Schuko connectors. Dimensions 182 x 92 x 65 mm and a weight of 1.1 kg. Includes power cable with 16 Amp Schuko cable connector.
