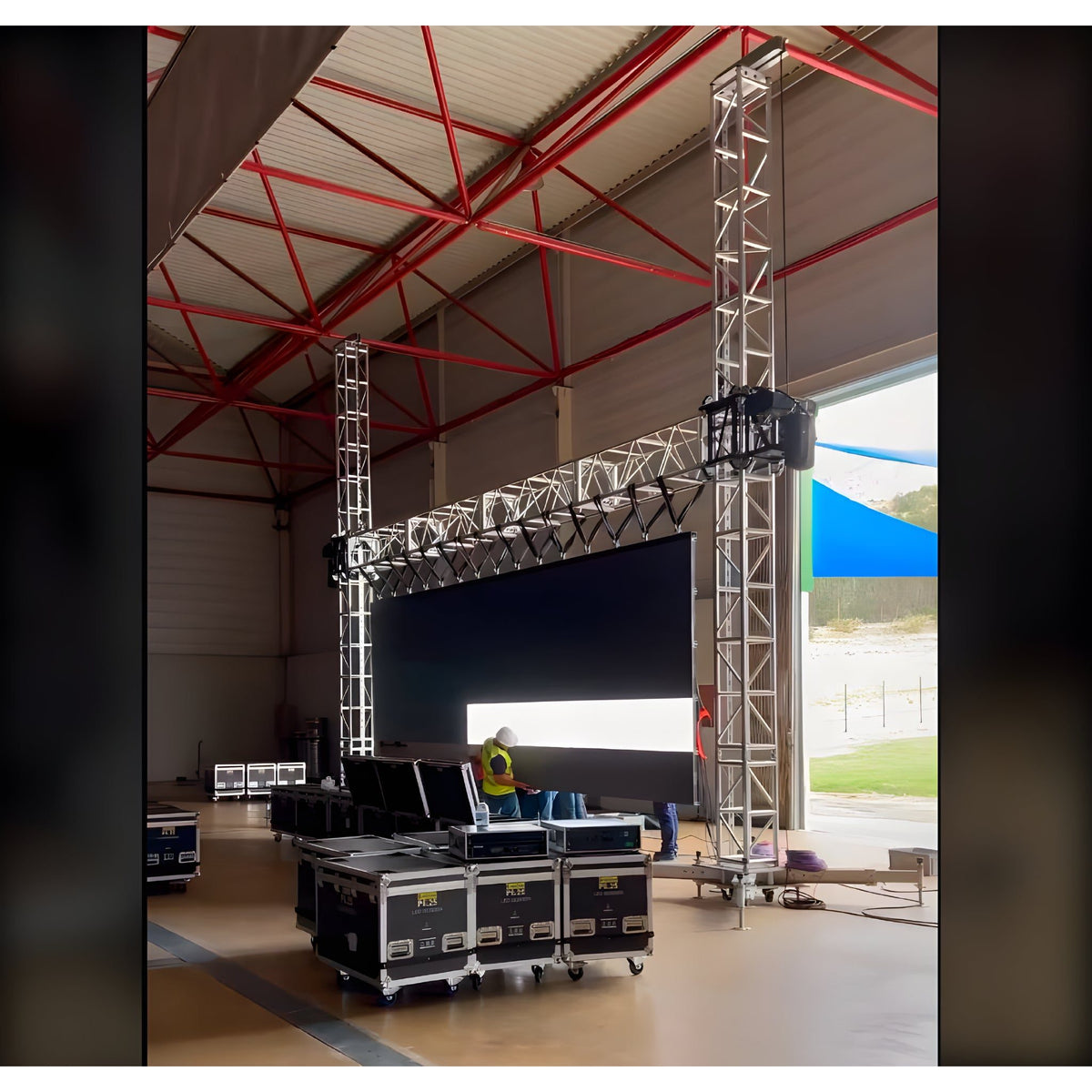

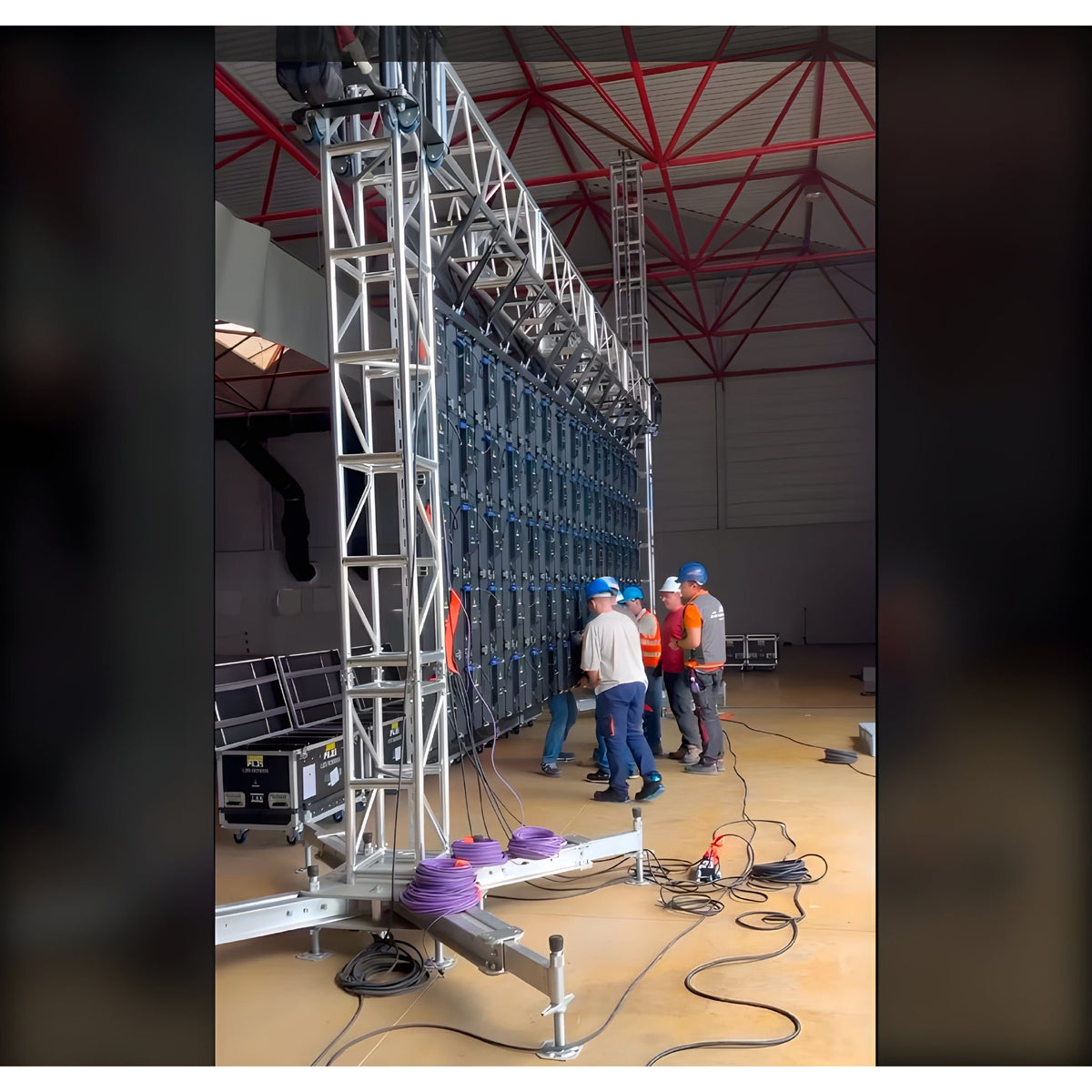

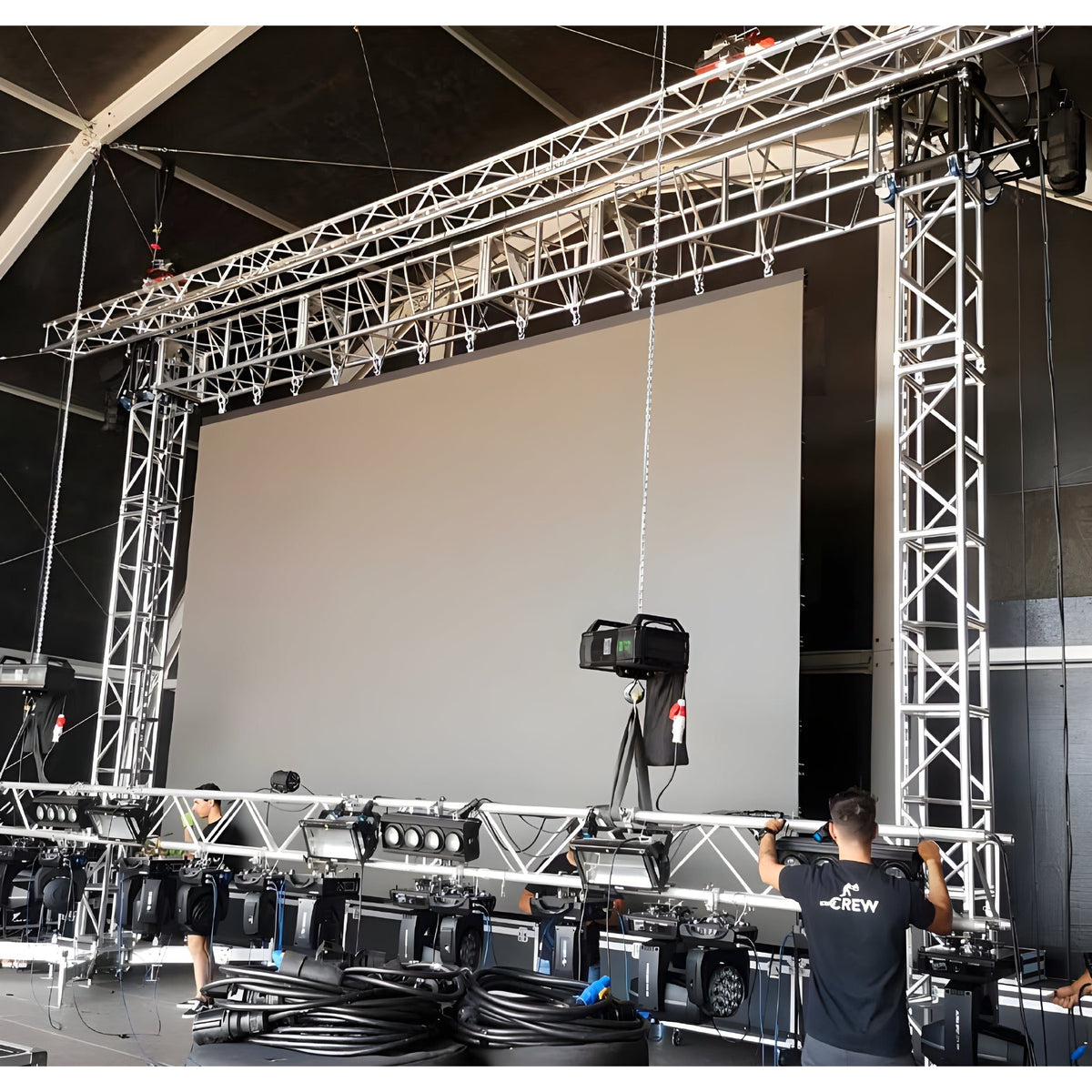

GUIL TMD-548 - Ground Support Tower. Lifting by electric hoist

▪ GUARANTEED SECURITY

Ground Supports are equipped with a special rack-and-pin safety system. The sections of the structure where the dice slide incorporate a welded rack mechanism, with perforations in which, in the event of a chain breaking, the safety pin would anchor, immediately blocking the tower section (preventing any shifting of the load).

▪ MODULAR MAST

Formed by five reinforced sections with a quadrangular section of 400 x 400 mm (Ø 50 x 4 mm) (2 sections of 1 metre, 1 of 2 metres and 2 of 3 metres).

The trusses are made of extruded aluminum (Alloy: EN-AW 6082 T6) with continuous weld TIG welding to ensure maximum strength. All the trusses that make up the modular structure have been designed with a double ladder and are equipped with specially designed interior sleepers to prevent any type of deformation or twisting of the structure. For maximum safety and strength in the assembly of the mast-structure modules, the trusses are secured using a reinforced double joining system ref. UTR-05: Solid aluminum joining system with double anchoring using bolts and pins.

Note: Thanks to their modular design, Ground Support towers can be configured with trusses of various sizes; consult pricing for special configurations.

▪ LIFTING THE LOAD

For easy lifting of the modular tower, the base section incorporates a hinge system that allows the entire structure to be assembled in a horizontal position and then raised manually or with the help of the electric hoist and with the lifting system Ref. BC-TMD (not included), the mast can be placed in its vertical position (working position) without any effort.

▪ LIFTING TROLLEY

The tower is equipped with a three-sided lifting trolley (REF. CRR-548) made of aluminum (Alloy: EN-AW 6082 T6) that incorporates an adapter for attaching the electric hoist. The socket is equipped with sixteen heavy-duty rollers for perfect sliding along the mast sections. The socket is designed for use with square trusses measuring 520 x 520 mm (standard dimensions). Note: For other truss dimensions, please consult.

▪ BASE

Compact base made of 726 x 726 mm aluminum (Alloy: EN-AW 6082 T6) with four heavy-duty levelers for load stabilization and distribution, and four 100 mm swivel casters with ball bearings for easy transport and handling. The base features four detachable telescopic legs equipped with a heavy-duty independent leveler. Its telescopic design allows for reduced storage and transport space.
