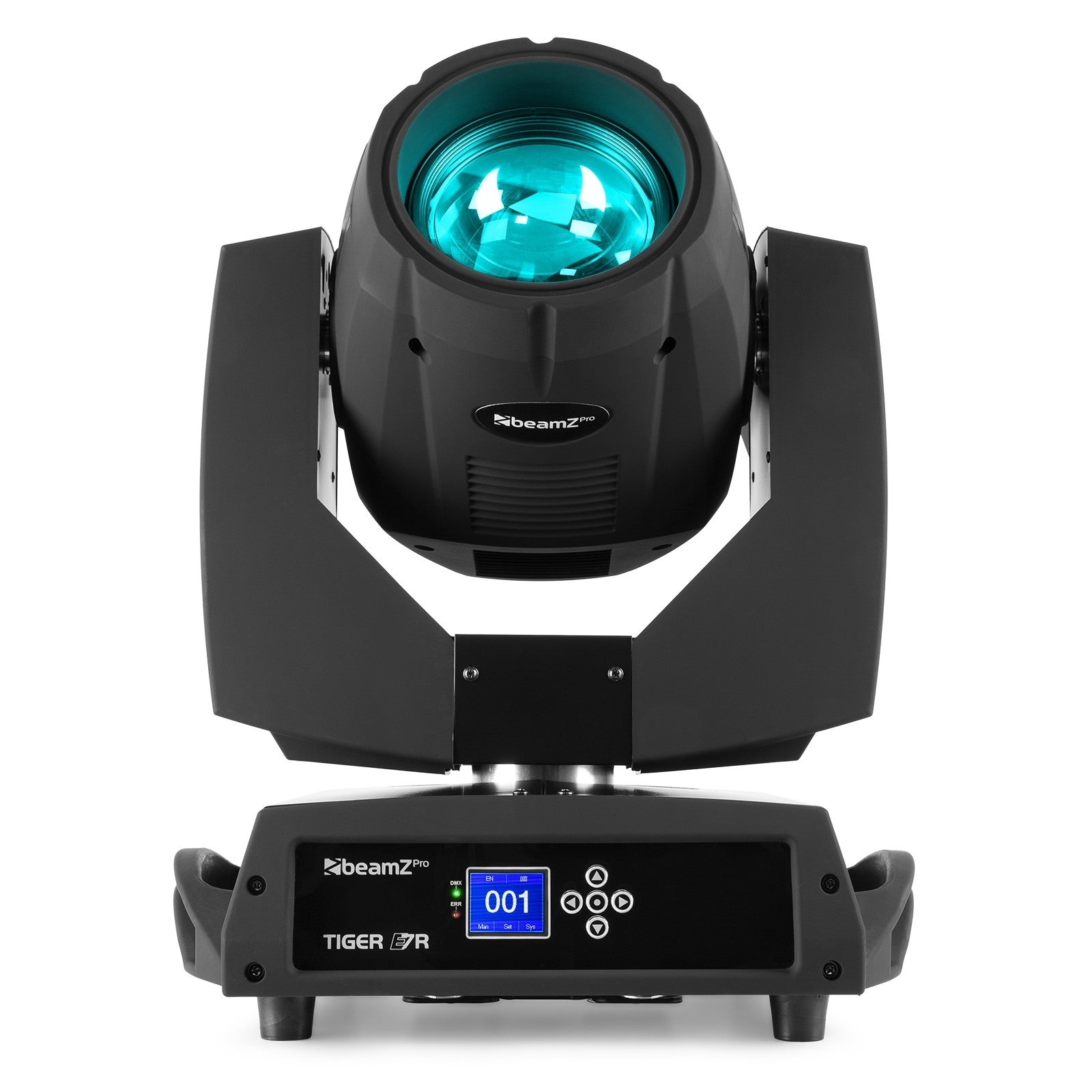

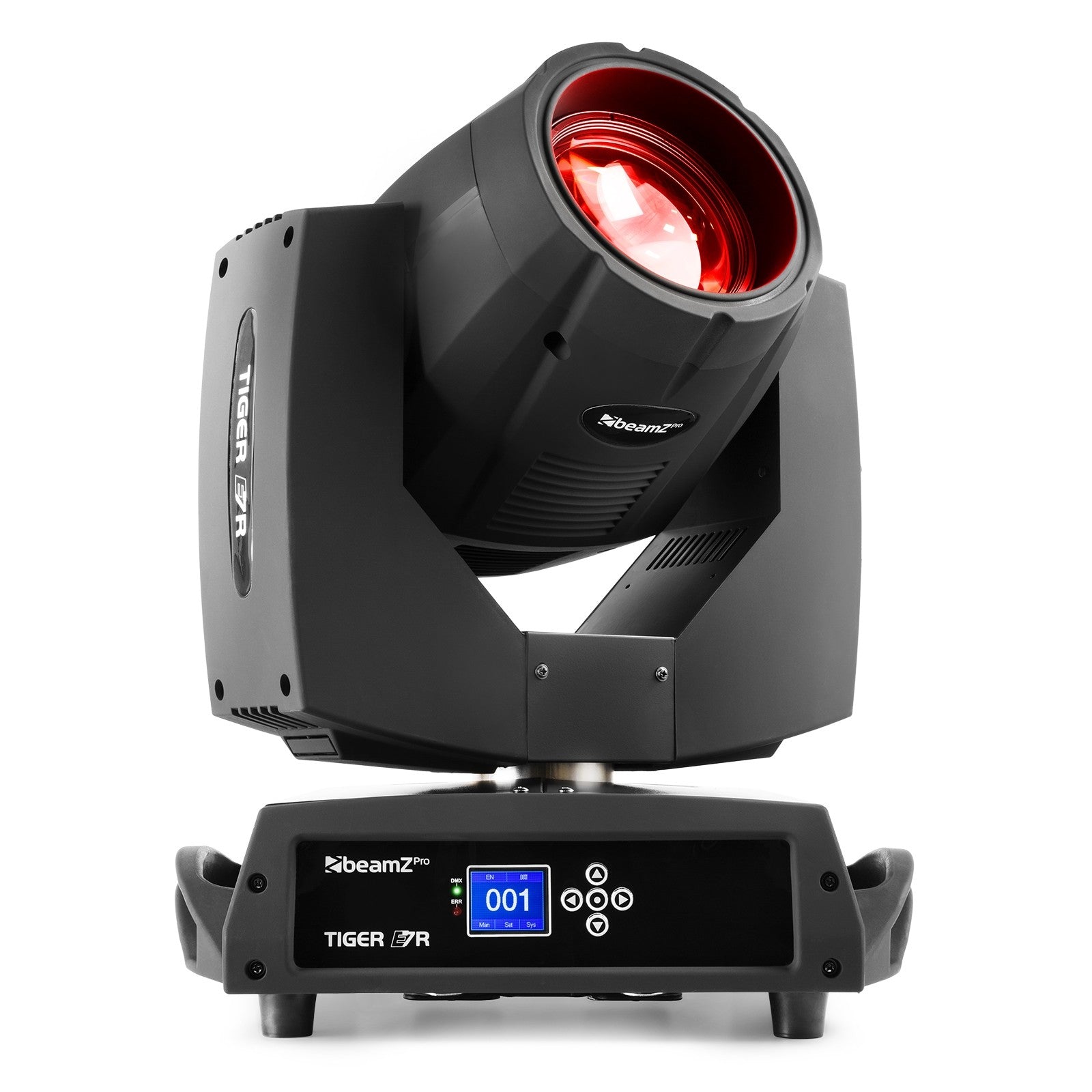

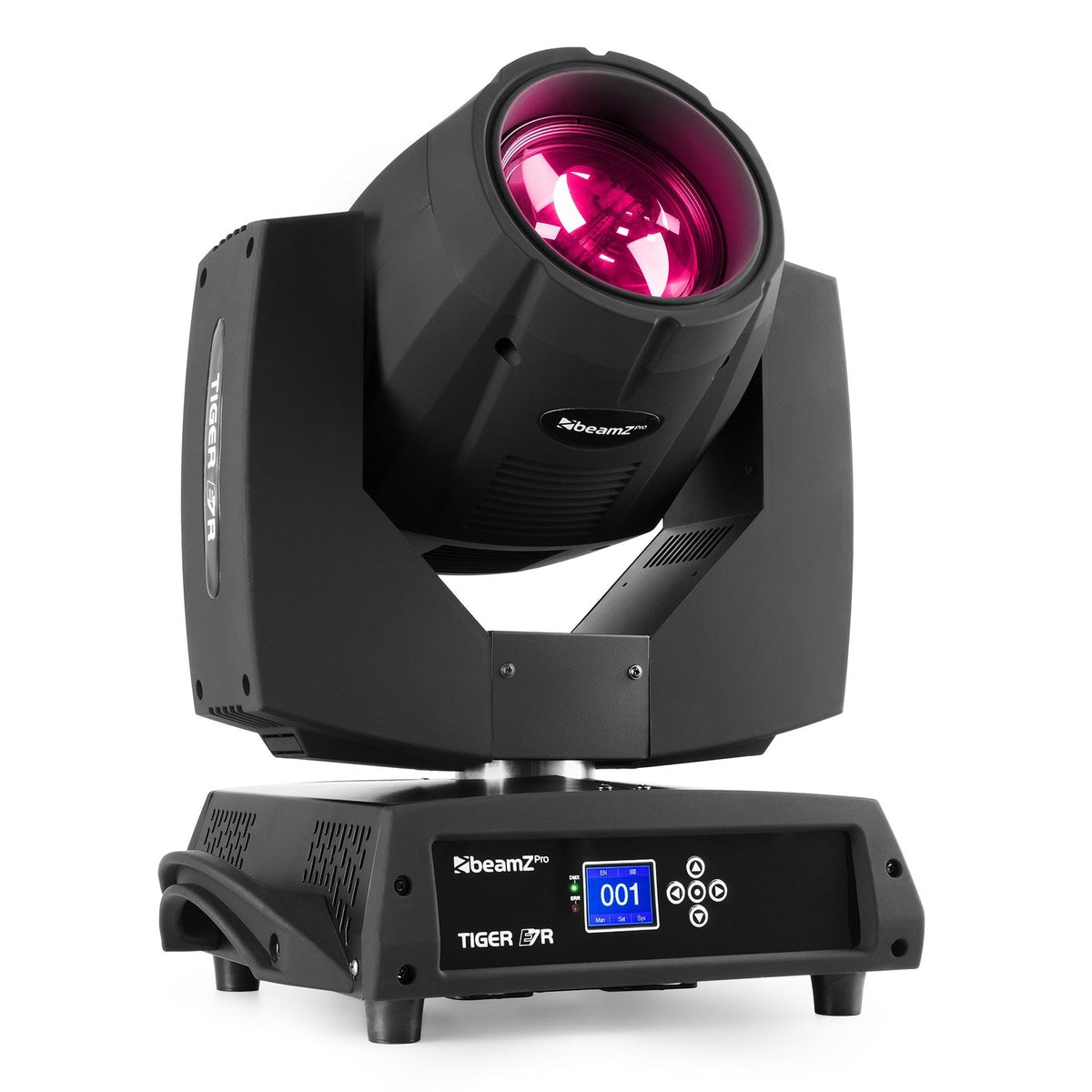

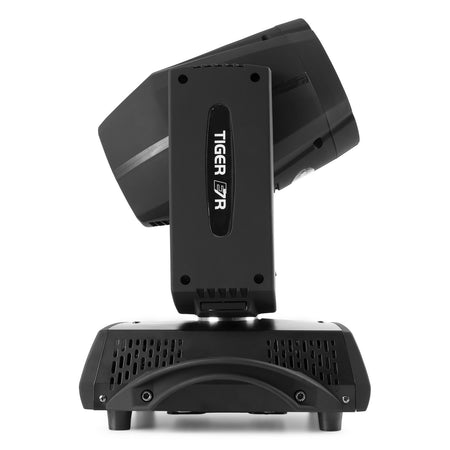

beamZ Pro Tiger E 7R MKIII - 230W Beam Moving Head
The beamZ Pro Tiger E 7R MKIII is a professional beam moving head designed to deliver exceptional lighting performance in any setting. Equipped with a powerful 230W 7R high-intensity discharge lamp, this unit projects an ultra-sharp, focused beam of light, ideal for creating striking aerial effects at medium and large-scale events. Its precision optics generate an extremely narrow beam angle of just 1°, ensuring a defined and powerful beam even at long distances, achieving an illuminance of 186,695 lux at 7 meters.
Built for versatility and creative control, the Tiger E 7R MKIII integrates a comprehensive set of tools for the lighting designer. Its color wheel offers 14 vibrant colors plus white, allowing for smooth transitions or instant color changes. The static gobo wheel features 17 different designs plus an open gobo, which, along with the "Gobo Shake" effect, adds texture and dynamism to the projection. The ability to layer effects is further enhanced by the 16-facet circular prism, which multiplies the beam to fill the space, and a frost filter that softens edges to transform the powerful beam into a wash effect.
Main Features
-
Powerful Light Source: Incorporates a 230W MSD 7R discharge lamp (included) with a color temperature of 8000K, producing a cool, bright white light, perfect for cutting through other lights on stage.
-
Precision Optics: Its advanced optical system generates an ultra-narrow 1° beam, ideal for long-range aerial effects. The focus is motorized, allowing for precise adjustment to maintain beam sharpness at any distance.
-
Color and Gobo System: Features a wheel with 14 dichroic colors plus white and a separate wheel with 17 static gobos plus an open gobo, offering a wide palette for visual creativity. Includes a gobo shake effect for added dynamism.
-
Advanced Visual Effects: Equipped with a rotating 16-facet circular prism to multiply and animate the beam, and a frost filter to transform the defined beam into a soft wash light.
-
Fast and Precise Movement: Offers a range of movement of 540° in Pan and 180° in Tilt, with automatic position correction to ensure that the moving head always returns to its designated point, even after unexpected movements.
-
Flexible Control: It can be operated via DMX with 15 or 19 channels for detailed control, or in standalone mode with automatic programs and sound activation. The Master/Slave functionality allows for effortless synchronization of multiple units.
Benefits for Lighting Professionals

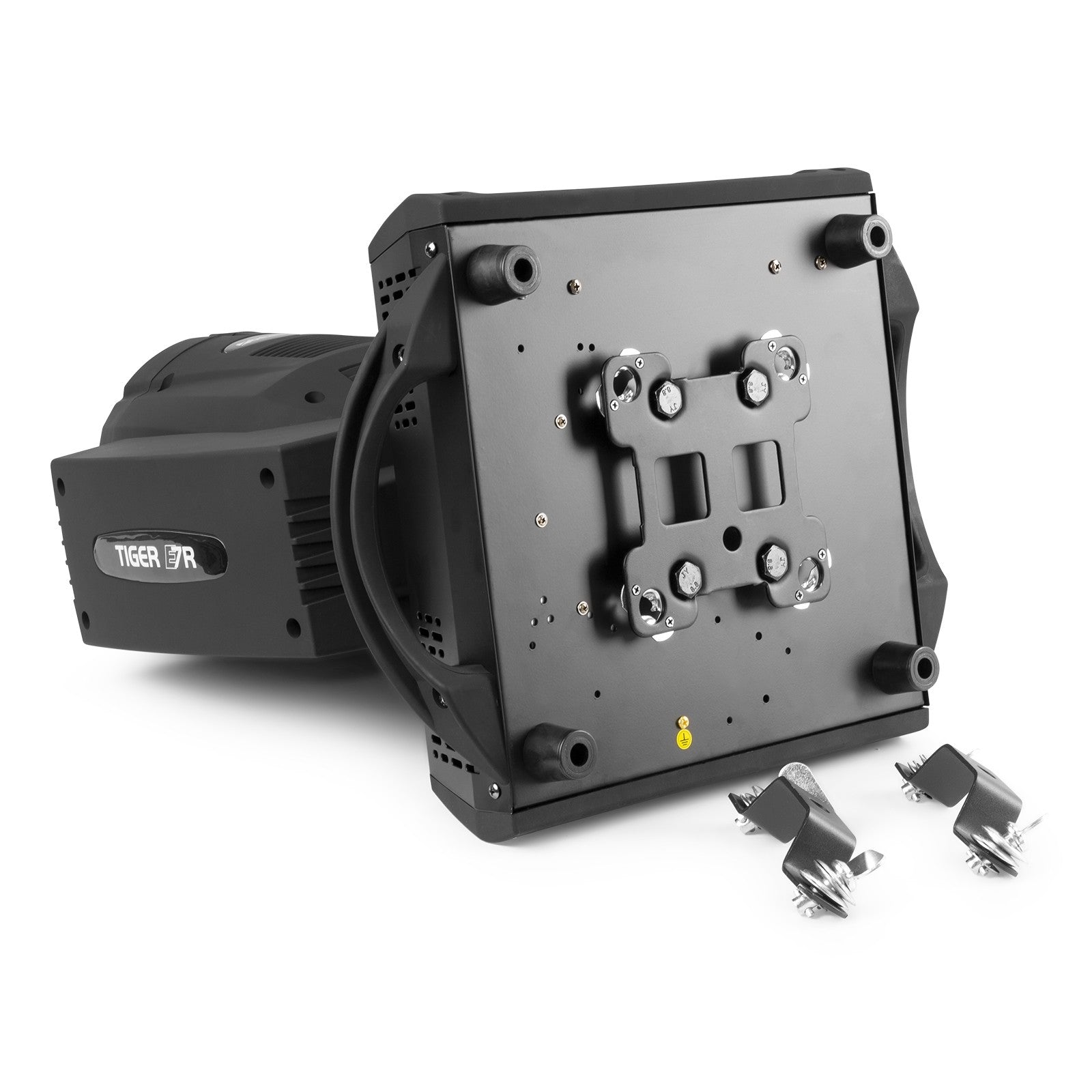

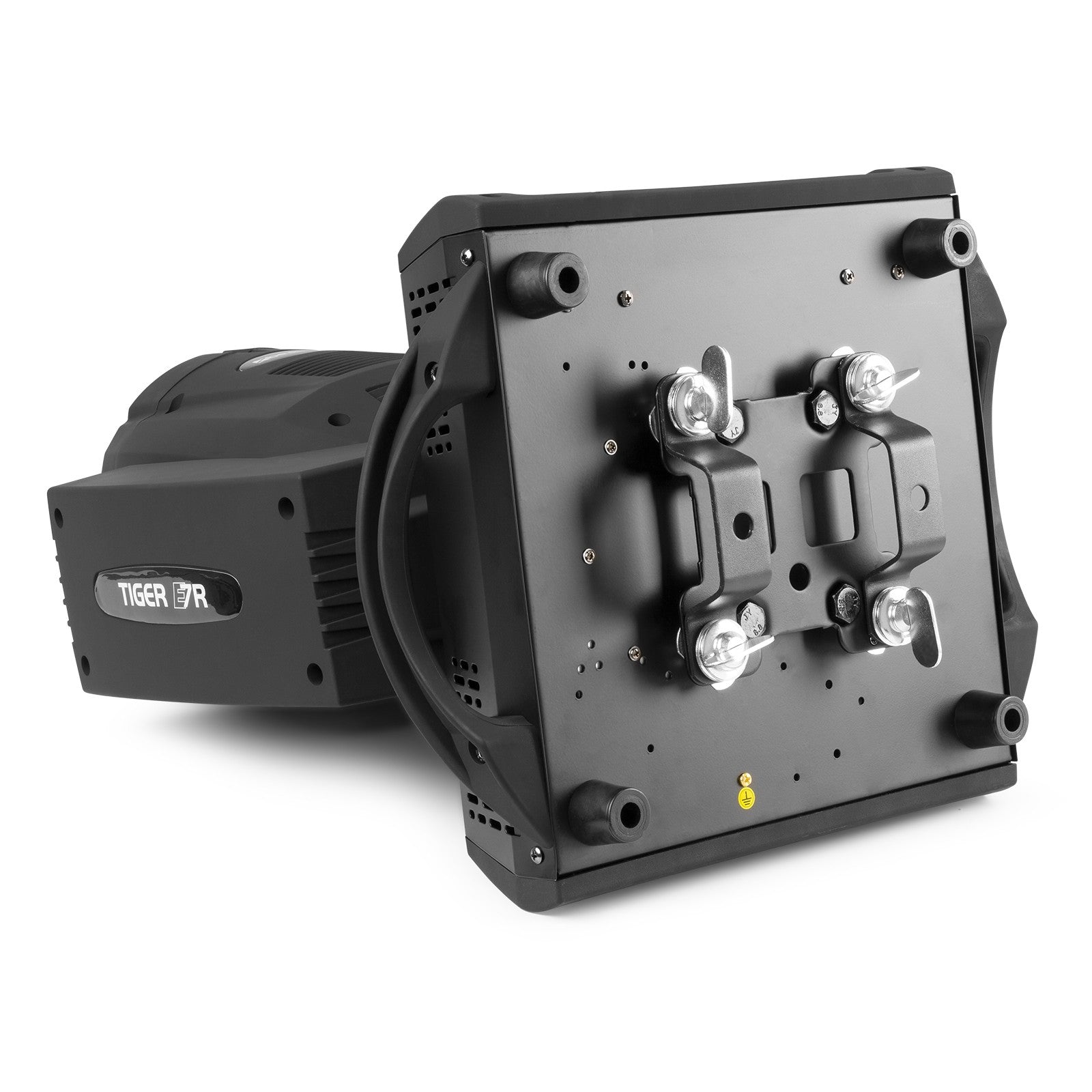

The Tiger E 7R MKIII is designed to meet the demands of professionals. Its intense light output makes it perfect for stage productions, concerts, and large event venues. The combination of gobos, prism, frost, and a sharp beam offers incredible versatility, allowing a single unit to fulfill multiple functions within a lighting design. The robust construction, along with the included Quick Lock Omega clamps, ensures fast, secure, and reliable setup, optimizing time in any production.
Use Cases
Thanks to its power and versatility, this moving head is the ideal choice for a wide variety of applications, including:
- Concerts and music festivals.
- Discos, clubs and dance halls.
- Theatrical productions and stage events.
- Corporate events and product launches.
- Audiovisual equipment rental companies.
Frequently Asked Questions
What type of lamp does it use and is it included?
It uses an MSD 7R 230W discharge lamp. Yes, the lamp is included and installed in the unit.
Can I operate this moving head without a DMX control console?
Yes. The Tiger E 7R MKIII has standalone operating modes, including automatic programs and a sound-activated mode, as well as a Master/Slave configuration for synchronizing multiple units.
What is the difference between 15 and 19 channel DMX modes?
The 19-channel mode offers finer control over certain equipment functions, such as prism rotation speed or macro control, while the 15-channel mode provides full control of essential functions, taking up less space in the DMX universe.
Is it suitable for outdoor use?
No. This moving head has an IP20 protection rating, which means it is designed exclusively for indoor use and must be protected from moisture and dust.
What accessories come in the box?

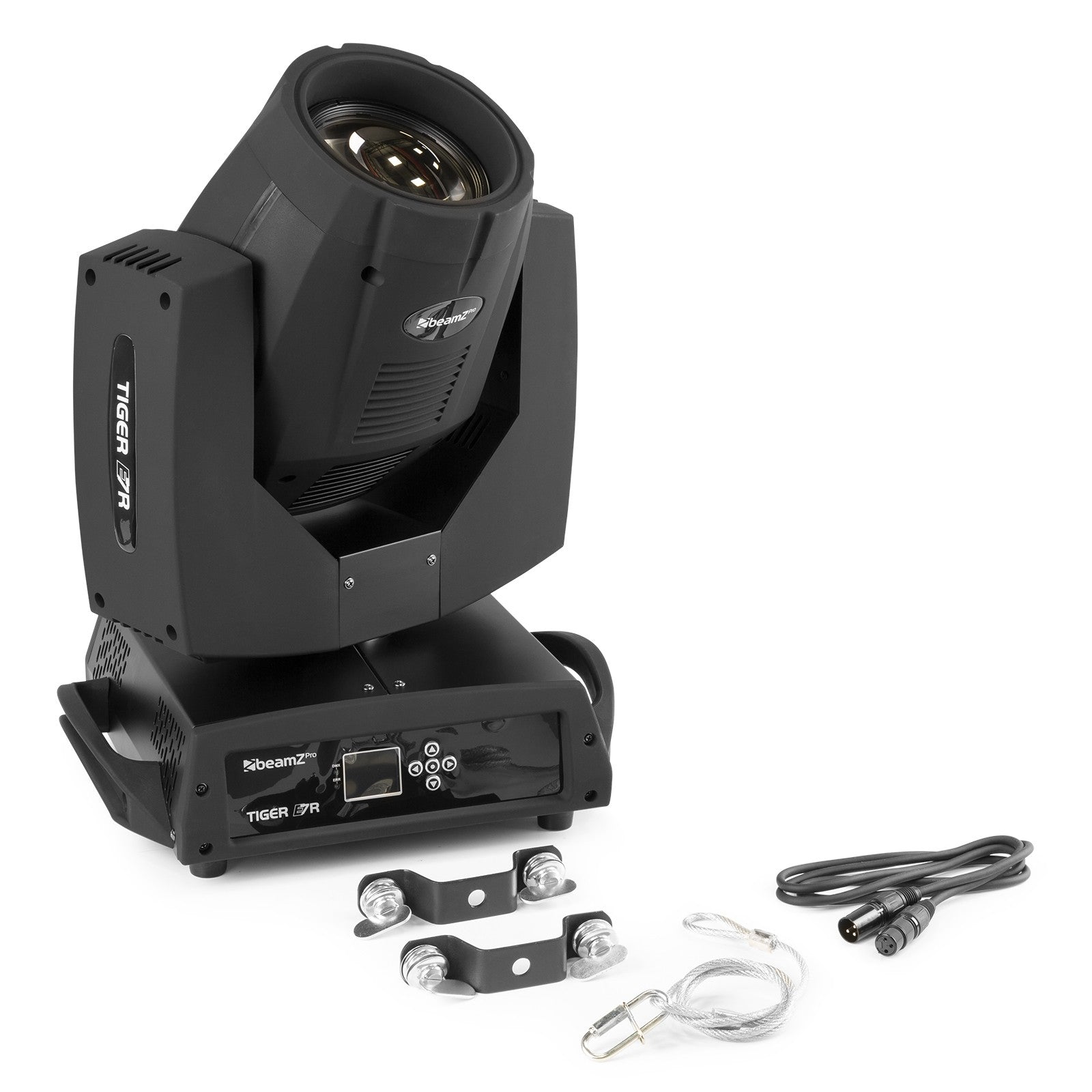

The box includes the moving head, two Omega-type quick-mount claws, a power cable with a Powercon connector, and a 3-pin XLR DMX cable.
Project description

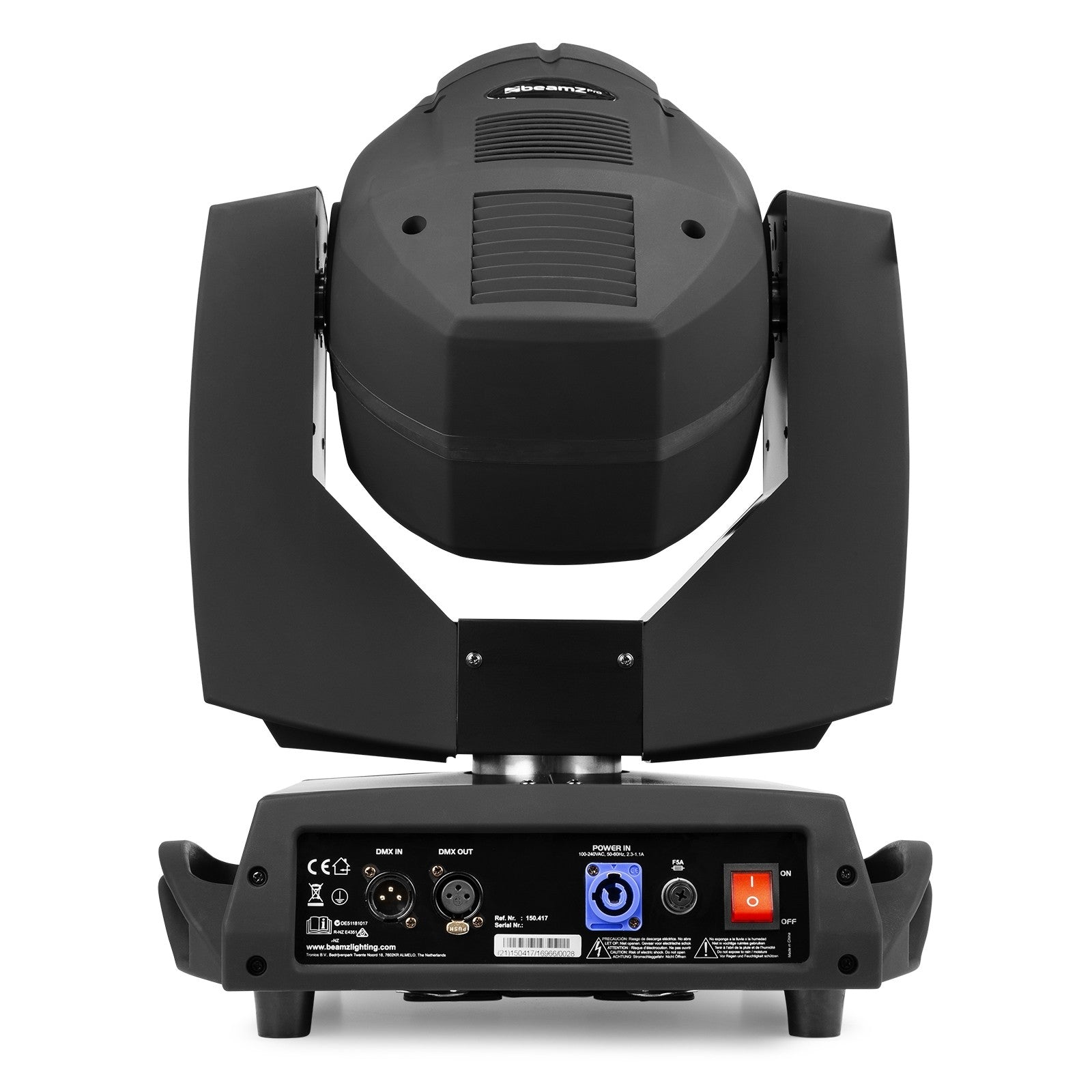

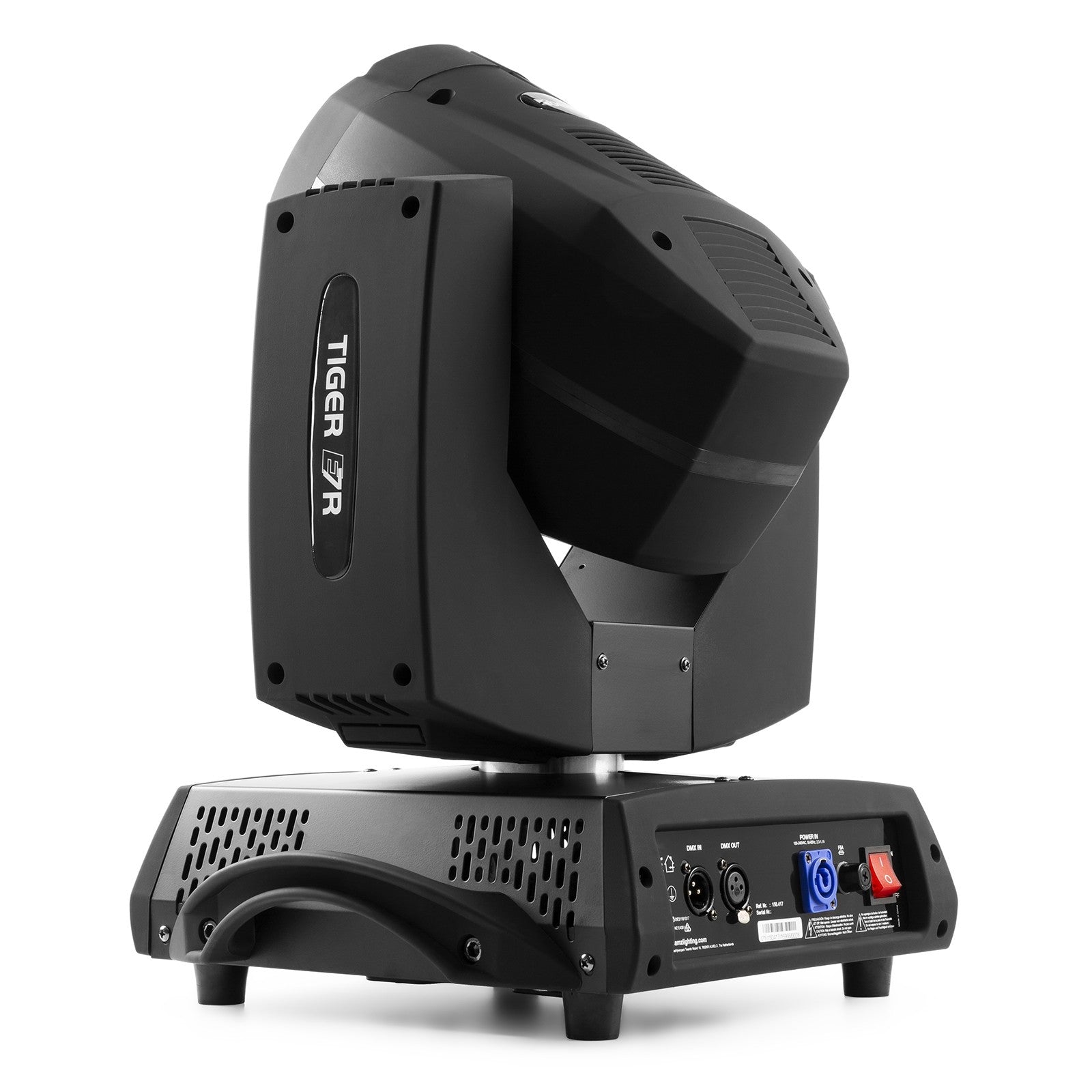

Professional beam moving head equipped with a 230W MSD 7R discharge lamp with a color temperature of 8000K. Its optical system generates a 1° beam angle and an illuminance of 186,695 lx at 7 meters. It features a color wheel with 14 colors plus an open setting and a gobo wheel with 17 static gobos plus an open setting. It includes a 16-facet rotating prism, a frost filter, and a motorized focus. The mechanical shutter allows for a stroboscopic effect from 0 to 10 Hz. The movement range is 540° pan and 180° tilt, with automatic position correction. It supports 15- and 19-channel DMX control, standalone mode, sound activation, and Master/Slave operation. Connections are 3-pin XLR for DMX and Powercon for power. Its dimensions are 325 x 395 x 515 mm and its weight is 16.55 kg.
