Triton Blue STICK-DE3 - UNIVERSAL TOUCH PANEL 1024 CH.Ethernet, multi-zone, color screen 500 scenes 10 zones

STICK-DE3 multi-zone touch panel, DMX with LCD display. Manufactured by Nicolaudie for Triton-Blue

• Stand-alone wall-mounted touch panel with two 1024ch DMX universes, USB/Ethernet. Programmable with up to 500 scenes in 10 different zones.
• Zones : Choose your zone and run up to 10 scenes simultaneously
• Scene : Select from up to 50 static or dynamic scenes, use the arrows to change the current scene
• Dimmer: Make lighting brighter/darker and adjust saturation
• Speed: Speeds up and slows down a dynamic scene like the color changing effect
• RGB/WHITE Color Control : Easily scroll through over 16 million colors and/or control white

The Stick-DE3 is the lighting controller that everyone understands.

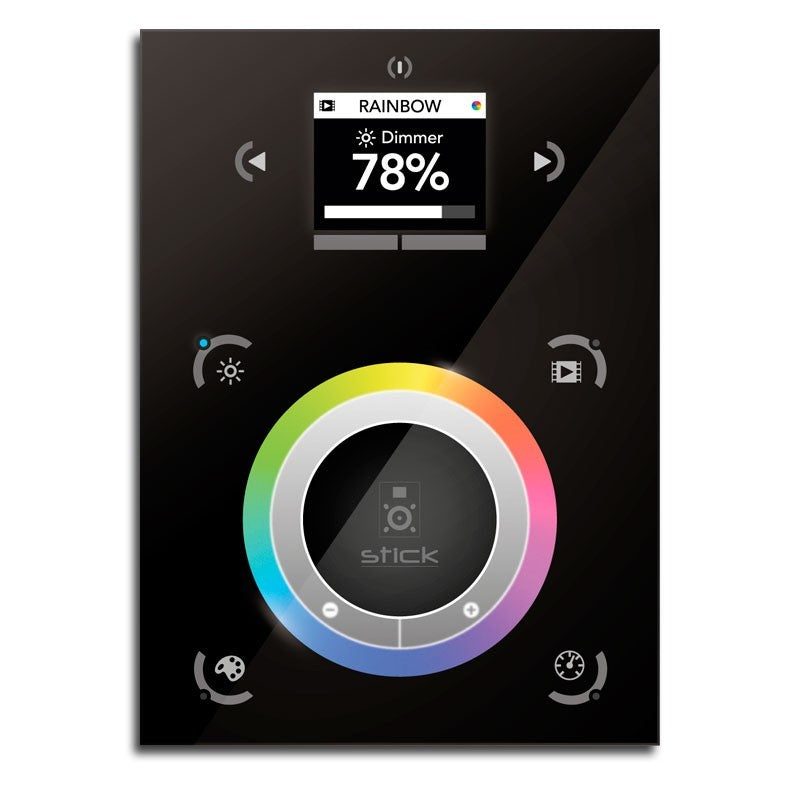

• The feature-rich STICK-DE3 has been designed to provide a control solution for the most demanding projects, yet is easy enough for anyone to use. The controller features a color graphic display, allowing you to view scene photos. Easily view the selected area, scene name, and layout without having to navigate complex menus.
• The STICK-DE3 has four different control modes. Scroll the touch-sensitive wheel to change the dimmer, color, speed, or scene, or tap around the wheel to directly access a value. The arrows can be used to scroll through the values.

Characteristics

• Multi-zone model to control an installation jointly or separately in its different zones.

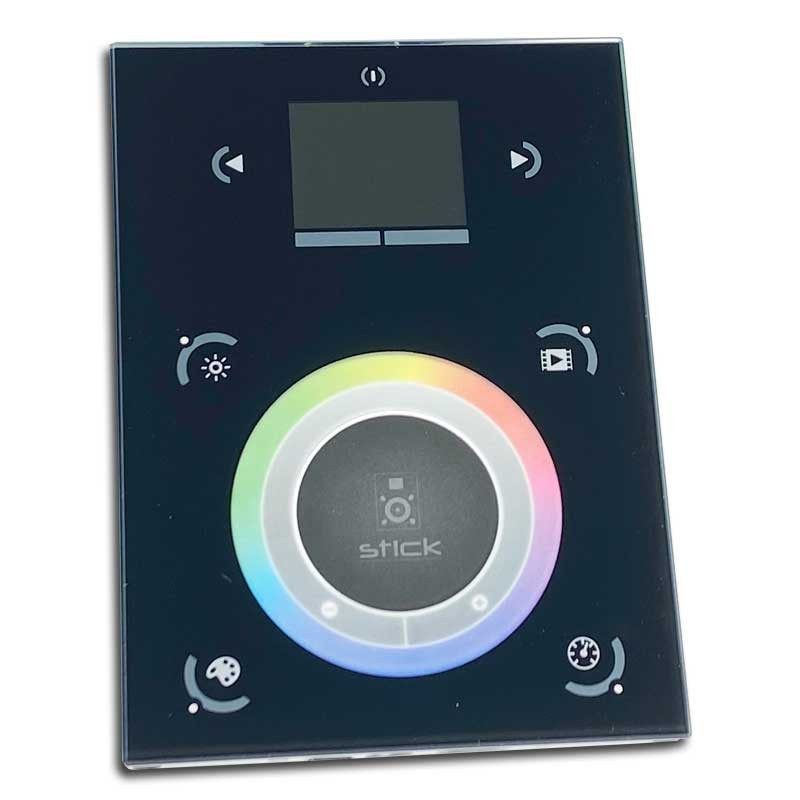

• New 106x146mm glass design with touch-sensitive buttons
• Color graphic display
• New model with USB + Ethernet connection and microSD.
• Works on PC/Windows with ESA, ESA2, ESA PRO and suite2 software.
• Works on Mac only with ESA2.
• Apps available on iPhone/iPad/Android and ARCOLIS STICK for remote use of the stick connected to an ADSL router

• LIGHTING AT YOUR FINGERTIPS . Sensitive keys allow you to easily modify lighting effects... Any child can now control the speed and color.

• SIMPLE DESIGN, EXTREME STRENGTH, AND EASY INSTALLATION . With no mechanical buttons, the STICK interface is timeless. That's how the designers intended it. Our STICK interface can be installed in a variety of standard electrical boxes.

• HOW TO USE THE STICK-DE3 ? Nothing could be simpler with its touch-sensitive buttons and color LCD screen for choosing the zone to control, the program, the dimmer, the speed, or the color.

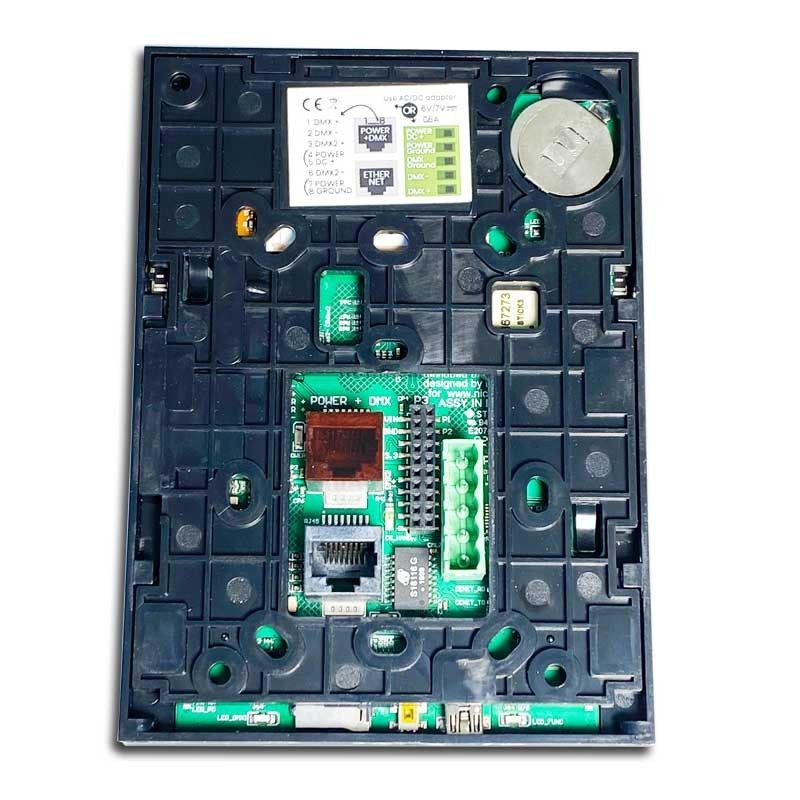

• UNLIMITED CONNECTIVITY : 90% of applications will use only the USB and DMX512 connectors; however, our most demanding customers will take advantage of our other connectors, such as I/O (dry contact), audio input, RS232 (serial), Ethernet, infrared remote control, clock/calendar, and more.

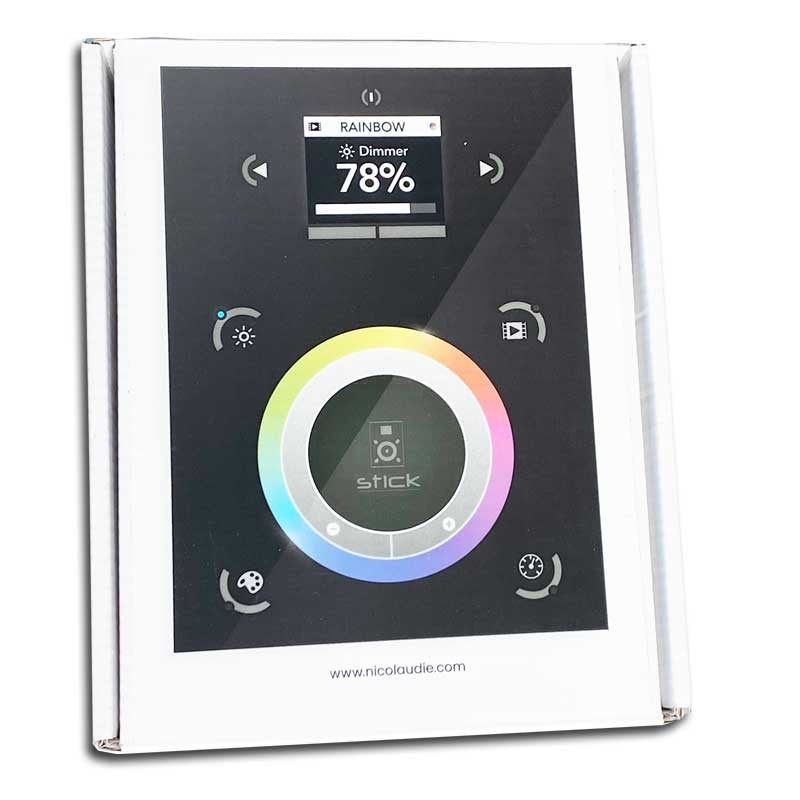

• Supplied with a USB cable and installation CD-ROM and user manual.
• Optional infrared remote control.

• Characteristics
  • Dimensions: 106 x 146 x 10 mm
  • Weight: 250 Gr
  • It has a USB connection
  • It has an Ethernet connection
  • DMX Channels: 1,024 channels
  • It has RMD
  • Software
    • ESA2: for PC and MAC
    • ESA PRO: For PC
    • ESA PRO 2: For PC and MAAC
    • Control through APPs
  • Stand Alone
    • Number of scenes: 500
    • Number of zones: 10
    • Memory capacity: Limited to SD

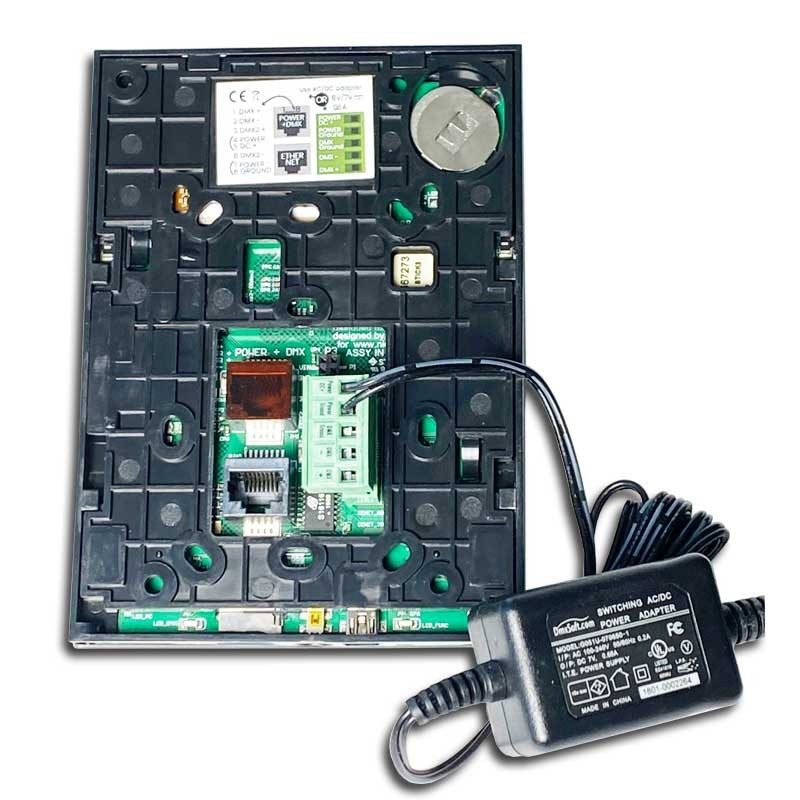

    • Power supply: DC 5-6V

• Description for projects
  • STICK-DE3 glass touch panel. 1024 channels, USB, Ethernet, color display, 500 scenes, 10 zones. Standalone DMX controller for wall mounting or flush mounting. Wall mounted. Dimensions 106x146 mm with touch-sensitive buttons, color palette / dimmer / speed and color graphic display. 2 DMX OUT universes (1024 channels). USB + ETHERNET connection. Multi-zone memory. RS232, PORTS, infrared trigger, clock / calendar. Works on PC / Windows with ESA, ESA2, ESA PRO and SUITE2 software. Works only on MAC with ESA2 software. Works on iPhone / iPad / Android with ARCOLIS and STICK REMOTE applications. Delivered with a USB cable. CAUTION : 6V power supply and infrared remote control are optional.
