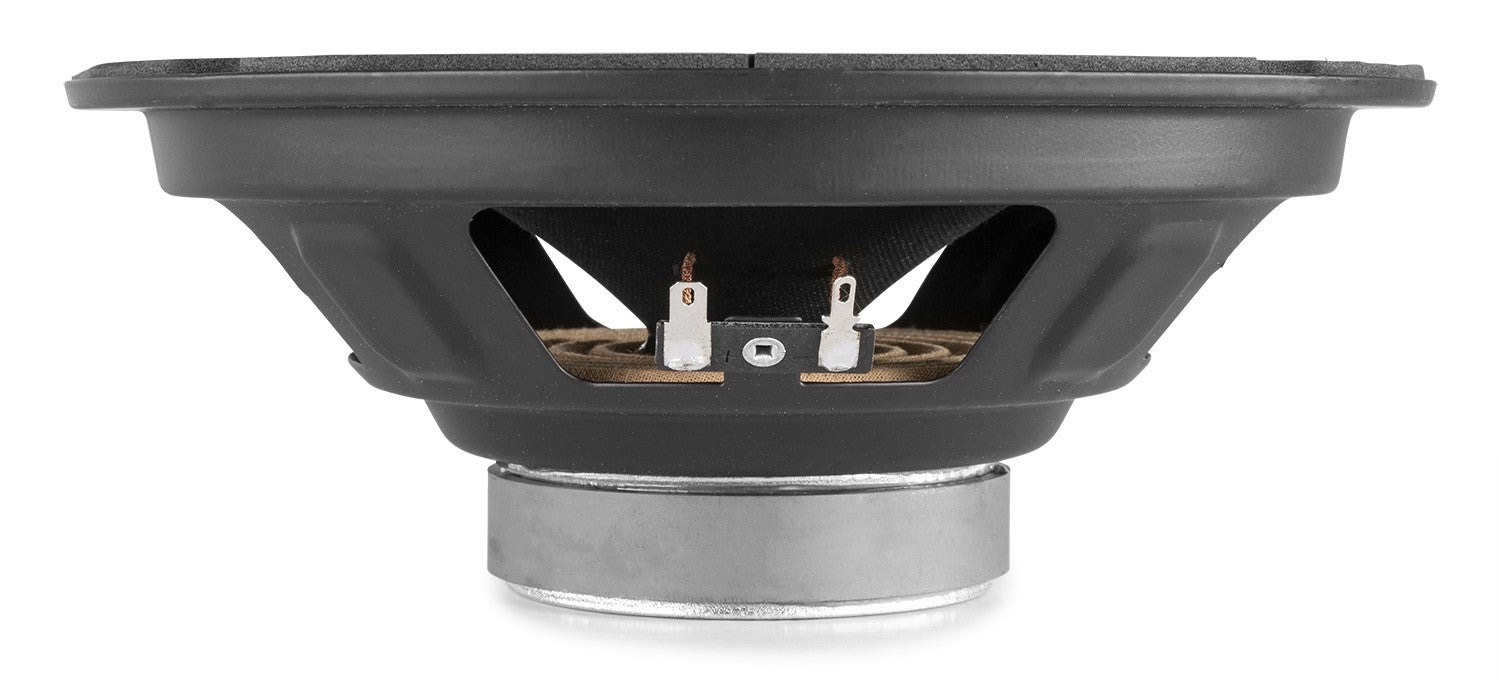

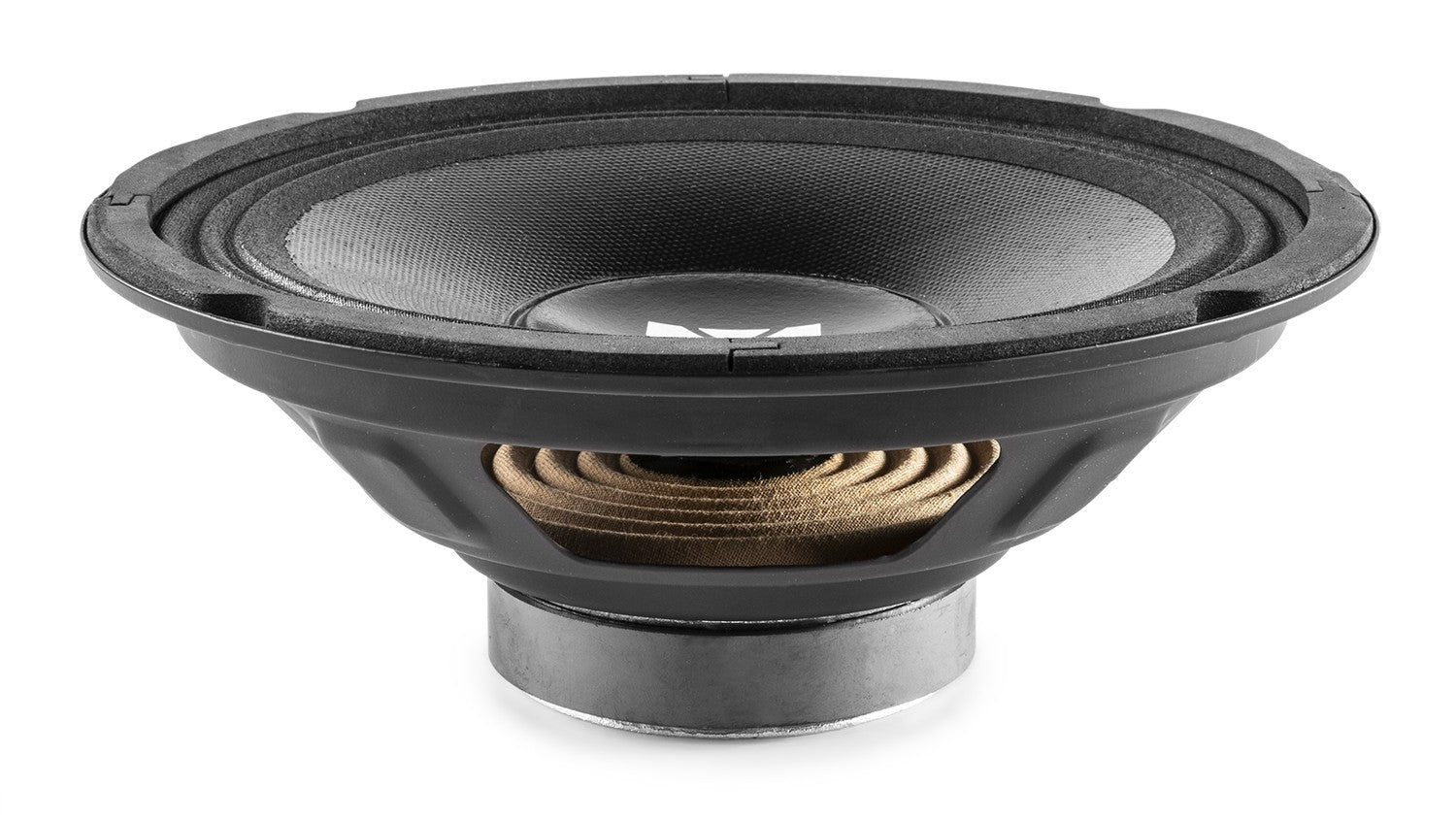

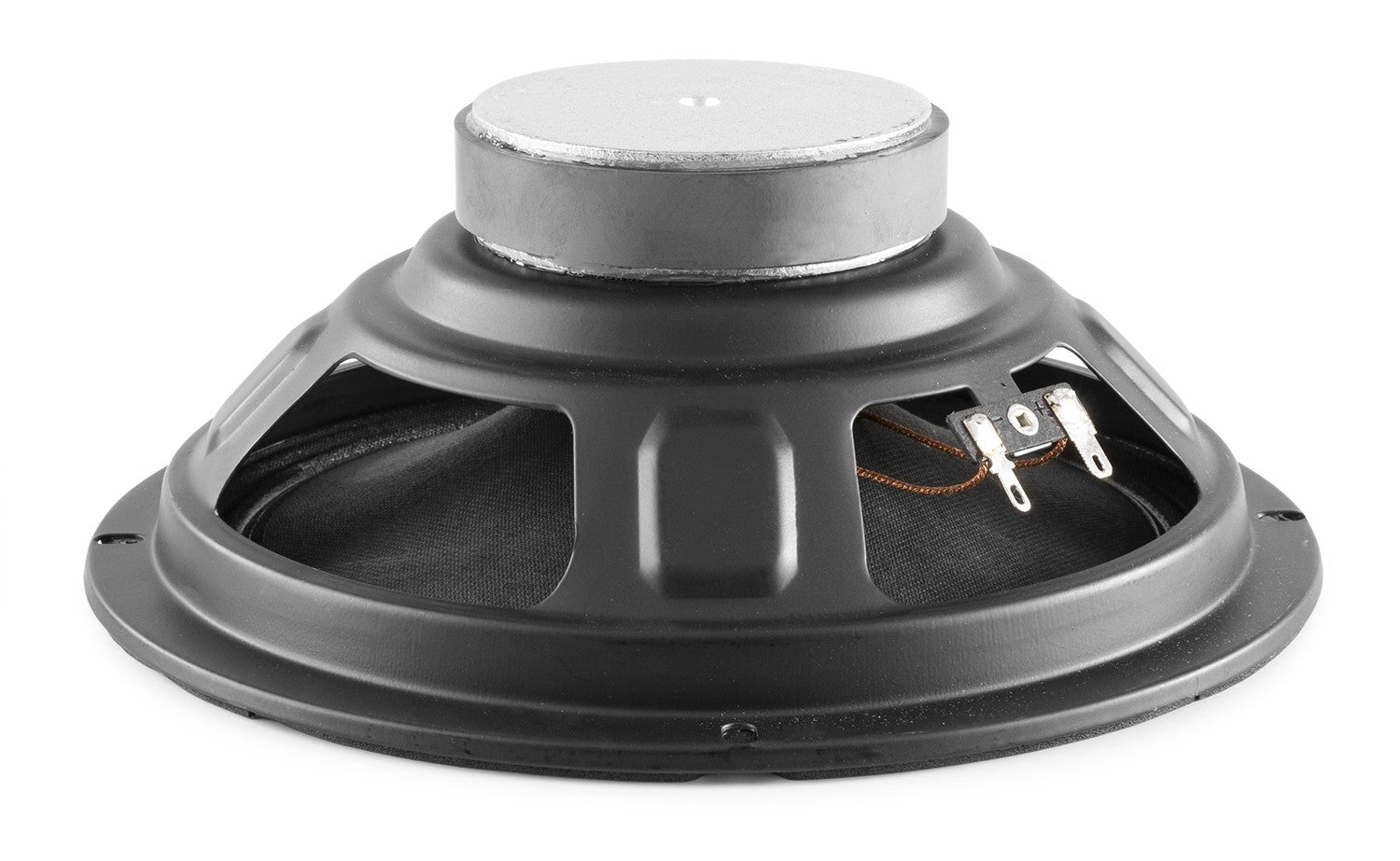

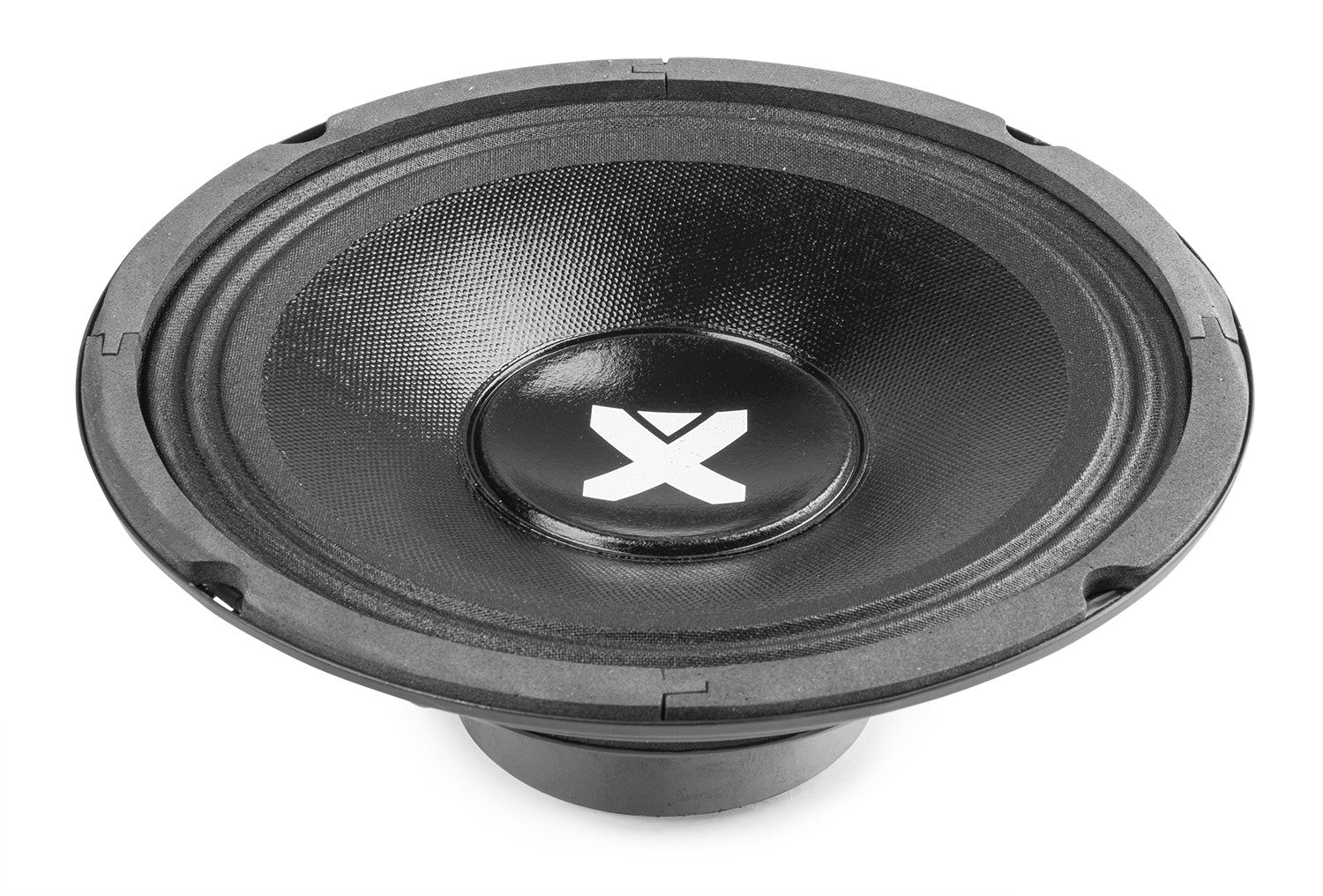

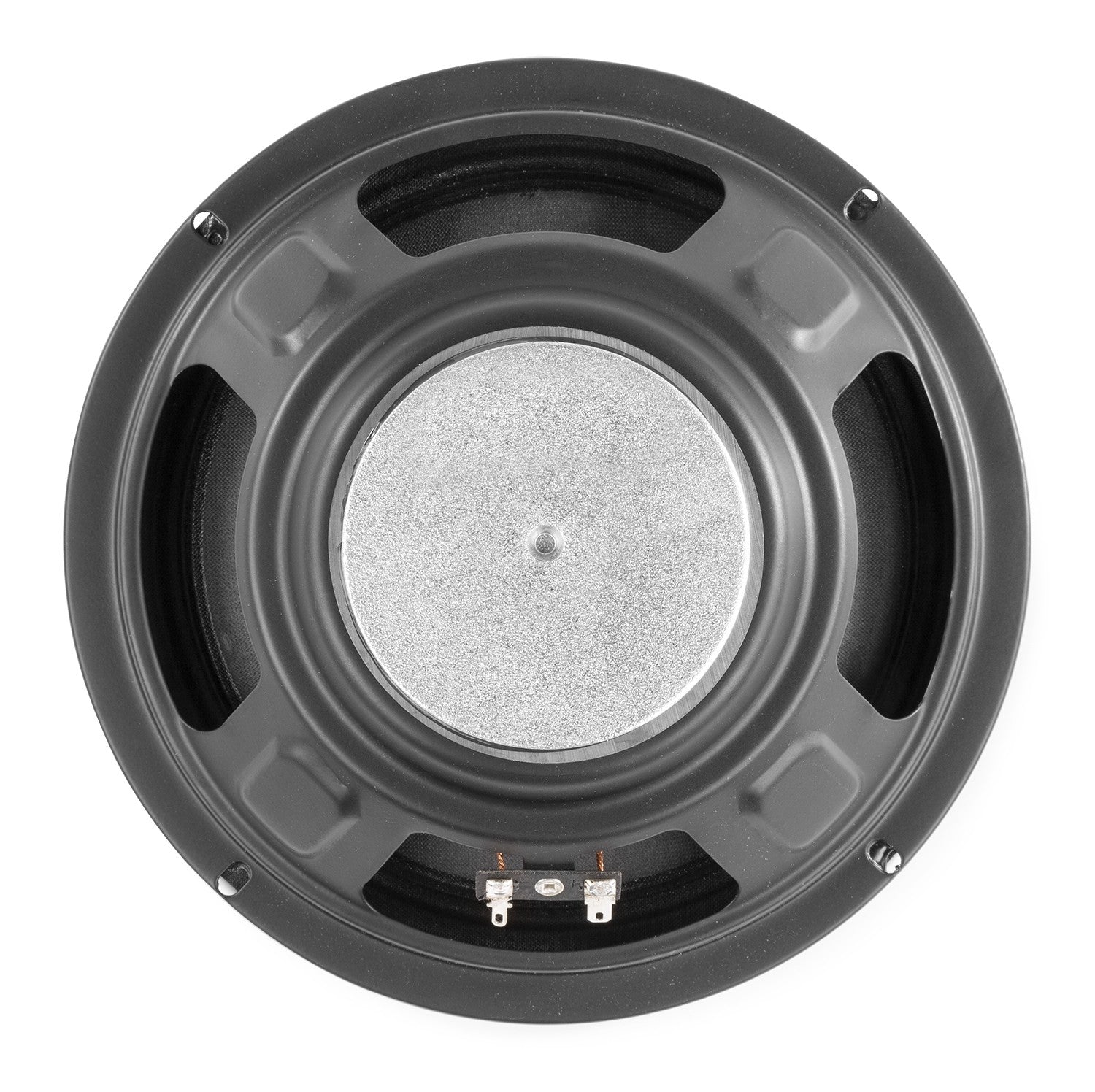

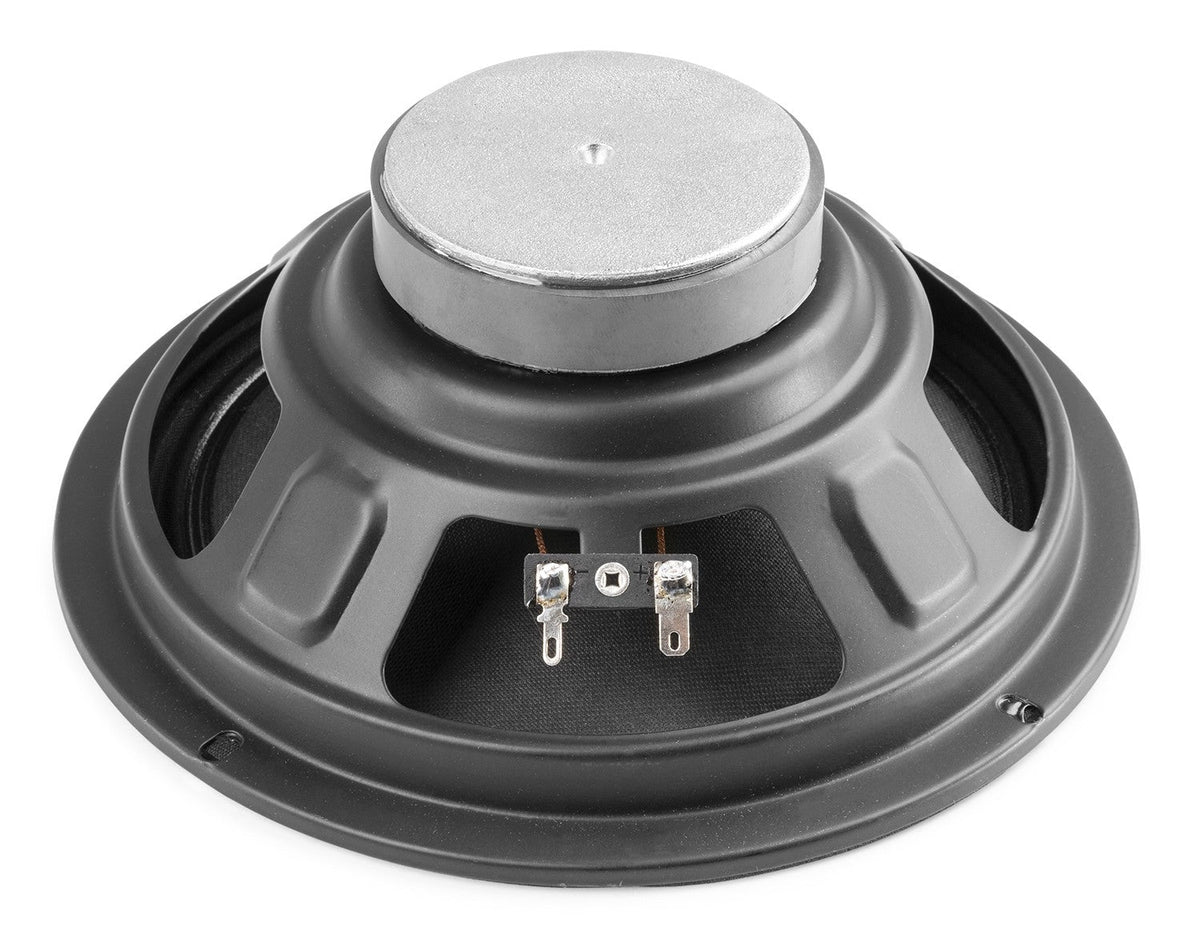

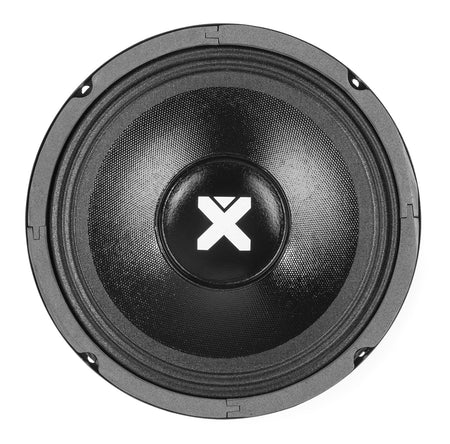

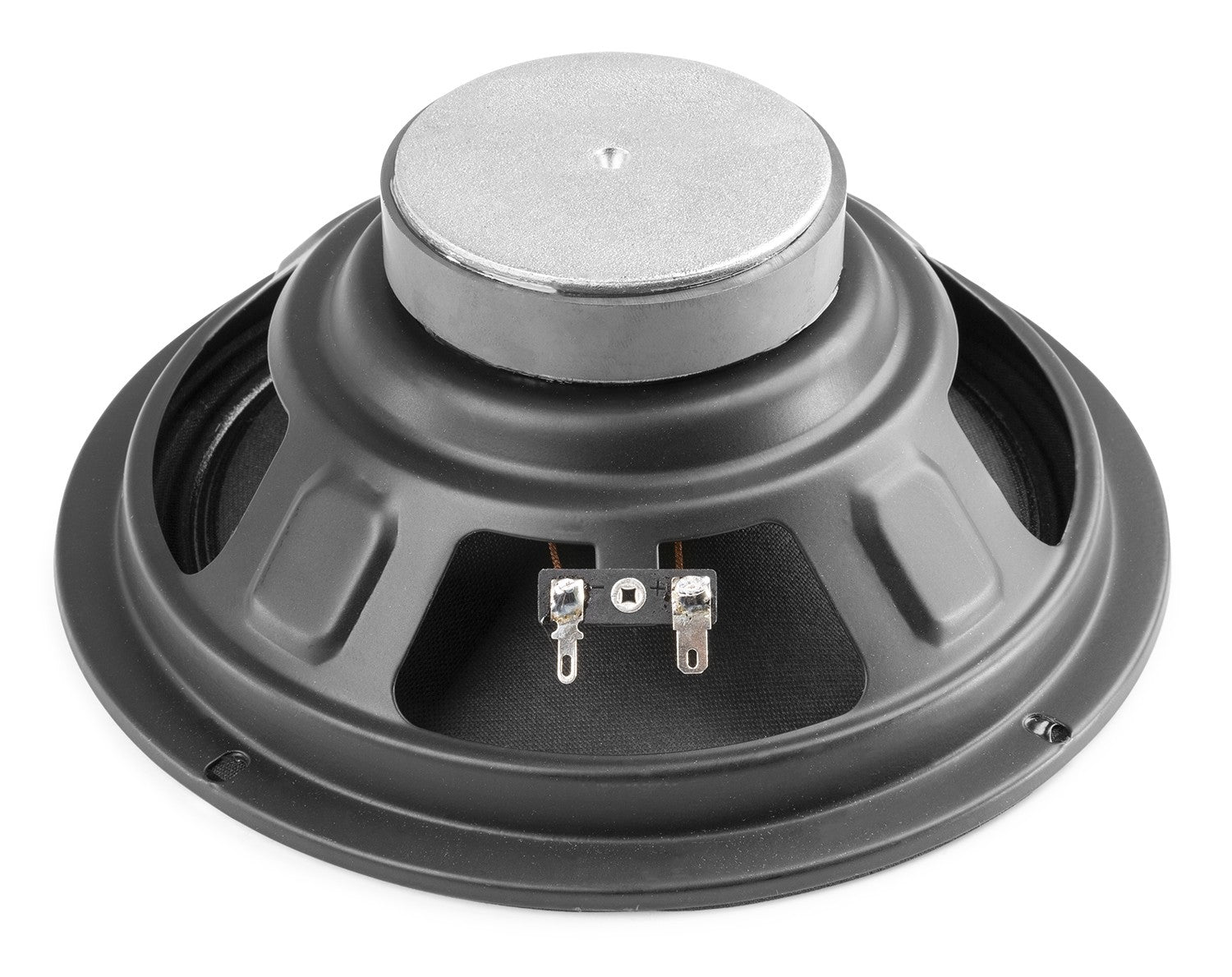

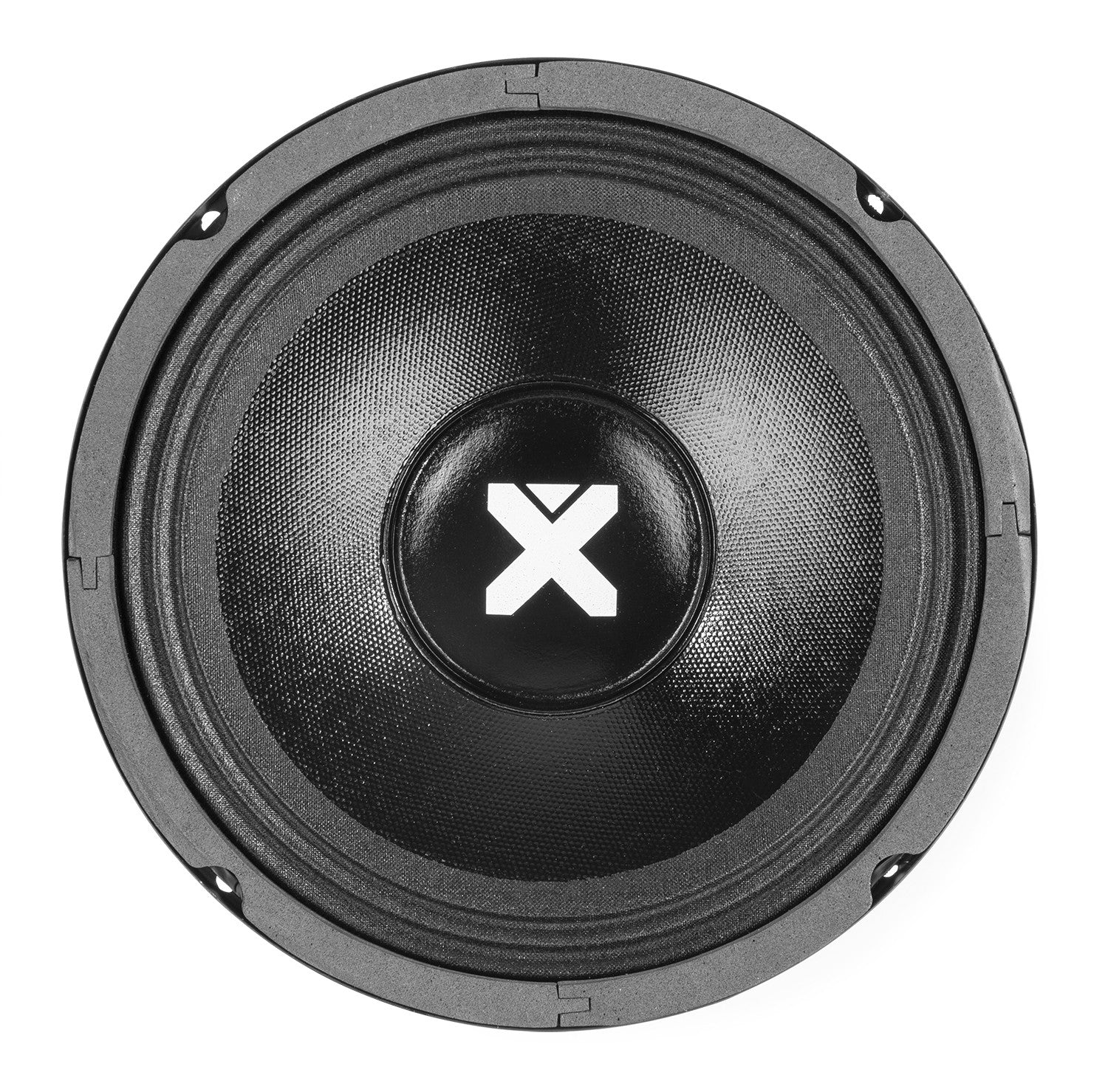

Vonyx SPSL8 - 8 Inch 400W Replacement Woofer
The Vonyx SPSL8 is a high-performance replacement speaker designed to deliver exceptional sound quality and superior durability. With an 8-inch diameter and a maximum power handling of 400W, this woofer is the ideal solution for replacing damaged speakers in PA systems, stage monitors, or for integration into custom audio projects (DIY). Its robust construction and quality components ensure clear and powerful sound reproduction, especially in the mid and low frequencies.
This speaker is characterized by its rigid suspension , which provides a precise and powerful bass response, ideal for music that demands punch and definition. It also incorporates a vented magnet that significantly improves heat dissipation. This feature is crucial for maintaining stable performance during extended use at high volumes, preventing sound degradation and extending the component's lifespan. With a standard impedance of 8 ohms, the Vonyx SPSL8 ensures broad compatibility with most amplifiers and audio systems on the market.
Main Features
-
Power and Performance: Capable of handling up to 400W of peak power (200W RMS), delivering powerful, distortion-free sound for a wide variety of applications.
-
8 Inch Woofer: A standard size that makes it easy to install as a replacement part in most speaker boxes and baffles of this diameter.
-
Rigid Suspension: Designed for precise cone control, resulting in defined, punchy bass, perfect for monitors and PA systems.
-

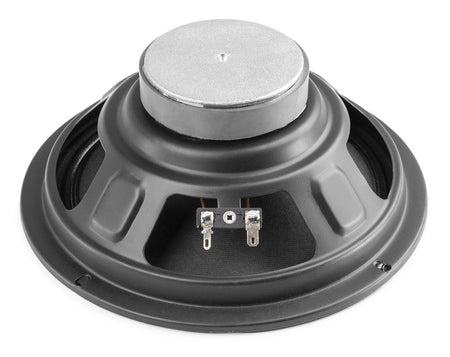

Vented Magnet: The magnet design allows constant airflow that cools the voice coil, ensuring optimal and reliable performance even under high loads.
-
Universal Compatibility: Its 8 ohm impedance makes it compatible with a wide range of power stages, amplifiers, and audio receivers.
-
Easy Installation: Equipped with spade-type connection terminals for quick, safe, and hassle-free assembly.
Benefits of the Vonyx SPSL8
The Vonyx SPSL8 isn't just a simple replacement part; it's an upgrade for your sound system. The combination of its rigid suspension and vented magnet results in reliable, high-quality audio reproduction. Musicians, DJs, and sound engineers will appreciate the clarity and punch this speaker delivers, allowing mixes to sound defined and powerful. For DIY audio enthusiasts, this woofer provides a solid, high-quality foundation for building custom speaker cabinets with professional performance.
Use Cases
This speaker is extremely versatile and adapts perfectly to various situations, including:
-
Direct Replacement: Ideal for repairing or upgrading 8-inch speakers in PA systems, floor monitors, or full-range loudspeakers.
-
DIY Projects: An excellent option for audio system builders looking for a reliable and high-performing component for their creations.
-
Compact Sound Systems: Perfect for setting up sound systems for small venues, pubs, home studios or as part of a sound reinforcement system.
Frequently Asked Questions
Is this speaker compatible with any 8-inch speaker cabinet?
Yes, it is compatible with most enclosures designed for 8-inch speakers. However, it is essential to verify that the mounting diameter (185 mm) and depth (74 mm) of your enclosure are suitable for this model, and to confirm that your amplifier operates correctly at an 8-ohm impedance.
What does it mean that it has a "rigid suspension"?
The suspension is the rim that connects the cone to the speaker chassis. A rigid suspension offers less cone travel but greater control, resulting in a drier, faster, and punchier bass sound. It's a common feature in professional speakers designed for PA and monitoring, where accuracy is more important than deep resonance.
Is it suitable for use as a subwoofer?
Although it reproduces low frequencies effectively, its rigid suspension design makes it better suited as a mid-bass woofer in a 2- or 3-way system. For very deep, subsonic bass, a dedicated subwoofer with a softer suspension and greater excursion is recommended.
What amplifier power is recommended for this speaker?
For optimal and safe performance, an amplifier capable of delivering around 200W RMS into 8 ohms is recommended. Using a significantly lower wattage amplifier might not drive the speaker efficiently, while an excessively powerful one could damage it if not used carefully.
Project description
Replacement 8-inch (Ø203 mm) woofer speaker with an 8-ohm impedance. It offers a maximum power output of 400W and 200W RMS. It features a 1-inch voice coil, a 12-ounce (approx. 340 g) vented magnet, and a rigid surround for accurate response. The frequency response extends from the resonant frequency (Fs) to 9,000 Hz, with a sensitivity of 87 dB at 1W/1m. It requires a mounting diameter of 185 mm and a depth of 74 mm. Connection is made via spade terminals.
