SHEHDS MNZBW0740D - Moving Head Bee Eye JMS WEBB Zoom & Wash 7×40 W RGBW

JMS WEBB Small Bee Eye 7×40W RGBW Moving Head Wash & Zoom SHEHDS MNZBW0740D

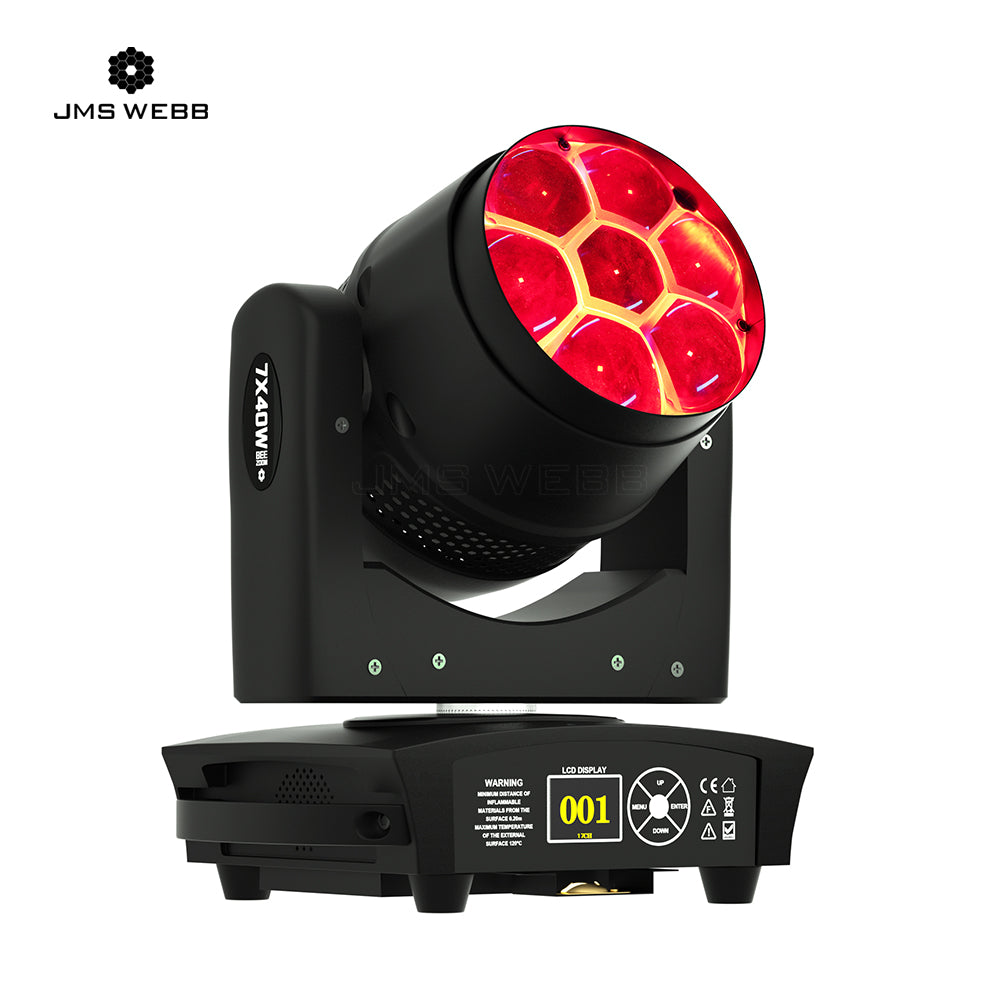

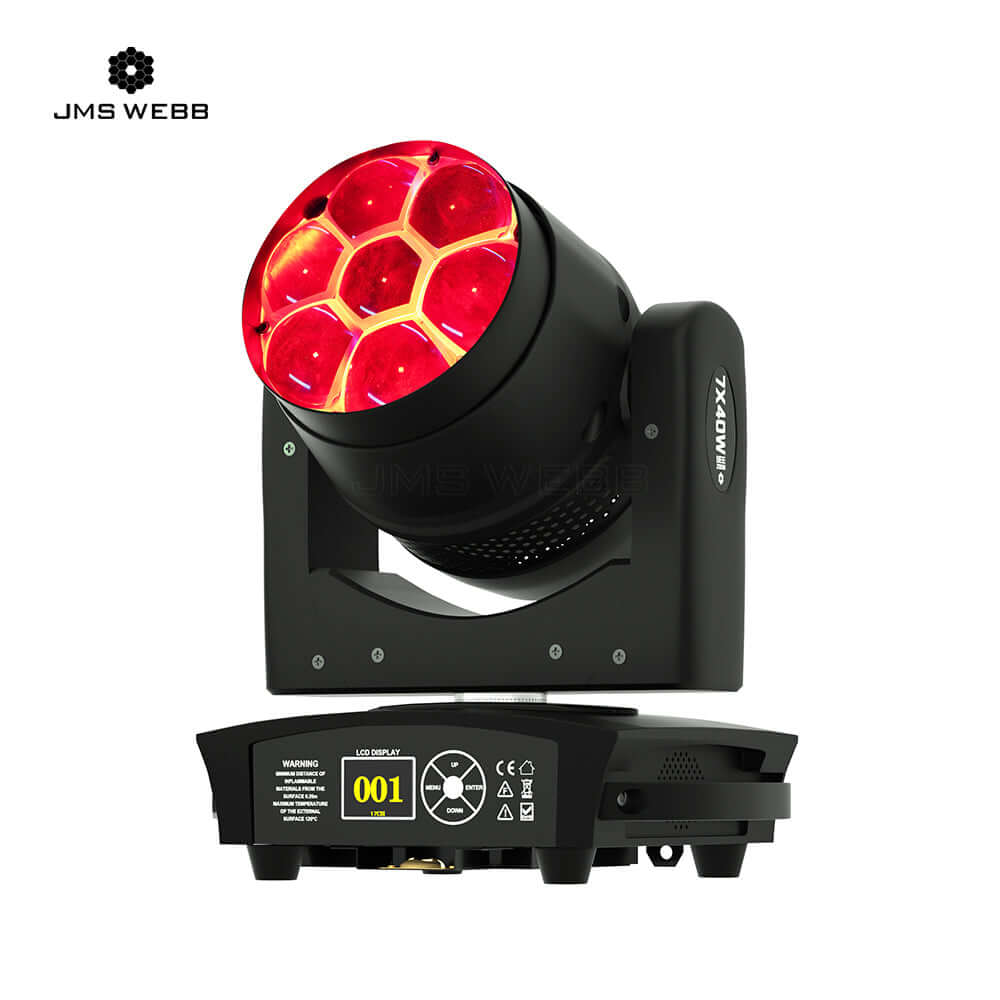

The JMS WEBB 7x40W “Small Bee Eye” moving head combines a powerful, defined beam with a fast 8x zoom wheel for zooming from 8.5° to 50° in seconds. Its seven 40W RGBW LEDs deliver seamless color mixing and rainbow macros that add dynamism to any stage. Powered by a 350W auto-ranging electronic power supply, DMX512/RDM on 11 or 17 channels, 540° pan and 180° tilt (16-bit), and a heat-conducting air-cooling system, it guarantees professional performance without fan noise. Ideal for discos, clubs, weddings, and corporate events.

Main features

• Source: 7 × 40 W RGBW LEDs with homogeneous mixing and rainbow macros
• Zoom: 8× optics, range 8.5°–50° for beam and wash
• Illuminance: 2,426 lux @ 10 m / 640 lux @ 20 m
• Dimmer: 0–100% mechanical, linear 16 bit
• DMX/RDM Control: 11 or 17 Channel Modes, 3-pin XLR In/Out
• Movement: Pan 540° / Tilt 180° (16 bit)
• Strobe: 0–25 Hz
• Power: 350 W auto-ranging, AC 100–240 V, 50/60 Hz
• Cooling: Forced air + heat conduction, silent operation
• LED lifespan: ≥ 20,000 hours
• Housing: Fireproof and durable plastic; IP20 (indoor)

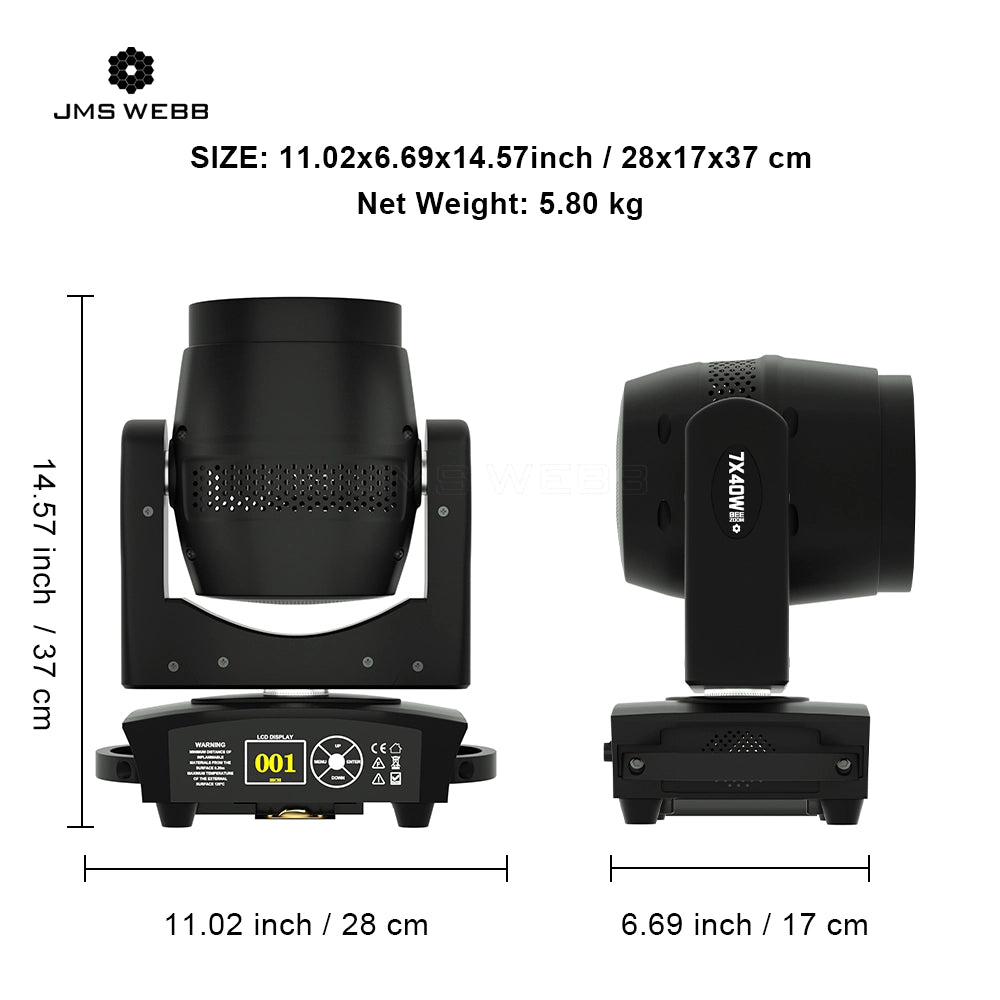

• Dimensions: 28 × 17 × 37 cm
• Net weight: 5.80 kg

Product benefits

• Versatile effect: Quickly transition from a focused beam to a wide wash with a single zoom motor.
• Advanced Control: RDM allows remote diagnostics and adjustment without physical access to the menu.
• Quiet Operation: Passive heat conduction and optimized ventilation reduce noise to a minimum.

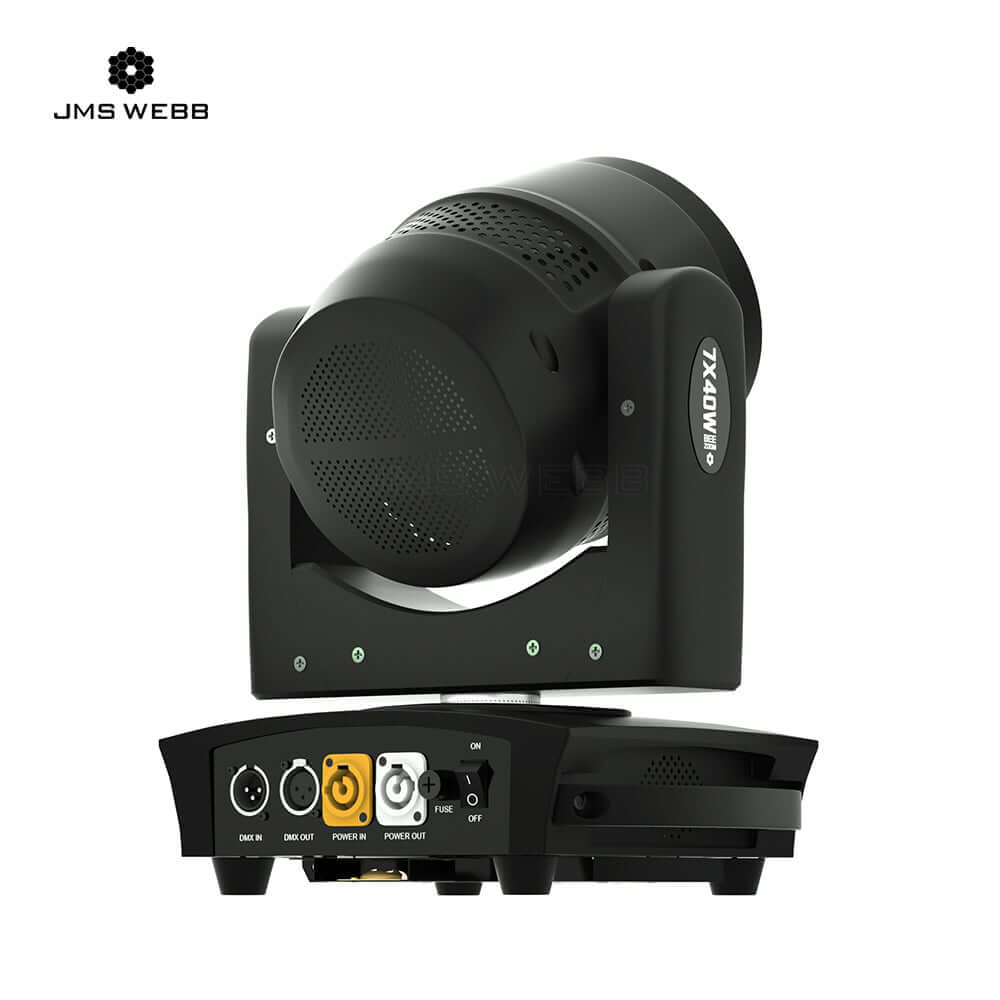

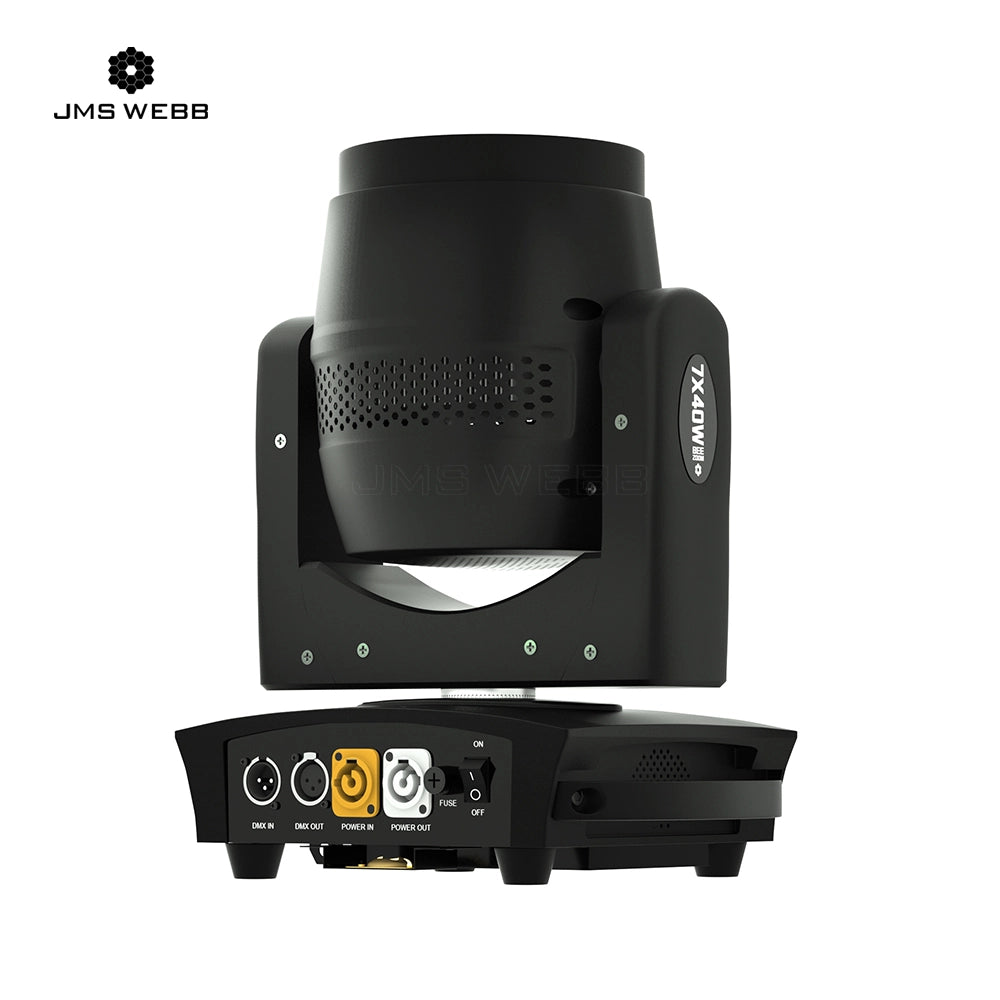

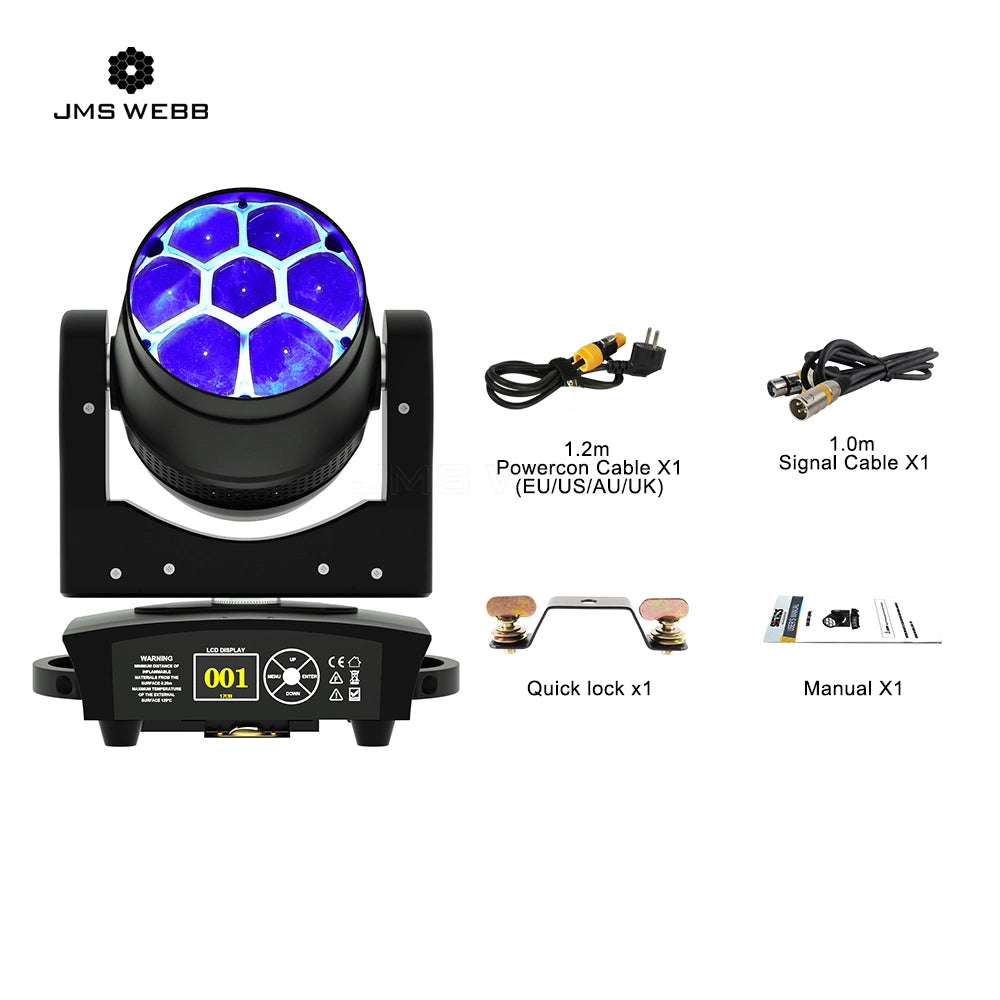

• Easy installation: PowerCON and XLR cascading for chains of up to dozens of units.
• Professional Durability: Fire-resistant materials and rugged electronics for 20,000 hours of continuous use.

Use cases

• Clubs, discos and lounges with dynamic light shows.
• Wedding events, ceremonies, and corporate receptions.
• Theater stages and auditoriums requiring combined wash and beam.
• TV, video and photography productions with rapid lighting angle changes.
• Mobile shows and artist tours.

Frequently Asked Questions

• How do I adjust the zoom? Using the dedicated DMX channel or the integrated control panel.
• What DMX protocol does it use? DMX512 with RDM on 11 or 17 channels depending on the desired level of control.
• Is it silent? Yes; it doesn't use active fans, it uses heat conduction.
• Can I link multiple units together? Yes, with a PowerCON and DMX connection in master-slave mode.
• For outdoors? No; IP20 protection limits its use to indoors.

Description for projects

LED Wash & Zoom moving head 7 × 40 W RGBW, 8× zoom (8.5°–50°), 2 426 lux @ 10 m, 16-bit dimmer, Pan 540°/Tilt 180°, DMX512/RDM (11/17 ch), PowerCON, AC 100–240 V, passive cooling, 28 × 17 × 37 cm, 5.80 kg.
