SHEHDS BWBE1915D - 19x15W RGBW Wash & Zoom Moving Head

LED Moving Head 19×15 W RGBW Wash & Zoom SHEHDS BWBE1915D

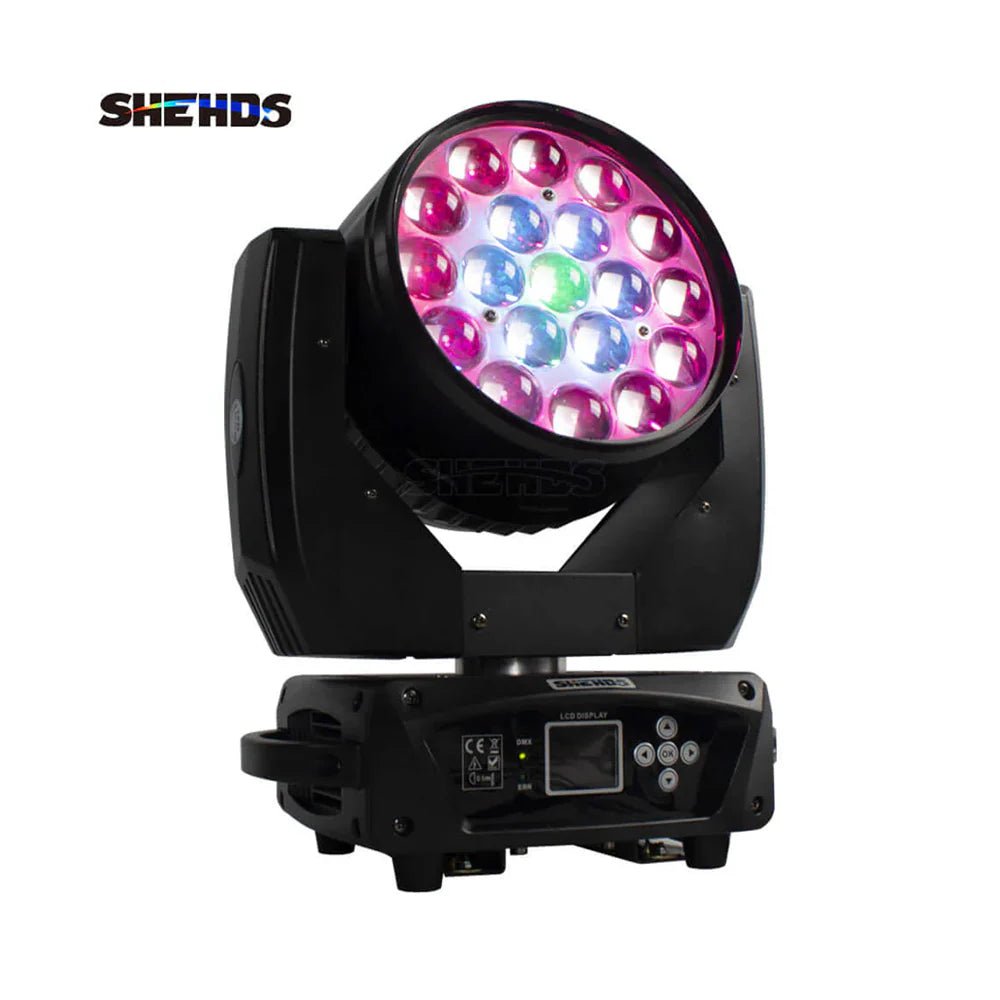

The SHEHDS BWBE1915D moving head features nineteen 15W LEDs in a 4-in-1 RGBW configuration to deliver smooth washes and intense colors, along with a zoom function that varies the beam angle from 8° to 55°. Its 350W auto-ranging electronics ensure stable power (AC 100–240V, 50/60Hz), while the 0–100% mechanical dimmer and 0–10Hz strobe allow for precise effects. Controllable by DMX512 in 16 or 24 channel modes (master/slave, auto, sound) and with 540° pan and 180° tilt, it is perfect for churches, theaters, weddings and nightclubs.

Main features

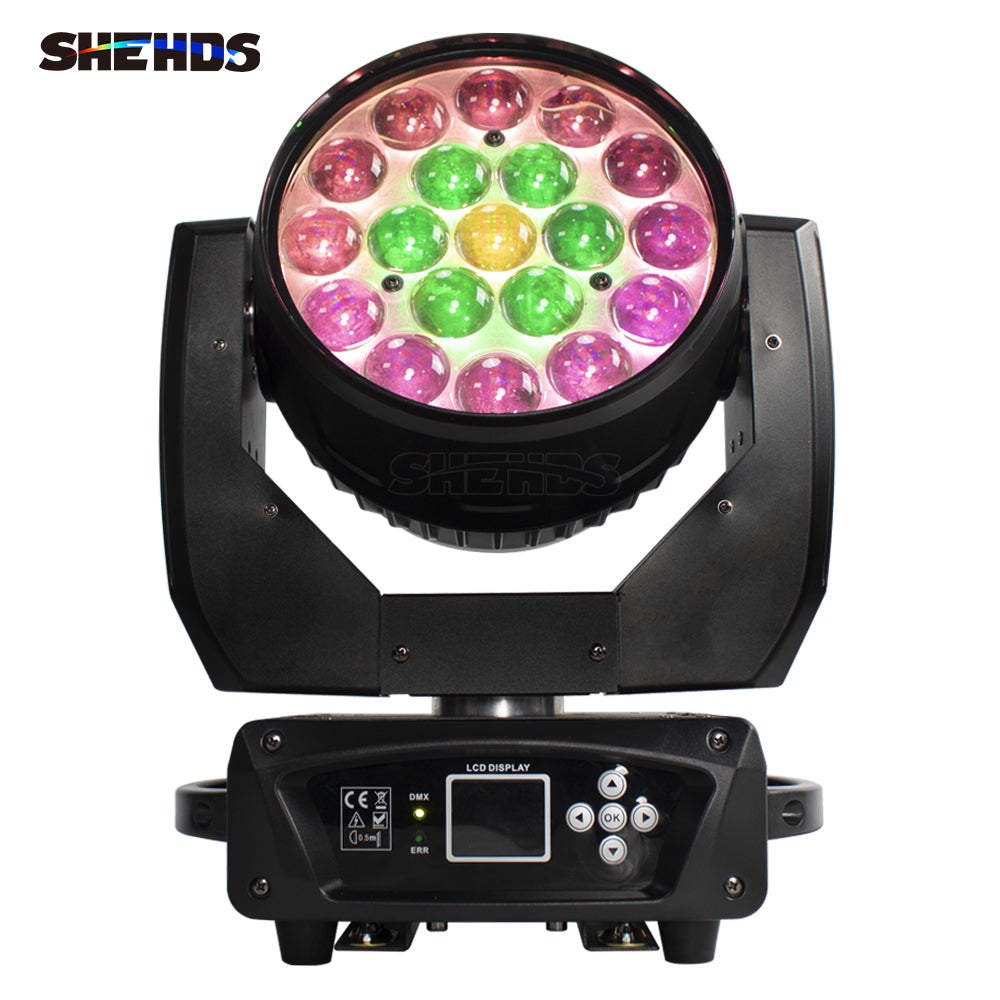

• Light source: 19 × 15 W RGBW 4-in-1 LEDs
• Power supply: AC 100–240 V, 50/60 Hz; consumption 285 W
• Zoom: 8–55°; Beam angle: 15°
• DMX512: 16/24 channels; Auto, Sound, Master/Slave modes
• Dimmer: 0–100% mechanical; Strobe: 0–10 Hz
• Movements: Pan 540° / Tilt 180° (16 bit)
• Cooling: forced airflow and thermal conduction
• Housing: Durable flame-retardant plastic; IP20 rating (indoor)
• Dimensions and weight: 30 × 21 × 37 cm; 7.95 kg (9.5 kg with packaging)
• LED lifespan: > 60,000 h

Product benefits

• Total versatility: Wash, beam and zoom in a single head to adapt to any environment.
• Professional control: Wide range of DMX and master/slave modes for synchronized shows.
• Precise Effects: High-resolution dimmer and adjustable strobe for smooth transitions.
• Easy installation: Neutrik PowerCON and XLR cascading for quick and secure mounting.
• Silent Operation: Passive cooling without noisy fans.

Use cases

• Stage lighting in churches and theaters.
• Wedding and reception settings.
• Discos, clubs and theme bars.
• Concerts and corporate events.
• Indoor video and photography productions.

Frequently Asked Questions

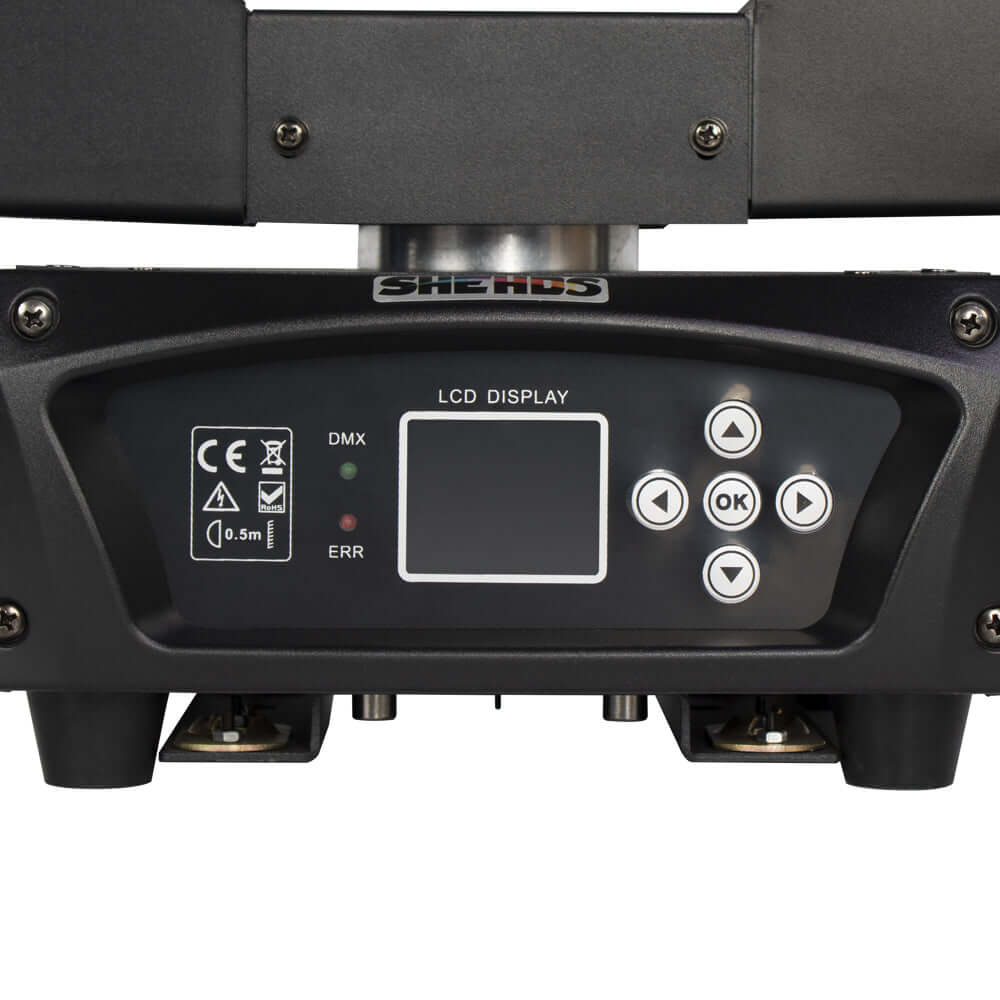

• How do I select DMX mode? From the built-in menu or via the RDM protocol.
• Can I chain multiple units together? Yes, in a master/slave or standard DMX512 chain.
• Do the fans require maintenance? No; they use hybrid cooling with no moving parts.
• What is its IP rating? IP20 for indoor use only.

Description for projects

Moving head with 19 × 15 W RGBW 4-in-1 LEDs, zoom 8–55 °, beam 15 °, dimmer 0–100 %, strobe 0–10 Hz, DMX512 16/24 channels, pan 540 °/tilt 180 °, consumption 285 W, AC 100–240 V, IP20 housing, 30 × 21 × 37 cm, 7.95 kg.
