sE Electronics SE6160 Shotgun Microphone

sE Electronics SE6160 Shotgun Microphone

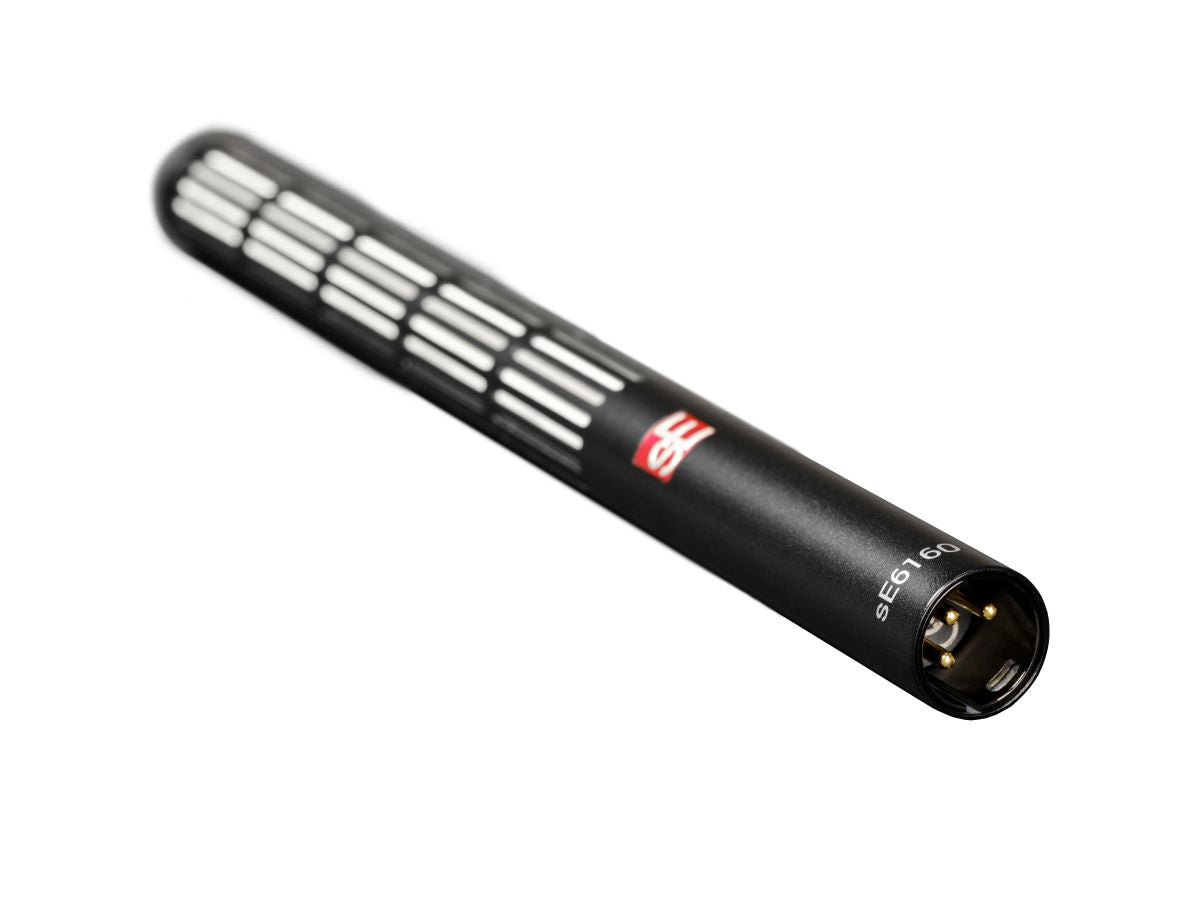

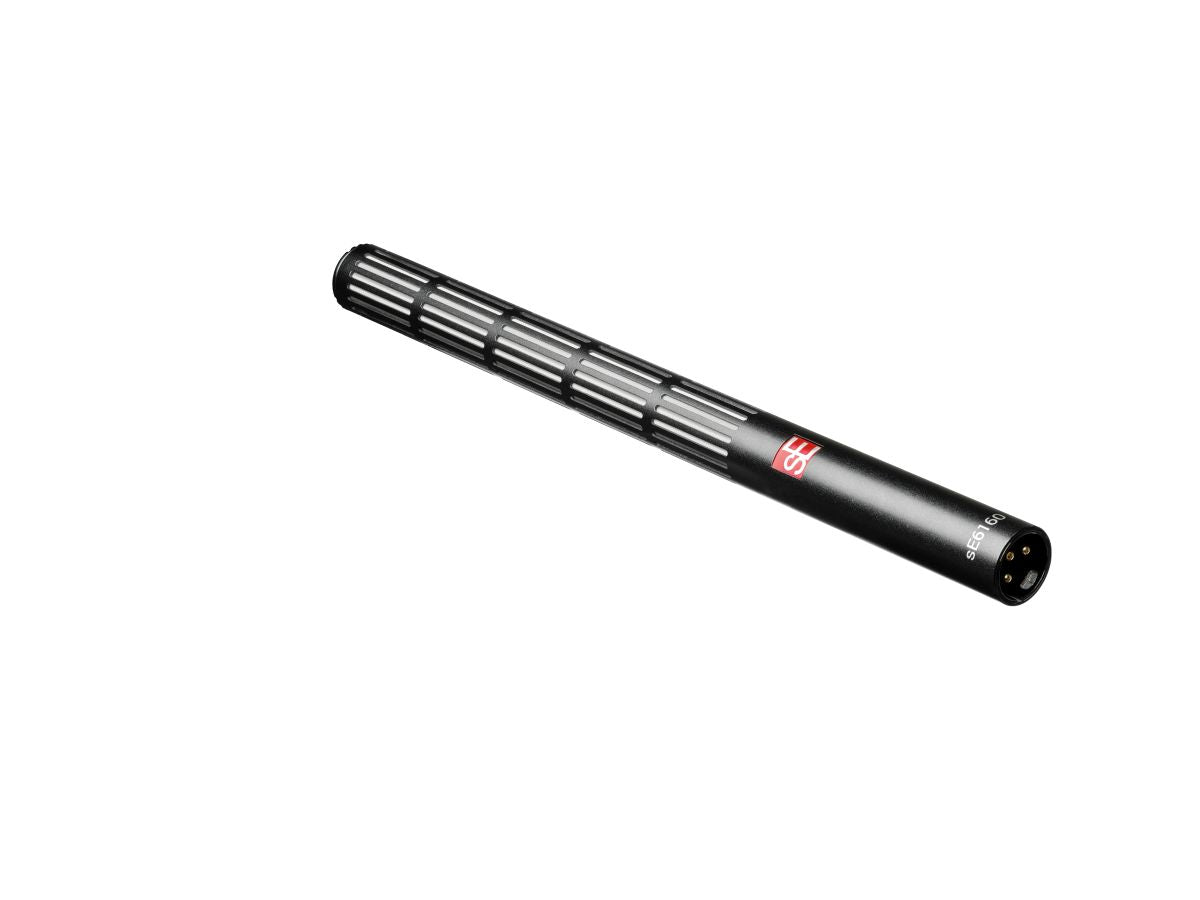

The sE Electronics SE6160 Shotgun is a highly directional condenser shotgun microphone designed to deliver natural audio pickup with an ultra-tight supercardioid/lobar polar pattern . Its innovative, handcrafted, gold-plated small-diaphragm condenser capsule delivers a wide 20 Hz to 20 kHz frequency response and a self-noise level of only 13 dB(A) . With its rugged yet lightweight die-cast metal housing and exceptional gain-before-feedback , the SE6160 is ideal for live audio , film production , broadcast , theater , and podcasting environments.

Main features

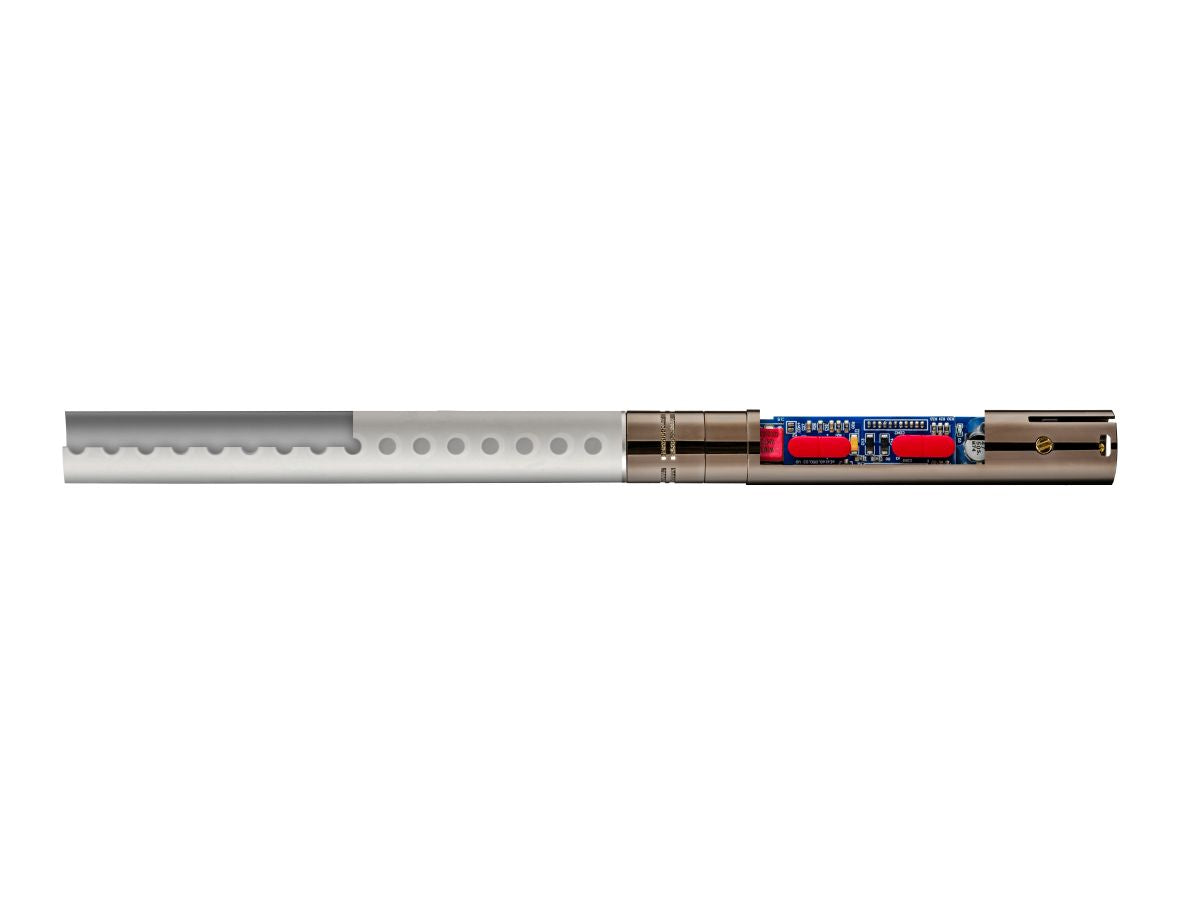

• Small Condenser Capsule: Handcrafted gold-plated diaphragm for precision and consistency.
• Supercardioid/Lobar Shotgun Polar Pattern: Maximum directivity and off-axis sound rejection.
• Frequency response: 20 – 20,000 Hz to cover the entire audible spectrum.
• Dynamic Range: Up to 144 dB (with 20 dB pad) to handle high SPL sources without distortion.
• Switchable filters: Low cut at 80 Hz and 160 Hz, -6 dB/octave, to eliminate handling noise and vibrations.
• Attenuation pad: -10 dB and -20 dB for picking up very loud sources.
• Phantom power: 48 V IEC 61938, consumption 2.6 mA.
• Connectivity: 3-pin XLR connector for professional integration.
• Dimensions and weight: 250 mm long, 19.6 mm diameter, 110 g.

Product benefits

• High gain before feedback: Allows high volume levels on stages and in noisy environments.
• Clean Ambient Capture: Perfect as an ambient microphone for in-ear systems and surround stereo mixes.
• Versatility: Suitable for field recording, dialogue filming, voiceovers, and high-quality podcasts.
• Rugged Design: Heavy-duty housing and hardware included for protection and quick mounting.

Use cases

• Capturing ambient sound at concerts and live shows.
• Recording dialogue and effects in film and advertising productions.
• Reinforcement of in-ear monitor systems on tours and events.
• Production of podcasts and radio programs in studio and on location.

Frequently Asked Questions

• Does it require phantom power? Yes, it requires 48V phantom power supplied by a mixer or audio interface.

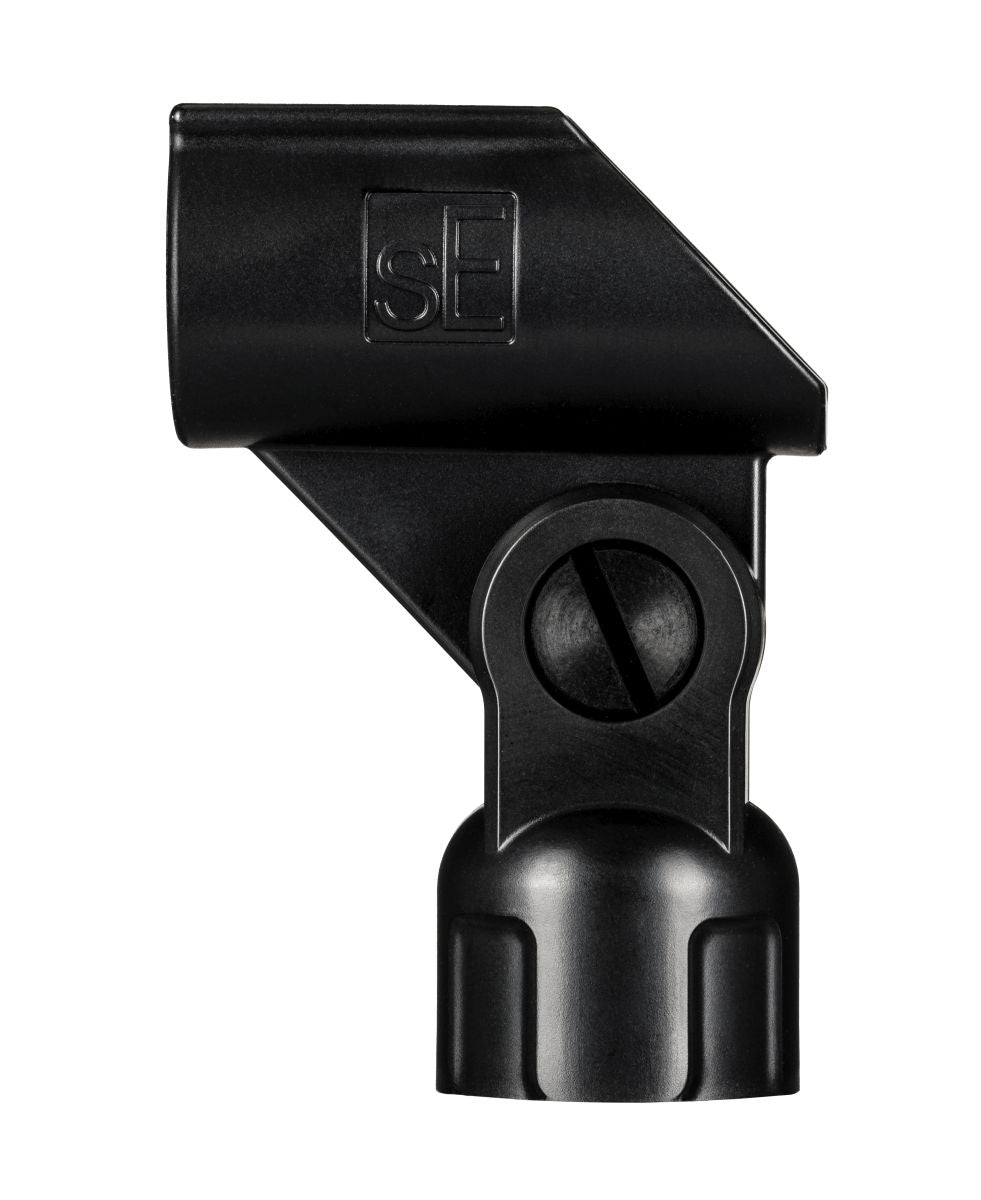

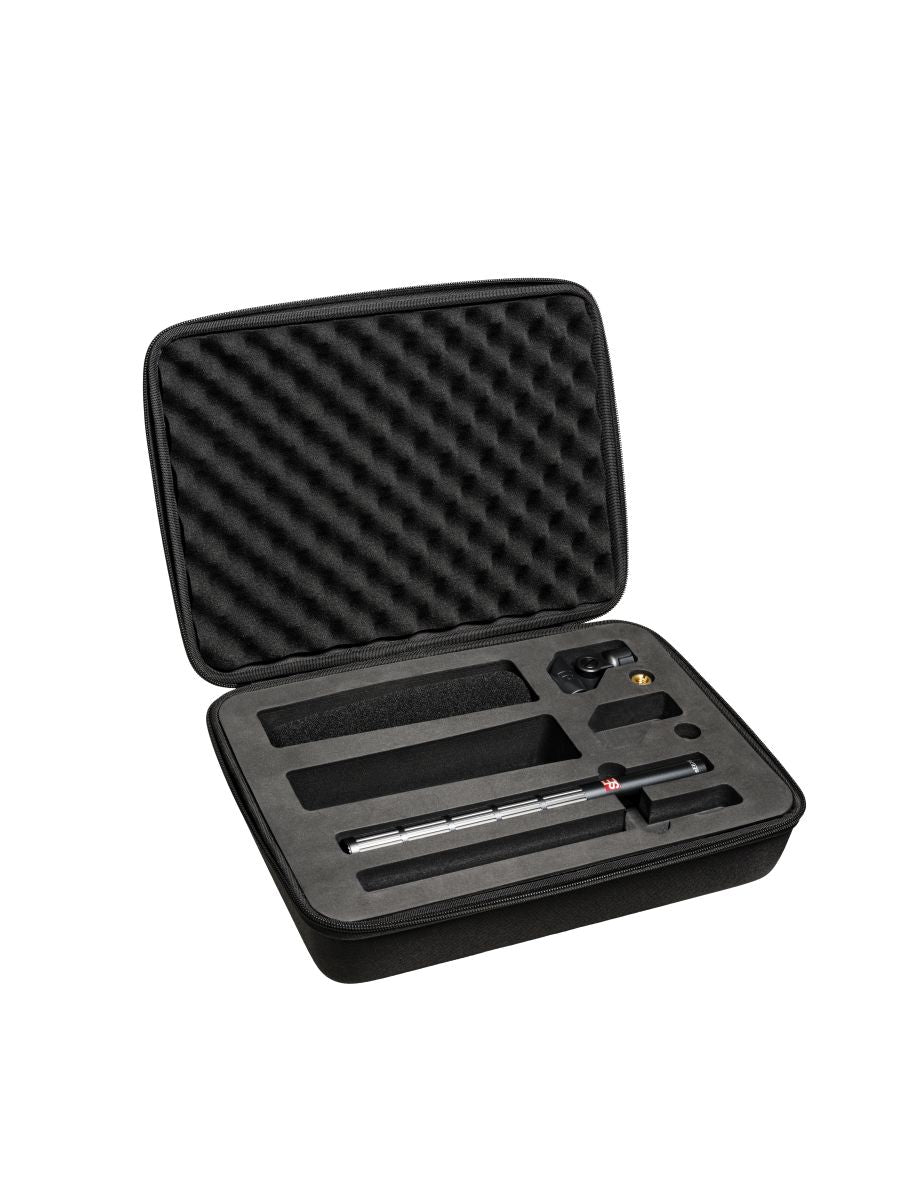

• What accessories does it include? Microphone clip, threaded adapter, foam windscreen, and soft case.
• How do I select the low-cut filter? Use the switch on the body with positions of 80 Hz, 160 Hz, or off.
• What is the purpose of the attenuation pad? It reduces the input signal by 10 or 20 dB to prevent clipping with very loud sources.

Description for projects

SE6160 condenser shotgun microphone with gold-plated small diaphragm capsule, supercardioid/lobar pattern, 20 – 20,000 Hz, maximum SPL 157 dB, switchable low-cut filter (80/160 Hz), attenuation pad (10/20 dB), 48 V phantom power, XLR connector, dimensions 250 × 19.6 mm, weight 110 g.
