PD-Connex RX10W - Speaker Cable for 100V Line 2x1.5mm² (50m Roll, White)

PD-Connex RX10W - Speaker Cable for 100V Line 2x1.5mm² (50m Roll, White)

The PD-Connex RX10W is a professional speaker cable specifically designed for use in 100V line audio systems. Presented on a convenient 50-meter reel, this cable is the ideal solution for fixed public address (PA) and background music installations in commercial, educational, or industrial environments. Its robust construction and technical specifications ensure clear and reliable audio signal transmission over long distances, minimizing power loss.

This cable features two conductors, each with a 1.5 mm² cross-section, made of CCA (Copper Clad Aluminum), offering an excellent balance between performance and cost for constant voltage systems. The fine strand structure (31 x 0.25 mm per conductor) provides great flexibility, facilitating handling and installation through conduits, suspended ceilings, or walls. Its double insulation and white PVC outer jacket not only offer enhanced safety and durability but also allow for discreet and aesthetically pleasing integration into most surfaces.

Main features

• Specific Design for 100V Line: Optimized for high voltage distributed audio systems, ensuring consistent sound delivery to all speakers in the line.
• 2 x 1.5mm² conductors: The 1.5mm² section is suitable for long cable runs, reducing voltage drop and ensuring that power reaches the speakers efficiently.
• Double Safety Insulation: The double-insulated construction protects internal conductors against physical damage and environmental factors, increasing the lifespan and safety of the installation.
• Flexible White Outer Sheath: Its white PVC sheath allows for a clean and discreet finish on light-colored walls and ceilings. The cable's flexibility simplifies installation around curves and corners.
• Polarity Identification: The two internal conductors feature distinctive colors (red and black) for quick and error-free polarity identification, crucial for the correct phase operation of the speakers.
• 50 Meter Format: The 50 meter roll is ideal for covering the needs of medium to large size projects, avoiding the need for multiple splices.

Product benefits

Using the PD-Connex RX10W in your sound installation projects will provide a solid and reliable foundation. Its design, focused on 100V systems, guarantees consistent audio performance without audible losses, even in installations with dozens of speakers and long cable runs. Easy installation, thanks to its flexibility and clear polarity identification, saves time and reduces the possibility of errors. Furthermore, its discreet white finish ensures seamless visual integration into any architectural environment.

Use cases

This cable is the perfect choice for a wide variety of commercial and public audio installations, including:

• Public address and announcement systems in schools, offices and shopping centers.
• Ambient music installations in restaurants, hotels, shops and gyms.
• Sound systems for conference rooms and auditoriums.
• Loudspeaker networks for emergency and evacuation announcements in industrial buildings and public buildings.
• Any distributed audio application that requires reliability and extensive cable runs.

Frequently Asked Questions

Can I use this cable for low impedance (4/8 ohms) home speakers?

Not recommended. This cable is optimized for high-impedance 100V line systems. For low-impedance systems, it is recommended to use a conventional pure copper speaker cable of a suitable cross-section for the required distance and power.

Is the cable suitable for outdoor installation?

This cable is primarily designed for indoor installations. It can be used outdoors provided it is installed inside a protective conduit or pipe that shields it from moisture, weather, and direct sunlight.

What advantage is there to using a 1.5mm² section in a 100V line?

A larger conductor cross-section, such as 1.5 mm², offers lower electrical resistance. Over long cable runs, this translates to less power loss, ensuring that the sound reaches all speakers in the installation with maximum clarity and volume.

Why is it specified as CCA and not as pure copper?

CCA (Copper Clad Aluminum) is a material that offers good conductivity for 100V line applications at a more affordable cost than pure copper, representing an efficient and economical solution for large-scale distributed audio installations.

Project description

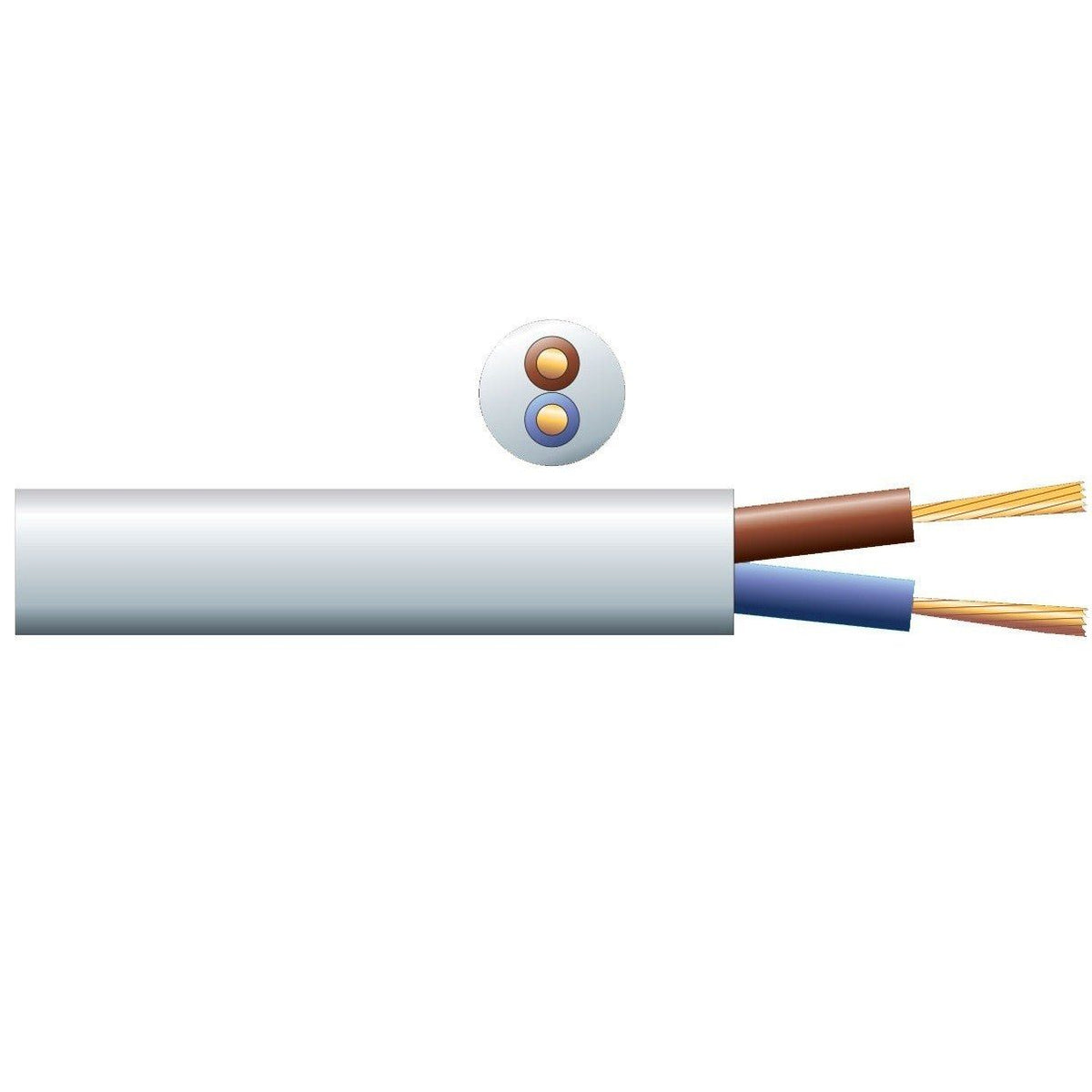

Double-insulated, two-core speaker cable designed for 100V line systems. The conductors are made of copper-clad aluminum (CCA) with a cross-section of 2 x 1.5mm², structured with 31 strands of 0.25mm per conductor. The outer jacket is made of flexible white PVC with a total diameter of 6.6mm. The inner cores are color-coded for easy polarity identification. Supplied in a 50-meter roll.
