Electro-Voice RM-300 - Single (1U) Rack Mount Kit for R300 Receiver

Electro-Voice RM-300 - Single (1U) Rack Mount Kit for R300 Receiver

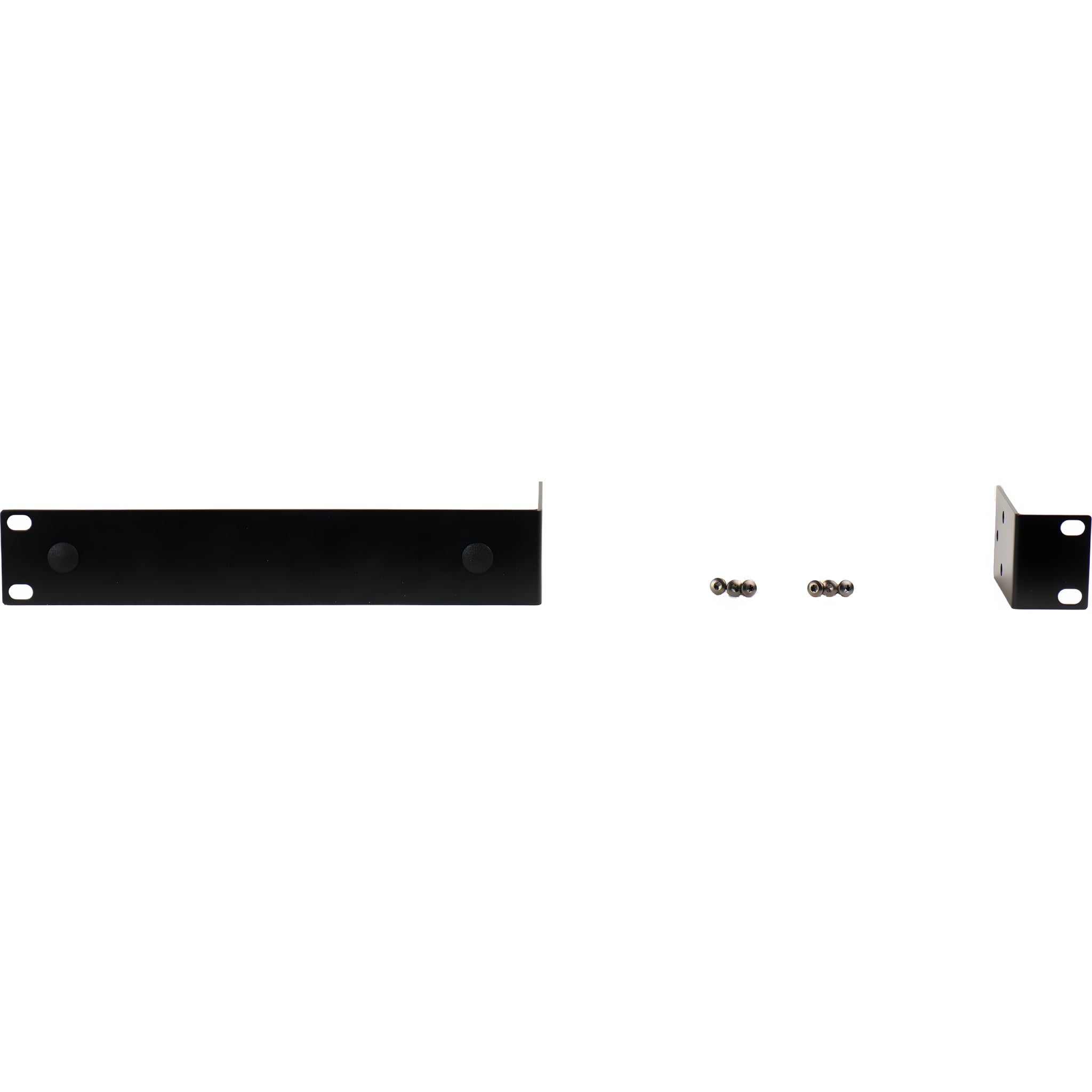

The Electro-Voice RM-300 is the official rackmount kit for installing an R300 receiver in a standard 19" rack, occupying 1U of height. Custom designed for the R300 series, this kit ensures clean, secure and professional integration into touring, rental and fixed installations. The long bracket incorporates two TNC holes with removable plugs that allow front mounting of antennas when using the optional SFMC-300 patch cable kit , leaving a clear front and better reception in closed racks.

Installation is simple: the RM-300 can be oriented to the left or right of the receiver, depending on the rack layout. The hardware and screws required to secure the RM-300 to the mount are included; 19" cabinet screws are purchased separately. A T15 Torx screwdriver is required for assembly.

Main features

• Dedicated compatibility: Designed for an Electro-Voice R300 receiver (1/2 rack format).
• Rack format: standard 19" , 1U high.
• Front antennas: plate with 2 TNC holes with removable plugs for use with the SFMC-300 coaxial kit (optional).
• Reversible mounting: The bracket can be placed on the left or right of the R300 to optimize cabling.
• Hardware included: specific hardware to fix the receiver to the bracket and complete the set.
• Tool needed: Torx T15 (not included).
• Rack mounting: with standard 19" cabinet screws (not included).
• Heavy Duty Construction: Metal with durable finish for professional use.

Product benefits

• Space-saving and tidy: integrate an R300 into 1U with a uniform appearance and convenient front access.
• Optimized reception: front-mount antenna option for improved coverage in closed racks.
• Agile installation: custom-made hardware and reversible orientation simplify system layout.

Use cases

• RF racks for touring and rental with one or more R300 channels.
• Fixed installations in auditoriums, educational centers, conference rooms or places of worship.
• Audiovisual production where clean and reliable editing in 19" is required.

Frequently Asked Questions

• Does it work for two receivers? No. For two receivers side by side, use the RMD-300 (dual 1U).
• Are the rack screws included? No. The kit includes hardware to secure the R300 to the mount , but the screws for the 19" cabinet are supplied separately.
• How do I attach the antennas to the front? Remove the caps from the RM-300 and use the optional SFMC-300 , which provides the necessary cables and connectors.

Description for projects

Electro-Voice RM-300 rackmount kit for one R300 receiver ; 19" form factor, 1U height; reversible (left/right) bracket; 2 TNC hole plate with blankings for front mounting of antennas using the optional SFMC-300 ; includes receiver mounting hardware; rack screws not included ; T15 Torx tool required; metal construction with rugged finish.
