beamZ RB90 Deco Retro - Vintage Blinder 3×30W Amber with RGB Ring, DMX 3-pin and PowerCON

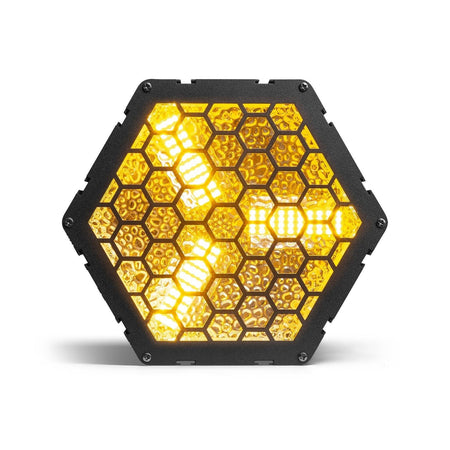

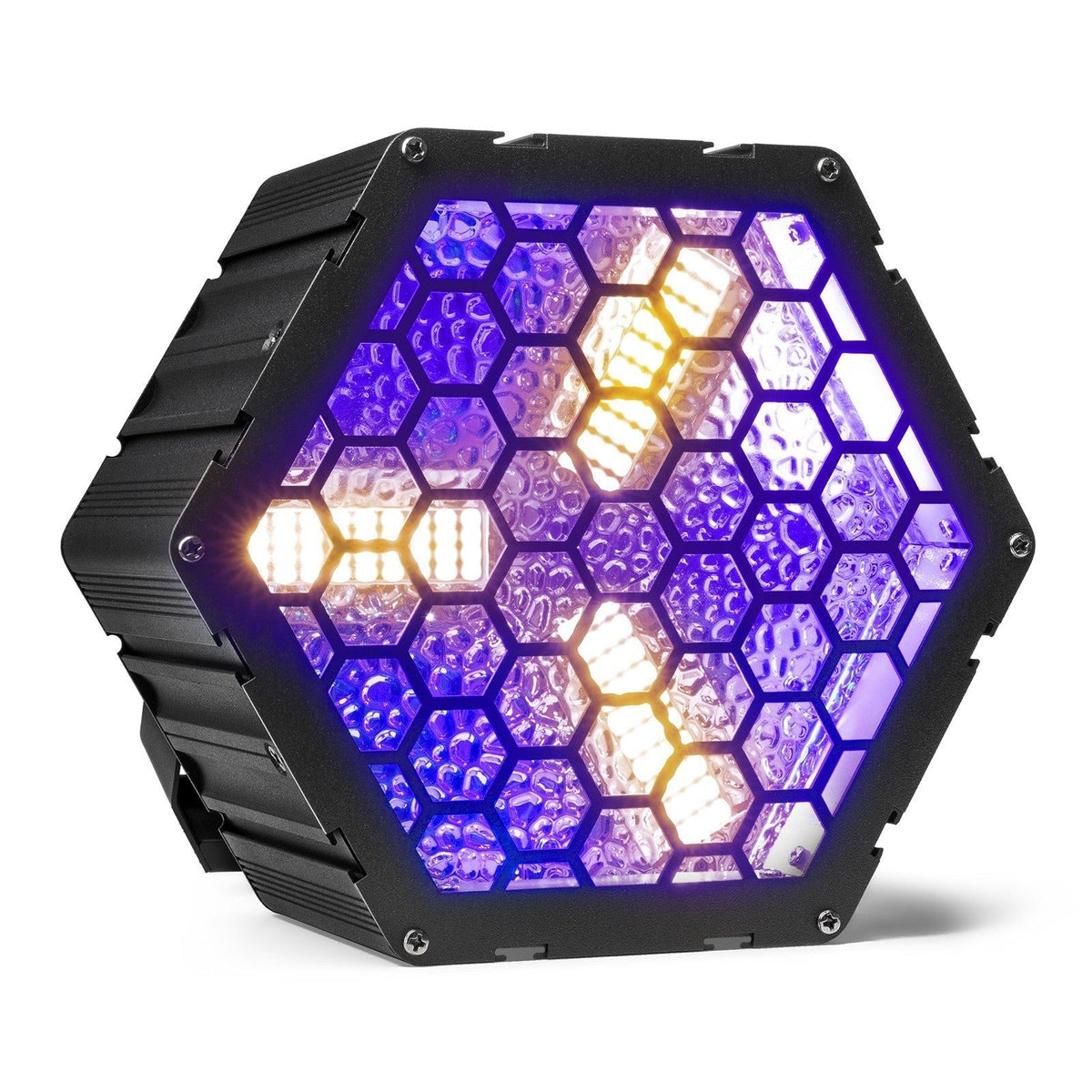

The beamZ RB90 Deco Retro combines vintage aesthetics with the precision of modern LED technology. It integrates three 30W (2200K) amber COBs for a warm, tungsten-like light and a perimeter ring of 72 RGB SMD LEDs (0.5W) that adds color fills, accents, and chases . Each COB is independently controlled, and the system includes 127 pre-programmed effects with adjustable speed, 0–100% linear dimming , and 1–25Hz strobe . Designed for stages, festivals, clubs, and events , it offers 16/34-channel DMX control , Auto/Master-Slave modes , and sound activation . Its highly reflective aluminum housing maximizes output (up to 12,145 lx at 0.5 m ) with a 50° beam angle and a 100° field of view . The LCD display , DMX 3-pin in/out and PowerCON in/out connections facilitate quick and reliable tour setup; it is also linkable using the supplied docking kit .
Main features
-
Dual retro effect: 3 × 30 W COB amber (2,200 K) + 72 × 0.5 W SMD RGB on the perimeter.
-
Professional control: 3-pin DMX with 16/34 channels , Standalone , Master/Slave and Sound (adjustable sensitivity).
-
Effects engine: 127 shows with adjustable speed, 0–100% linear dimmer and 1–25 Hz strobe .
-
Efficient optics: 50° beam, 100° field; 12,145 lx @ 0.5 m .
-
Touring connectivity: PowerCON in/out and DMX 3-pin in/out ; LCD display for quick adjustments.
-

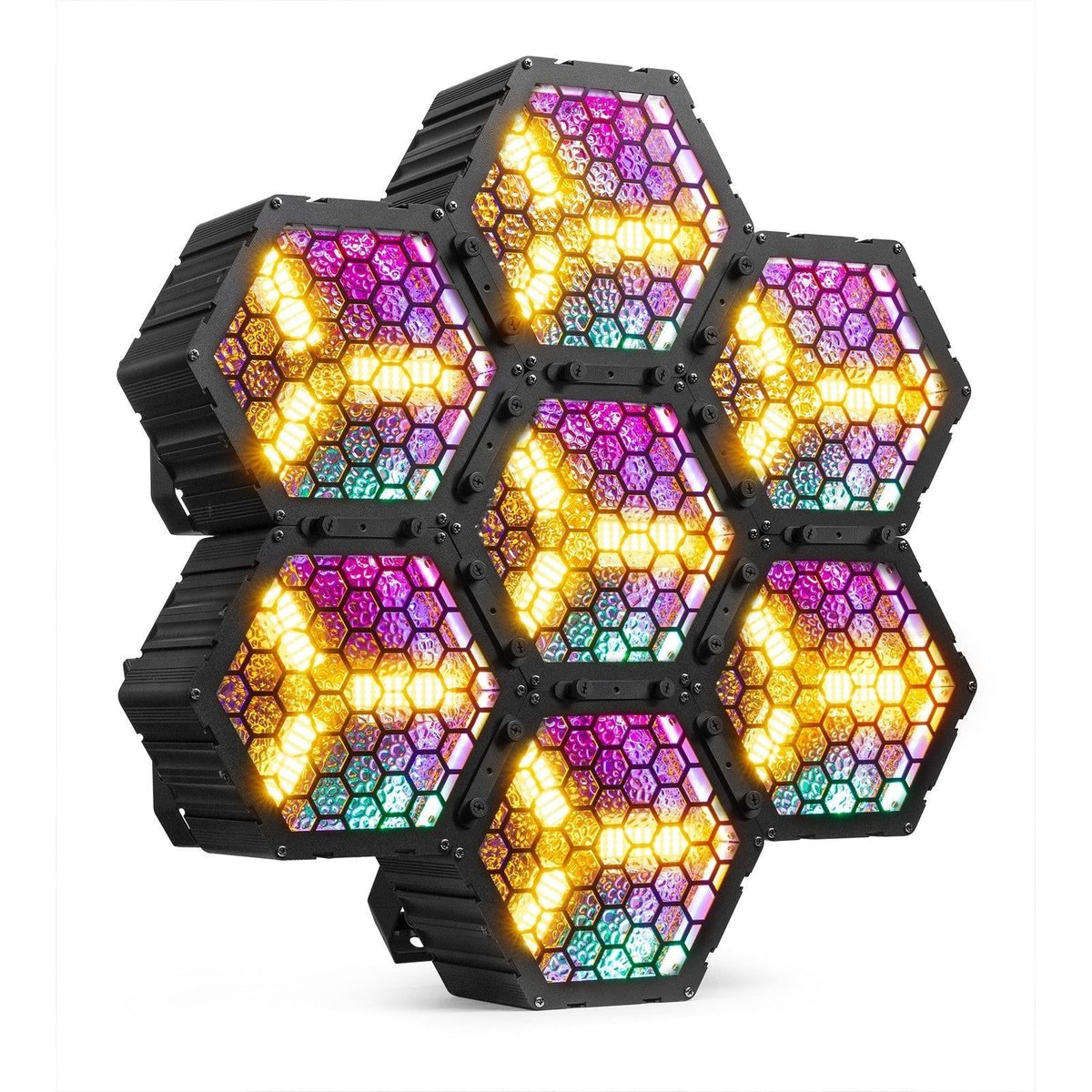

Linkable: Includes docking kit for retro matrices and walls .
Product benefits
-
Halogen-free tungsten look: warm aesthetic of classic blinder with reduced consumption and maintenance.
-

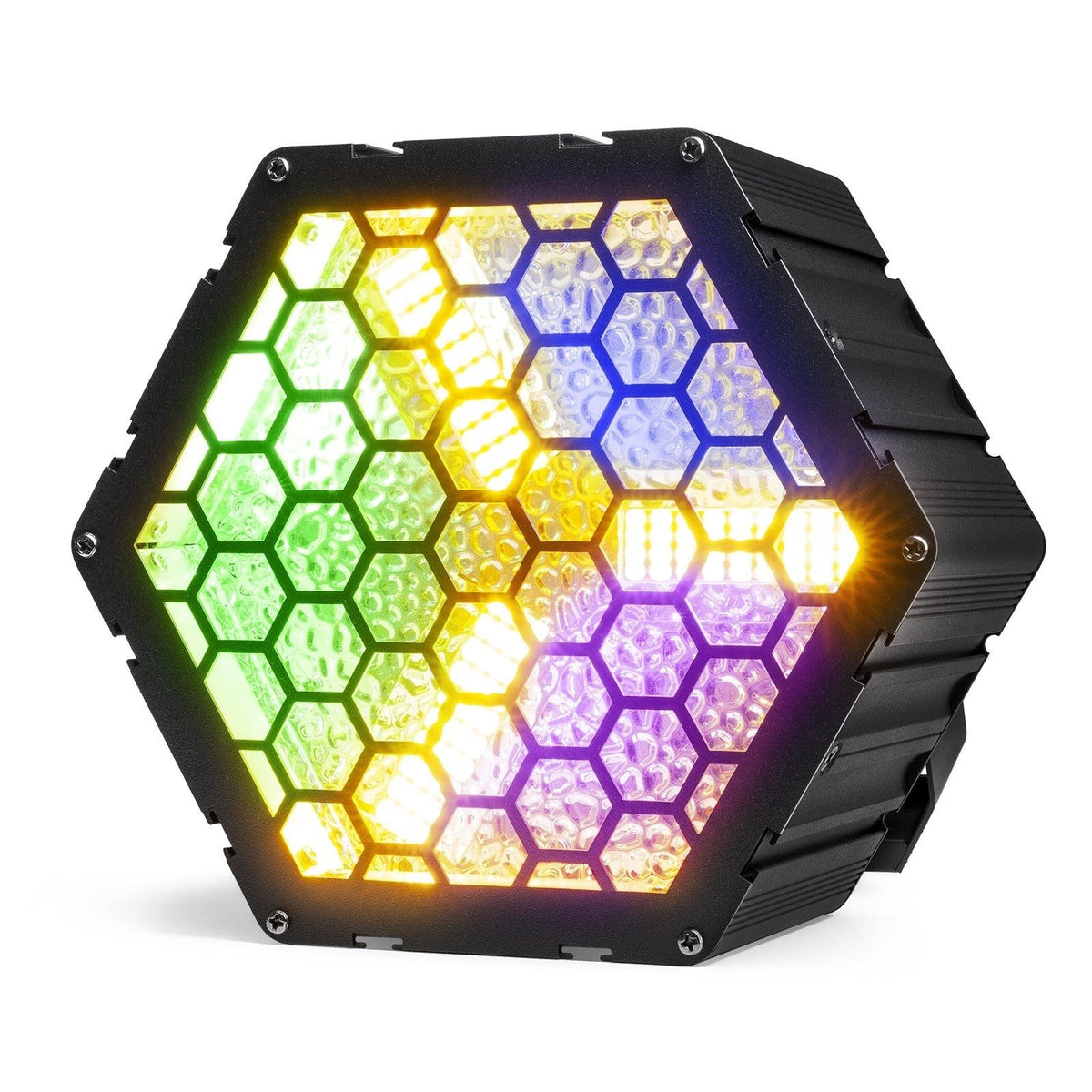

Creative stage design: RGB perimeter for fills, accents and patterns that enrich the amber hit.
-
Versatile operation: from plug&play with pre-programmed shows to fine control via DMX (16/34 ch) .
-
Quick setup: clean wiring with PowerCON and standard 3-pin DMX daisy-chaining.
Use cases
-

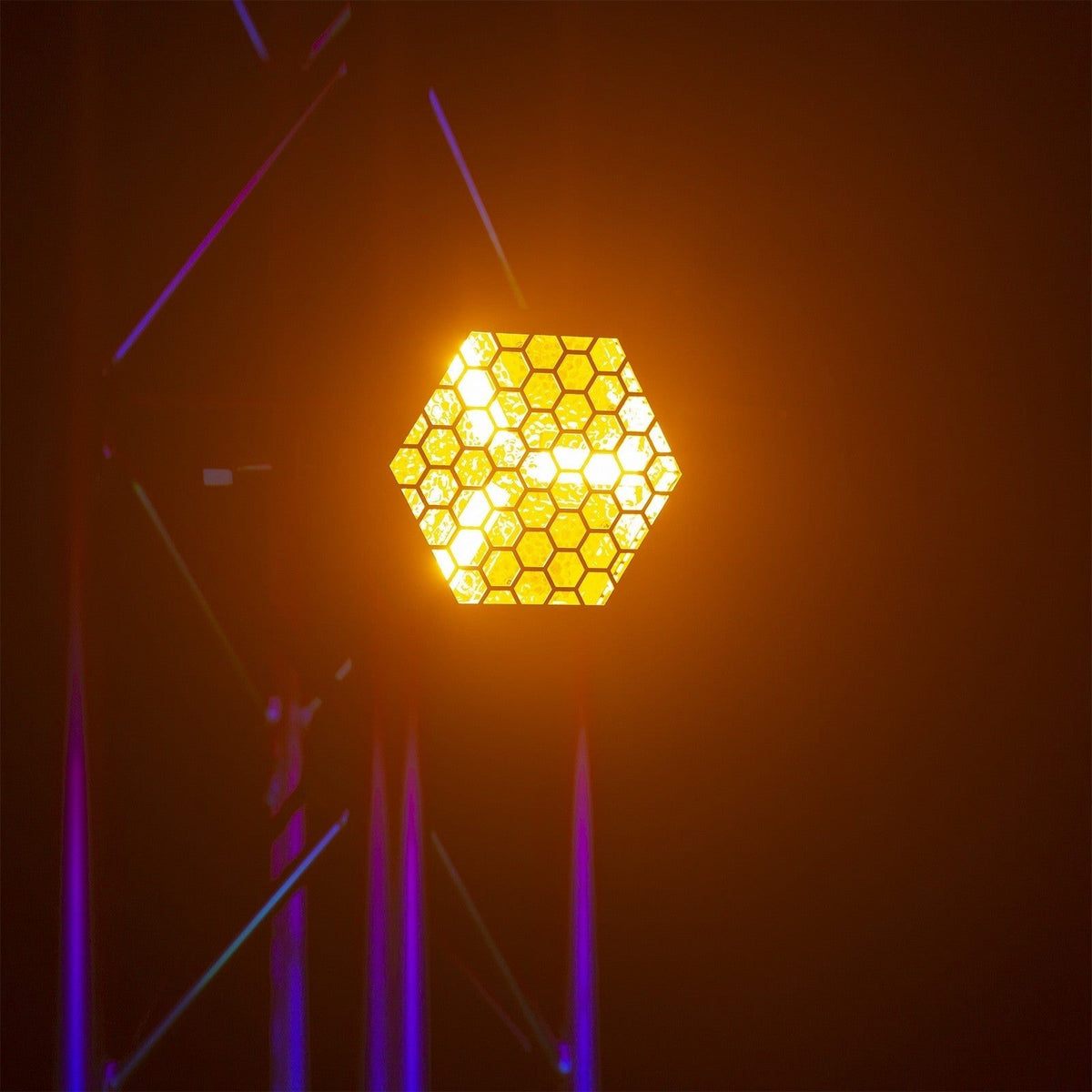

Live shows and festivals: blinding "drop" effects, RGB perimeter chases and rhythmic strobes.
-

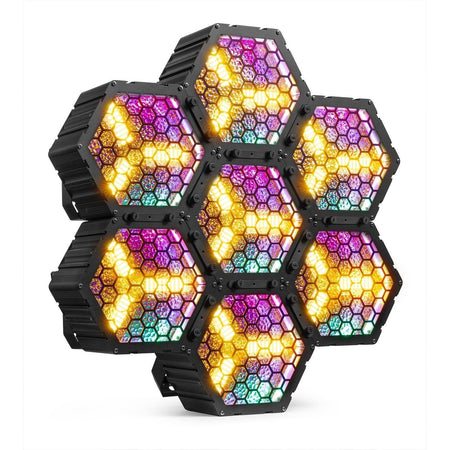

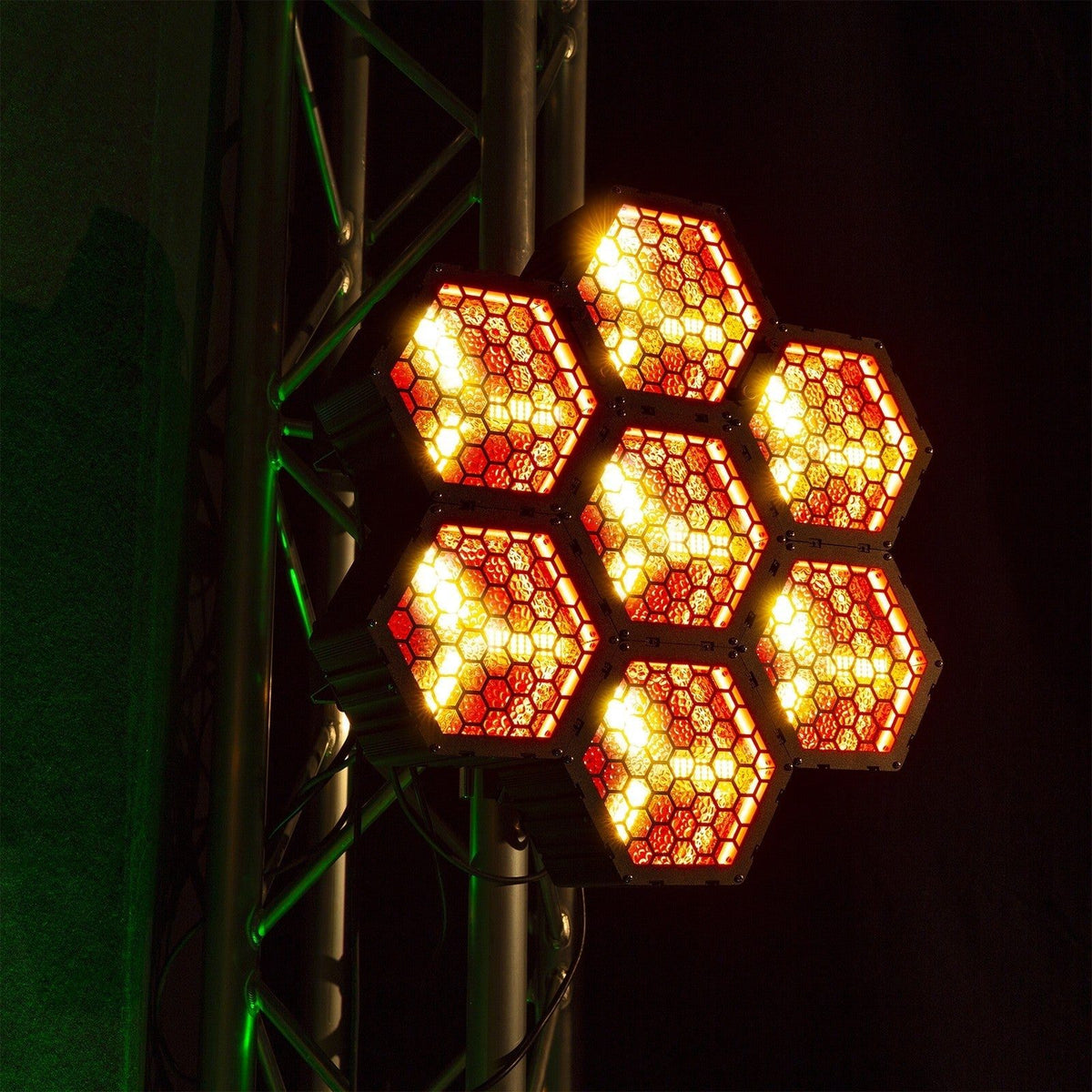

Clubs and events: linked matrices as a background for a booth or stage wall.
-
Television/corporate: precisely controlled retro aesthetics with repeatability.
Frequently Asked Questions
-
Are the amber COBs controlled separately? Yes, each COB is independent via DMX for dimmer and strobe.
-
What DMX mappings are included? 16 and 34 channel modes to choose between quick or detailed control.
-
Can I daisy-chain power supplies? Yes, using PowerCON in/out .
-
Is it fanless? The manufacturer doesn't specify a fan; it uses a reflective aluminum casing and optimized thermal management.
Integration recommendations
- For arrays, use the docking kit and plan DMX addressing by rows/columns.
- Add safety cables to elevated rigging and manage the PowerCON/DMX daisy chain .
- It combines extended mapping (34 ch) to animate the RGB perimeter and maintain the COBs as the main blinder .
Project description

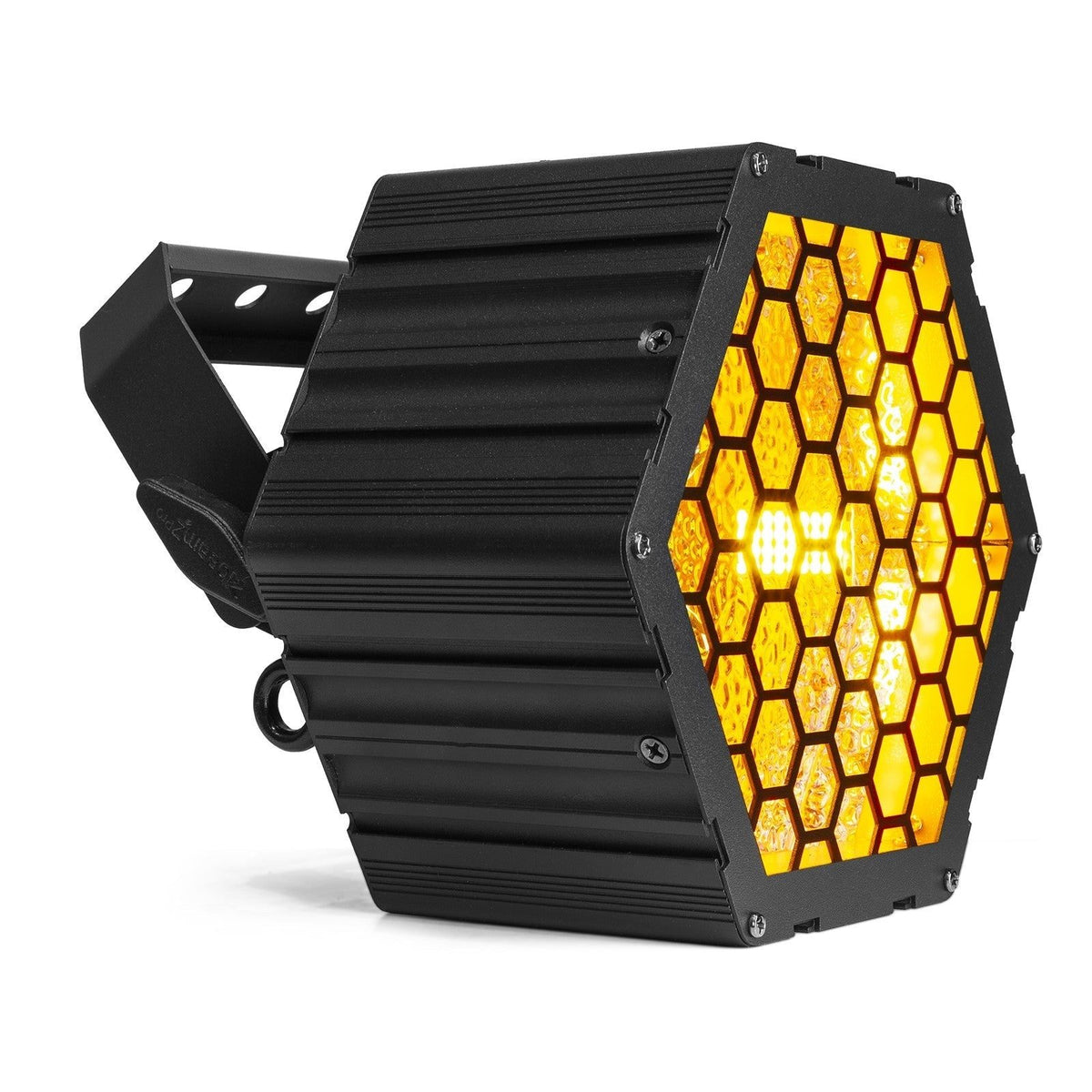

beamZ RB90 Deco Retro Blinder: 3 × 30W (2200K) amber COB LEDs + 72 × 0.5W SMD RGB LEDs ; 50° beam angle , 100° field of view, 12,145 lx @ 0.5 m ; 16/34 channel DMX ; Auto/DMX/Manual/Master-Slave/Sound modes; 1–25 Hz strobe ; LCD ; 3-pin DMX in/out ; PowerCON in/out ; IP20 ; 100–240 VAC 50/60 Hz , 1.73–0.79 A ; dimensions 145 × 200 × 176 mm ; 1.65 kg ; includes bracket , cable and docking kit .
