beamZ RB90-5 Retro Decor - Vintage Blinder 3×30 W Amber + 72 SMD RGB with DMX 5-pin and PowerCON

beamZ RB90-5 Retro Decor - Vintage Blinder 3×30 W Amber + 72 SMD RGB with DMX 5-pin and PowerCON

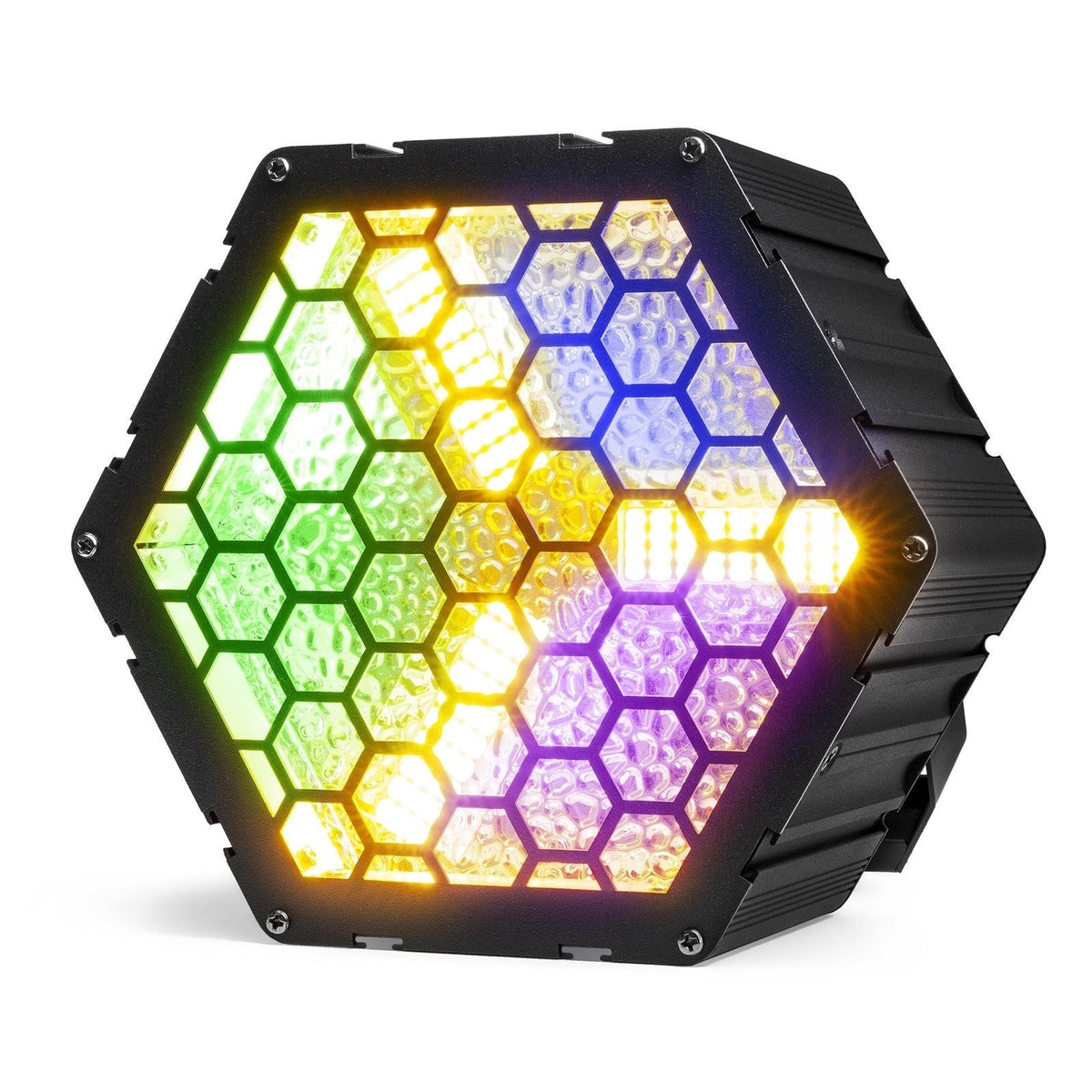

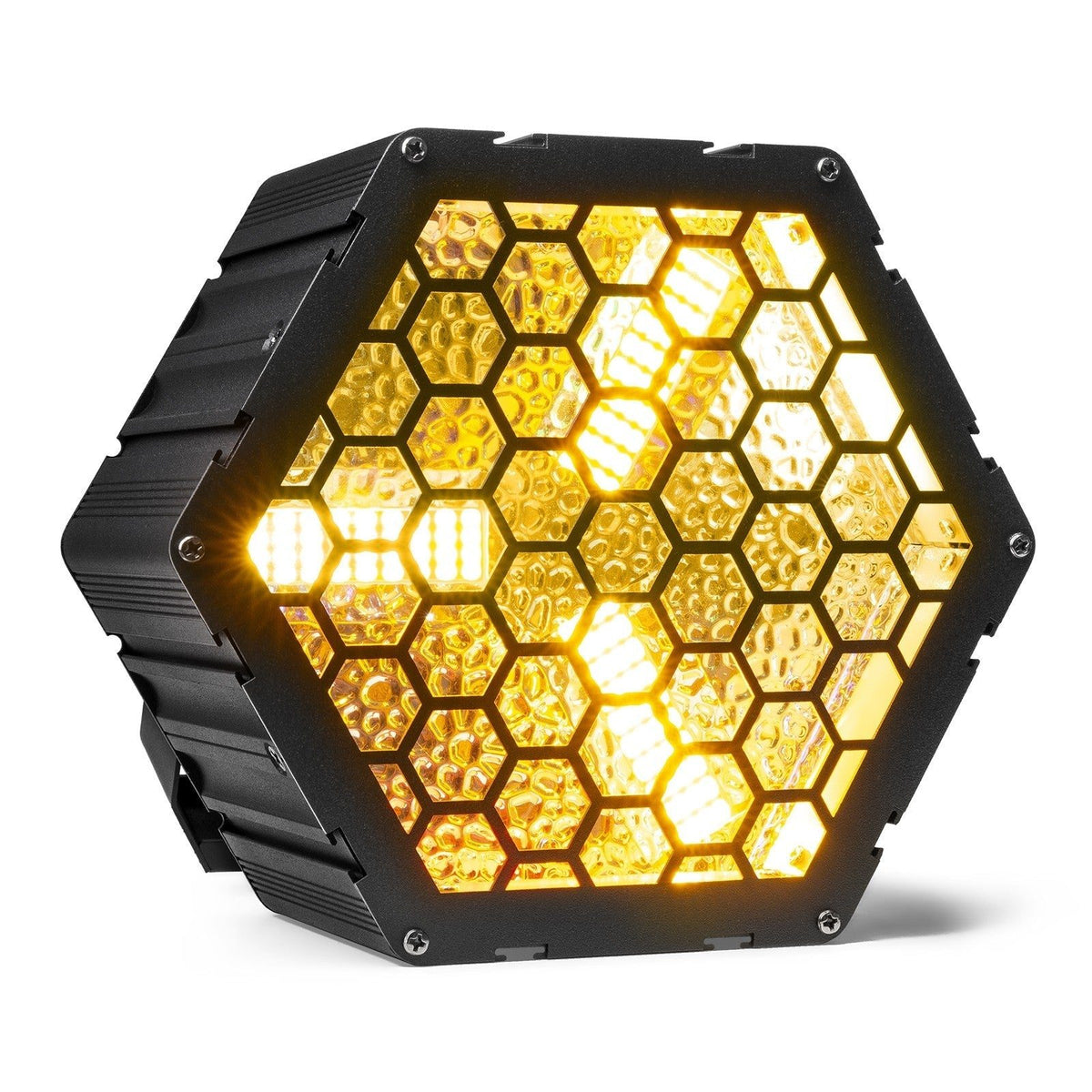

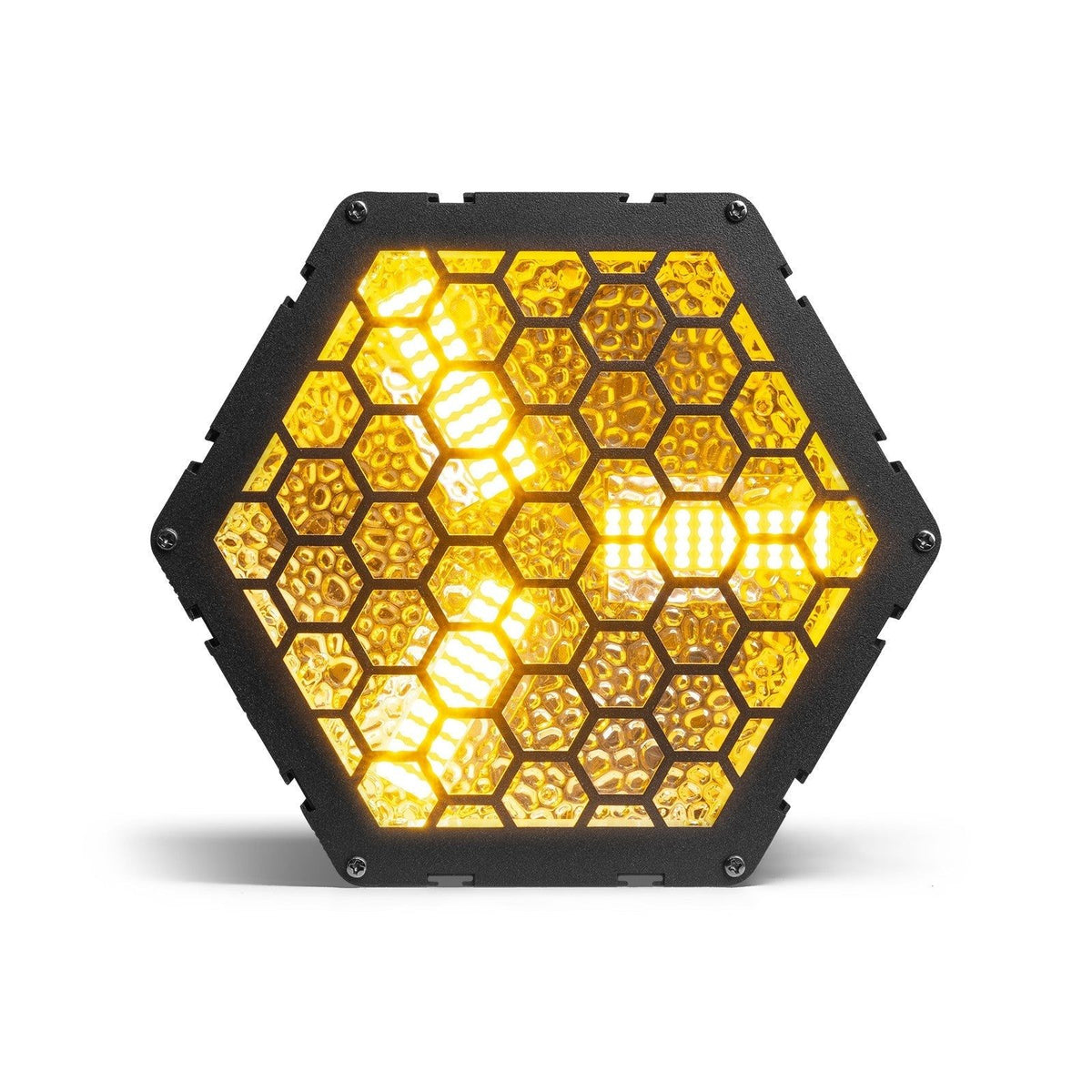

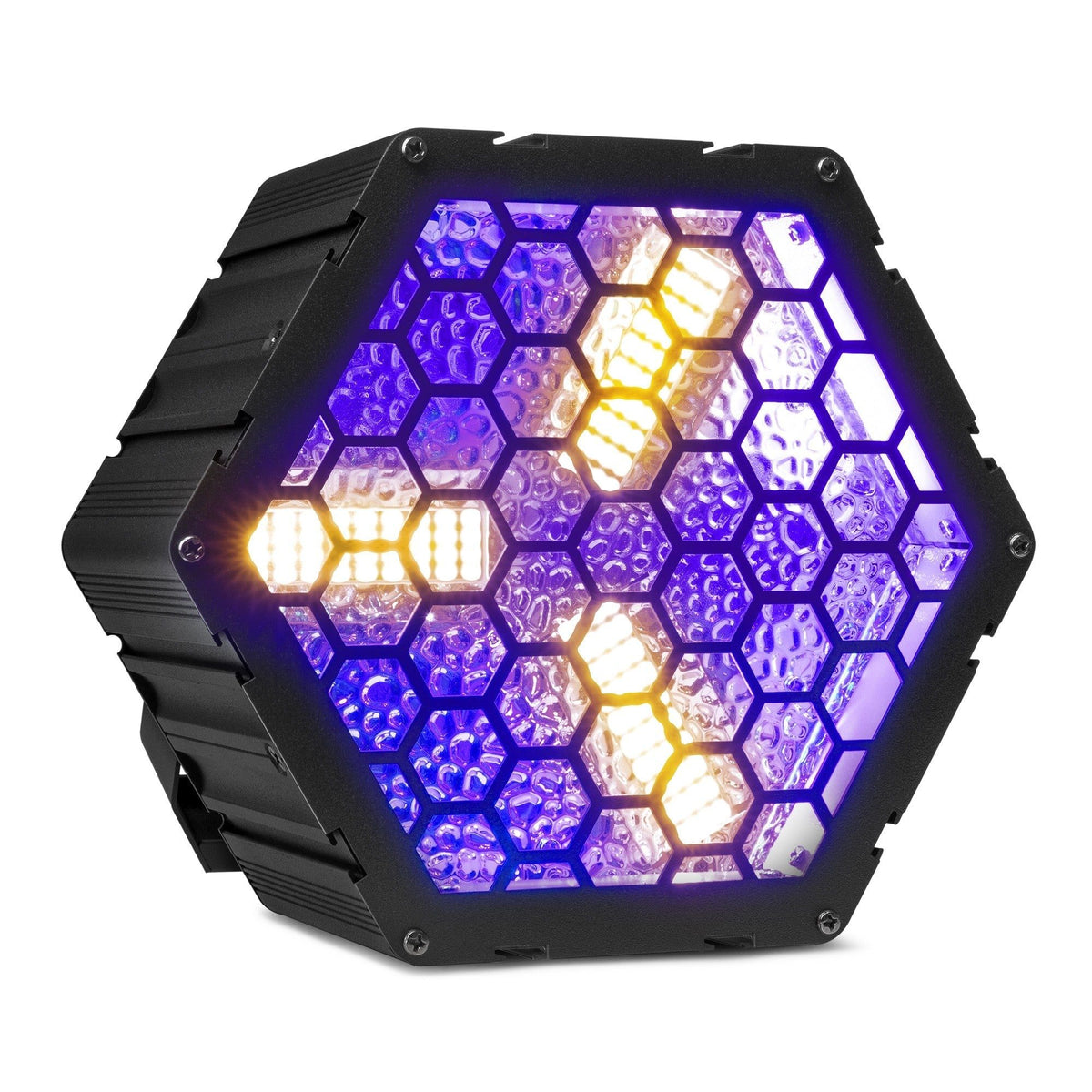

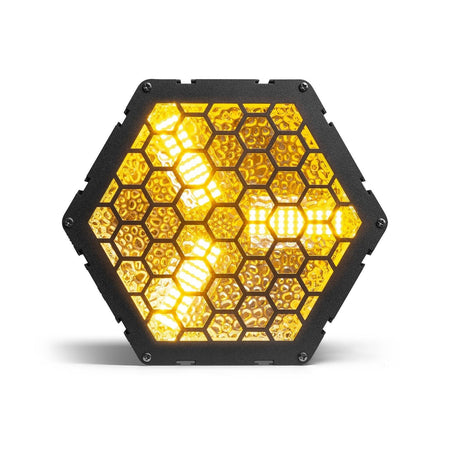

The beamZ RB90-5 Deco Retro combines vintage design and modern LED technology to deliver a dual effect that is both attractive and versatile: a warm, halogen-like blind thanks to its three 30W amber COBs at 2200K , and a perimeter ring with 72 RGB SMD LEDs (0.5W) for color fills, accents, and chases . Each COB can be controlled independently (strobe, linear dimmer 0–100%) and, together with the RGB perimeter, generates everything from classic bursts to 127 pre-programmed effects with adjustable speed. Designed for stages, festivals, clubs, and events , it features 5-pin DMX (16/34 channels) , Master/Slave , Auto , and music-activated modes ; its highly reflective aluminum housing maximizes output (up to 12,145 lx @ 0.5 m ) with a 50° beam angle and 100° field of view . The LCD display , PowerCON in/out connectors , and included docking kit for linking multiple units in a matrix streamline professional assembly.

Main features

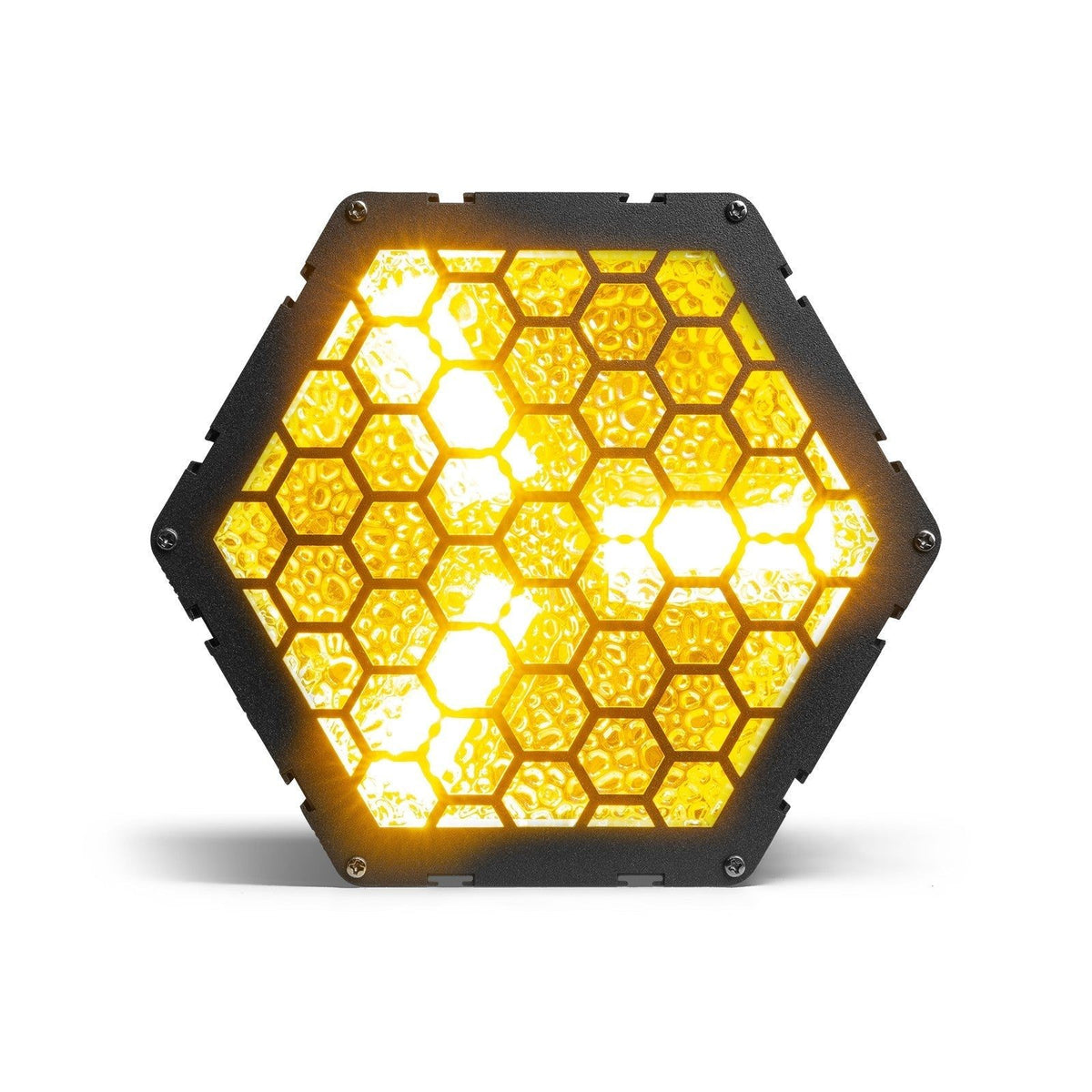

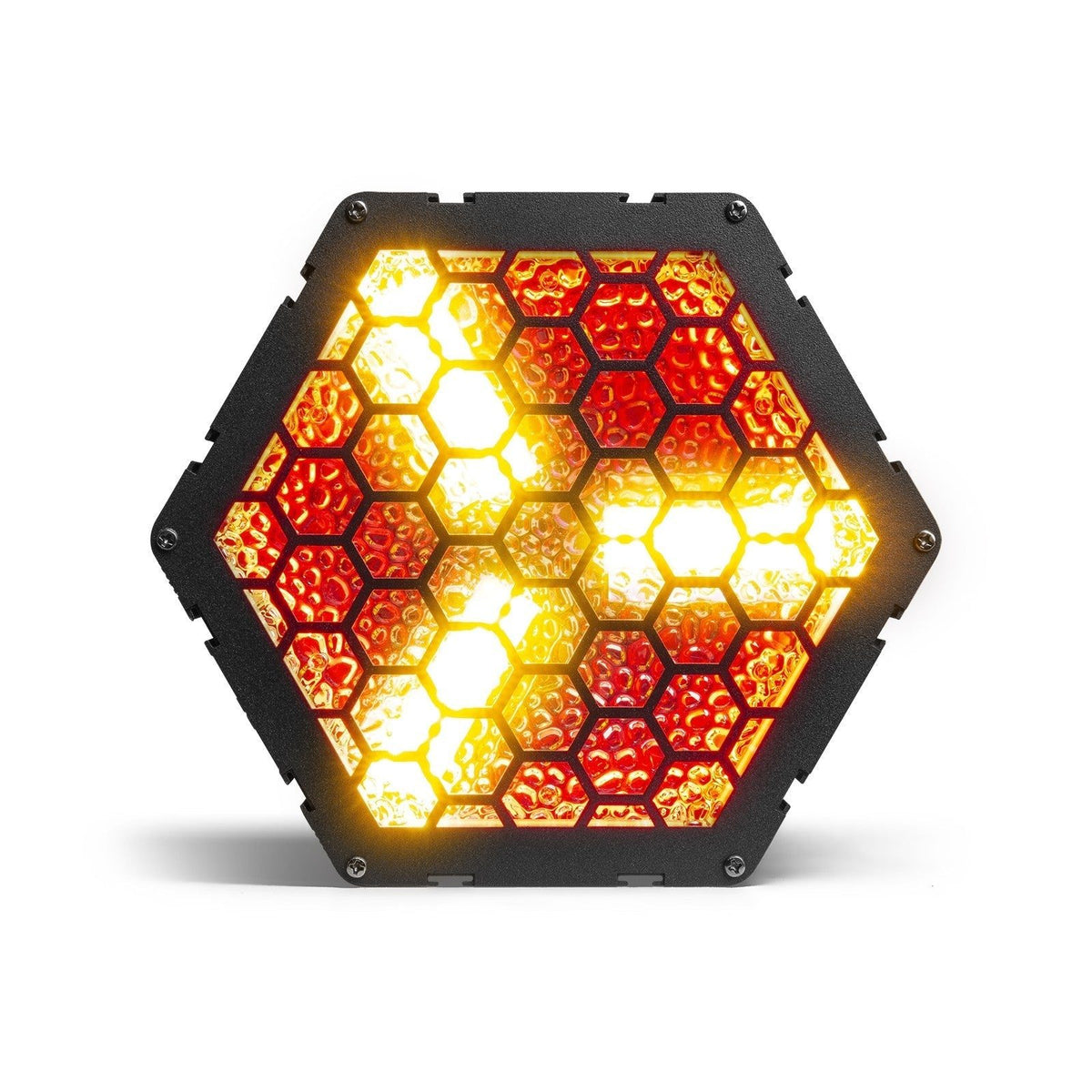

• Dual retro effect: 3 × 30 W COB amber (2,200 K) + 72 × 0.5 W SMD RGB perimeter fill.
• Professional control: DMX 5-pin with 16/34 channels , Standalone , Master/Slave and Sound (adjustable sensitivity).
• Effects engine: 127 programs with speed adjustment; strobe 1–25 Hz ; dimmer 0–100% 100% linear.
• Efficient optics: 50° beam angle, 100° field of view; up to 12,145 lx @ 0.5 m .
• Touring connectivity: PowerCON in/out and DMX 5-pin in/out ; LCD display for quick setup.

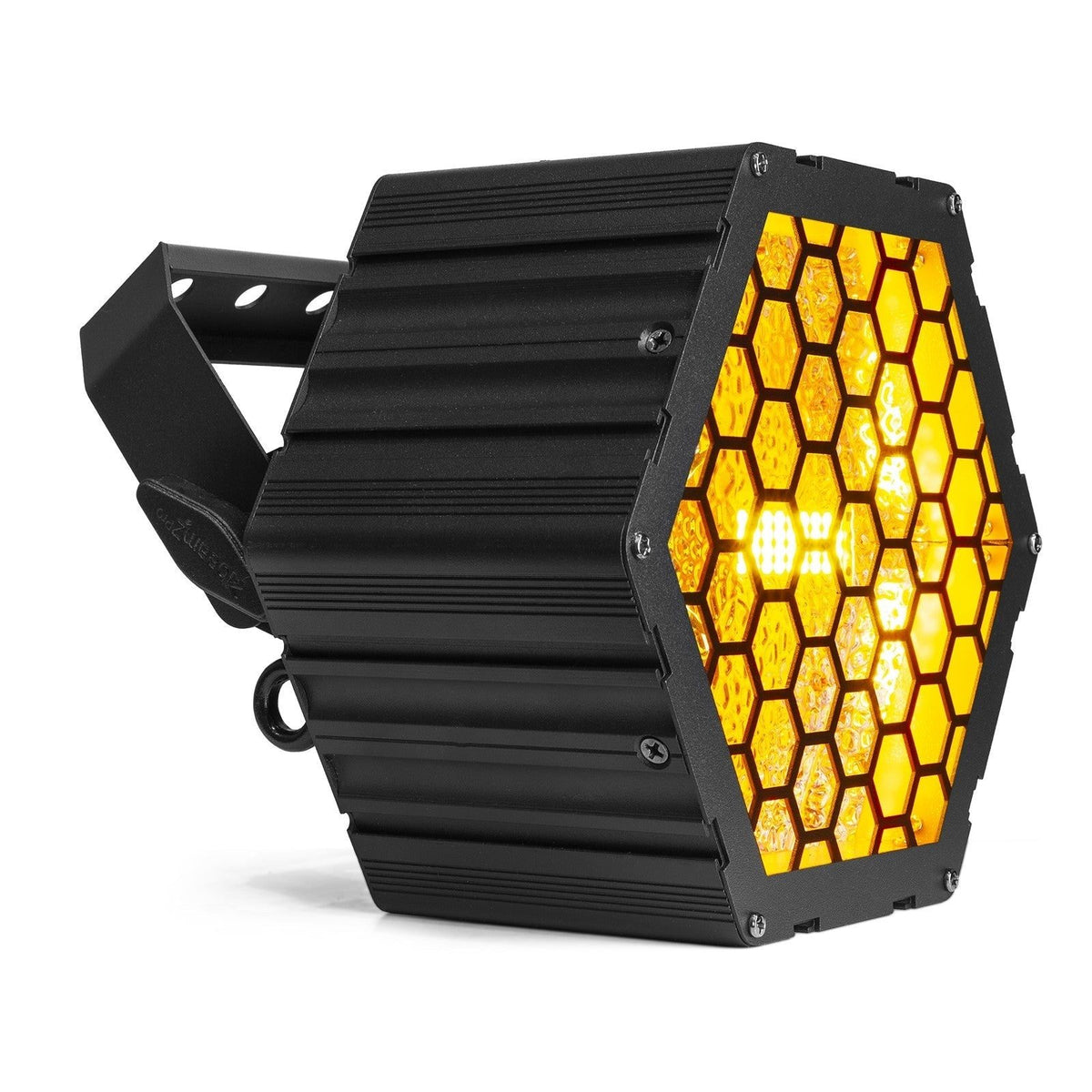

• Ready to assemble: mounting bracket , docking kit and power cable included.

Product benefits

• Analog look, digital control: warm tungsten-like thump with the flexibility of RGB mappings.

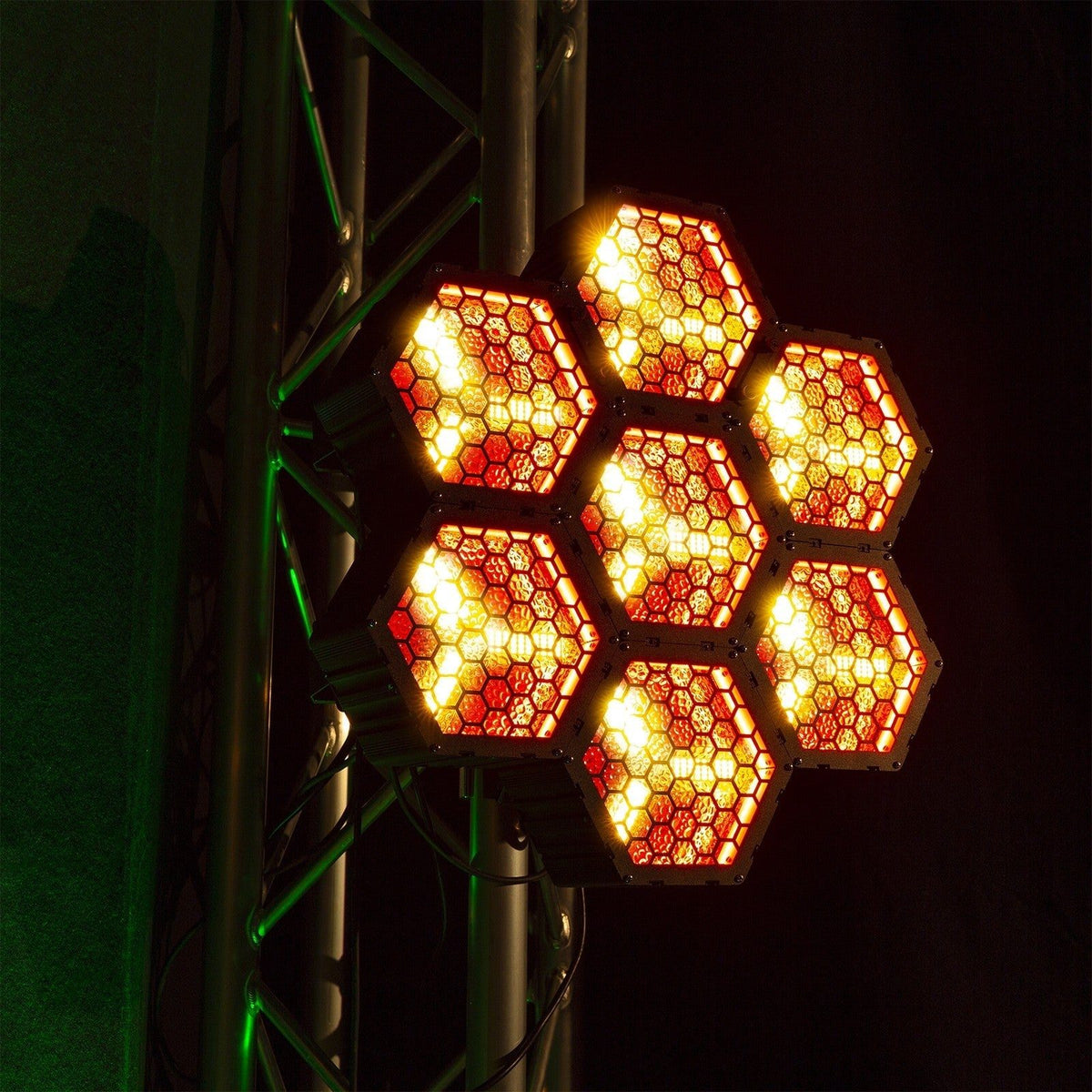

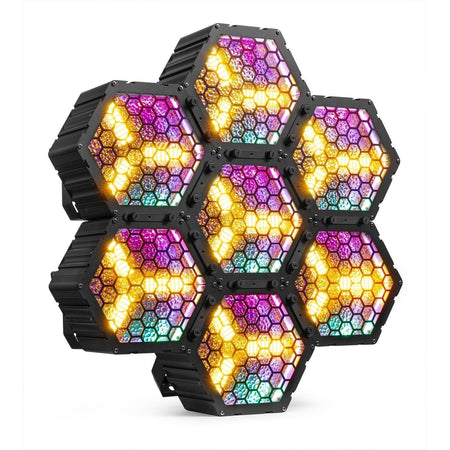

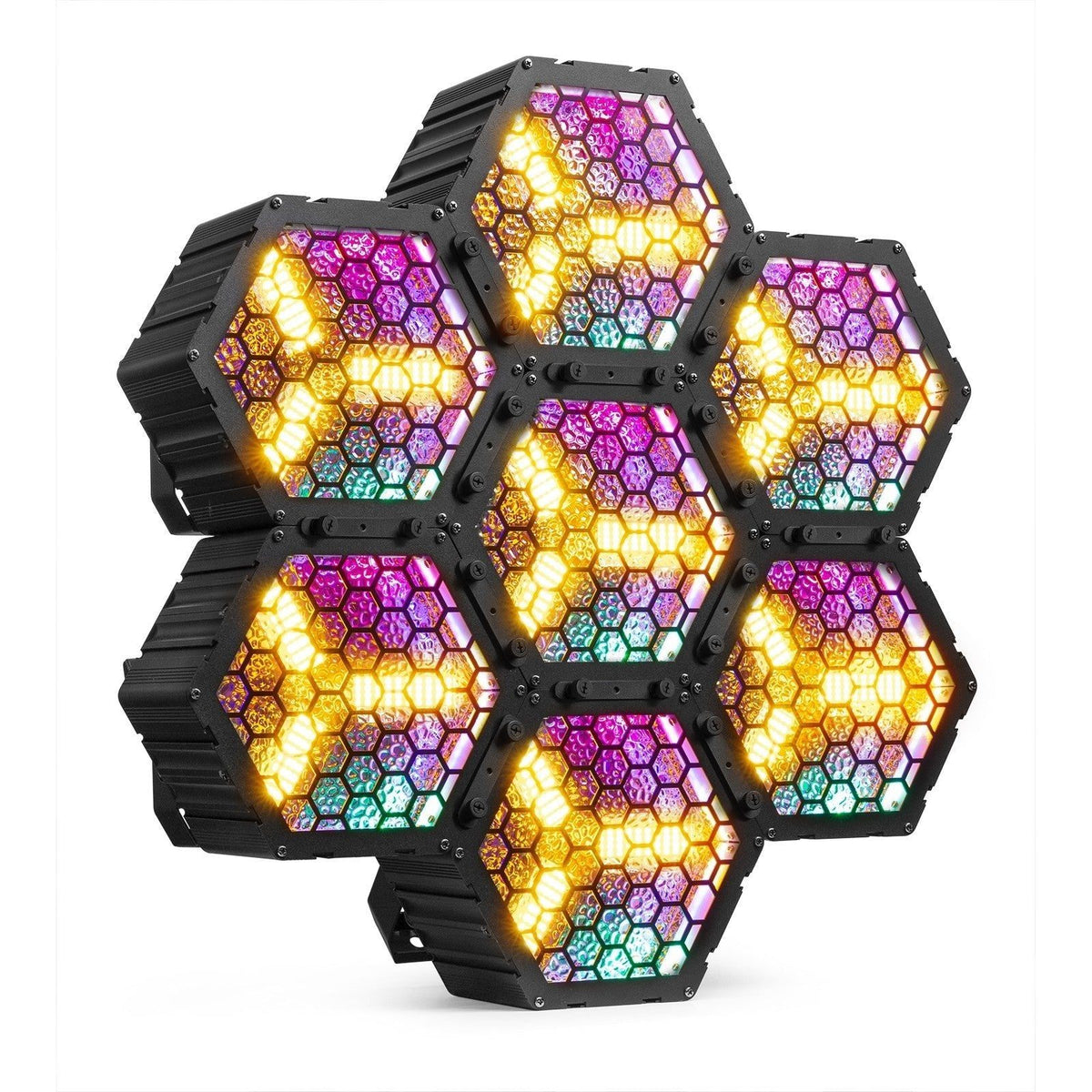

• Modular stage design: links several units with the coupling set for retro murals or dynamic matrices.
• Efficient mounting and wiring: PowerCON for daisy chain power and standard touring DMX 5-pin .
• Versatile operation: from plug&play with pre-programmed shows to fine control via DMX (16/34 ch) .

Use cases

• Festivals and live shows: blinders on the “drop”, RGB perimeter chases and syncopated strobes.
• Clubs and events: linked retro matrices as a booth background or stage wall.
• Television and corporate: vintage aesthetic with precise control of levels and color.

Frequently Asked Questions

• Are the amber COBs controlled separately? Yes, each COB is independent in DMX for dimmer/strobe.
• Does it have 3-pin or 5-pin DMX? This version RB90-5 incorporates 5-pin DMX ( in/out ).
• Can I link power between units? Yes, using PowerCON in/out .
• Is a kit supplied to join several? Yes, it includes a coupling set for assembly together.

Integration and control notes

• DMX 16/34 ch mappings: access to independent dimmers for each COB, strobe, RGB macros/perimeter, effect speed and modes.
• Sound/Auto: 127 effects with speed control; audio sensitivity adjustable from the panel.
• Thermal management: construction with reflective aluminum cup for maximum perceived emission.

Project description

beamZ RB90-5 Deco Retro Blinder: 3 × 30 W COB amber 2200 K + 72 × 0.5 W SMD RGB ; DMX 16/34 ch ; Auto/DMX/Master-Slave/Sound modes; 50° beam , 100° field , 12,145 lx @ 0.5 m ; 1–25 Hz strobe ; LCD ; DMX 5-pin in/out ; PowerCON in/out ; IP20 ; 100–240 VAC 50/60 Hz , 1.73–0.79 A ; dimensions 145 × 200 × 176 mm ; 1.65 kg ; includes bracket , cable and docking kit .
