Triton Blue Q-WASH740Z (Orion W40) - 7 x 40W RGBL washing moving head with 4°–45° zoom and 16/20 DMX channels

Triton Blue Q-WASH740Z (Orion W40) - 7 × 40 W RGBL wash moving head with 4°–45° zoom and 16/20 DMX channels

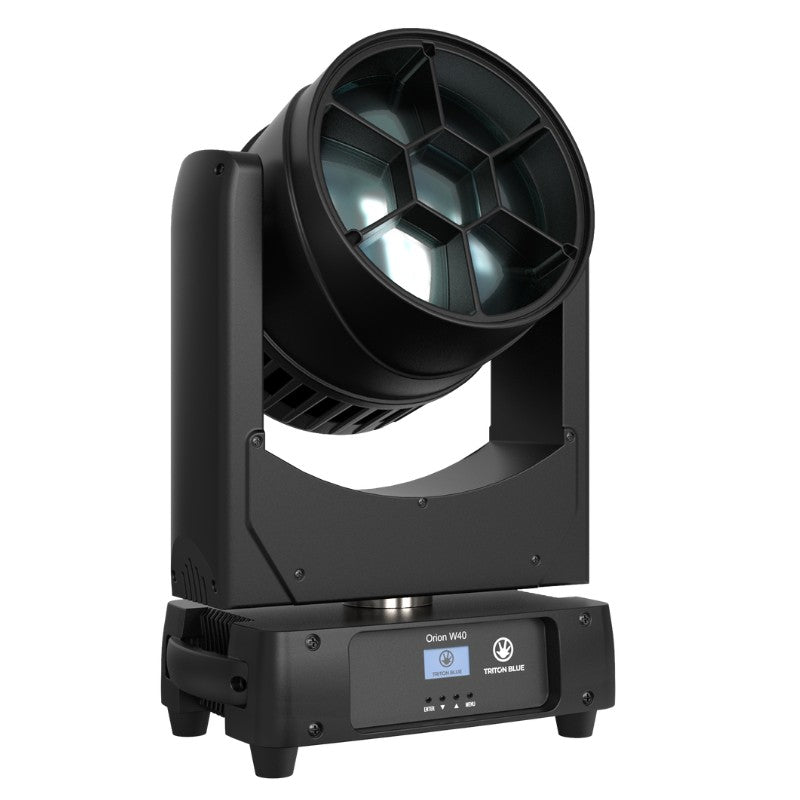

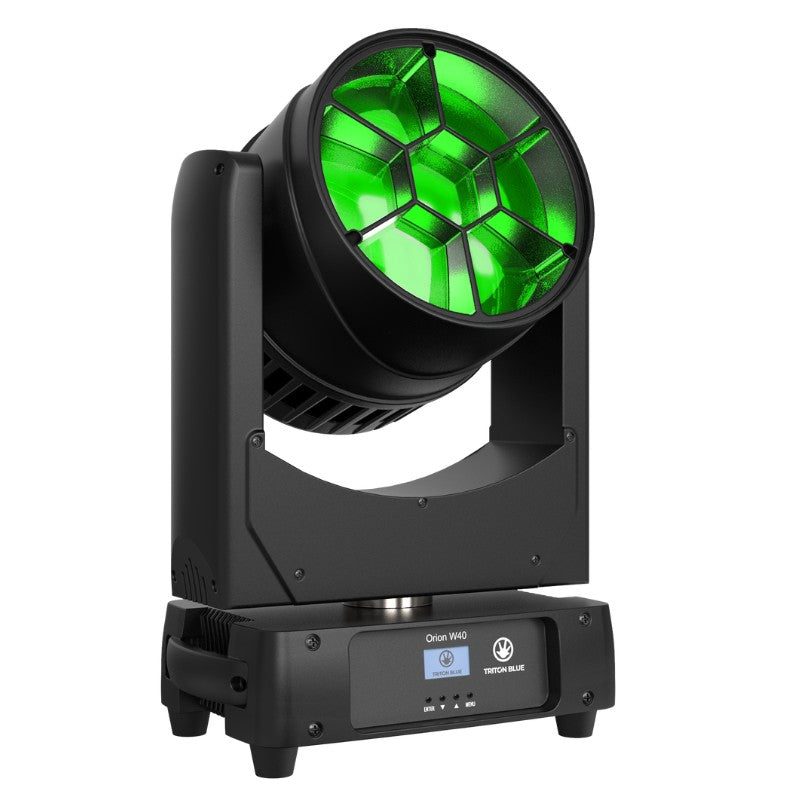

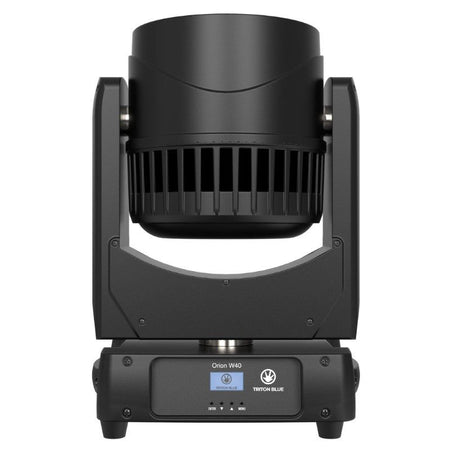

The Triton Blue Q-WASH740Z , also marketed as Orion W40 , is a compact wash moving head that combines power and speed with excellent color mixing. Its custom-made optical system integrates 7 40W RGBL (Red, Green, Blue, Lime) LEDs , capable of projecting from a concentrated beam to a wide and homogeneous wash thanks to a motorized zoom of 4° to 45° . With 540° Pan and 220° Tilt with 8/16-bit resolution , it offers fluid and precise movements to cover stages quickly and without jumps.

The fixture achieves 9,500 lux at 5 m (with all LEDs on) and supports DMX-512 (16 or 20 channels ), master-slave and sound activated control modes. It incorporates an electronic dimmer 0–100% with 4 selectable curves (linear, square, inverse square and S-curve), stroboscope up to 25 f/s with pulse effect, color/macro presets and linear CTO with preconfigured ranges between 5,000 K and 8,000 K. The OLED display and 4 push buttons facilitate adjustment on the rig, while the electronics integrate overheating protection .

For electrical integration, the projector operates at AC 100–240 V, 50/60 Hz with a maximum consumption of 280 W and has PowerCON connectors (IN/OUT) . DMX signals are managed via 3-pin XLR connectors (IN/OUT) . With a net weight of 6.1 kg and dimensions of 246 × 154 × 370 mm , it is a lightweight and robust luminaire, ideal for rental and permanent installation.

Main features

• Light Source : 7×40W RGBL (4 in 1) with high uniformity color mixing.
• Optics : 4°–45° motorized zoom , from narrow beam to wide wash.
• Movements : Pan 540° and Tilt 220° with 8/16 bit resolution.
• Control : DMX-512 with 16 or 20 channels ; master-slave and sound-active .
• Dimmer and Strobe : 0–100% with 4 curves; strobe up to 25 f/s and pulse effect.
• Advanced Color : Linear CTO (5000–5600K, 5600–6000K, 6000–7000K, 7000–8000K paths) and DMX macros .

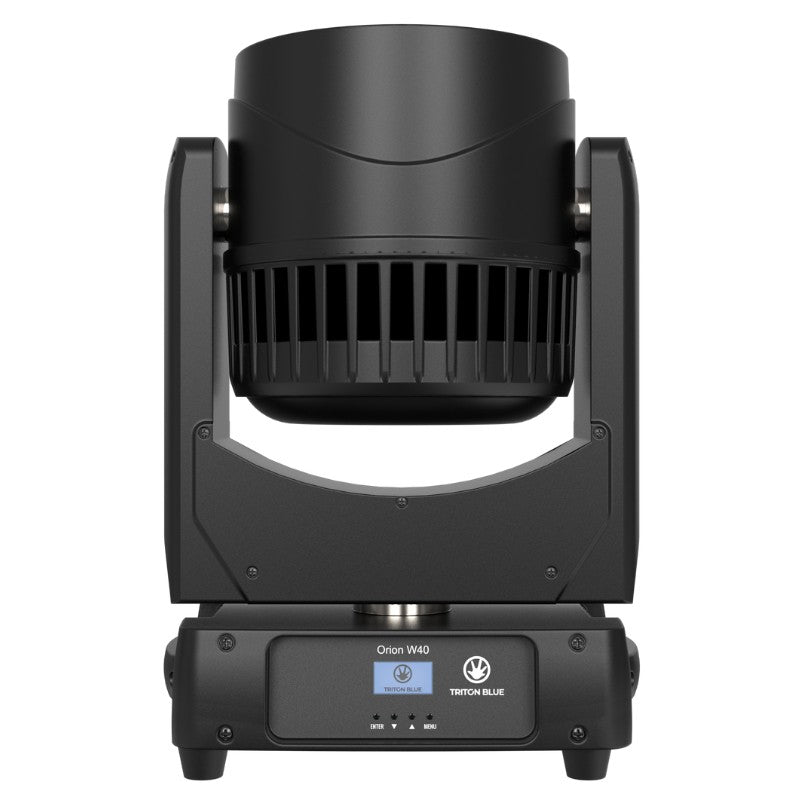

• Interface : OLED display with 4 push buttons for quick setup.

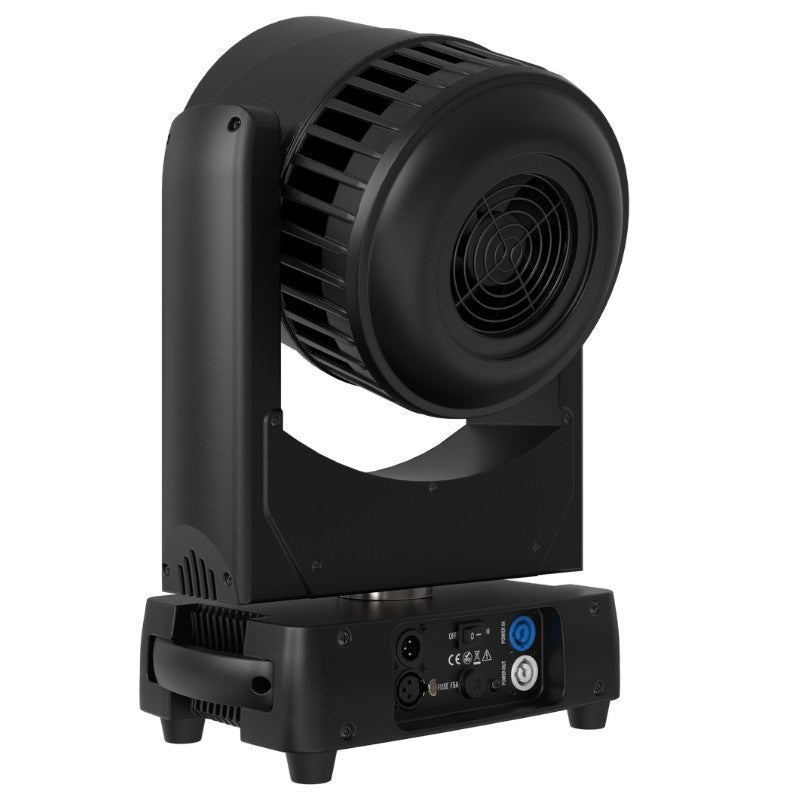

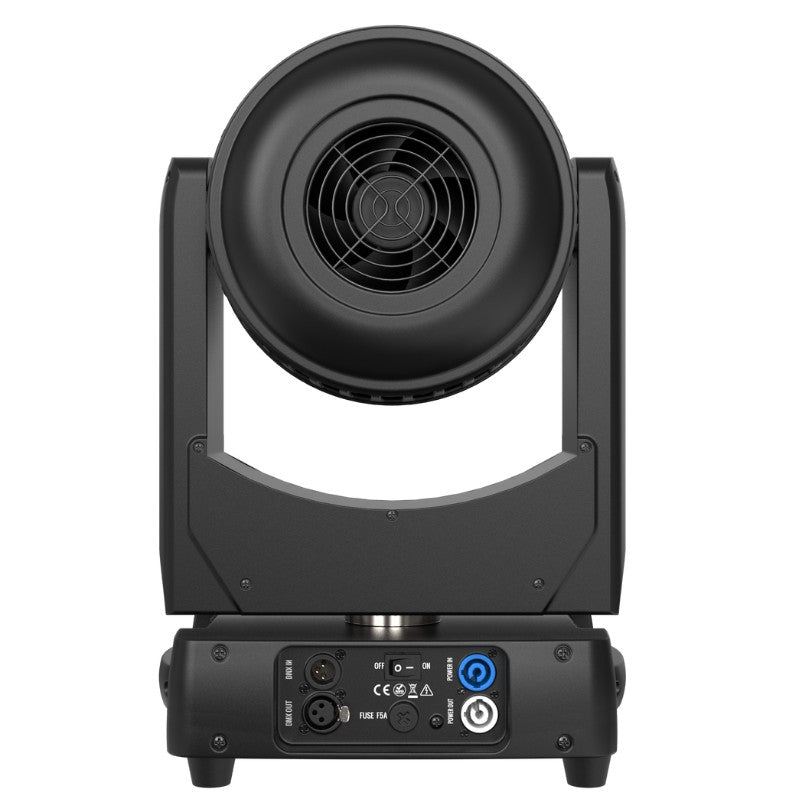

• Connections : PowerCON IN/OUT (16 A) and 3-pin XLR IN/OUT for DMX.
• Construction : IP20 , overheat protection, 6.1 kg weight.
• Brightness : 9,500 lux at 5 m with all LEDs on.

Product benefits

• Powerful Output & Consistent Colors - The 7×40W RGBL engine delivers precise saturation and hues, with linear CTO and macros to speed up programming.
• True versatility : a single unit covers everything from fine beam effects to wide washes, thanks to the 4°–45° zoom.
• Agile Programming : 16/20 DMX channel modes, 4-curve dimmer and fast strobe simplify integration into new or existing shows.
• Reliable operation : stable electronics, thermal protection and professional PowerCON and XLR connectivity.
• Easy to assemble : lightweight and compact format that reduces rigging and transport times.

Use cases

• Tours and events : colorful bathroom looks, narrow beam for accents and flares, and instant color changes.
• Theater and set : smooth 8/16-bit movements and linear CTO to adapt color temperature per scene.
• Fixed installations : clubs, auditoriums and multipurpose rooms with high-gloss wash and easy maintenance requirements.

Frequently Asked Questions

• How many DMX channels does it use? 16 or 20 channels, selectable from the menu.
• Does it have sound and master-slave modes? Yes, in addition to standard DMX-512 control.
• What connectors does it include? PowerCON for power (input and output) and 3-pin XLR for DMX.
• What's its power consumption? Up to 280 W at full load.

Description for projects

RGBL 7 × 40 W wash moving head with 4°–45° motorized zoom ; Pan 540° , Tilt 220° (8/16-bit); DMX-512 16/20-channel control, master-slave and sound; dimmer 0–100 % with 4 curves, strobe up to 25 f/s , linear CTO 5,000–8,000 K, color macros; power supply AC 100–240 V, 50/60 Hz , max. consumption 280 W ; PowerCON IN/OUT and XLR 3-pin IN/OUT connectors; IP20 ; dimensions 246 × 154 × 370 mm ; weight 6.1 kg ; includes PowerCON-Schuko cable, 1 omega and manual.
