Power Dynamics PDV120MP3 - 120W 100V PA Mixer Amplifier with 4 Zones and Multimedia Player

Power Dynamics PDV120MP3 - 120W 100V PA Mixer Amplifier with 4 Zones and Multimedia Player

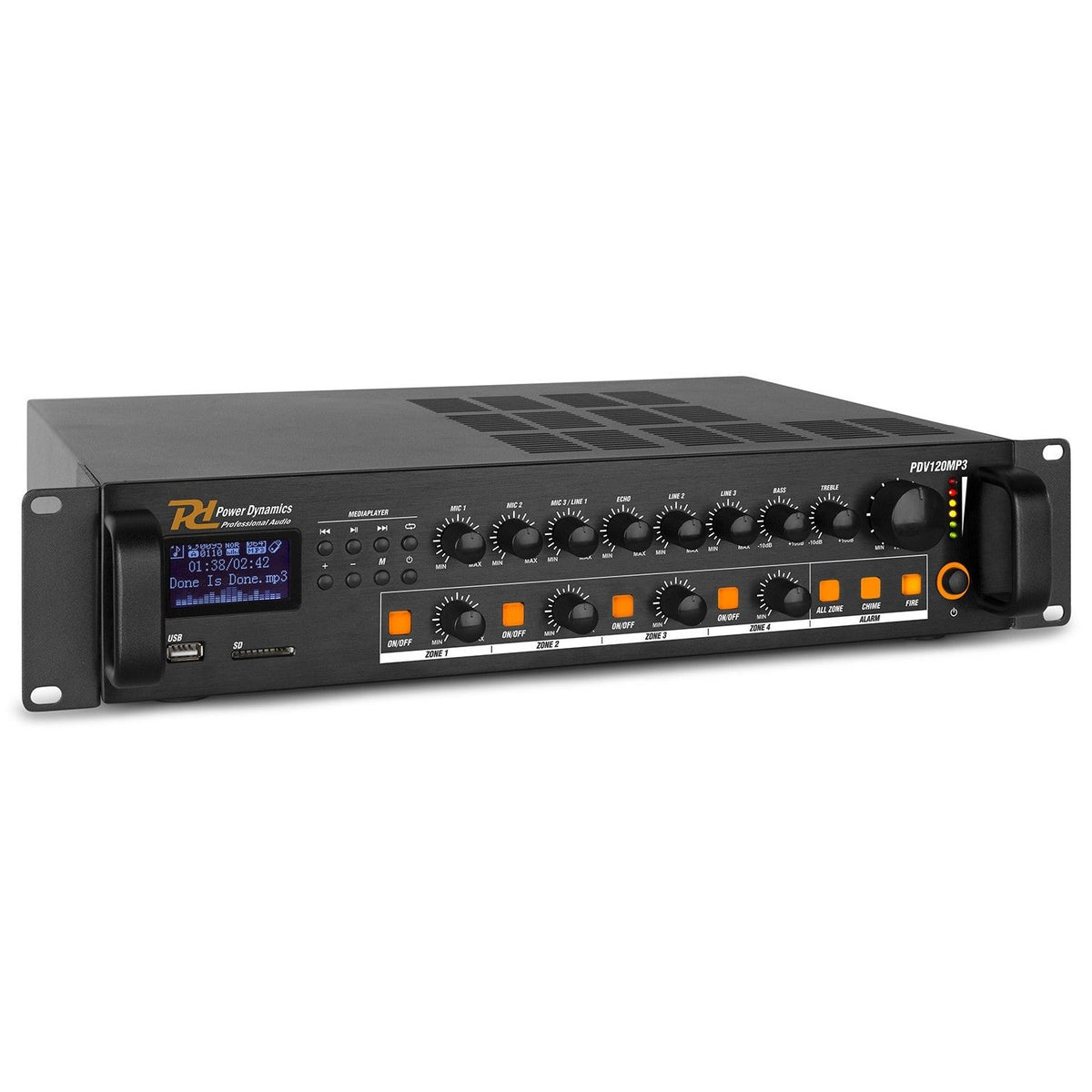

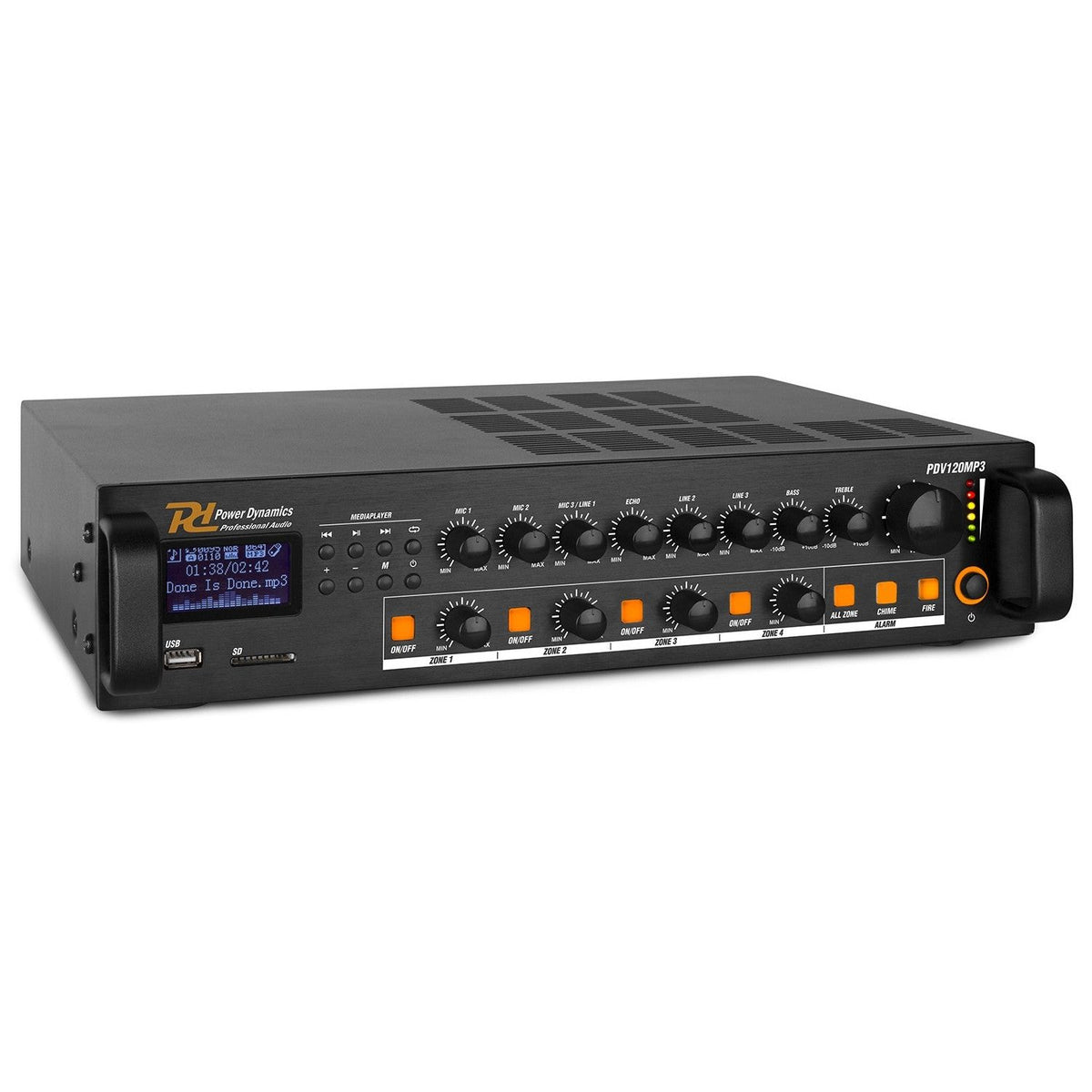

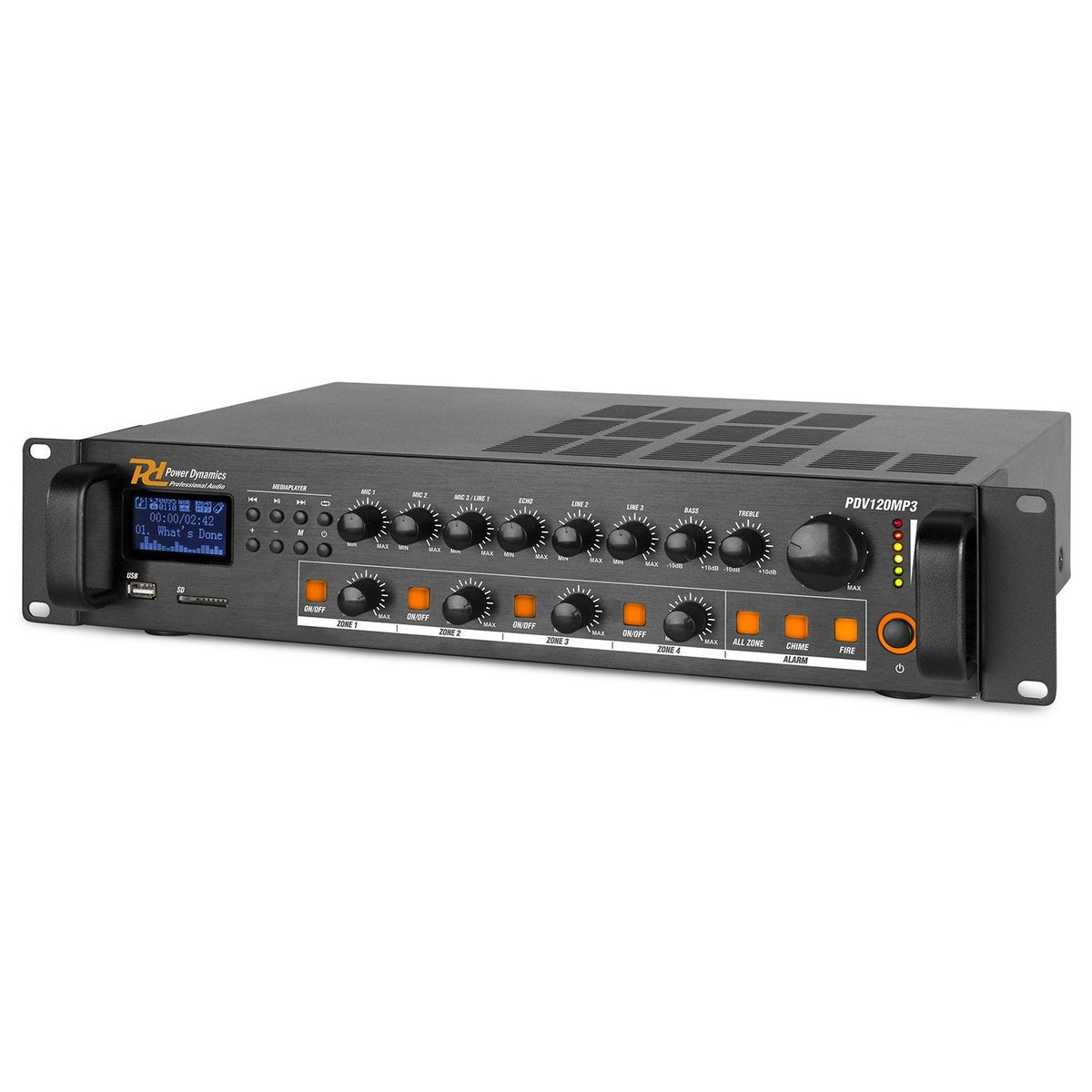

The Power Dynamics PDV120MP3 is a professional and versatile PA mixer amplifier designed to provide a complete and reliable sound solution for commercial installations and public spaces. With 120W RMS of power, this unit can handle 100V line-level or low-impedance 8-ohm speaker systems, providing complete control over audio distribution in up to four distinct zones. Each zone can be independently selected and its volume precisely adjusted via 6-step attenuators, allowing for the creation of customized sound environments in different areas of the same building.

Integrated into its robust chassis, the PDV120MP3 incorporates a comprehensive multimedia player that exponentially increases its flexibility. This module allows you to play audio from multiple sources: via the USB port for external storage, the SD card slot, the FM radio tuner, or through wireless Bluetooth audio streaming. This last feature makes it easy to send music or messages from any compatible smartphone, tablet, or computer without cables. The combination of its three microphone inputs, three RCA line inputs, and a paging input ensures that you can connect virtually any external audio source, from paging microphones to CD players or laptops.

Main Features

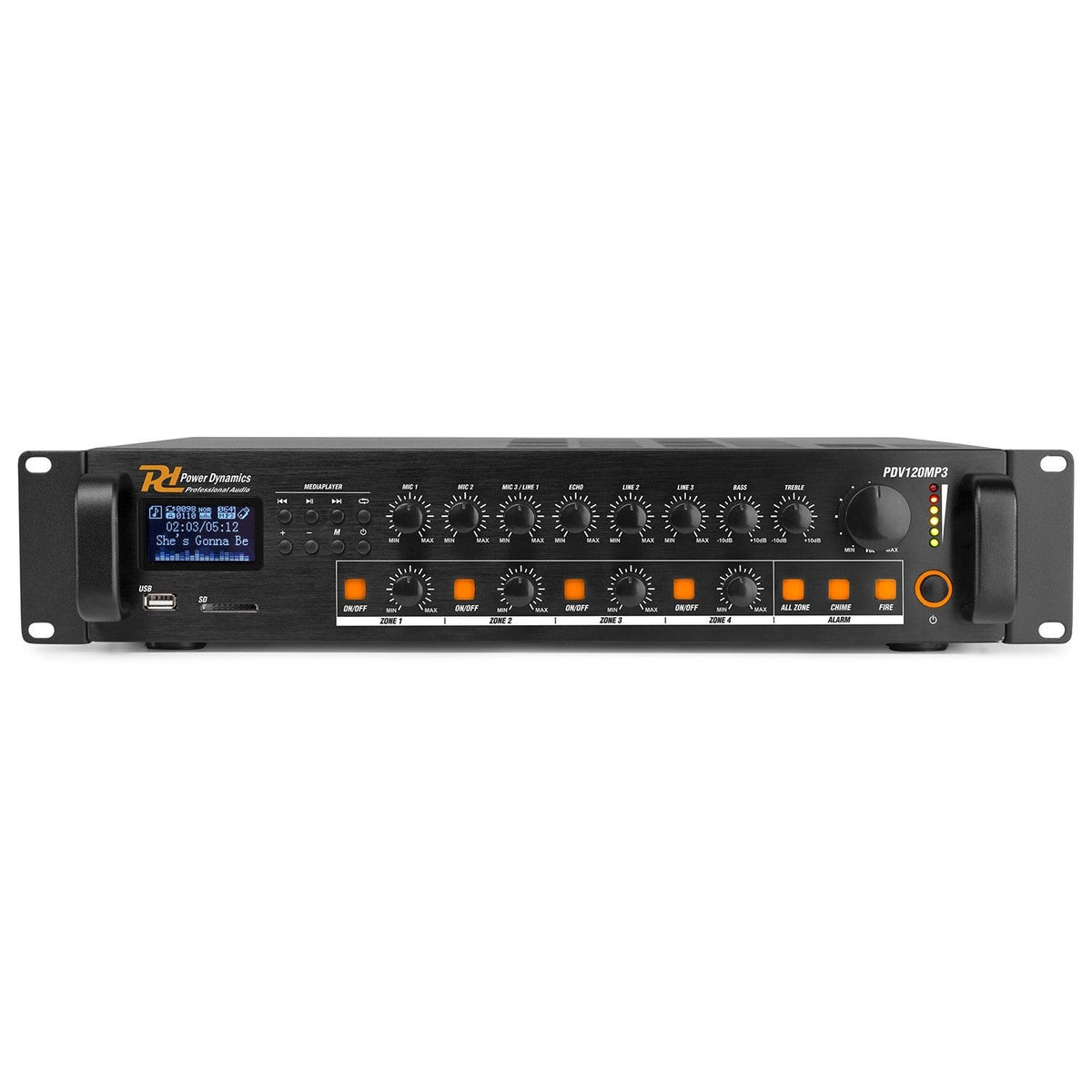

• 4 Independent Zone Management: Allows you to distribute the audio signal to four different areas, with dedicated selectors and 6-step volume control for each. Ideal for adjusting the sound level in different rooms, hallways, or floors.
• 120W RMS Power: Offers robust and stable power to power 100V speaker systems, perfect for long cable runs, or conventional 8 Ohm speakers.

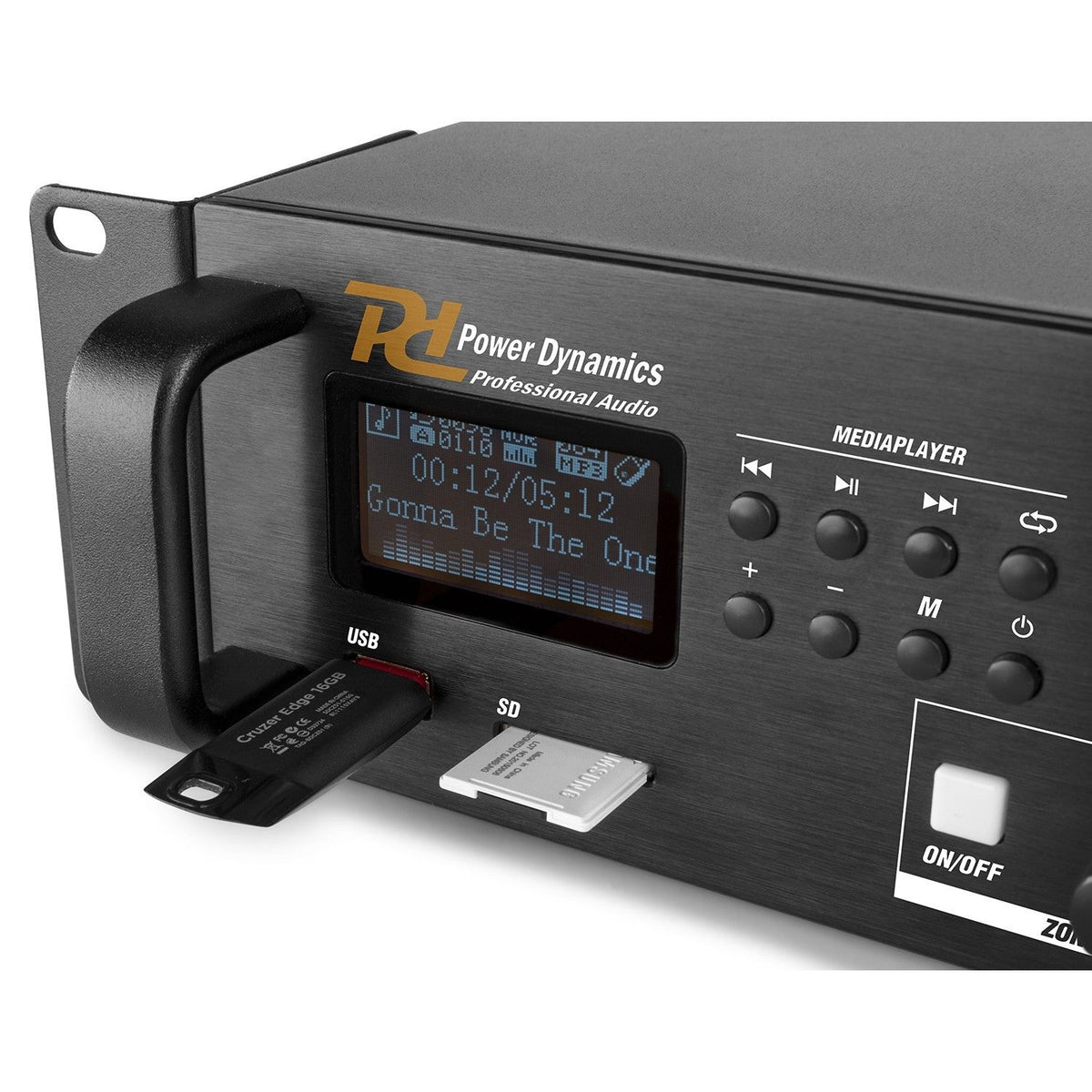

• Integrated Multimedia Player: Includes Bluetooth connectivity for audio streaming, USB and SD ports for MP3 file playback, and an FM radio tuner for a wider variety of content.

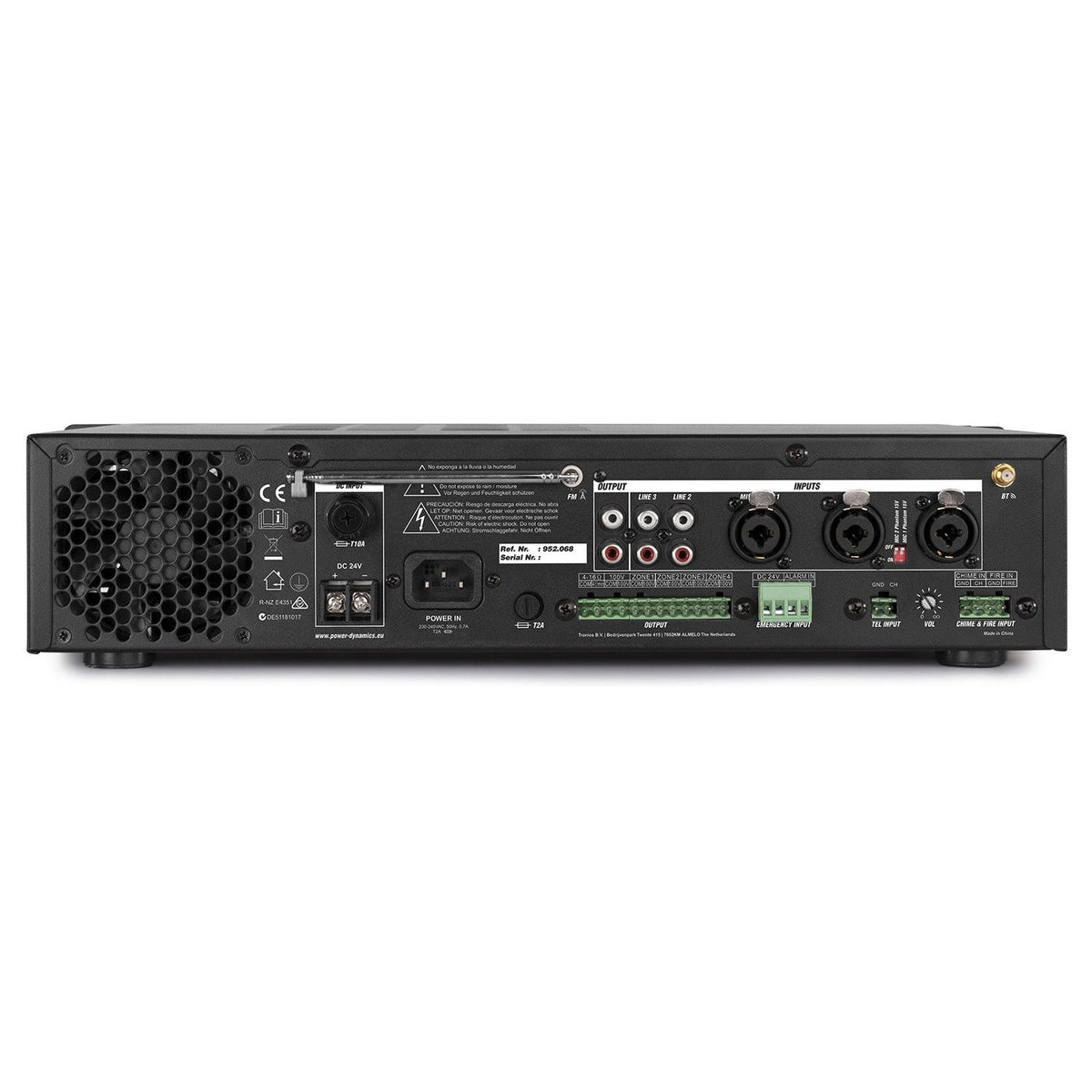

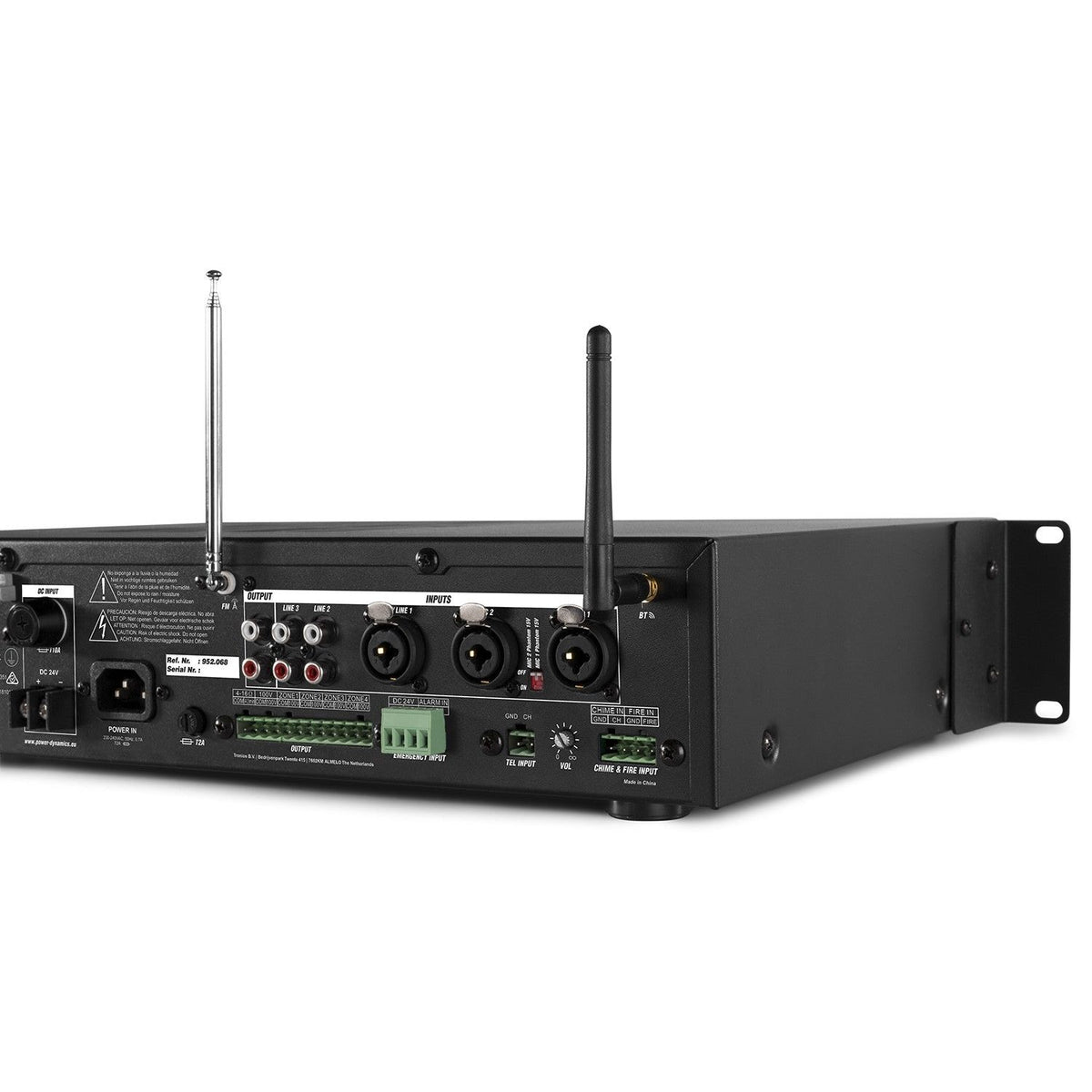

• Professional Connectivity: It has 3 microphone inputs (with 48V Phantom power on Mic 1 for condenser microphones), 3 stereo line inputs (RCA) and an input for telephone paging systems.
• Priority and Emergency Functions: Mic 1 input features an override function that automatically attenuates other audio sources when someone speaks. It also includes 24V contacts for integration with fire alarm systems, ensuring the broadcast of evacuation messages.
• Tonal Control and Protection: It incorporates bass and treble controls to equalize the overall sound and an overload protection system that guarantees the durability and reliability of the equipment.

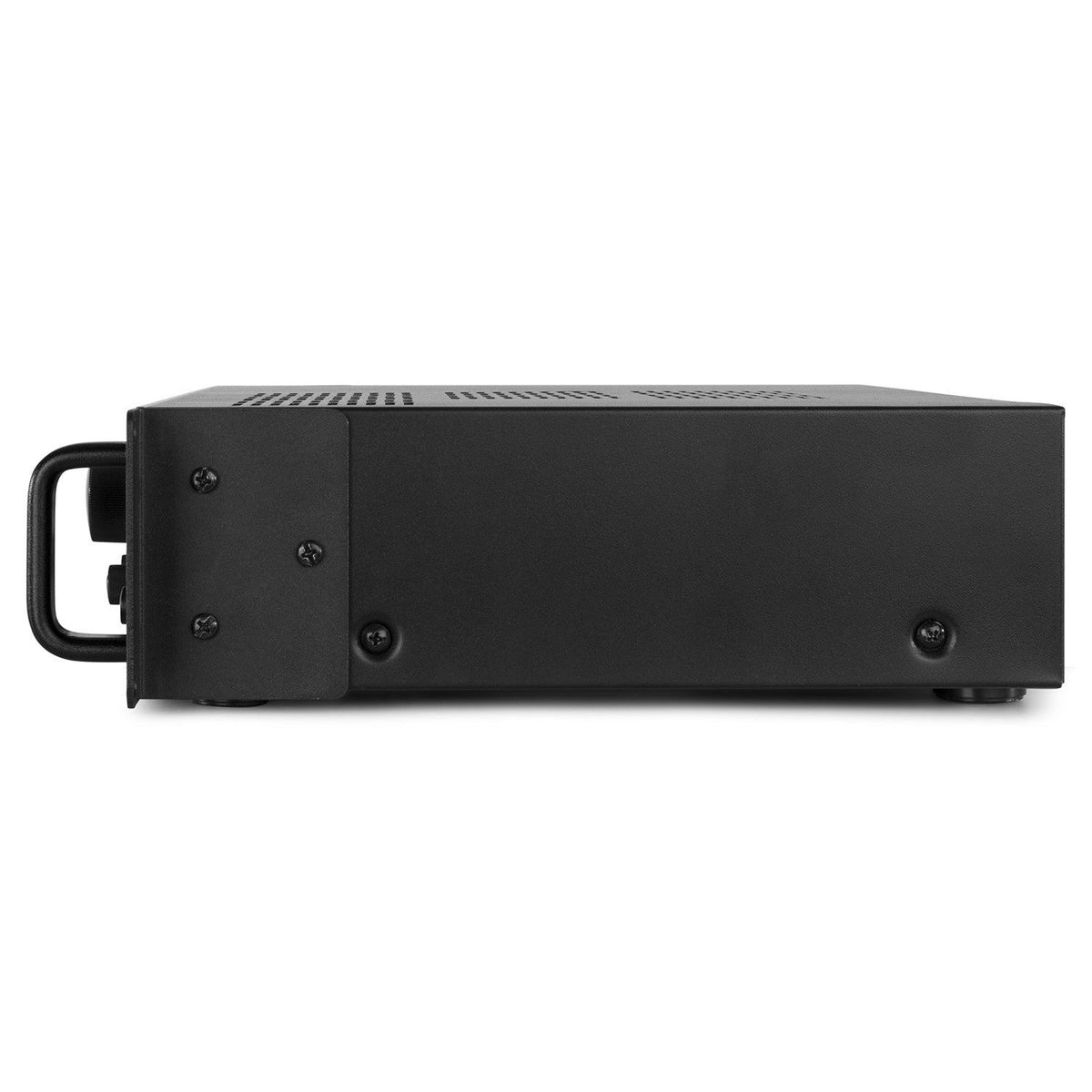

• "19" Rack Design": With a 2U height format and included mounting brackets, it integrates seamlessly into standard audiovisual equipment rack cabinets.
• Emergency Power Supply: It has a 24V DC input that allows it to be connected to a backup battery system (not included) to maintain its operation in case of a main power supply failure.

Product Benefits

The PDV120MP3 amplifier is designed for installers and end users seeking a hassle-free, all-in-one solution. Its ability to manage multiple zones from a single unit centralizes audio control, simplifying operation and reducing the need for additional equipment. The flexibility of its input sources, from announcement microphones to Bluetooth streaming, makes it adaptable to any need, whether for background music, commercial announcements, or important communications. Reliability is key in public environments, and its built-in protection systems and emergency power option ensure continuous and safe operation.

Use Cases

This amplifier is the perfect choice for a wide range of commercial and public applications, such as:

• Educational Centers: To broadcast announcements through the public address system, play music in courtyards or manage sound in auditoriums.
• Shops and Supermarkets: Ideal for creating a pleasant atmosphere with background music and broadcasting promotions or announcements to customers.
• Hospitality and Catering: Allows you to establish different musical environments and volumes in the dining room, terrace, bar and hallways.
• Offices and Warehouses: Facilitates internal communication through microphone announcements and creates a more pleasant work environment with background music.
• Public Buildings: Suitable for town halls, health centers or transport stations where clarity of announcements is essential.

Frequently Asked Questions

Can I control the volume of each of the 4 zones independently?
Yes, the amplifier features a selector and a 6-step volume attenuator for each of the four output zones, allowing for fully independent control.

What type of speakers can I connect?
You can connect both 100V line speakers, which are ideal for covering large areas with long cable runs, and standard 8 Ohm low impedance speakers.

Does microphone input 1 take priority over music?
Yes, Mic 1 input has a priority function (override or talkover) that automatically reduces the volume of other audio sources when in use, ensuring that announcements are heard clearly.

Is it possible to mount this amplifier in a 19-inch rack?
Yes, it has a standard 2 rack unit (2U) format and the necessary mounting brackets are included.

What happens if there is a power outage?
The device has a 24V DC power input that allows it to be connected to an emergency power source, such as a battery (not included), to ensure uninterrupted operation.

Project description

Public address mixer amplifier with 120W RMS power. It provides outputs for 100V and low-impedance 8-ohm speaker systems. The unit is divided into four output zones, each with an independent selector and 6-step volume control. It includes a multimedia player with selectable sources including Bluetooth, USB, SD card, and an FM radio tuner. It features three microphone inputs (Mic 1 with 48V phantom power), three RCA line inputs, and a telephone paging input. It includes a priority function for Mic 1 input, bass and treble equalization controls, and a 24V connection for fire alarm systems. Main power is 220-240VAC 50Hz, and there is a 24V DC backup input. It is designed for 19-inch (2U) rack mounting.
