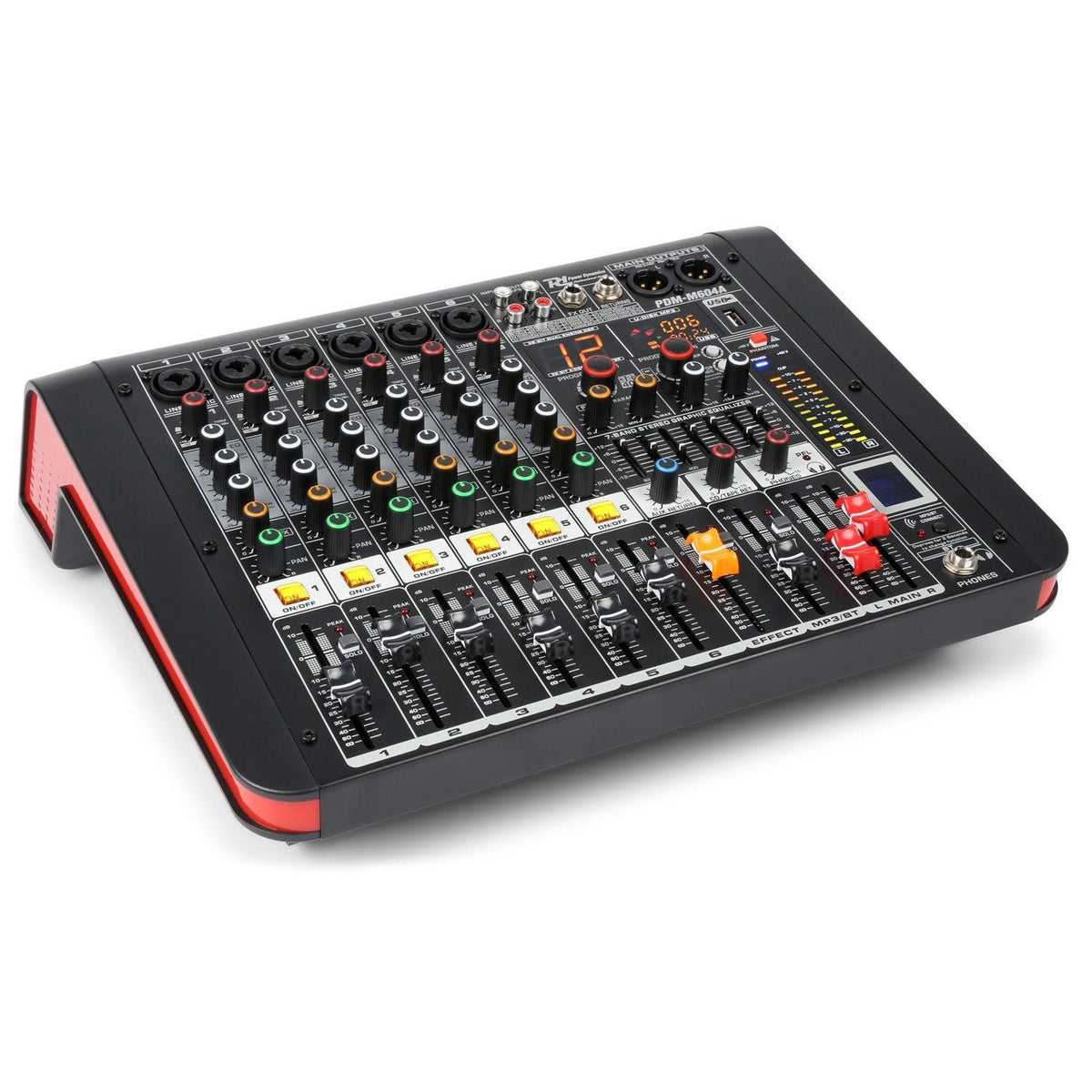

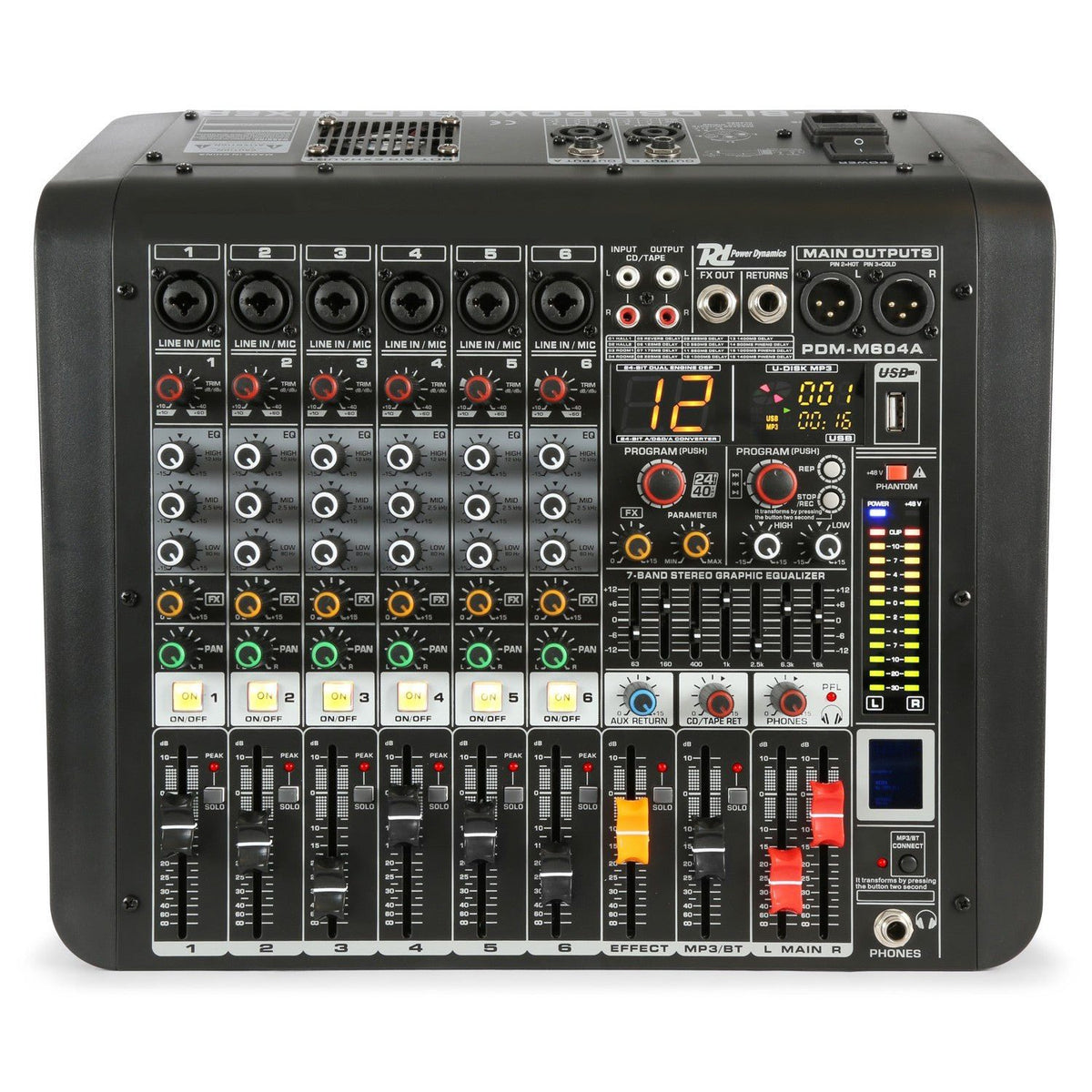

Power Dynamics PDM-M604A - 6-Channel Powered Mixer with USB and Bluetooth

Power Dynamics PDM-M604A - 6-Channel Powered Mixer with USB and Bluetooth

The Power Dynamics PDM-M604A is an all-in-one sound solution designed to deliver versatility and high-quality performance in a compact desktop format. This self-powered mixer is the perfect choice for musicians, small bands, presenters, and sound engineers looking for a reliable and comprehensive system for live performances, rehearsals, or permanent installations. It integrates a powerful amplifier, a digital effects processor, and modern connectivity options, eliminating the need for multiple external units and greatly simplifying any setup.

With its robust construction and intuitive design, the PDM-M604A is built for heavy-duty use. At its heart is a powerful 2 x 200W RMS amplifier at 8 ohms, capable of driving passive speakers with ample clarity. The six main input channels feature XLR/6.3mm combo jack connectors, offering maximum flexibility for connecting dynamic or condenser microphones (thanks to the switchable +48V phantom power per channel), or line-level instruments. Additionally, it includes a stereo RCA line input for connecting external audio sources such as external players or computers.

Main Features

• Six Versatile Input Channels: Equipped with 6 mono inputs with XLR/6.3mm combo jack connectors, each with its own low-noise preamp for optimal signal quality.
• High Performance Integrated Amplifier: Delivers 2x 200W RMS power at 8 ohms, ideal for powering a pair of passive speakers without the need for an external power stage.

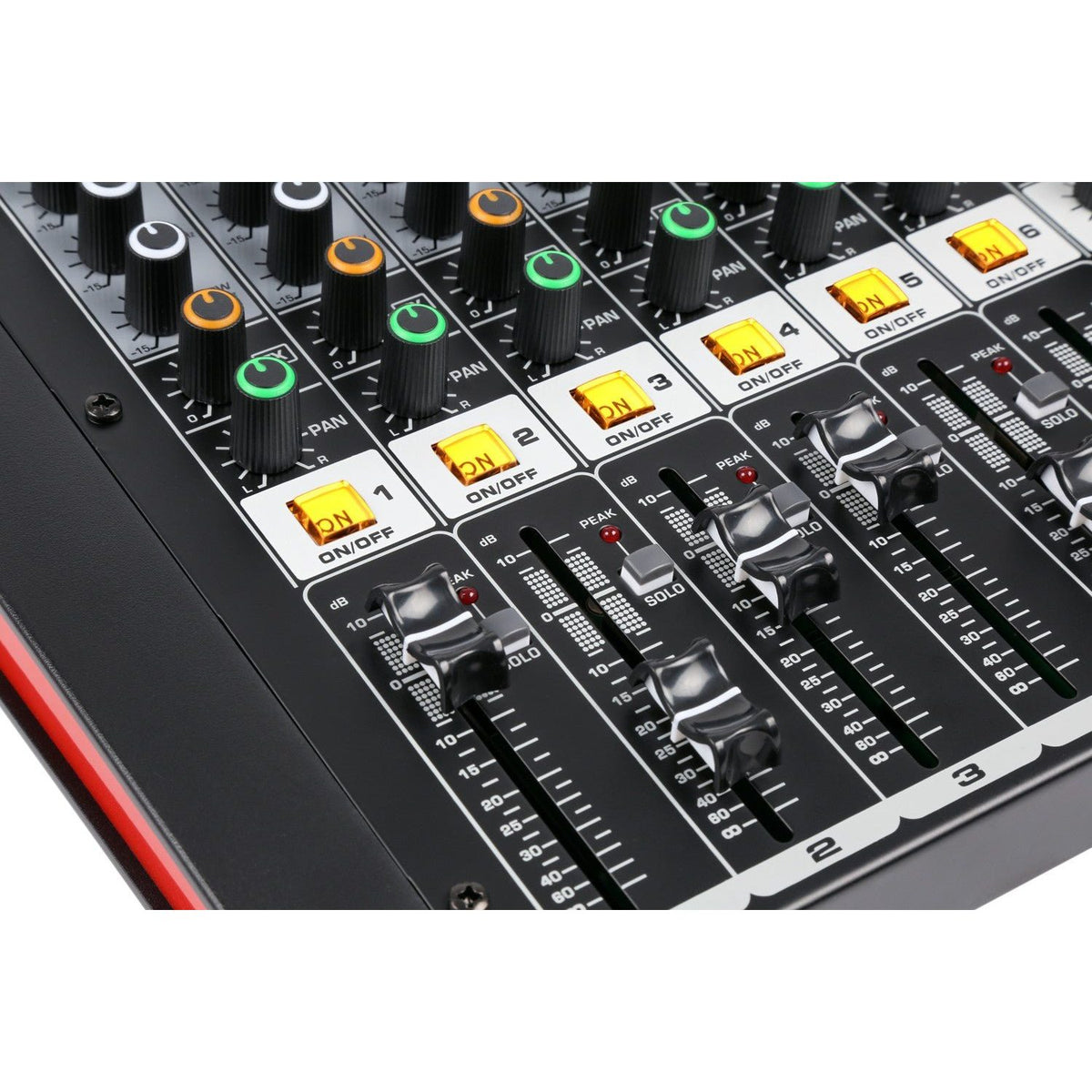

• Total Control Per Channel: Each channel has a 3-band equalizer (treble, mid and bass), pan control, effects send (FX), and a convenient on/off switch (Mute).
• Digital Effects Processor (DSP): Includes a 24-bit DSP processor with 16 preset effects, such as Reverb (Hall, Room), Delay and Echo, to add depth and professionalism to the mix.

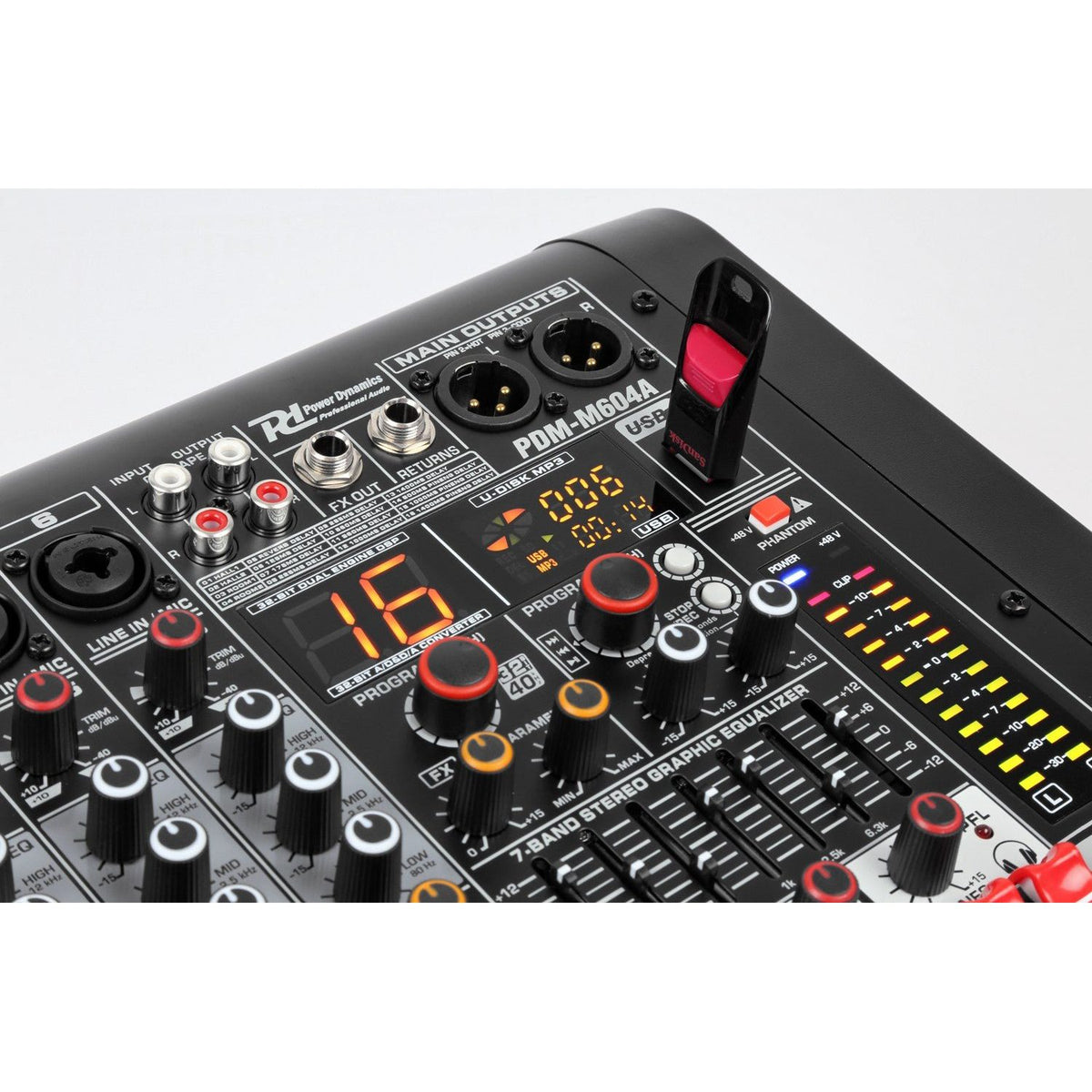

• Wireless and USB Connectivity: It integrates a Bluetooth receiver to play audio wirelessly from smartphones or tablets and a USB player for music files from an external drive, perfect for backing tracks or ambient music.
• Master Graphic Equalizer: A 7-band graphic equalizer in the master section allows you to precisely adjust the final sound to suit the acoustics of any room.

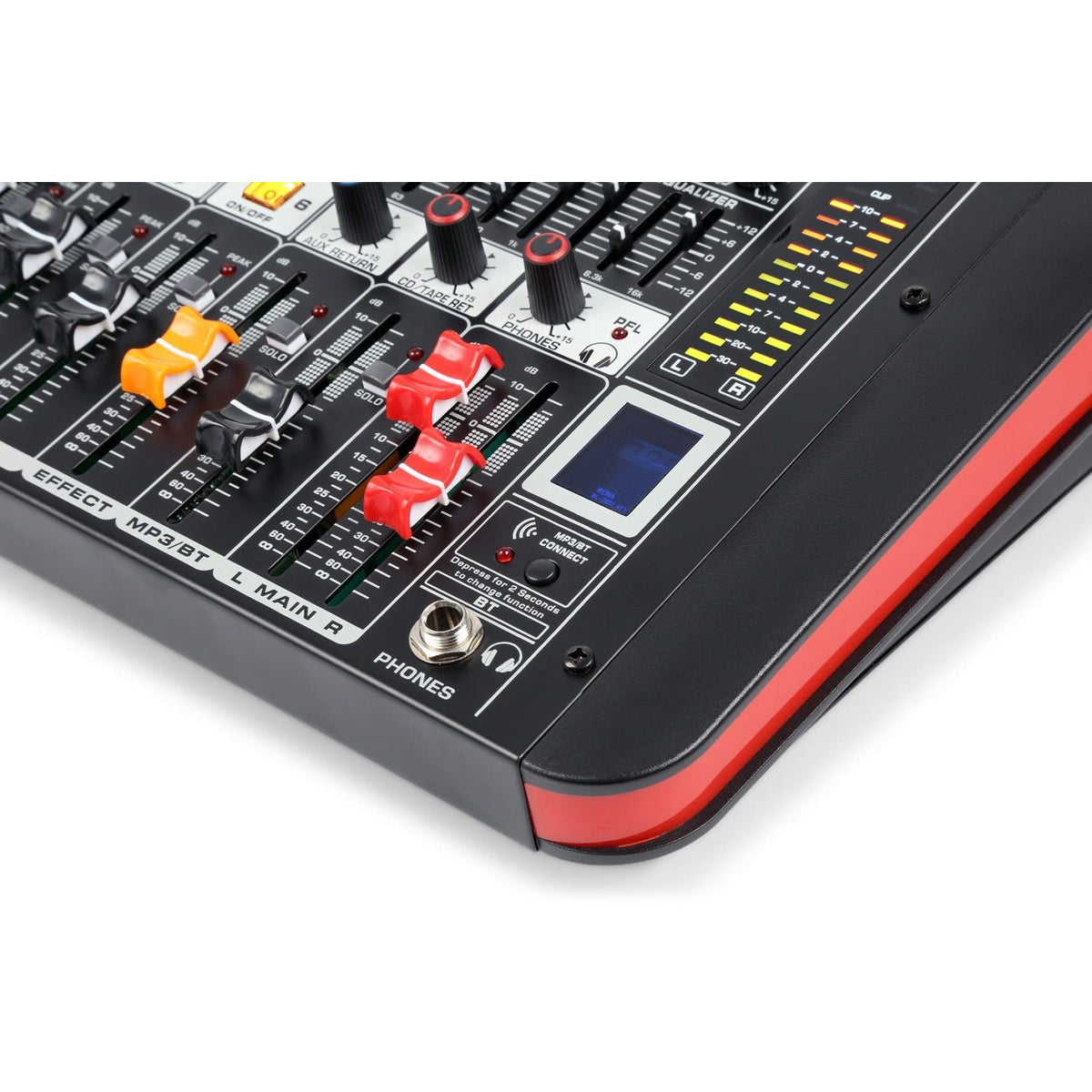

• Professional Features: Each channel has a "Solo" (PFL) button that allows you to listen to the signal in isolation through headphones, making it easier to adjust and monitor the mix.

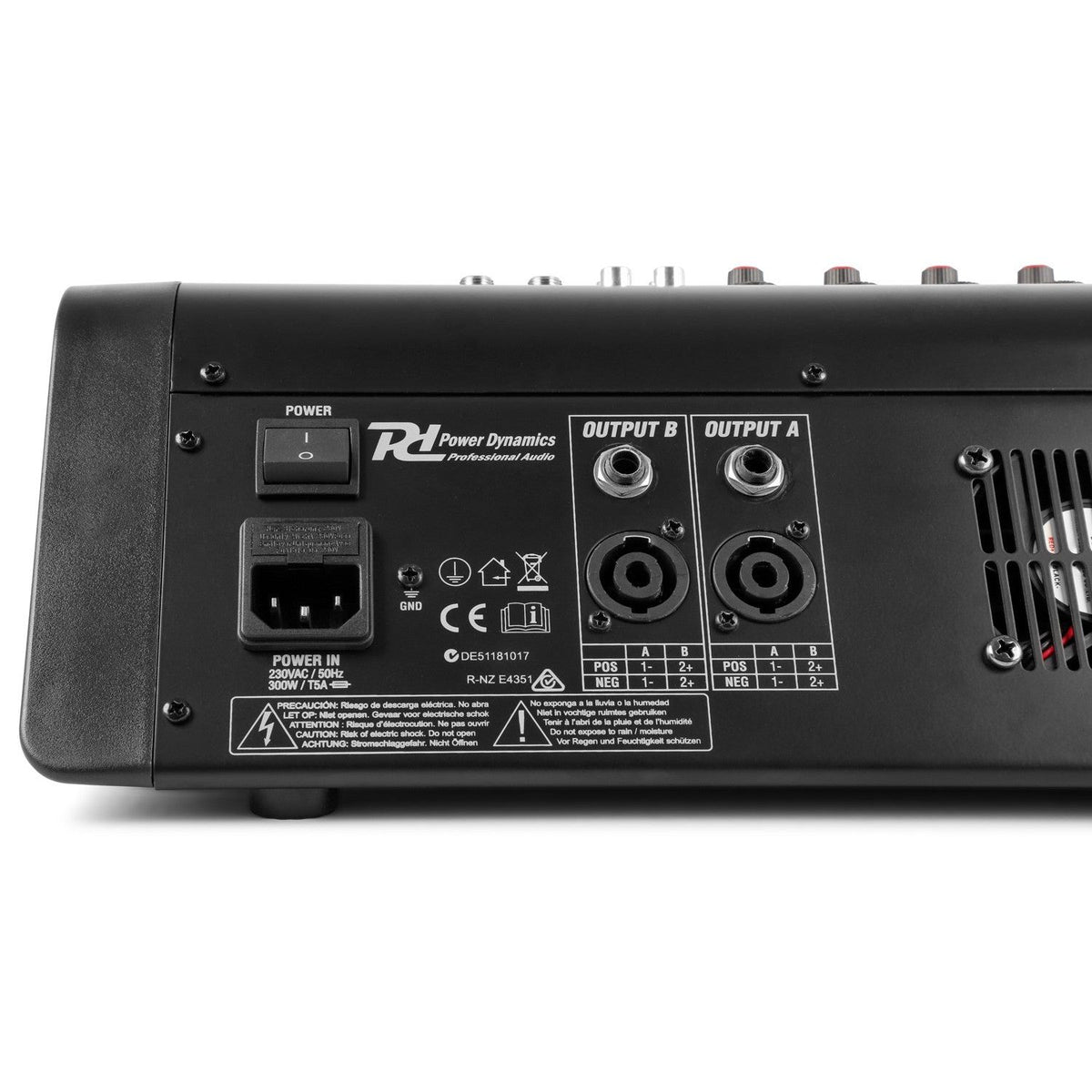

• Complete Outputs: It has balanced main outputs in XLR format, NL-4 type speaker outputs, and independent outputs for recording (RCA) and headphones, covering all connection needs.

Benefits for the Musician and the Technician

The PDM-M604A is designed to make life easier. Its all-in-one concept dramatically reduces setup time and the amount of equipment to transport, making it an ideal solution for traveling artists and technicians. The clear and well-organized interface allows for quick and precise sound control, even for less experienced users. The ability to play audio via Bluetooth or USB adds an invaluable layer of flexibility for playing background music, launching pre-recorded tracks, or managing sound during breaks in a performance.

Use Cases

Thanks to its combination of power, channels, and features, this powered mixer is perfect for a wide range of applications. It's the ideal centerpiece for small bands performing in bars or concert halls, for singer-songwriters who need to connect vocals and instruments, or for sound systems in houses of worship, conference rooms, and educational institutions. It's also an excellent tool for sound rental companies that need a compact and easy-to-use PA system.

Frequently Asked Questions

Can I connect condenser microphones that require phantom power?
Yes, the PDM-M604A has +48V phantom power, individually switchable for each of the six main channels, allowing the use of professional condenser microphones.

What type of speakers can I connect directly to this mixer?
You can directly connect passive speakers that can handle the amplifier's output power (200W RMS per channel at 8 ohms). The speaker output connections are NL-4 type (Speakon compatible).

Does the USB player allow recording the main mix?
No, the USB port is designed exclusively for playing audio files from an external USB drive. It does not have a recording function.

How do you pair a device using Bluetooth?
To pair a device, simply activate the Bluetooth function on the mixer, search for the signal (usually "MIXER") on your smartphone or tablet, and establish the connection. Once paired, the audio will play through its dedicated channel.

Project description

6-channel powered desktop mixer. 2 x 200W RMS output power at 8 ohms. Features 6 mono Mic/Line inputs with XLR/Jack combo connectors and individual +48V phantom power. Includes one stereo RCA line input. Integrated 24-bit DSP effects processor with 16 presets. Each channel has a 3-band EQ, Pan control, FX volume, and Solo and Mute buttons. The master section includes a 7-band graphic EQ. Built-in USB audio player and Bluetooth receiver. Main outputs are balanced XLR, recording outputs are RCA, and passive speaker outputs are NL-4 type.
