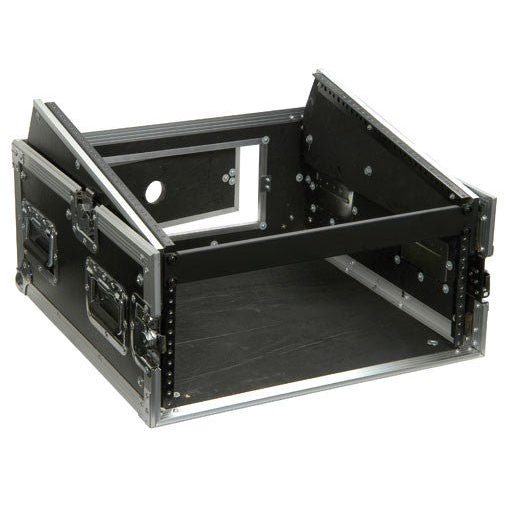

Power Dynamics PD-F4U10 - Mixed Rack Enclosure 4U Front and 10U Top for Mixer
The Power Dynamics PD-F4U10 is a 19-inch flight case designed specifically for sound professionals who need a rugged, versatile, and portable solution. This combination model offers a smart design that integrates a 4U vertical rack space for rack-mountable equipment and a 10U angled top section, ideal for housing a 19-inch mixer. Its solid construction and professional features make it the perfect choice for mobile DJs, touring musicians, sound engineers, and AV rental companies.
Constructed from heavy-duty, multiplexed vinyl laminate, the PD-F4U10 is built to withstand the rigors of transport and continuous use. The frame is reinforced with aluminum profiles and steel ball corners, protecting the equipment from bumps and impacts. The front, rear, and top covers are fully removable, providing complete and unobstructed access to the controls and connections of installed devices, facilitating quick and efficient setup and teardown at any event.
Main features
-
Smart Mixed Design: Combines 4U of vertical rack space at the front with 10U of angled space at the top, optimized for mounting 19-inch mixers and controllers.
-
Robust Construction: Made with high-density multiplexed wood with a black vinyl laminate finish, guaranteeing durability and a professional appearance.
-
Maximum Protection: Equipped with extruded aluminum profiles on all edges and metal ball corners for superior impact protection during transport.
-
Full Access: The front, rear, and top covers are fully removable and secured by four heavy-duty butterfly latches, allowing convenient and quick access to all equipment.
-
Optimized Portability: Incorporates spring-loaded recessed handles on the sides, designed for a comfortable grip and safe, balanced transport.
-
Standard Rack Rails: Includes 19-inch rack rails on the front section for secure, standard mounting of effects processors, amplifiers, players, and other compatible equipment.
Product benefits
The PD-F4U10 rack case centralizes and protects your essential equipment in a single compact unit. By keeping your mixer and processors together, setup and teardown time are drastically reduced. Its ergonomic design, with the mixer angled for easy control and visibility during live performances, makes it easy to control and maintain visibility. Travel with peace of mind knowing your valuable investment is safe from bumps, scratches, and dust, thanks to its road-ready construction.
Use cases
This all-in-one solution is ideal for a wide variety of applications. Mobile DJs can set up their mixer, amplifier, wireless microphone system, and lighting controller. For bands and musicians , it's perfect for carrying a compact mixer, equalizers, effects processors, and preamps. Sound engineers will find it invaluable for corporate events, conferences, or small live productions where portability and quick setup are crucial.
Frequently Asked Questions
Does the box include the screws for racking the equipment?
Rack cases like this one typically include a basic set of screws and cage nuts. It's recommended to check the package contents upon receipt.
Is the angle of the top section for the mixer adjustable?
No, the 10U top section has a fixed angle, ergonomically designed to provide optimal visibility and access to the mixer controls.
What is the maximum depth of equipment I can install in the 4U front section?
The total internal depth is 510 mm, which allows for the installation of most standard rack equipment, although the space required for connectors and ventilation must be taken into consideration.
Are the covers deep enough to leave the cables connected?
The covers are designed for a tight seal. For transport, it is generally recommended to disconnect any cables protruding from the rack plane to prevent damage to the connectors.
Project description

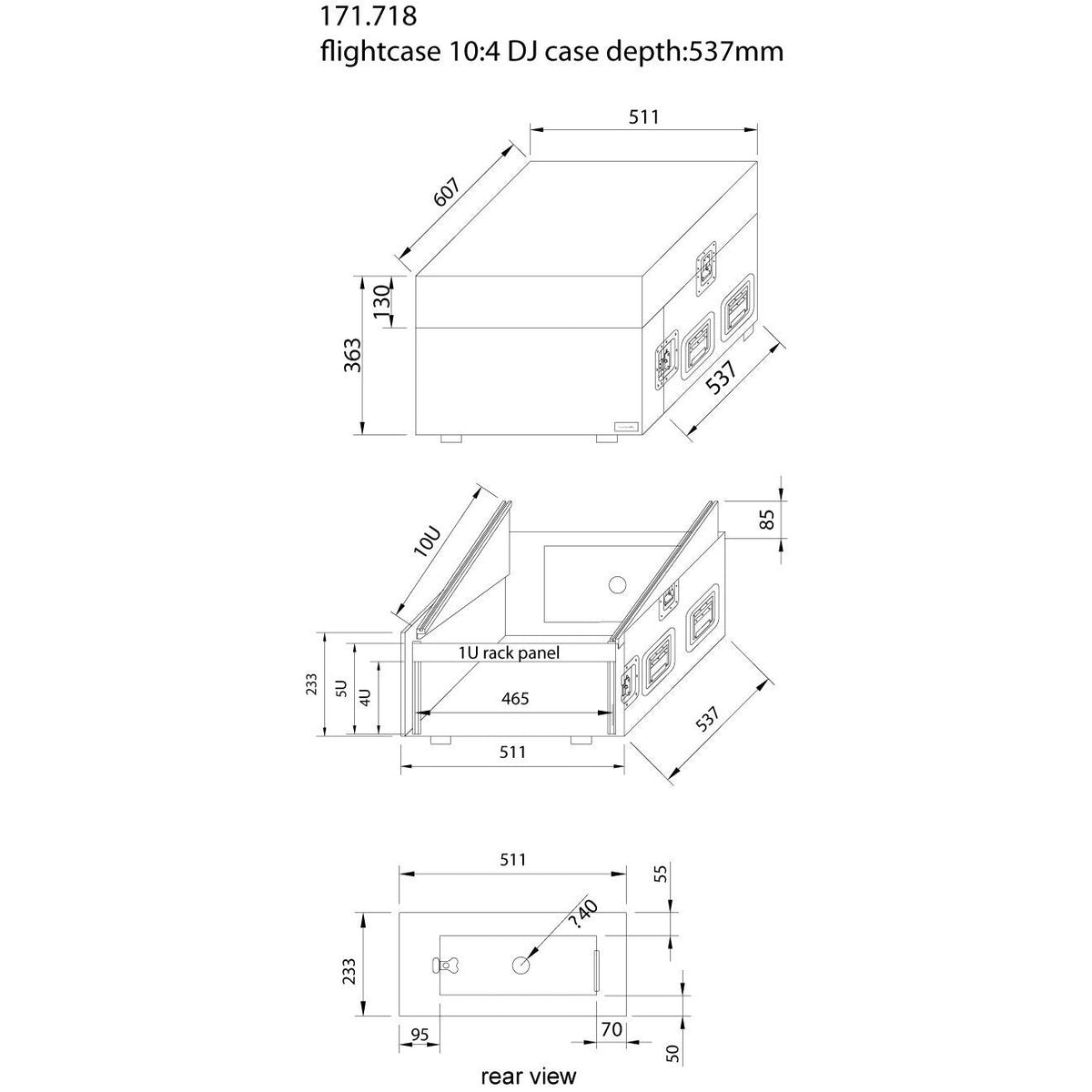

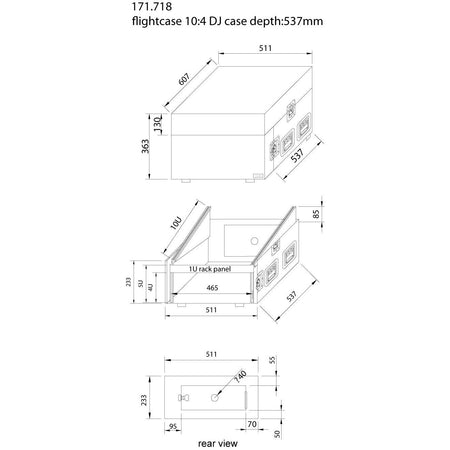

Mixed-format flight case for 19-inch equipment. It features a vertical front section with a capacity for 4 rack units (4U) and a sloping top section for a mixer with a capacity of 10 units (10U). Constructed of multiplexed wood with vinyl laminate and aluminum profiles. Includes removable front, rear, and top panels, 4 butterfly latches, and recessed side handles. External dimensions: 615 x 536 x 371 mm; weight: 13.9 kg.
