Power Dynamics NCSP8B - 100V 8" Low Profile Ceiling Speaker Black

Power Dynamics NCSP8B - 100V 8" Low Profile Ceiling Speaker Black

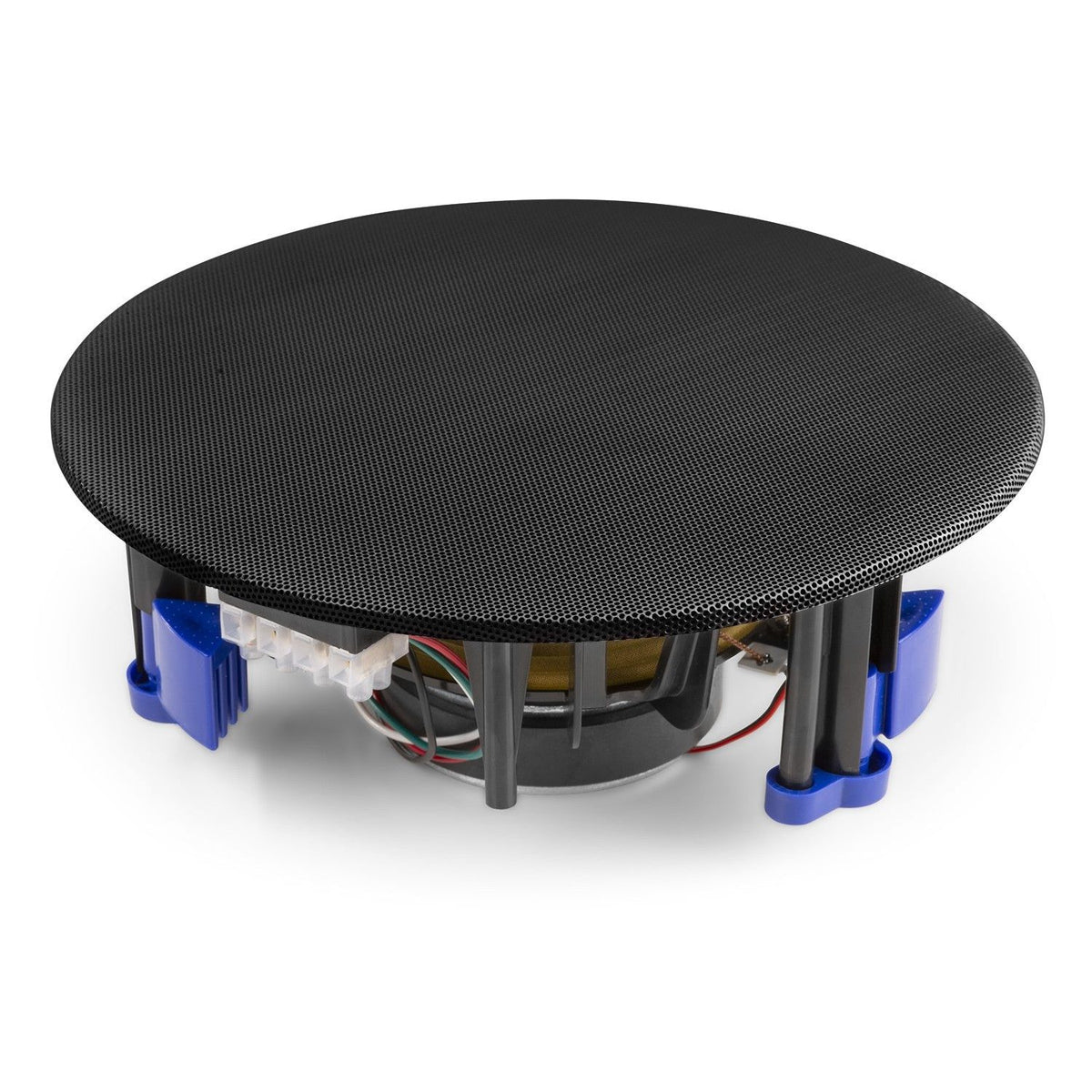

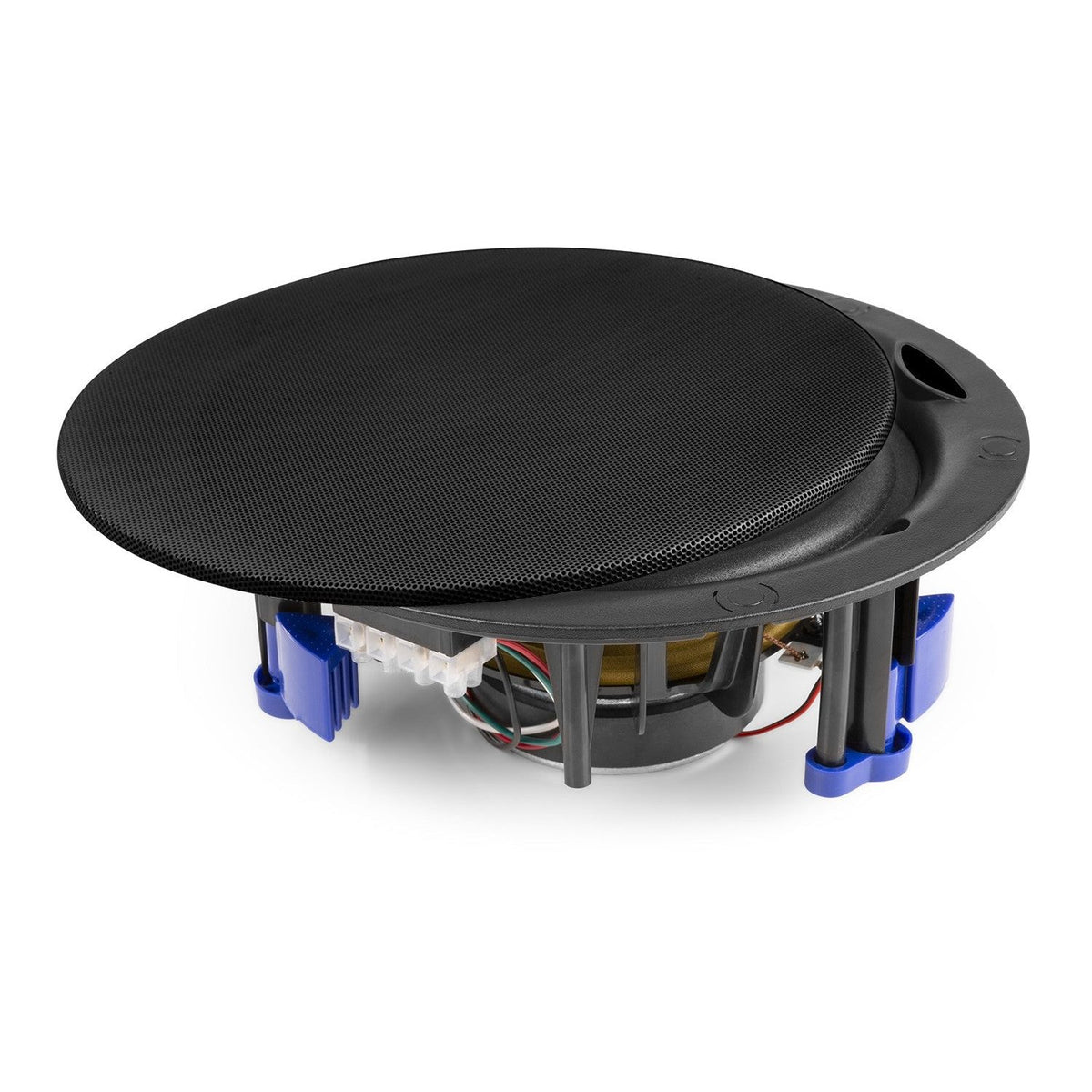

The Power Dynamics NCSP8B is a professional audio solution designed for discreet and elegant integration into any space. This passive ceiling speaker stands out for its low-profile design and black steel magnetic grille, which provides a virtually invisible and sophisticated finish, ideal for maintaining the aesthetic of dark ceilings in restaurants, offices, shops, or conference rooms. Its quick-mount system with rotating clips ensures a secure, simple, and flush-to-the-ceiling installation.

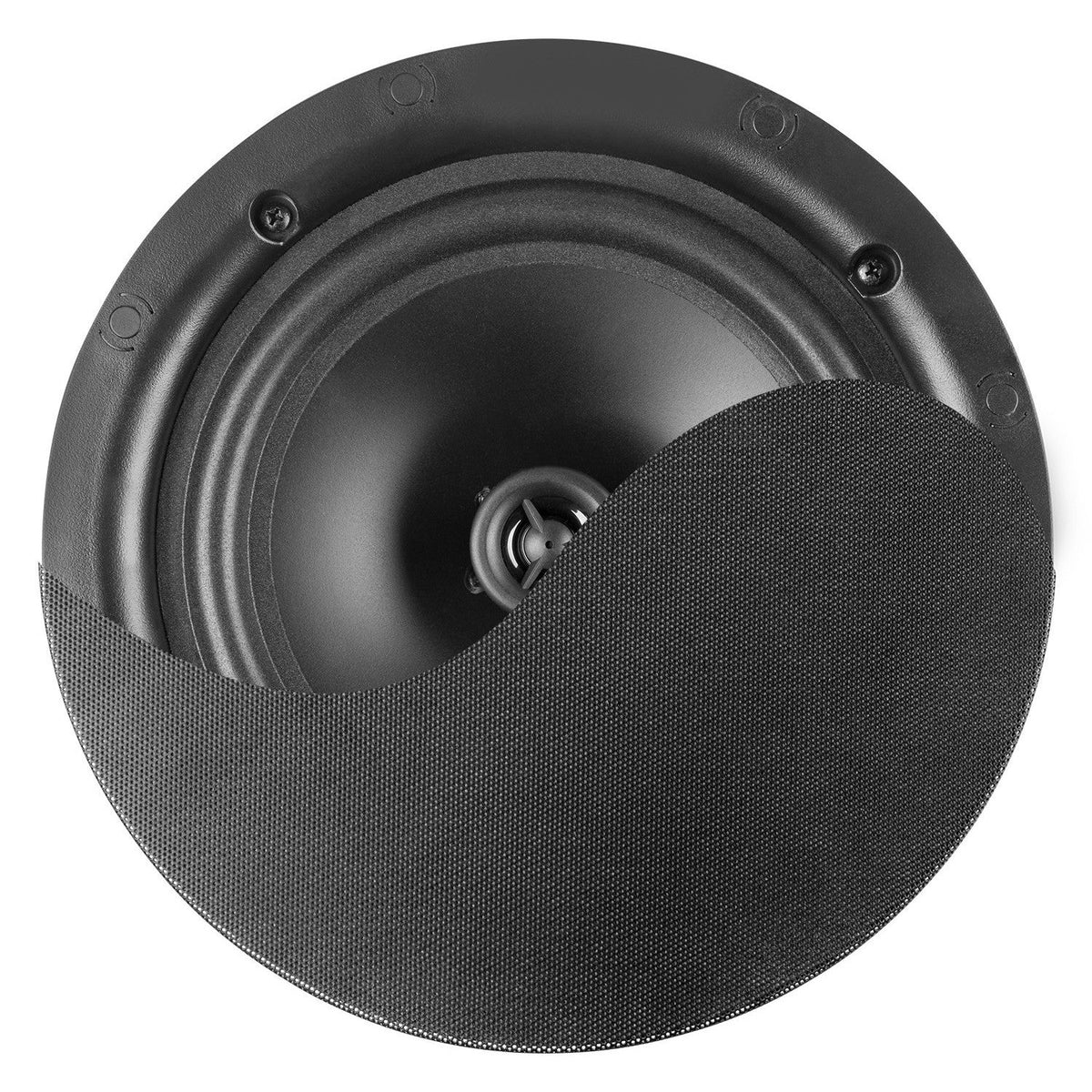

At the heart of the NCSP8B is a 2-way coaxial speaker system, combining a powerful 8-inch woofer with a 1/2-inch Mylar tweeter. This configuration ensures high-fidelity sound reproduction, with defined bass and clear, crisp highs across a wide frequency range (40Hz - 20,000Hz). Equipped with a 100V line transformer, it's the perfect choice for distributed sound systems, allowing multiple speakers to be connected over long distances without any loss of quality or signal. Its selectable power inputs (10W, 20W, 40W) offer complete flexibility for balancing the audio system to suit the needs of each area.

Main Features

• 100V Line System: Incorporates a transformer that makes it ideal for large-scale distributed audio installations, such as in commercial buildings, guaranteeing stable and uniform performance throughout the speaker chain.
• 2-Way Coaxial Sound Quality: The 8" woofer and 1/2" Mylar tweeter work together to deliver rich, detailed sound with excellent coverage.
• Elegant and Discreet Design: Its low-profile format and steel grid with magnetic fixing allow for perfect integration into the ceiling, achieving a clean and modern finish.
• Flexible Power: Thanks to its 10W, 20W and 40W power inputs, it allows you to adjust the output of each speaker individually to balance the sound in different areas or connect more units to the same amplifier.
• Quick and Easy Installation: The quick-anchor mounting system greatly simplifies the installation process, saving time and effort.
• Durable Construction: Made with high-quality materials, including a ferrite magnet, to ensure a long lifespan and reliable performance.

Product Benefits

For professional installers and businesses, the Power Dynamics NCSP8B offers an unbeatable combination of acoustic performance, ease of installation, and aesthetics. Its ability to operate on 100V systems simplifies wiring and allows for the creation of complex and scalable audio configurations with complete reliability. For the end user, the result is a high-quality, immersive sound environment, whether for background music or public address announcements, without the speakers visually disrupting the surrounding décor.

Use Cases

This loudspeaker is the perfect choice for a wide variety of commercial and public applications where uniform, high-quality sound coverage is required. It is ideal for:

• Background music in shops, restaurants, bars and hotels.
• Public address and announcement systems in offices, schools and convention centers.
• Sound in common areas such as hallways, receptions, waiting rooms or lobbies.
• Sound reinforcement in meeting rooms or classrooms.

Frequently Asked Questions

Is this speaker active or passive?
The NCSP8B is a passive speaker. It requires connection to an amplifier with 100V line outputs to operate.

What does it mean for it to be a 100V line speaker?
A 100V line system allows many speakers to be connected in parallel to a single amplifier channel over long distances using thinner wiring and without significant signal loss. It is the standard for commercial audio installations.

Can the grille be painted to match the roof color?
Yes, the steel grille can be spray-painted. It's recommended to do so carefully to avoid clogging the perforations and affecting sound quality.

Are they sold individually or in pairs?
This product is supplied in individual units, allowing you to purchase the exact amount needed for your project.

Project description

This passive 2-way ceiling speaker is designed for 100V line systems. It features an 8-inch woofer and a 1/2-inch Mylar tweeter. It delivers 40W RMS power with selectable 10W, 20W, and 40W power inputs. Its frequency response is 40Hz to 20,000Hz, with a sensitivity of 92dB SPL @ 1W/1m. The required mounting diameter is 229mm, and the mounting depth is 87mm. A low-profile, black magnetic steel grille is included.
