MuxLab IMU-500734-SM80 - 6G-SDI Extender Kit over Single-mode Fiber Optic 80 km

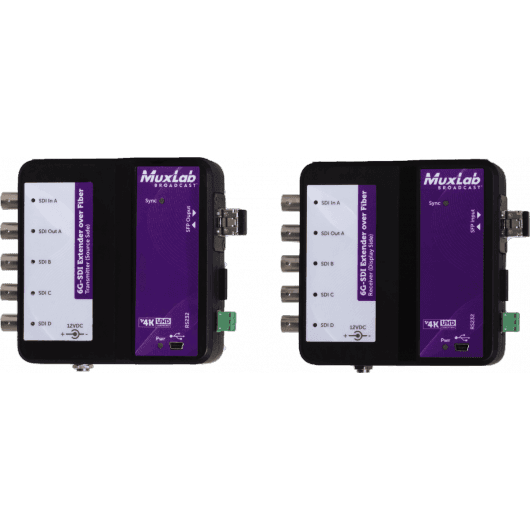

The MuxLab IMU-500734-SM80 is a professional-grade extender kit designed for transmitting SDI digital video signals over extreme distances. This system, consisting of a transmitter and receiver, allows 6G-SDI, 3G-SDI, and HD/SD-SDI signals to be sent over a single strand of single-mode fiber optic cable up to 80 kilometers without any signal degradation. It is the ultimate solution for broadcast applications, live event production, and large-scale audiovisual systems where signal integrity and reliability are critical.
This versatile kit not only transmits a main signal but also functions as a multiplexer and demultiplexer. It can handle one 6G-SDI ultra-high-definition signal (UHD 4K at 30Hz), two 3G-SDI signals, or up to four HD-SDI signals simultaneously over a single fiber optic cable. Additionally, it incorporates a return channel that allows control or data signals to be sent in the opposite direction, adding an extra layer of functionality for remote equipment management. Thanks to integrated re-clocking technology, jitter is eliminated and the signal is regenerated, ensuring robust and stable transmission at all times.
Main Features
-
Long Distance Transmission: Sends SDI signals over a maximum distance of 80 km using a single-mode fiber optic (SMF) cable.
-
Multi-Format Support: Compatible with major SDI standards, including 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, supporting resolutions up to 4K UHD at 30Hz.
-
Multiplexer/Demultiplexer Function: Capable of combining (multiplexing) up to four 3G/HD-SDI signals at the transmitter and separating (demultiplexing) them at the receiver.
-
Integrated Return Channel: Includes a return data channel for transmitting control signals, tally, or other information in the reverse direction to the main video signal.
-
Signal Re-clocking: The re-clocking technology integrated into the SDI outputs regenerates the signal, eliminating jitter and ensuring maximum quality in cascaded equipment.
-
Immunity to Interference: Fiber optic transmission offers total immunity to electromagnetic (EMI) and radio frequency (RFI) interference, guaranteeing a clean signal in any environment.
-
Robust Design: Constructed with a tough metal housing, ideal for fixed installations and demanding mobile applications.
Product Benefits
For audiovisual and broadcast professionals, the MuxLab IMU-500734-SM80 eliminates distance barriers. It allows you to connect cameras, matrices, mixers, and monitors located in remote areas, such as a university campus, a sports stadium, or even between buildings in different cities, with the confidence that the signal will arrive with maximum fidelity. Its ability to consolidate multiple video streams onto a single fiber cable dramatically simplifies complex cabling infrastructures, reducing costs, installation time, and potential points of failure. 24/7 reliability and signal integrity make it a sound investment for any critical workflow.
Use Cases
-
Broadcast and TV Production: Link between mobile units and the central studio or to connect cameras in remote locations.
-
Live Events: Ideal for concerts, festivals and sporting events where cameras and screens are located at great distances from the production control.
-
Corporate and Educational AV Installations: Connection of operating rooms, auditoriums and conference rooms in large hospital complexes or university campuses.
-
Post-production: Linking editing rooms with machine rooms or content servers located in other areas of the building.
-
Advanced Video Surveillance Systems: Transmission of high-resolution video from perimeter security cameras to a centralized monitoring center.
Frequently Asked Questions
What type of fiber optic cable is needed?
This kit requires a single-mode fiber optic cable (SMF) with LC connectors. To achieve the maximum distance of 80 km, it is recommended to use a good quality cable.
Does it support 4K video?
Yes, it supports resolutions up to 4K UHD (3840x2160) at 30Hz via the 6G-SDI standard.
Is the kit "Plug and Play"?
Yes, the system is designed for easy installation. Simply connect the SDI sources and the fiber optic cable between the transmitter and receiver, and the system will be operational without any software configuration.
What's included in the package?
The package includes the transmitter (Tx) unit, the receiver (Rx) unit, and their respective power supplies. The fiber optic cable is not included.
Project description
Professional video extender kit, model IMU-500734-SM80, consisting of a transmitter and receiver module for transmitting SDI signals over a single-mode fiber optic cable (SMF) up to 80 km. It supports 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI standards with resolutions up to 4K at 30Hz. The system features multiplexing for up to four HD-SDI channels, a return channel, and SDI output re-clocking technology for signal regeneration. It includes BNC connectors for SDI and LC connectors for the fiber optic cable. Robust metal housing. 5V DC power supply included.
