MuxLab 500530 - 4-Port USB 3.2 Extension Kit up to 100m

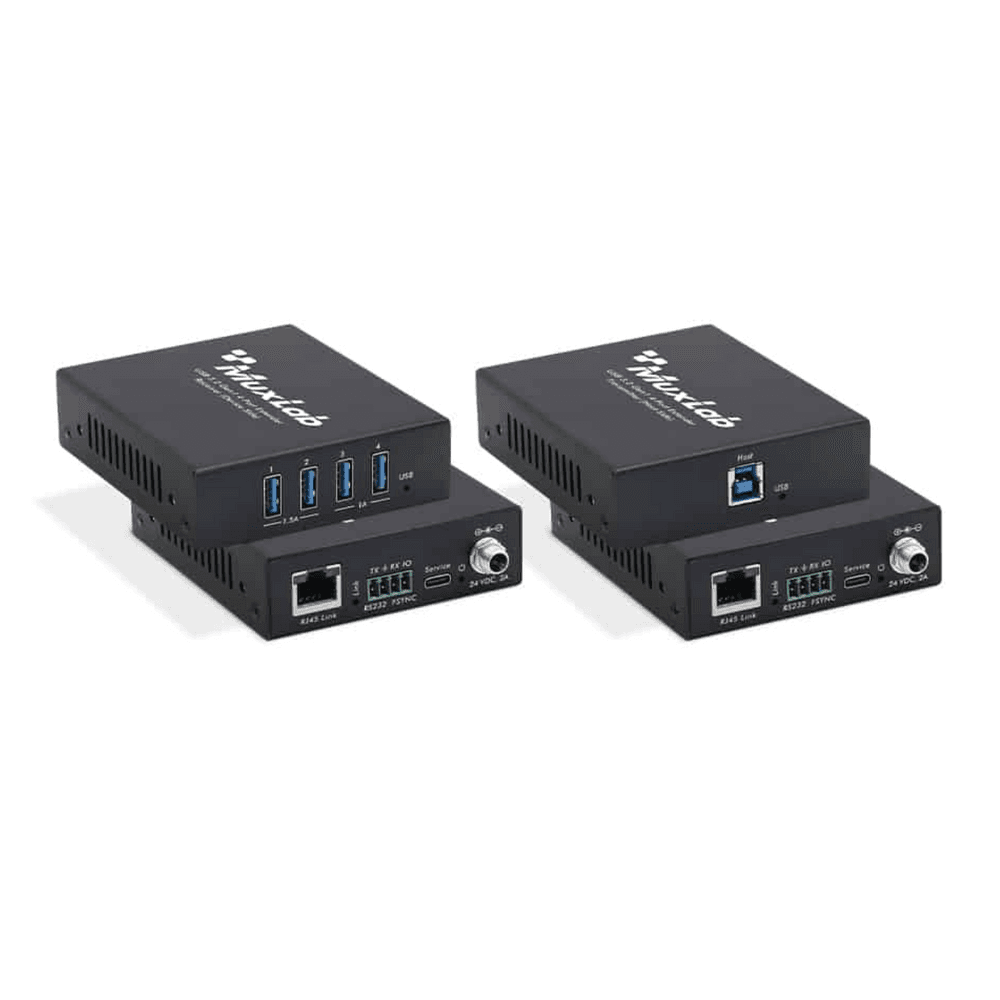

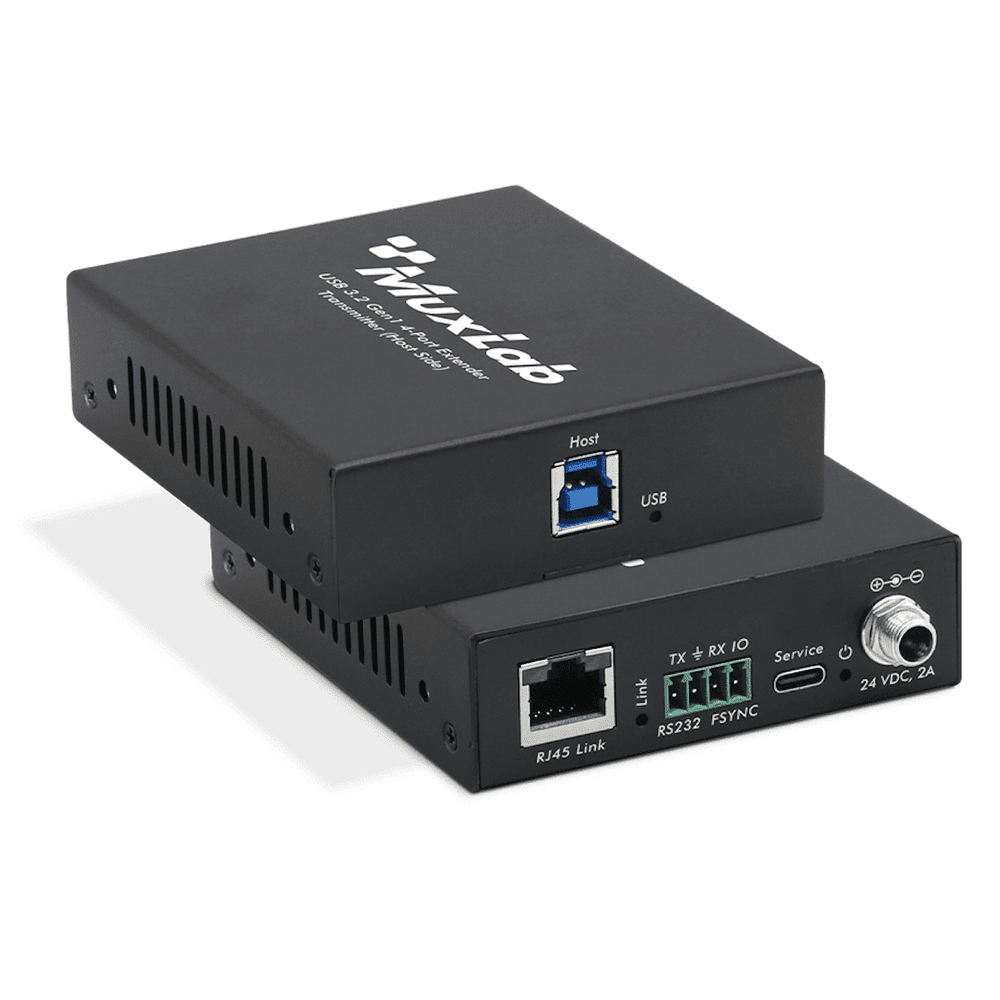

The MuxLab 500530 extender kit is a professional solution designed to overcome the distance limitations of the USB standard. This system extends the connectivity of USB 3.2 Gen1 devices up to 100 meters using a single standard Cat6a/7 network cable. Comprising a transmitter (TX) and a receiver (RX), this kit is ideal for environments requiring high-speed, reliable, long-distance data transmission, eliminating the need for complicated software configurations or additional drivers thanks to its plug-and-play functionality.
Capable of achieving transfer speeds of up to 5 Gbps, the MuxLab 500530 ensures maximum performance for demanding peripherals such as 4K video conferencing cameras, external hard drives, interactive whiteboards, and data acquisition equipment. In addition to its USB 3.2 Gen1 compatibility, the kit is fully backward compatible with USB 2.0 and USB 1.1 devices, ensuring seamless integration with a wide range of equipment. Its robust metal housing and advanced electrostatic discharge (ESD) protection make it a durable and safe choice for commercial and industrial installations.
Main features
-
Long Distance Extension: Transmits the USB 3.2 Gen1 signal up to 100 meters over a single Cat6a F/FTP network cable.
-
High Transfer Speed: Supports data speeds up to 5 Gbps, ideal for video streaming, large file transfers, and high-performance peripherals.
-

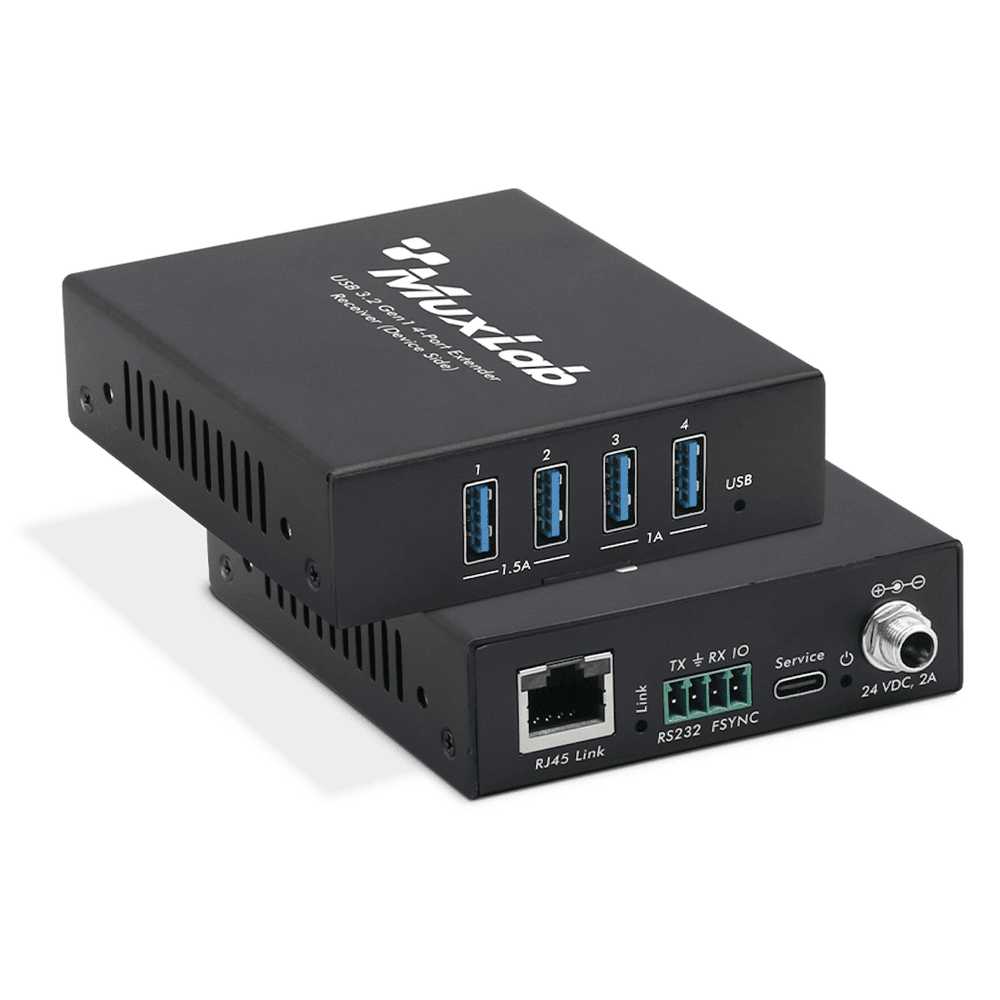

4-Port Hub: The receiver has four USB-A ports, allowing simultaneous connection of multiple devices.
-
High Power Supply: The receiver's USB ports can supply a high current (two ports at 5V/1.5A and two ports at 5V/1A) to power devices that demand more power.
-
Bidirectional PoC: The 24V bidirectional Power over Cable (PoC) technology allows the transmitter to power the receiver or vice versa, simplifying installation by requiring only one power source.
-
Additional Connectivity: Integrates signal pass-through for RS-232 control and FSYNC GPIO, facilitating integration with control systems and industrial cameras.
-
Plug and Play Installation: It does not require the installation of drivers or software, and is compatible with major operating systems such as Windows, macOS, and Linux.
-
Robust Design: Durable metal construction, ideal for professional installations and demanding environments.
Product benefits
This extender kit is designed for systems integrators, IT professionals, and audiovisual technicians who need a reliable solution for connecting USB peripherals over long distances. It eliminates the limitations of standard USB cables, which typically don't exceed 5 meters, allowing for greater flexibility in the design and layout of workspaces, meeting rooms, or production facilities.
The ability to deliver up to 5 Gbps of bandwidth ensures there are no bottlenecks when using the latest generation devices. PoC functionality dramatically simplifies cable management and the need for multiple power adapters, resulting in a cleaner and more efficient installation. Backward compatibility guarantees your investment is protected, allowing the use of both new and older equipment without compatibility issues.
Use cases
-
Conference Rooms and Classrooms: Connect PTZ cameras, microphones, speakers, and interactive whiteboards to a computer or control system located in a rack or other remote location.
-
Digital Signage: Control and update the content of media players and interactive displays from a centralized location without loss of performance.
-
Industrial Control and Automation: Extend the connectivity of sensors, machine vision cameras, and other data acquisition equipment in factory environments.
-
Remote Workstations: Ideal for connecting keyboards, mice, printers, and hard drives in remote desktop or KVM setups.
-
Medical Applications: Enables remote connection of diagnostic imaging equipment and other medical devices that require a stable, high-speed USB connection.
Frequently Asked Questions
What type of cable do I need to reach 100 meters?
To ensure maximum performance and reach a distance of 100 meters at 5 Gbps, a Cat6a or Cat7 network cable of type F/FTP (frustrated and shielded twisted pair) should be used.
Do I need to install any software or drivers?
No, the MuxLab 500530 is a "Plug and Play" device. It is automatically recognized by the main operating systems (Windows, macOS, Linux) without the need to install drivers.
Can I power the kit from either end?
Yes, thanks to bidirectional PoC (Power over Cable) technology, you can connect the power supply to both the transmitting and receiving units, and the other unit will receive power through the network cable.
Is it compatible with USB 2.0 devices?
Yes, the kit is fully backward compatible with devices that use USB 2.0 and USB 1.1 standards.
Project description
USB signal extender kit consisting of a transmitter and receiver. It extends USB 3.2 Gen1 connectivity up to 100 meters using a Cat6a/7 network cable. It supports data transfer speeds of up to 5 Gbps and is backward compatible with USB 2.0/1.1. The receiver features four USB Type-A ports: two with 5V/1.5A power delivery and two with 5V/1A delivery. The system includes RS-232 signal pass-through and FSYNC GPIO. It supports bidirectional 24V PoC power delivery. No software installation is required. Metal housing.
