MuxLab IMU-500216-IR - IR Receiver and Remote Control Kit for Audio and Zone Control
Maximize the functionality and convenience of your professional audio system with the MuxLab IMU-500216-IR . This essential control kit is specifically designed to complement the MuxLab Zone Amplifier (model 500216), enabling complete and precise remote management without requiring physical access to the main unit. It is the ideal solution for installations where hardware is concealed, such as in suspended ceilings, behind panels, or in distant rack cabinets.

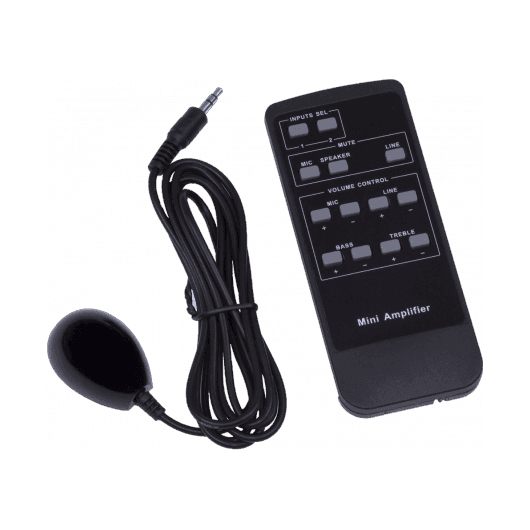

The kit includes an ergonomic and lightweight handheld remote control , along with a highly sensitive infrared (IR) receiver sensor . Thanks to its integrated extension cable, the sensor can be discreetly placed in a visible position to receive the signal, while the amplification equipment remains out of sight. This accessory transforms the user experience, granting complete control over critical audio parameters such as microphone and line volume, bass and treble equalization, and mute functions, all with the reliability of the NEC code protocol.
Main features
-
Total audio control: Allows independent adjustment of microphone and line input volume, as well as equalization (bass and treble).
-
External IR sensor included: Incorporates a sensor cable with a 3.5mm jack connector and an approximate length of 1.45 meters, facilitating flexible installation of the receiving "eye".
-
Reliable technology: Operates under the NEC transmission standard with a carrier frequency of 38 KHz, guaranteeing a fast response and no common interference.
-
Compact design: The controller has optimized dimensions (123x51x10 mm), making it extremely thin and easy to handle.
-
Effective range: Offers an operational reception distance of up to 10 meters in direct line of sight.
Benefits for the installation and the user
Implementing the MuxLab IMU-500216-IR brings immediate flexibility to any audiovisual project. For the integrator, it eliminates amplifier placement restrictions, allowing for cleaner, more aesthetically pleasing installations by concealing bulky equipment. For the end user, it offers the convenience of instantly managing background music or public address systems, without complex configurations or the need for additional software. It's a plug-and-play tool that enhances the usability of the MuxLab 500216 system.
Recommended use cases
-
Classrooms and Auditoriums: Control of the teacher's microphone volume and multimedia audio without approaching the equipment rack.
-
Retail and Hospitality: Quick adjustment of background music or announcements in shops and restaurants where the amplifier is in the back room.
-
Meeting Rooms: Discreet management of audio levels during corporate presentations.
-
Digital Signage: Volume control on advertising displays where the amplification hardware is mounted behind the monitor.
Frequently Asked Questions
Does this controller require prior setup?
No, the remote is pre-configured to work immediately with the MuxLab 500216 Zone Amplifier once the sensor is connected.
Where does the IR sensor connect?
The sensor connects directly to the "IR Sensor" port (3.5mm stereo jack) located on the MuxLab amplifier panel.
What type of batteries does it use?
The remote control uses a button-type lithium battery (commonly CR2025 or similar, check the specific batch manual) which guarantees a long lifespan thanks to its low power consumption.
Project description
Infrared control kit consisting of a handheld remote control and IR receiver sensor cable, specifically designed for remote management of the MuxLab 500216 zone amplifier. The system operates using the NEC protocol at a frequency of 38 kHz with a wavelength of 940 nm. The receiver has a 3.5 mm stereo jack connection with a 1.45 m cable. The remote control allows for volume (mic/line), bass, treble, and mute adjustments at a maximum distance of 10 meters. Remote control dimensions: 123 x 51 x 10 mm. Black ABS plastic housing.
