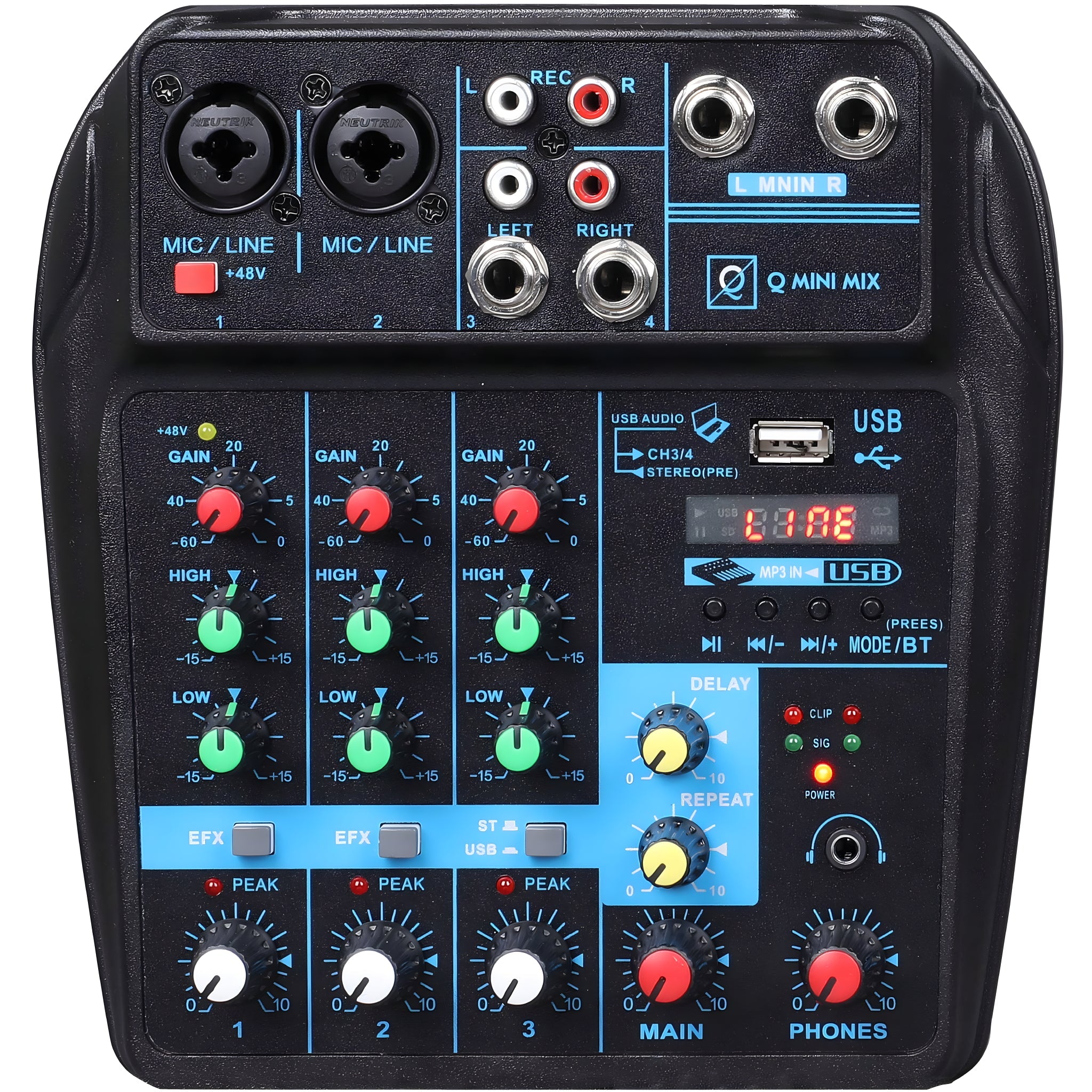

OQAN Q MINI USB MIXER - Compact 4-channel mixer with USB and Bluetooth
The OQAN Q MINI USB MIXER is an incredibly versatile and compact 4-channel mixer designed to meet the needs of musicians, podcasters, and producers seeking a complete and portable audio solution. Despite its small size, this mixer is equipped with professional features that guarantee total control over your sound, whether in a home studio, performing live, or recording on the go.
With a 4-channel configuration, divided into two mono channels and one stereo channel , the Q MINI USB MIXER offers exceptional flexibility. The first two channels feature XLR/Jack combo inputs, perfect for connecting microphones and instruments, and are equipped with high-quality microphone preamps that ensure clear and crisp sound capture. It also features switchable +48V phantom power , allowing the use of professional condenser microphones that require this power to operate.
One of its biggest draws is its modern connectivity. It features a built-in MP3 player that connects via its USB port, allowing you to play backing tracks or music directly from an external storage device. In addition, it includes Bluetooth functionality, which facilitates wireless audio streaming from smartphones, tablets, or other compatible devices. All of this is managed through a simple LCD screen with dedicated playback controls.
Main features
-
4-channel configuration: It has 2 mono channels (XLR/Jack inputs) and 1 stereo channel (Jack/RCA inputs), offering multiple options for connecting your audio sources.
-
USB and Bluetooth connectivity: Easily play audio from USB drives or stream wirelessly from your mobile devices, ideal for launching tracks or background music.
-
High-quality microphone preamps: Their preamps guarantee a clean, powerful, and low-noise input signal, capturing every nuance of the voice or instrument.
-
+48V Phantom Power: Enables the use of studio condenser microphones, expanding your recording and sound production possibilities with the highest quality.
-
2-band equalizer per channel: Adjust the bass (LOW) and treble (HIGH) frequencies independently on each channel to sculpt your sound to perfection.
-
Integrated Delay Effect: Add depth and space to your vocals or instruments on channels 1 and 2 thanks to the built-in echo (delay) effect, with dedicated Repeat and Delay time controls.
-
Professional outputs and monitoring: Includes main stereo outputs in 1/4" jack format, a headphone output with independent volume control for precise monitoring, and auxiliary RCA I/O for connecting external devices.
-
Flexible power supply: It can be powered via the included power adapter or directly from a computer's USB port, increasing its portability.
Benefits for the user
The OQAN Q MINI USB MIXER was designed with simplicity and efficiency in mind. Its compact and lightweight design makes it the ideal companion for traveling musicians, content creators who need an all-in-one solution, or anyone with limited workspace. The intuitive and clearly laid-out controls allow even novice users to achieve a great-sounding mix in minutes. The combination of analog inputs with digital playback makes it perfect for a wide range of applications, from small acoustic performances to podcast production or audio management for streaming.
Use cases
This mixer is ideal for a variety of situations. A singer-songwriter can connect their microphone and electro-acoustic guitar, add a touch of delay, and play a backing track from a USB drive for a live performance. A podcaster can connect two condenser microphones and easily manage voice levels. For the home studio, it functions as a basic audio interface for recording demos, connecting synthesizers, and monitoring the mix with headphones. Its Bluetooth connectivity also makes it perfect for small parties or events where music needs to be mixed from a phone with a microphone for announcements.
Frequently Asked Questions
Can I record the audio of the mix on my computer via the USB port?
The USB port on this model is primarily designed for playing MP3 files from an external storage device. To record to a computer, you would need to connect the main output (Main Out) or the RCA output to an external audio interface.
Does phantom power apply to both microphone channels simultaneously?
Yes, the +48V phantom power is activated globally for both XLR inputs. It is not possible to activate it for a single channel.
What type of effect does it include and on which channels can it be applied?
It includes a Delay (echo) effect that can be applied and controlled independently on channels 1 and 2. It has potentiometers to adjust the time and number of repetitions of the effect.
Is it compatible with dynamic and condenser microphones?
Yes, it's compatible with both. For dynamic microphones, you won't need to activate anything, and for condenser microphones, you simply need to activate the +48V phantom power switch.
Project description
4-channel analog mixing console (2 mono, 1 stereo). Features two XLR microphone inputs with high-quality preamps and +48V phantom power. Each channel has gain control and a 2-band EQ (bass and treble). Includes an integrated MP3 player via USB port and Bluetooth connectivity. Delay effects processor available on channels 1 and 2, with time and repeat controls. Stereo main outputs via two 1/4" jacks, headphone output with independent volume control, and stereo auxiliary input/output with RCA connectors. Power is supplied via an external power adapter or a 5V USB port.
