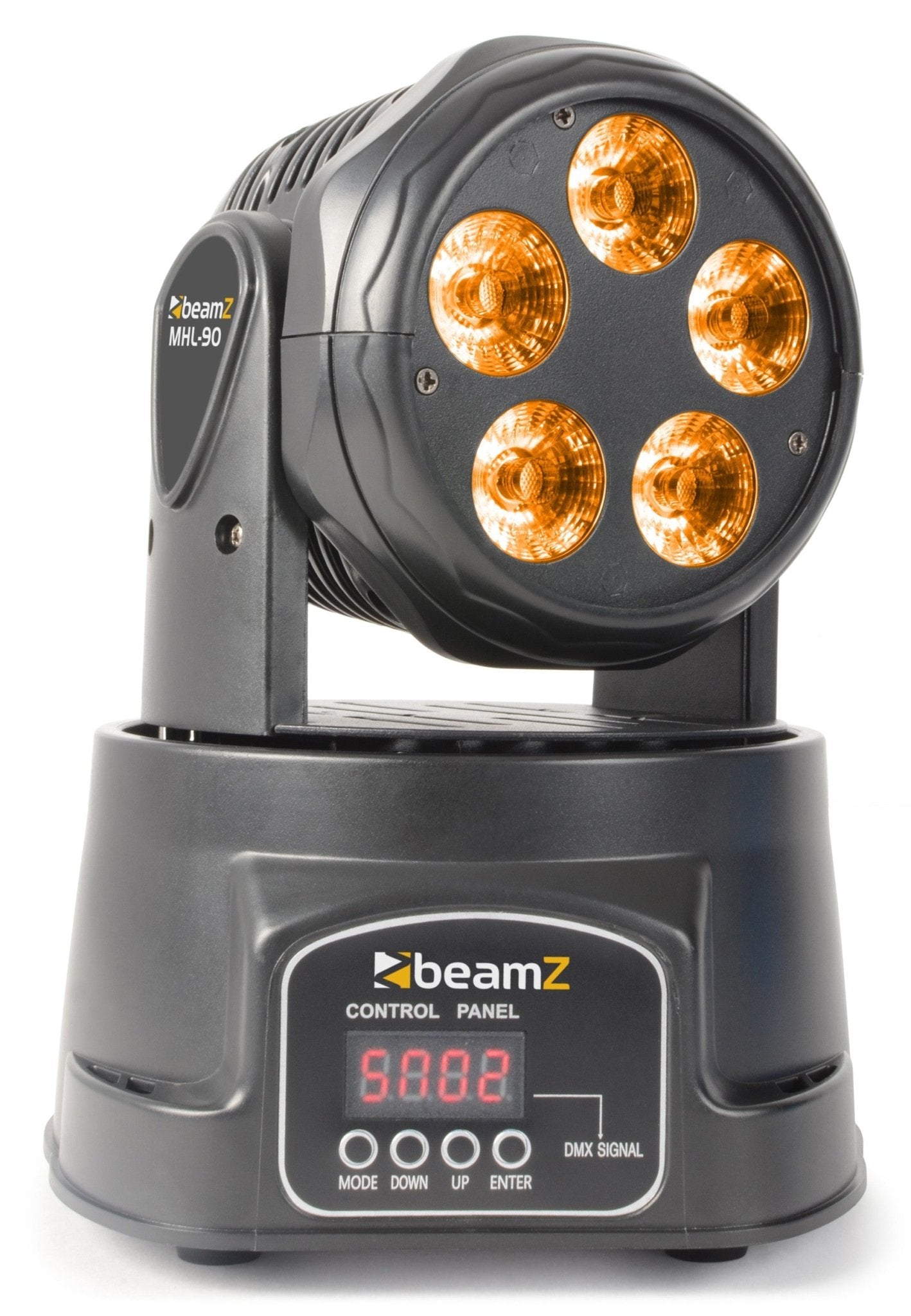

beamZ MHL90 - 5x 18W LED Wash Moving Head with RGBAW-UV Color Mixing
The beamZ MHL90 is a high-power LED wash moving head designed to deliver stunning lighting effects in a wide range of applications, including bars, clubs, discos, parties, and DJ sets. Equipped with five 18W HEX LEDs (RGBAW-UV), this unit offers an exceptionally bright and vibrant color mix, including UV effects that make white surfaces glow. With a smooth yet rapid 540° pan and 180° tilt range , this moving head is perfect for creating a dynamic and professional atmosphere.
Controlled by 11 or 15 DMX channels , the MHL90 also features adjustable strobe speed , 0-100% electronic dimming , and automatic modes and music synchronization for easy integration into any event setup. Furthermore, the Master/Slave function and LED control panel simplify operation without the need for an advanced DMX controller, making it an excellent choice for both professionals and less experienced users.
Main features
-
Light source: 5x 18W HEX LEDs (RGBAW-UV) for a vibrant color mix.
-
Beam angle: 22° for a narrow, powerful beam.
-
Field angle: 42° for wide coverage.
-
Movements: PAN 540° / TILT 180° with adjustable speed for fast and precise movements.
-
Control modes: 11 or 15 DMX channels, automatic, music rhythm, Master/Slave.
-
Strobe: Strobe effect with adjustable speed to create intense flashes.
-
Dimmer: 0-100% electronic dimmer for precise control of light intensity.
-
Music synchronization: Sound-to-light mode with sensitivity adjustment.
-

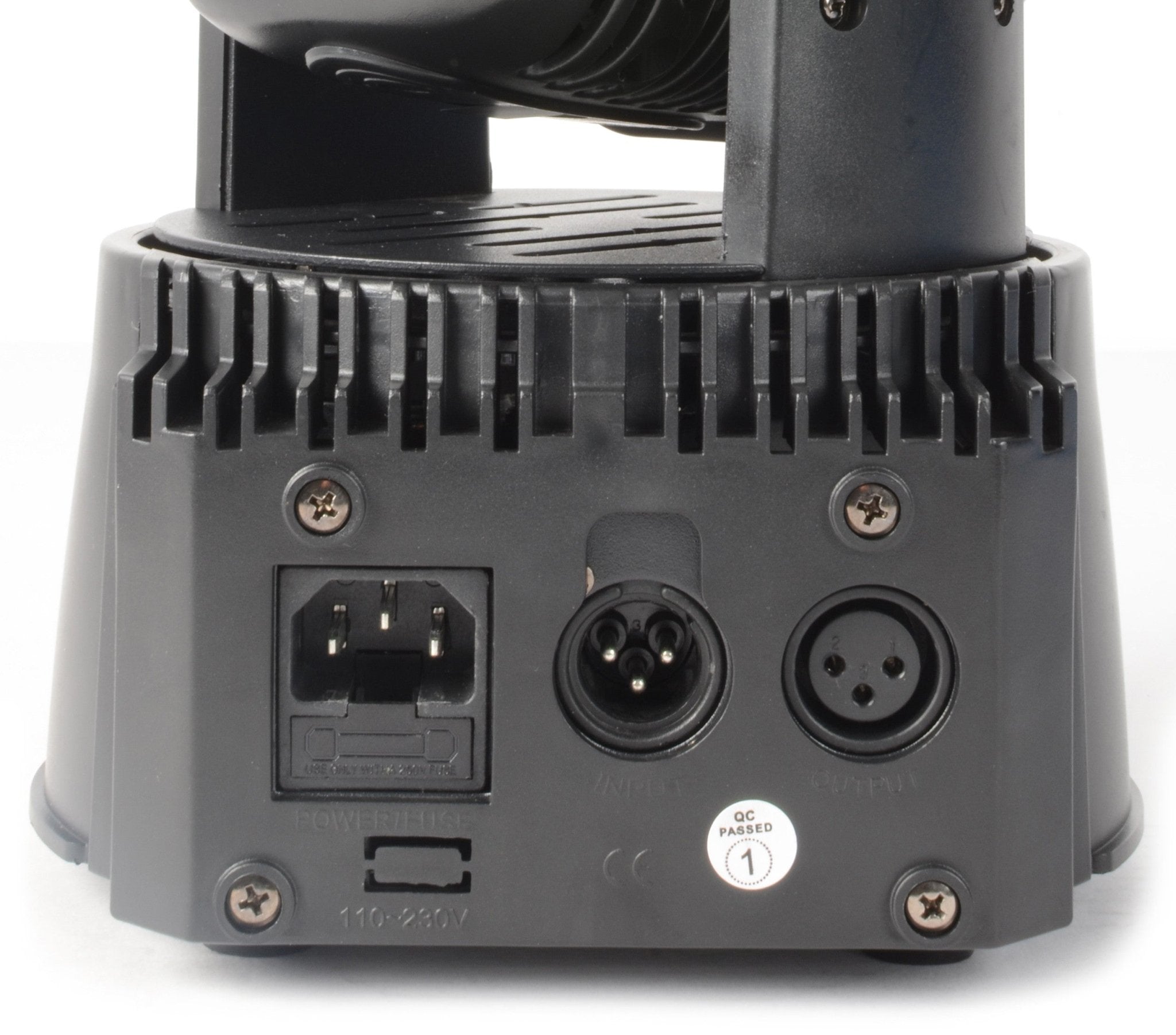

DMX Connection: DMX input/output via 3-pin XLR .
-
Cooling: Ventilation to maintain efficient and quiet operation.
-
Included accessories: Power cable and mounting bracket.
Product benefits
-
Advanced color mixing: HEX LEDs (RGBAW-UV) allow you to create a wide range of colors with high-quality light output.
-
High versatility: The MHL90 is ideal for mobile or fixed applications in small spaces, thanks to its easy control and simple operating modes.
-
Movement precision: With 540° PAN and 180° TILT movements, it offers total control over the direction of the effects.
-
Easy control: DMX modes, standalone operation, and music synchronization make integration quick and easy.
-
Compact and lightweight: Weighing only 3.3 kg and measuring 175 x 175 x 245 mm , the MHL90 is ideal for places with limited space.
Use cases
-
Live events: Perfect for concerts, festivals and events where powerful lighting and fast effects are needed.
-
Nightclubs and clubs: Ideal for creating vibrant and dynamic effects on the dance floor.
-
Fixed installations: Perfect for theaters, auditoriums and spaces with limited space.
Frequently Asked Questions
-
How many DMX channels does it have? The MHL90 has 11 or 15 DMX channels depending on the control mode.
-
Can I use it without DMX? Yes, the MHL90 has standalone modes and can be controlled by the rhythm of the music or the Master/Slave function.
-
What is the beam angle? The beam angle is 22° , ideal for creating a sharp and powerful beam of light.
-
Is it suitable for outdoor use? No, the MHL90 has an IP20 protection rating, so it is designed for indoor use.
Project description
LED Wash moving head with 5x 18W HEX RGBAW-UV LEDs; 22° beam angle, 42° field angle; 540° PAN movement, 180° TILT; 11 or 15 channel DMX control; auto, DMX, master/slave, and music-activated modes; 0-100% electronic dimmer; adjustable strobe speed; fan cooling; IP20; dimensions 175 x 175 x 245 mm; weight 3.3 kg; includes mounting bracket and power cable.
