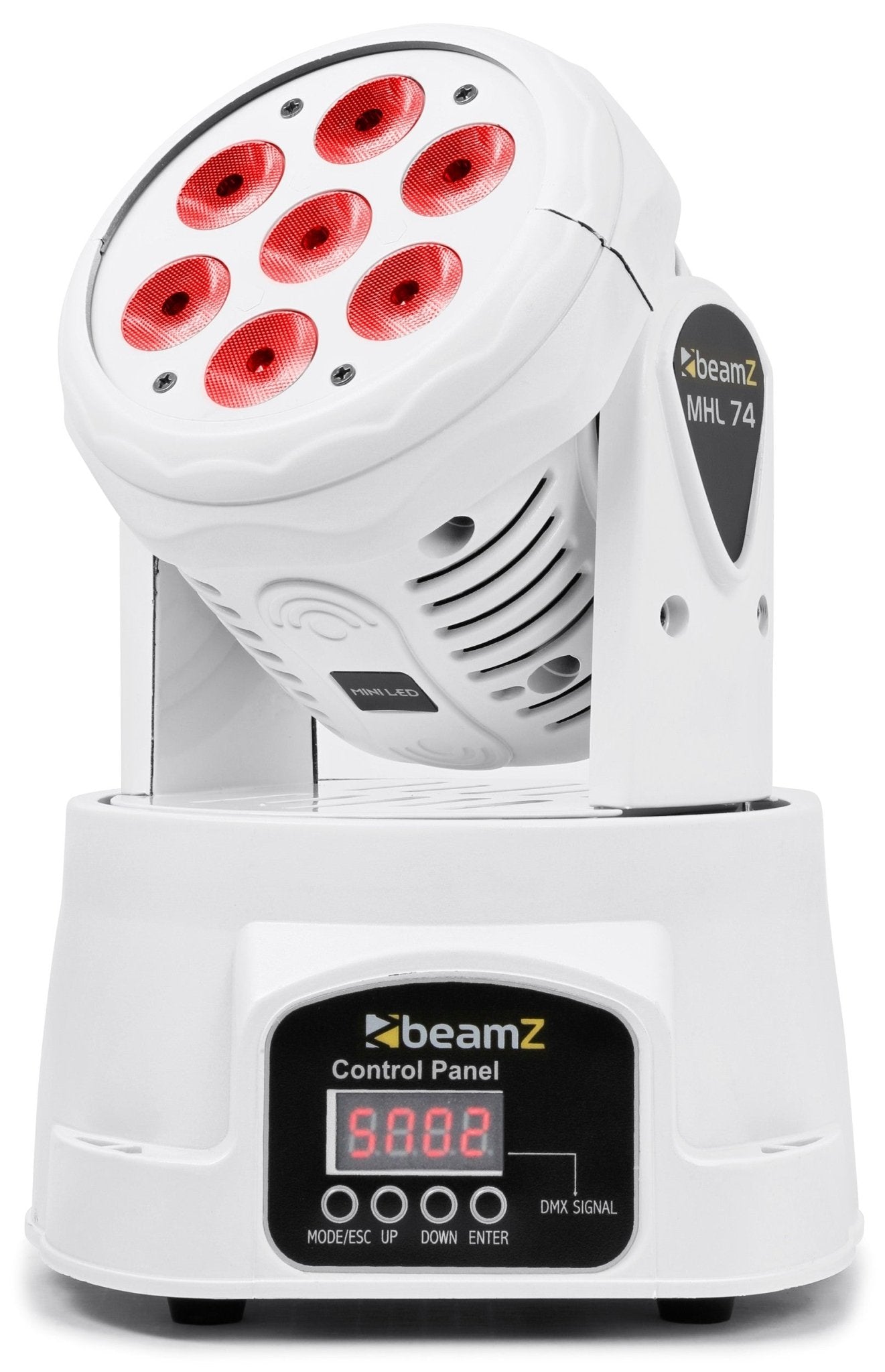

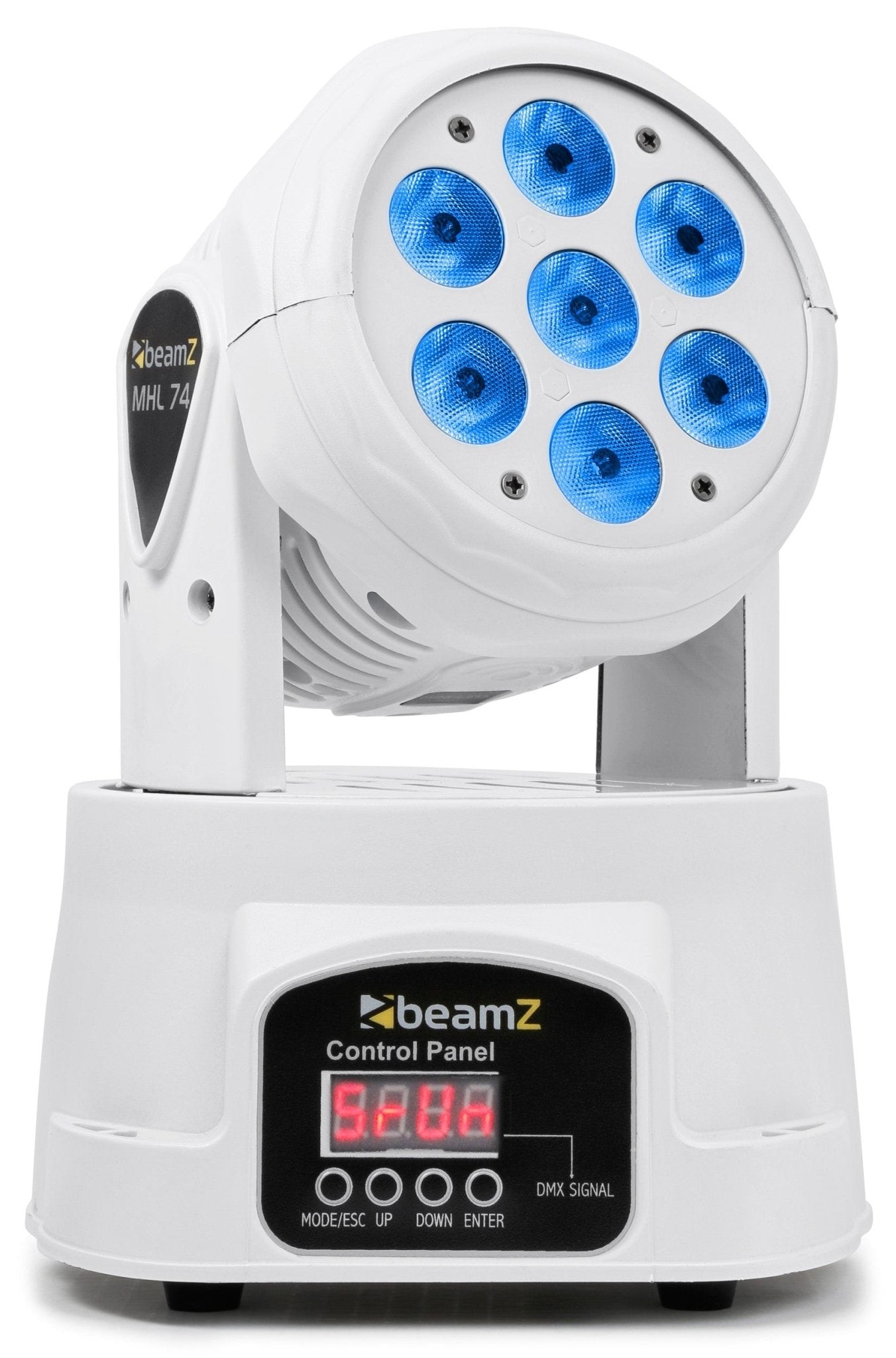

beamZ MHL74 - LED Moving Head Wash 7x 10W White
The beamZ MHL74 is a compact, high-intensity LED moving head designed to deliver spectacular performance on stages, in theaters, concert halls, TV studios, nightclubs, and more. Equipped with seven 10W quad LEDs (RGBW), this fixture offers a seamless color mix and a powerful 15° beam angle. Its compact design, combined with impressive light output, makes it an excellent choice for professional installations where space is limited.
With a 540° PAN and 180° TILT range of motion, the MHL74 allows for quick and precise rotations, offering complete control over visual effects. The unit is controlled via 7 or 12 DMX channels and features functions such as 0-100% electronic dimming , music sync mode , and strobe effects. Furthermore, the device includes an automatic PAN/TILT correction system and a reset function , making it easy to use in any performance environment.
Main features
-
Light source: 7x 10W Quad LEDs (RGBW) for bright colors and homogeneous blends.
-
Beam angle: 15° for a concentrated beam of light.
-
Field angle: 30° for wide coverage.
-
Movements: PAN 540° and TILT 180°, with speed adjustment for precise control.
-
Control modes: 7 or 12 DMX channels, standalone modes, Master/Slave, music synchronization.
-
Strobe: Strobe effect with adjustable speed.
-
Dimmer: 0-100% electronic dimmer for precise intensity control.
-
Automatic PAN/TILT correction: Improves the accuracy and synchronization of movements.
-
Control panel: LCD screen for quick and easy adjustments.
-

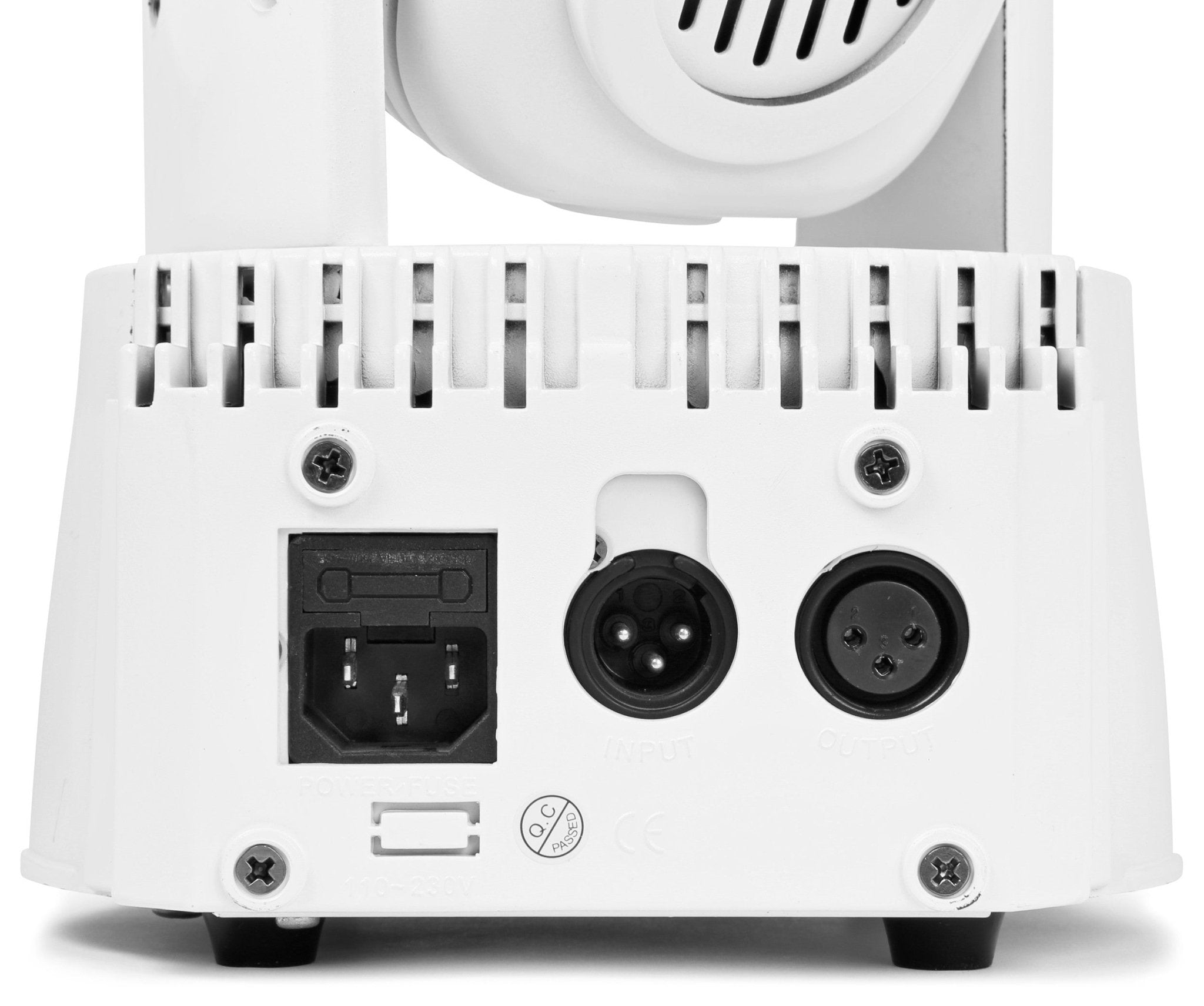

DMX Connection: DMX input/output via 3-pin XLR .
-
Cooling: Ventilation for efficient and long-lasting operation.
-
Included accessories: PowerCon cable, safety lanyard.
Product benefits
-
Powerful light output: The combination of 7x 10W Quad LEDs and a 15° angle generates an intense and sharp beam, ideal for Beam and Wash effects.
-
Versatility: With the option of 7 or 12 DMX channels, it offers detailed control over effects, movements, and synchronization.
-
Motion precision: Smooth and rapid PAN/TILT movements allow for precise positioning of visual effects.
-
Easy integration: DMX control functions, Master/Slave and music synchronization make installation and use simple.
-
Compact design: Lightweight (3.4 kg) and small (175 x 175 x 240 mm), perfect for events with limited space.
Use cases
-
Live events: Perfect for concerts, festivals and events that require fast and dynamic effects.
-
Nightclubs and clubs: Ideal for creating spectacular lighting effects on the dance floor.
-
Theaters and auditoriums: Ideal for generating impressive lighting effects on small or medium-sized stages.
Frequently Asked Questions
-
How many DMX channels does it have? The MHL74 has 7 or 12 DMX channels , depending on the controller you choose.
-
Can I use it without DMX? Yes, the MHL74 has standalone and Master/Slave modes to operate without a DMX controller.
-
What is the beam angle? The beam angle is 15° , ideal for creating high-intensity beam effects.
-
Is it suitable for outdoor use? No, the MHL74 has an IP20 protection rating, so it is designed for indoor use.
Project description
LED Wash moving head with 7 x 10W Quad RGBW LEDs; 15° beam angle, 30° field angle; 540° PAN, 180° TILT movement; 7 or 12 channel DMX control; strobe effects with adjustable speed; 0-100% electronic dimmer; automatic PAN/TILT correction; fan cooling; IP20; dimensions 175 x 175 x 240 mm; weight 3.4 kg; includes PowerCon cable and safety lanyard.
