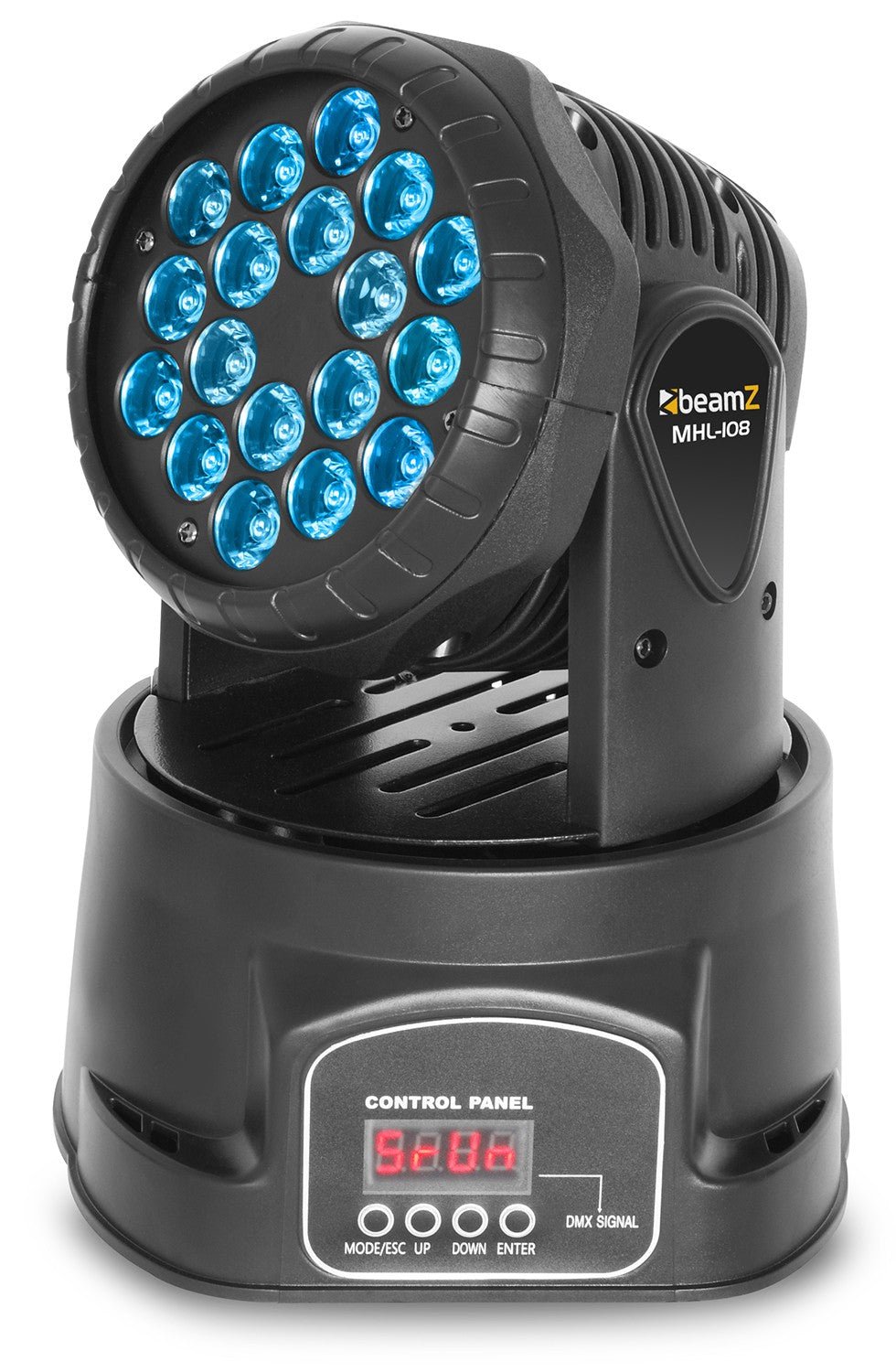

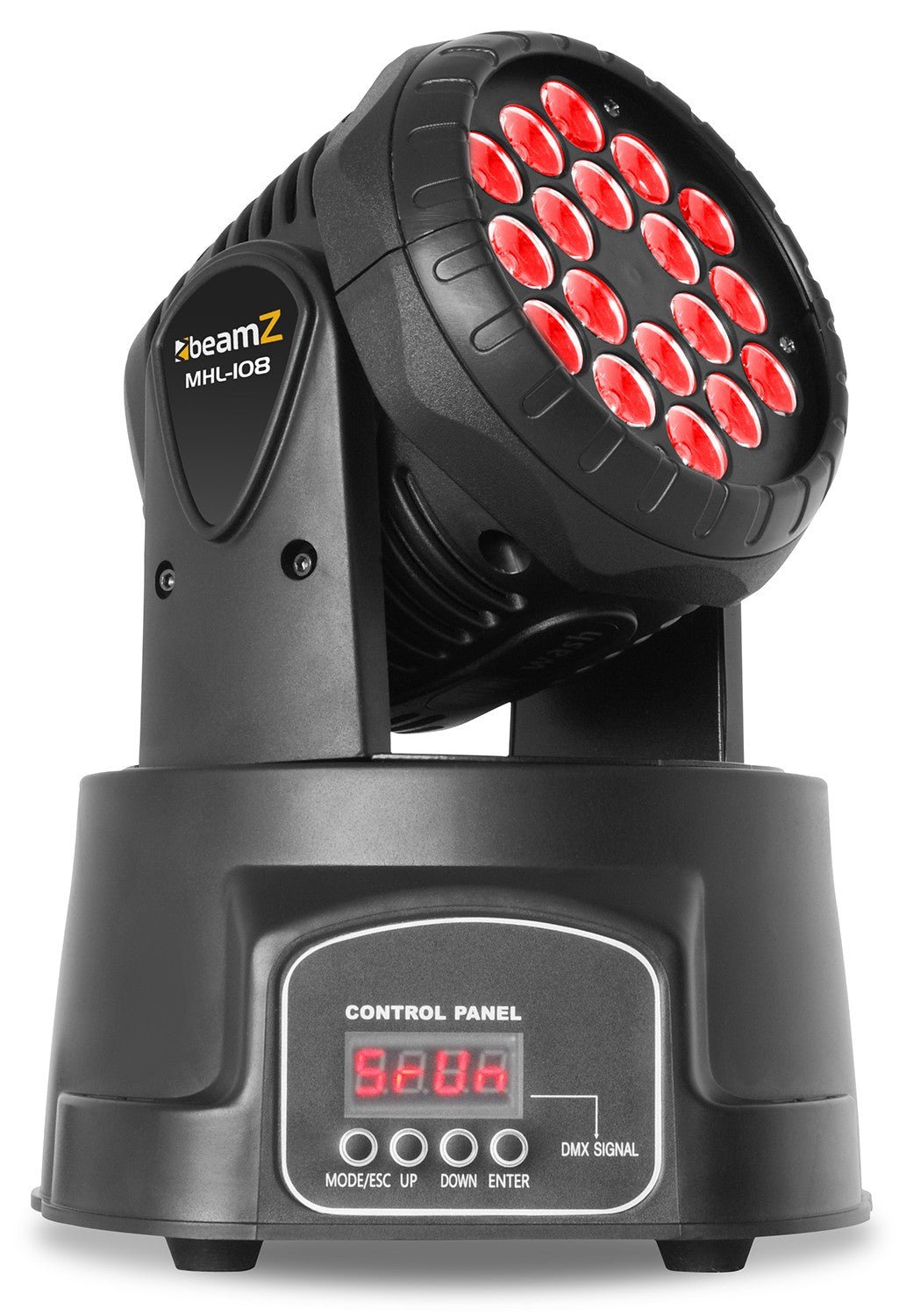

beamZ MHL108MK4 - 18x 3W LED Wash Moving Head with Advanced Control

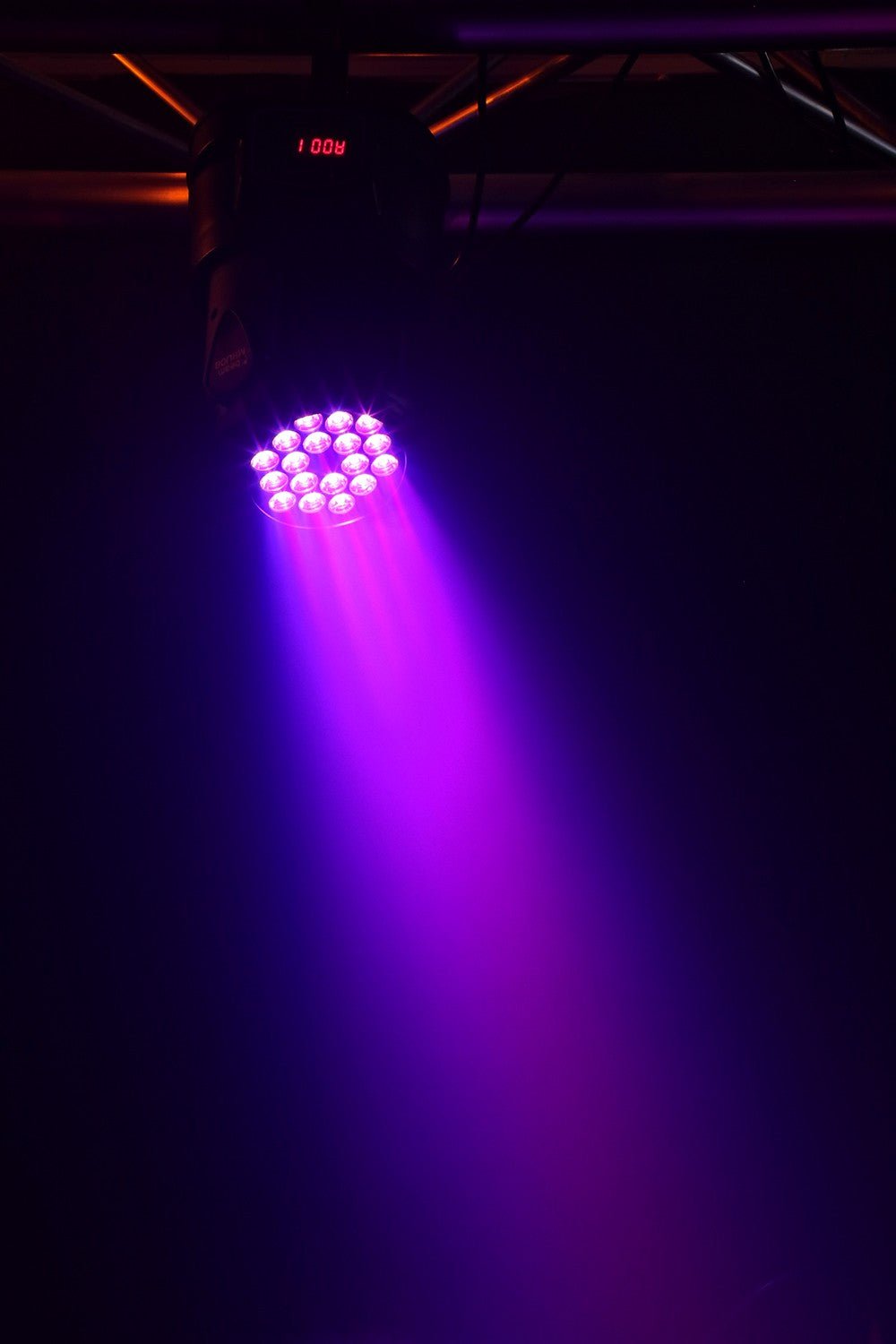

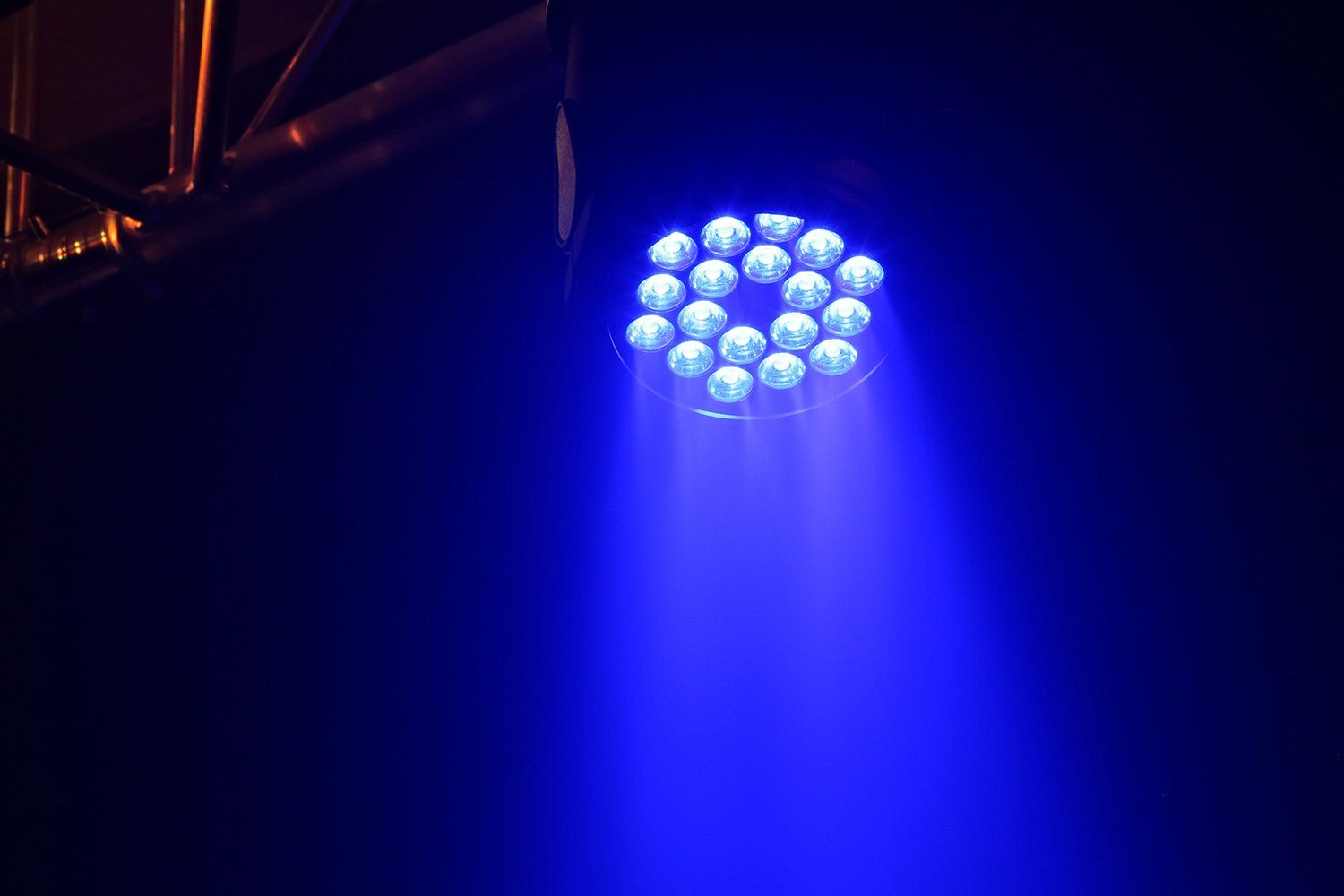

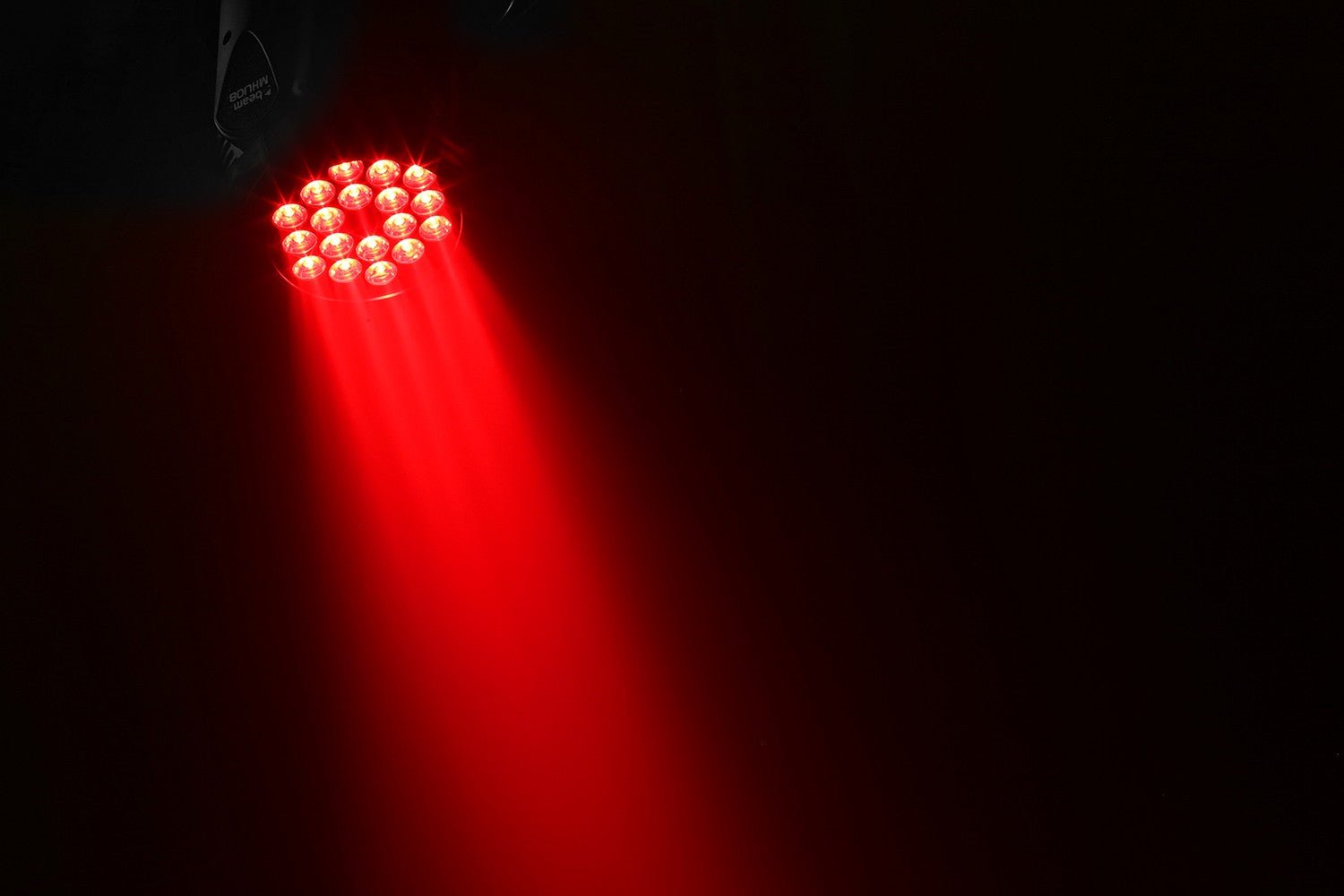

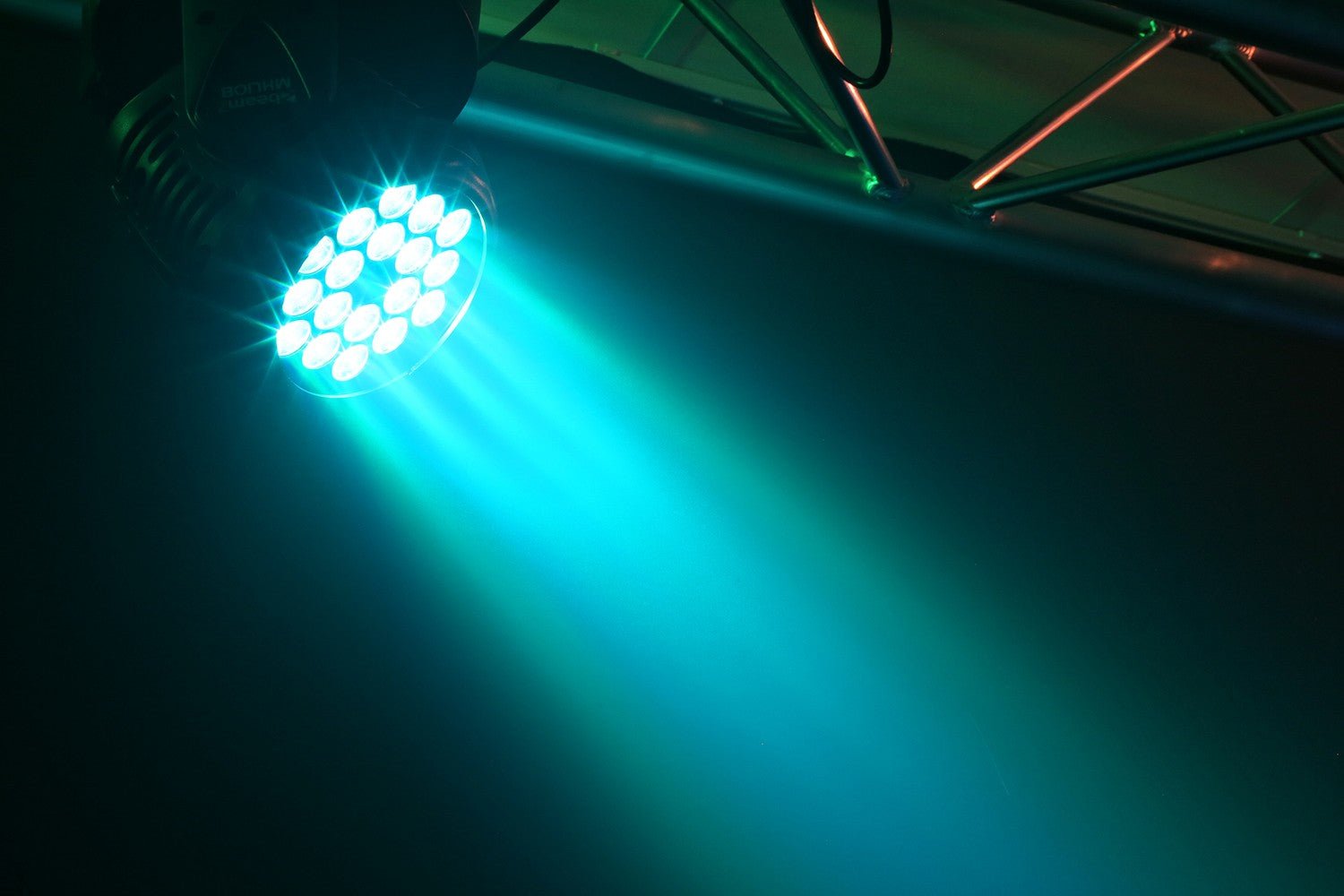

The beamZ MHL108MK4 is a compact and powerful LED moving head wash light , ideal for events requiring vibrant color wash effects. Equipped with 18 x 3W high-brightness RGB LEDs , this unit delivers a homogeneous and precise color mix, perfect for creating dynamic and colorful atmospheres in theaters, concerts, nightclubs, and more. With a 15° beam angle, the MHL108MK4 provides a focused spotlight, ideal for projects that demand intensity and precision.
The MHL108MK4 boasts an impressive 540° pan and 270° tilt range, with high resolution and the option to reverse the speed for faster or slower motion effects. It is also fully DMX compatible with 6 or 11 channels and can operate in Master/Slave mode, standalone, or synced to the music. With strobe control and a 0-100% electronic dimmer, this moving head is perfect for a variety of professional applications.
Main features
-
Light source: 18x 3W RGB LEDs for a bright and homogeneous color mix.
-
Beam angle: 15° for a concentrated projection of light.
-
Control modes: 6 or 11 DMX channels , Master/Slave , auto , music rhythm .
-
Range of motion: Pan 540° and Tilt 270° with high resolution.
-
Movement speed: adjustable pan/tilt speed control and the option to reverse direction.
-
Strobe control: adjustable speed up to 10Hz for fast effects.
-
Electronic dimmer: 0-100% to adjust the light intensity as needed.
-

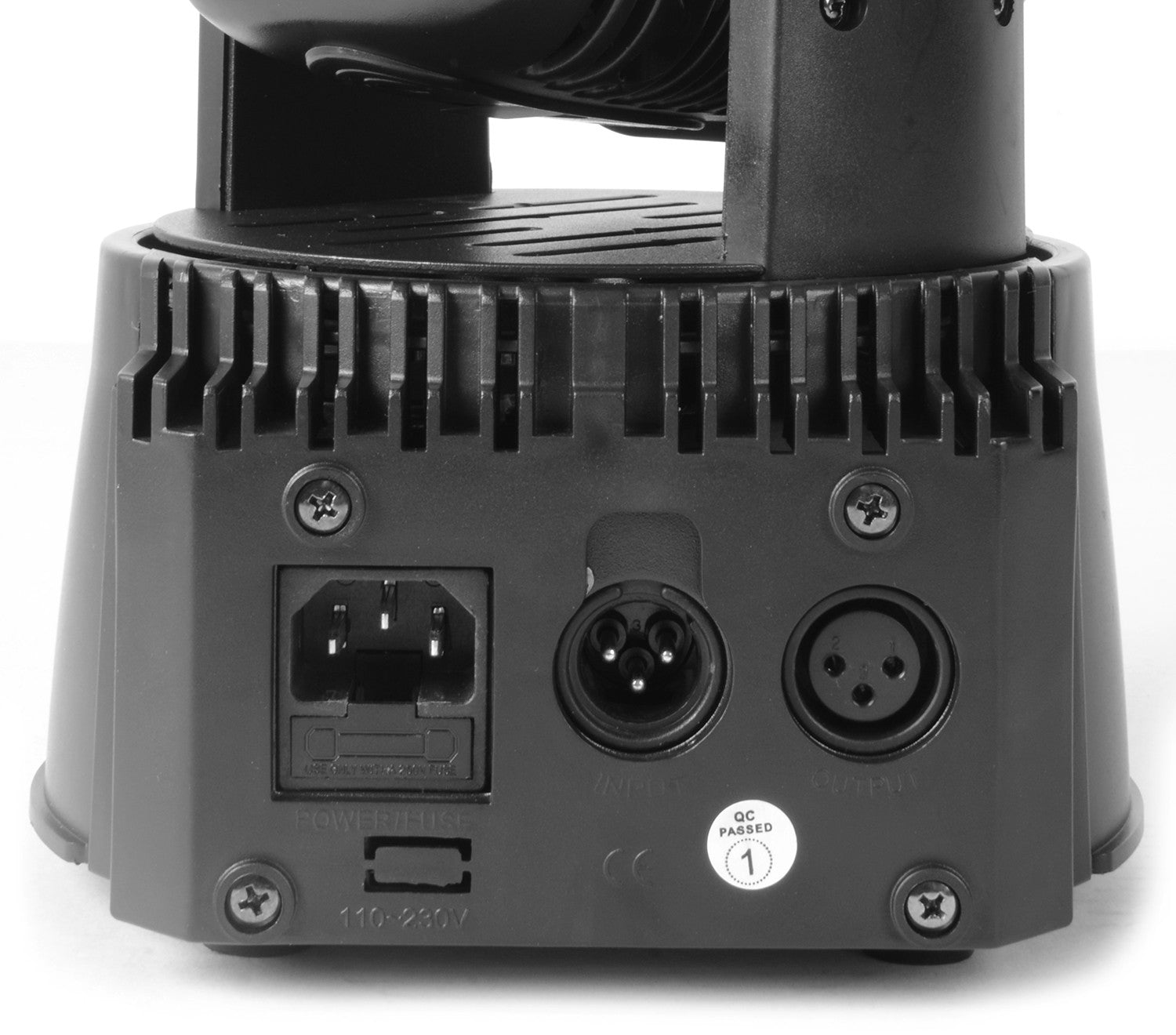

Connectivity: DMX in/out via 3-pin XLR , Powercon for power.
-
Included accessories: mounting bracket , power cable .
Product benefits
-
Compact and powerful design: the combination of high-power LEDs and a small design makes it easy to use in confined spaces without sacrificing performance.
-
Control flexibility: DMX, Master/Slave and auto modes allow you to create synchronized or autonomous lighting effects.
-
Large range of movement: 540° Pan and 270° Tilt control allows for complete coverage of the lighting area.
-
Easy integration: With 6 or 11 DMX channels, you can adjust each function to get the exact effect you need.
Use cases
-
DJs and mobile events: provides dynamic lighting for high visual and musical impact events.
-
Stages and concerts: ideal for creating stunning effects in live productions and synchronized light shows.
-
Theatre and TV studios: perfect for creating atmospheres with soft and dynamic lighting effects for theatrical productions.
Frequently Asked Questions
How many DMX channels does this unit have?
The MHL108MK4 can be configured with 6 or 11 DMX channels to control different lighting and motion effects.
Does this unit have zoom control?
No, the MHL108MK4 does not have motorized zoom, but its 15° beam angle provides a narrow and precise projection effect.
Can I use multiple units in a synchronized manner?
Yes, you can use Master/Slave mode to synchronize multiple units without the need for an additional controller.
Project description
LED washing moving head with 18 x 3W RGB LEDs , 15° beam angle, 540° pan/270° tilt movements, 6 or 11 DMX channels, 0-100% dimmer , adjustable strobe, DMX in/out via 3-pin XLR, Powercon. Included accessories: mounting bracket , power cable . Weight: 3.45 kg; dimensions: 180 × 165 × 240 mm.
