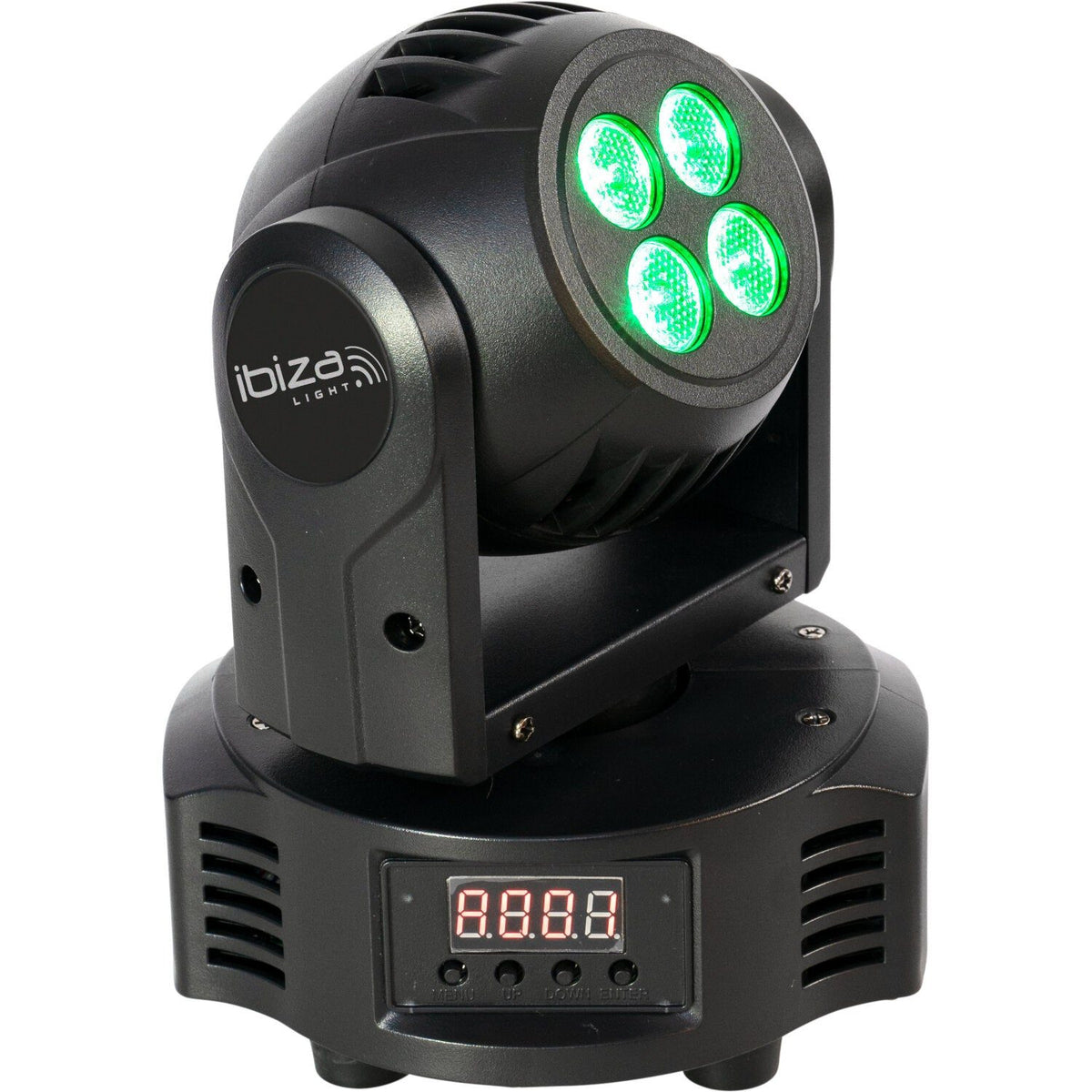

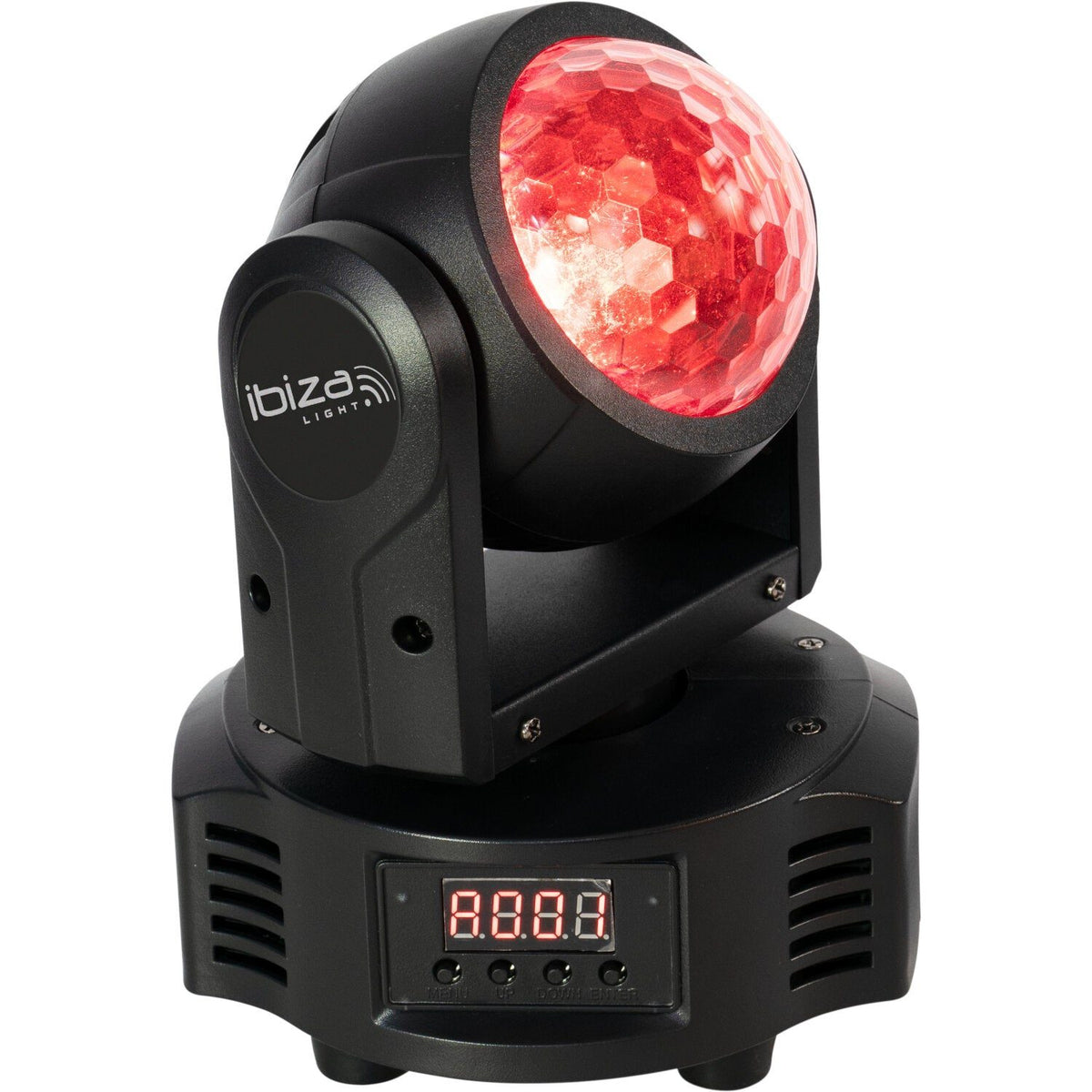

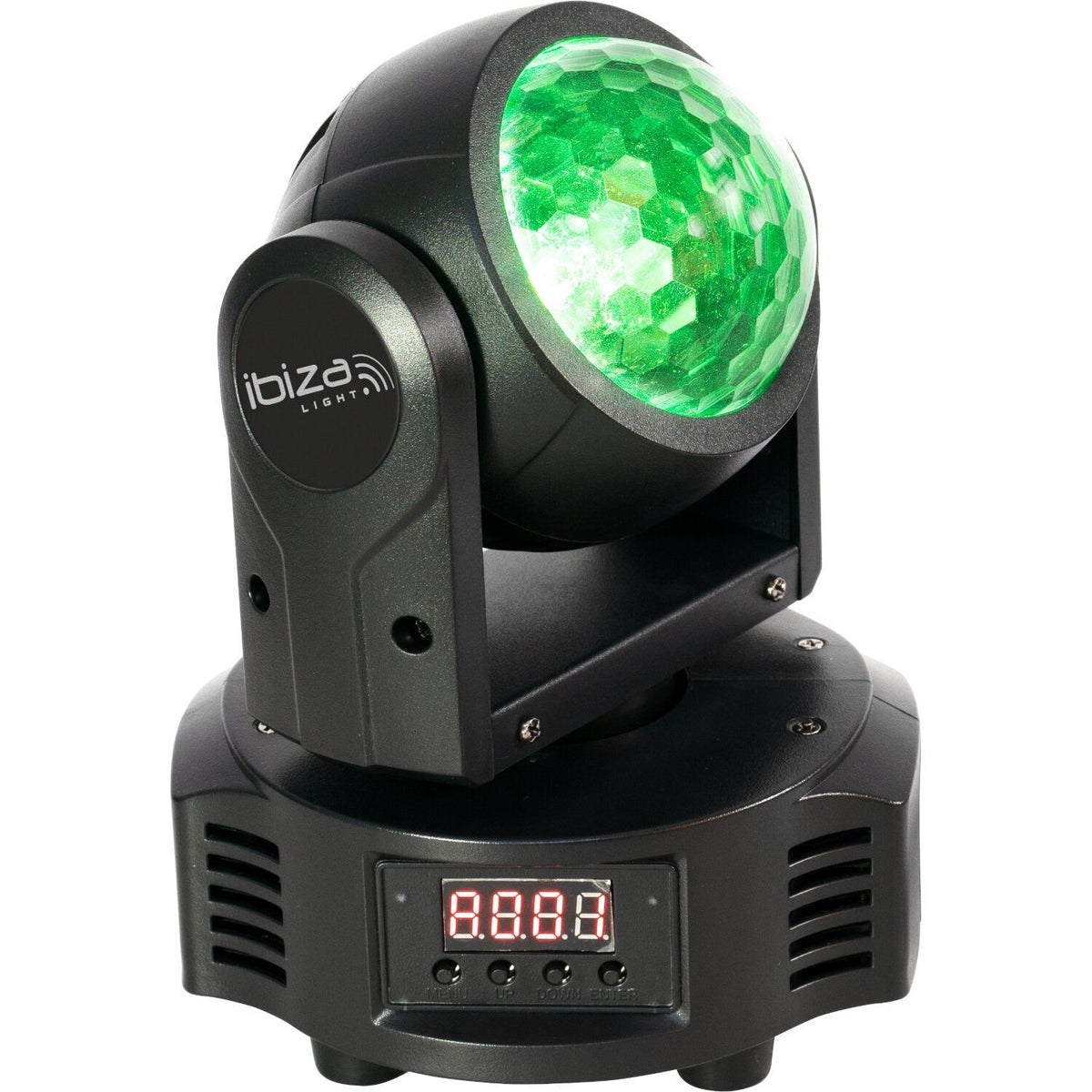

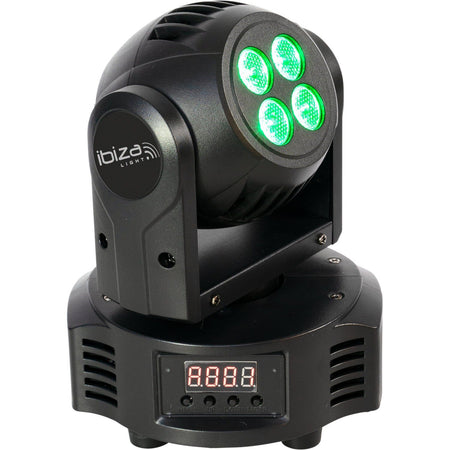

Ibiza Light & Sound MH-ASTRO-WASH - Double head DMX ASTRO – WASH

Ibiza Light & Sound MH-ASTRO-WASH – Double head DMX Astro-Wash

The Ibiza MH-ASTRO-WASH is a 2-in-1 moving head that combines a powerful Astro effect with a sweeping RGBW Wash, perfect for shows, clubs, small theaters, and live events. Its dual head includes a 10W Osram RGBW 4-in-1 LED for the Astro effect and four 6W RGBW 4-in-1 LEDs for the Wash effect, giving you everything from intense beams to immersive color washes. With DMX (14/18 channels), auto-run, master-slave, sound, static color, color change and fade, plus strobe and dimmer modes, you'll have complete control over intensity, timing, and color temperature at all times. Simple setup, a universal power supply, and a lightweight design of just 1.5kg make this fixture the ideal choice for fixed installations, touring, and rental applications.

Main features

• DMX Channels: 14/18, selectable as needed.
• Astro Mode: 1 x 10W Osram RGBW 4-in-1 LED.
• Wash Mode: 4 RGBW 4-in-1 LEDs, 6W each.
• Operating modes: DMX, master-slave, sound, auto, static color, color change and fade.
• Strobe and dimmer functions.
• Adjusting the brightness and color temperature of the Wash LEDs.
• Universal power supply 110–240 V AC, 50/60 Hz.
• Consumption: 40 W.
• Dimensions: 143 × 125 × 165 mm.
• Weight: 1.5 kg.
• Swivel flange bracket for truss or wall mounting.

User benefits

• Creative flexibility: dual head for combining spot beams and color washes.
• Versatile control: 14/18 DMX channels and automatic, sound or master-slave modes.
• Compact and lightweight: only 1.5 kg, easy to transport and assemble.
• Osram LED quality: high light efficiency and pure colors.
• Energy saving: low consumption of 40 W without sacrificing power.

Use cases

• Nightclubs and bars: dynamic lighting synchronized with music.
• Small theaters and rehearsal rooms: colorful environments without the need for extensive rigging.
• Corporate events and presentations: elegant washes and beams for focal points.
• Audiovisual equipment rental: versatile unit for multiple configurations.

Frequently Asked Questions

• Can I use it in master-slave mode? Yes, just set one device to Master and the others to Slave for synchronized shows.
• What DMX solution do I need? 3-pin XLR DMX cable with a terminator to prevent interference.
• Is it compatible with basic 14-channel consoles? Yes, you can choose 14CH mode for basic control or 18CH mode for extended functions.
• Where can I mount it? Includes a flange for truss, wall, or ceiling mounting, with standard hardware.

Description for projects

Astro-Wash double DMX moving head with 14/18 channels; 1 x 10 W Osram RGBW 4-in-1 LED; 4 x 6 W RGBW 4-in-1 LEDs; DMX modes: master-slave, sound, auto, static color, change/fade; strobe; dimmer; brightness and temperature adjustment; power supply: 110–240 V AC; consumption: 40 W; dimensions: 143 x 125 x 165 mm; weight: 1.5 kg.
