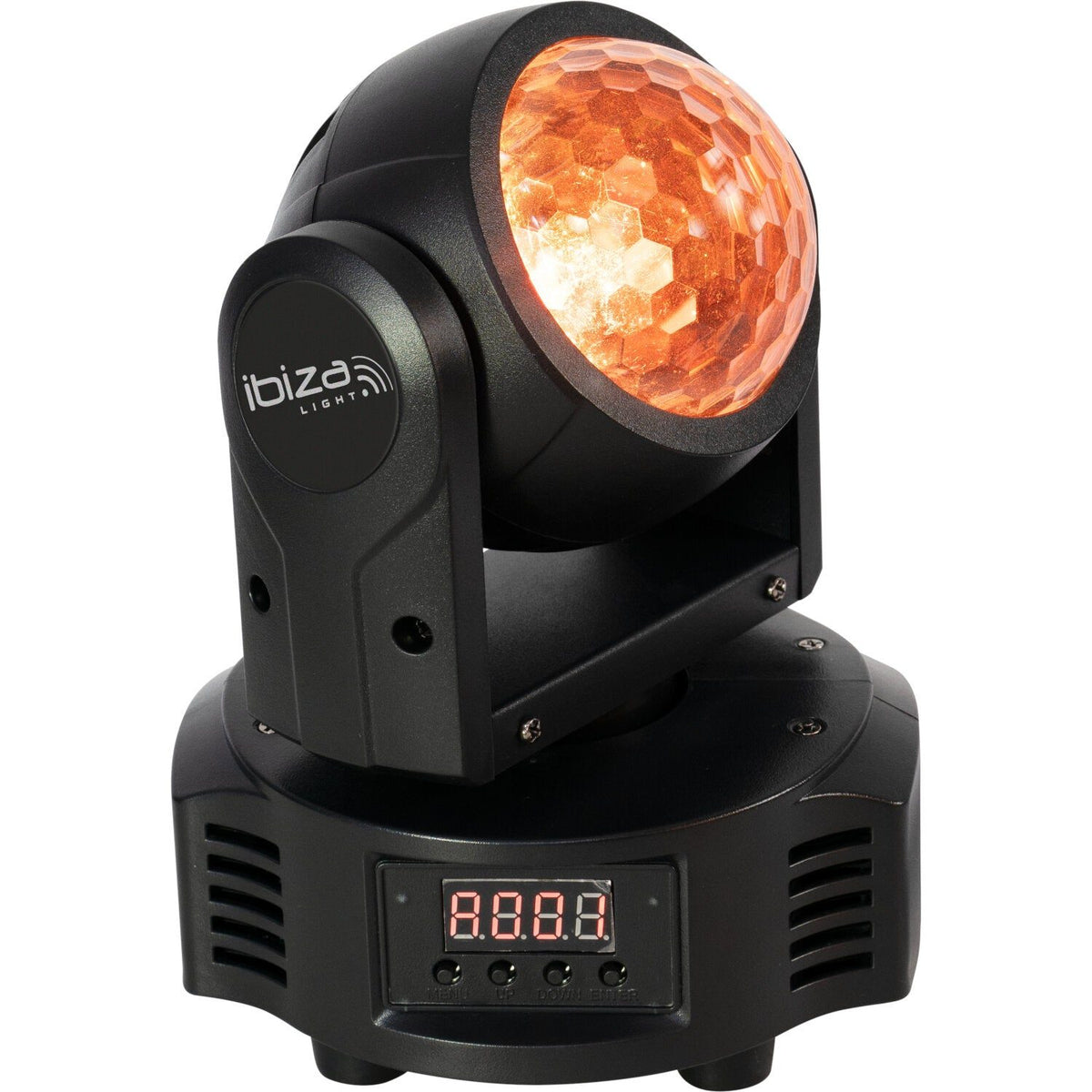

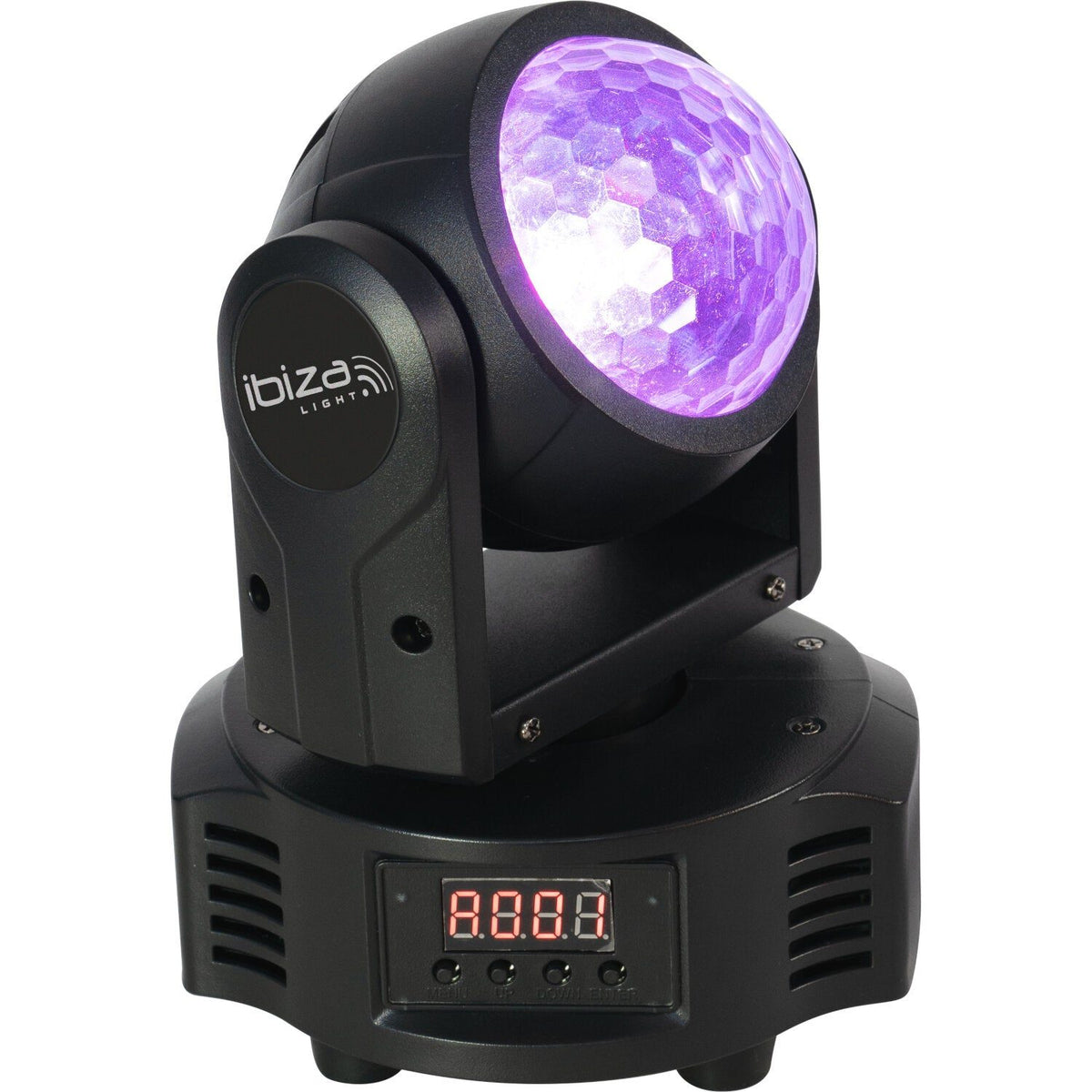

Ibiza Light & Sound MH-ASTRO-BEAM – Double moving head DMX 2×10 W RGBW Astro & Beam

Ibiza Light & Sound MH-ASTRO-BEAM – Double moving head DMX 2×10 W RGBW Astro & Beam

The Ibiza Light & Sound MH-ASTRO-BEAM is a dual moving head that integrates two effects in a single fixture: a Beam spot beam and a wraparound Astro LED, both 10W RGBW. With 14/18 menu-managed DMX channels and master-slave, sound, auto, static color, color change, and fade modes, it offers total flexibility for shows, clubs, theaters, and events. It incorporates a digital strobe and dimmer, as well as independent brightness and color temperature adjustment. Its compact and lightweight design makes it easy to transport and install on a rack or truss, and its universal power supply makes it compatible with any stage.

Main features

• DMX Channels: Two selectable modes of 14 or 18 channels.
• Astro Effect: 1 × 10W Osram RGBW 4-in-1 LED.
• Beam Effect: 1×10W Cree RGBW 4-in-1 LED.
• Operating modes: DMX, master-slave, sound control, automatic, static color, color change and fade.
• Functions: built-in strobe and digital dimmer.
• Adjust brightness and color temperature for each effect.
• Power supply: 110–240 V AC, 50/60 Hz.
• Maximum consumption: 40 W.
• Dimensions: 143 × 125 × 165 mm.
• Weight: 1.5 kg.
• Swivel flange mount compatible with truss, wall or ceiling.

User benefits

• Creative Duality: Combine intense beams and washes of color from a single unit.
• Precise control: Advanced DMX modes and automatic or sound options for dynamic shows.
• Compact and portable: lightweight (1.5 kg) and small in size for easy transport.
• Easy integration: universal power supply and standard mounting flange.
• Professional settings: strobe, dimmer and detailed color control.

Use cases

• Nightclubs and bars: synchronizing beams and washes with the music.
• Small theaters and rehearsal rooms: versatile lighting without large infrastructure.
• Corporate events and presentations: spot light and color ambiance in a single head.
• Audiovisual equipment rental: versatility for multiple configurations.

Frequently Asked Questions

• How do I switch between 14 and 18 channels? Adjust the “Chnd” parameter in the display menu.
• Can I sync multiple units? Yes, using master-slave mode and standard DMX cables.
• What DMX wiring is recommended? 3-pin XLR cable with a terminator on the end.
• Where does this head mount? Includes a swivel flange for truss, wall, or ceiling mounting.

Description for projects

14/18-channel dual DMX moving head with two 10W RGBW LEDs (Osram for Astro, Cree for Beam); DMX modes: master-slave, sound, auto, static color, color change/fade; strobe; dimmer; brightness and temperature adjustment; universal power supply 110–240 V AC; consumption 40 W; dimensions 143 x 125 x 165 mm; weight 1.5 kg.
