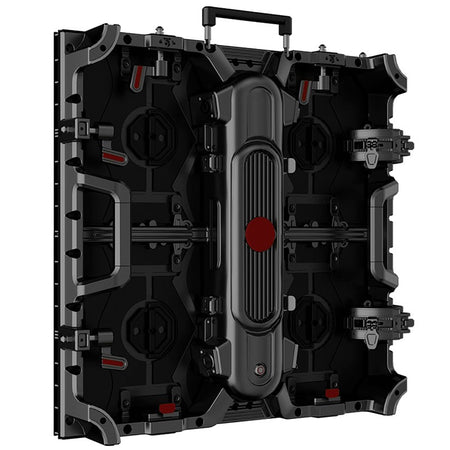

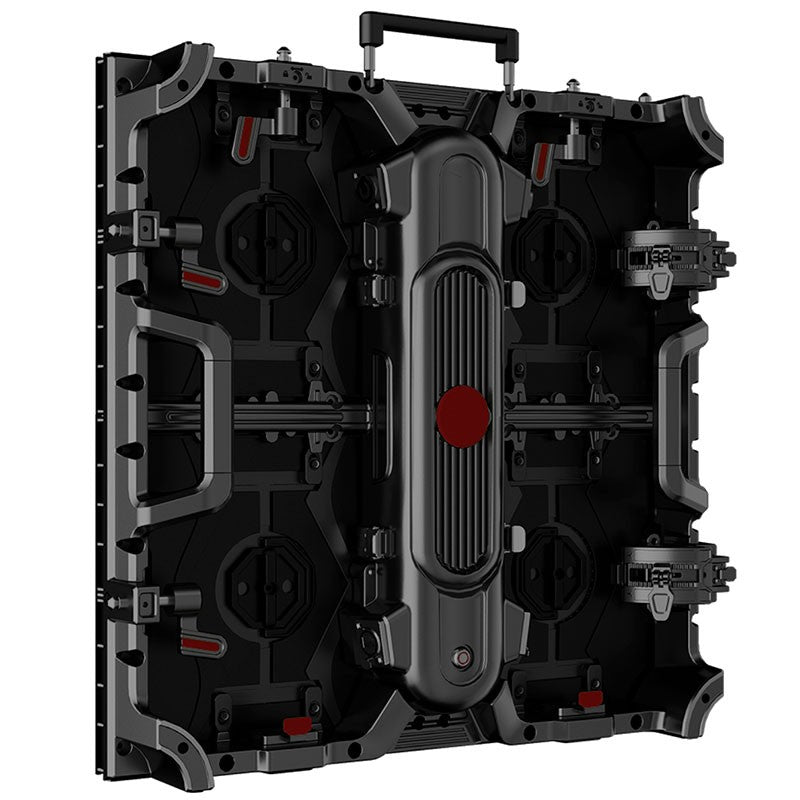

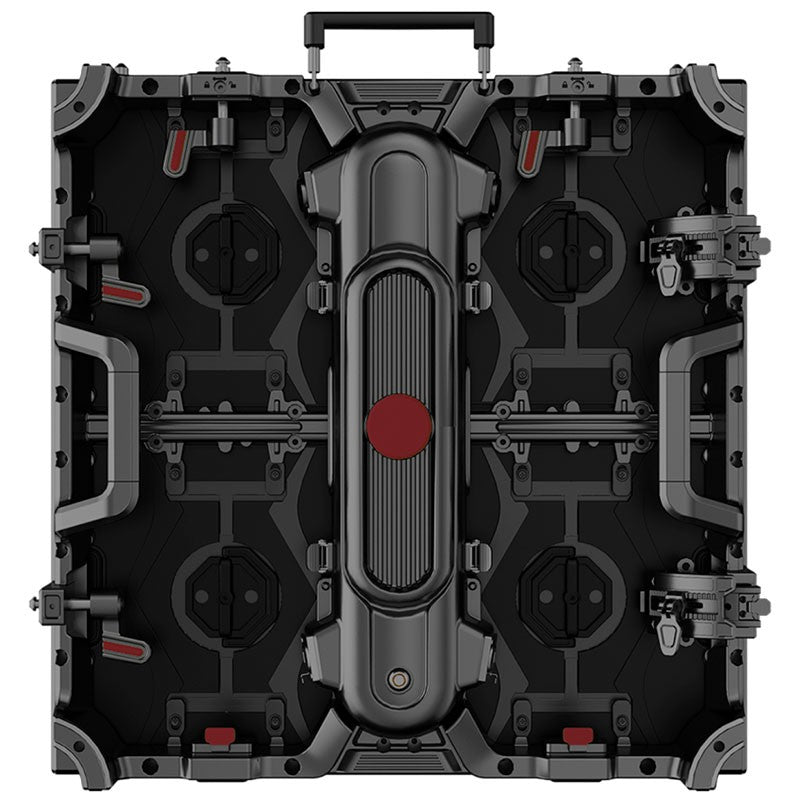

LUPPALED DYNAMIC LP-DYN2-9O - Outdoor LED Screen for Rental P2.976 500x500mm
The LUPPALED DYNAMIC LP-DYN2-9O is a high-performance LED display designed specifically for the demanding rental and outdoor events market. With a pixel pitch of 2,976 mm, this display offers exceptional resolution, ensuring crisp, detailed images even at short viewing distances. Its robust modular design and die-cast aluminum construction make it the perfect solution for tours, festivals, corporate events, and live broadcasts where reliability and image quality are paramount.
One of the strengths of the DYNAMIC series is its incredible versatility. This system allows you to combine 500x500 mm cabinets with 500x1000 mm cabinets, both horizontally and vertically, offering unprecedented creative freedom to build screens of any size and format. Furthermore, its innovative curved locking system allows you to adjust the angle between cabinets from -10° (concave) to +15° (convex), facilitating the creation of smooth and precise curved surfaces. Thanks to the optional 45° beveled cabinets, it is possible to build perfect 90° corners or even cubic and circular structures.
Main features
-
Fine Pixel Pitch of 2.976 mm: Provides a high pixel density (112,896 pixels/m²), ideal for high-definition content and clear viewing from close up.
-
Superior Outdoor Brightness: With a brightness of 4000 to 4500 nits, the screen ensures perfect visibility and vibrant colors even in direct sunlight.
-
High Refresh Rate: A refresh rate of 3840 Hz eliminates any flicker, ensuring a stable and perfect image for video recordings and television broadcasts.
-
Modular and Lightweight Design: Each 500x500 mm cabinet weighs only 7.5 kg, greatly simplifying transport, handling, and speed of assembly and disassembly.
-
Advanced Curvature System: The locking mechanism allows for the creation of concave and convex screens with great precision, adapting to the most creative stage designs.
-
Front and Rear Maintenance: The modules and power box can be quickly replaced from both the front and rear, offering maximum flexibility and minimizing downtime during an event.
-
Robust Construction for Touring: Made of high-quality cast aluminum, the structure is able to withstand the demands of continuous rental use, allowing up to 20 cabinets to be stacked vertically.
-
All-Weather Protection: With an IP65 rating on the front and IP54 on the back, the display is fully protected against dust and rain, ensuring reliable operation in any weather conditions.
Benefits for the Event Professional
The LUPPALED DYNAMIC series is designed to optimize the workflow of audiovisual rental companies. Its quick assembly system, lightweight panels, and ease of maintenance translate into significant savings in time and personnel costs. The ability to create curved, straight, or corner configurations with the same panel system offers a superior return on investment, allowing a single product to meet the needs of a wider variety of events. Exceptional image quality, with 14-bit grayscale and high contrast, ensures complete customer satisfaction by projecting impactful and professional visuals.
Use cases
Thanks to its versatility and performance, the LP-DYN2-9O display is the ideal choice for a wide range of professional outdoor applications, such as:
- Outdoor concerts and music festivals.
- Sporting events and viewing in fan zones.
- Trade fairs, congresses and exhibitions.
- Product launches and corporate events.
- Digital set design for theater and television productions.
- High-impact outdoor advertising in temporary locations.
Frequently Asked Questions
- Can 500x500 mm and 500x1000 mm cabinets be mixed in the same screen?
- Yes, the DYNAMIC series is designed so that both cabinet sizes are fully compatible, and can be combined vertically or horizontally to achieve the desired configuration.
- What does the IP65/IP54 protection rating mean?
- The front (IP65) is completely sealed against dust and protected against low-pressure water jets from any direction. The rear (IP54) is protected against limited dust ingress and water splashes.
- What is the minimum recommended viewing distance?
- The minimum optimal viewing distance for a clear image is approximately 3 meters, making it suitable for a wide variety of audiences and venues.
- Is the screen suitable for recording by cameras without causing flickering?
- Absolutely. Its high refresh rate of 3840 Hz ensures a completely stable and flicker-free image, perfect for any type of professional video streaming or recording.
Project description
LUPPALED DYNAMIC LP-DYN2-9O modular outdoor LED display. Constructed in a 500x500 mm die-cast aluminum cabinet weighing 7.5 kg. It offers a 2.976 mm pixel pitch, 4000-4500 cd/m² brightness, and a 3840 Hz refresh rate. It features a 140°/140° viewing angle and 14-bit grayscale. The front panel is IP65 rated, and the rear panel is IP54 rated. It allows for dual maintenance access, front and rear. The mounting system supports an adjustable curvature from -10° to +15°.
