LuppaLED DYNAMIC LP-DYN2-9 - Indoor Rental LED Screen Pitch 2.976mm
The LuppaLED DYNAMIC LP-DYN2-9 is a professional display solution designed specifically for the demanding rental and staging market. This 500x500 mm indoor LED panel stands out for its exceptional versatility, superior image quality, and intelligent design that facilitates quick and efficient setup and maintenance. With a pixel pitch of 2,976 mm, it offers crisp, detailed resolution, ideal for short- and medium-distance audiences, ensuring an immersive viewing experience at any type of event.

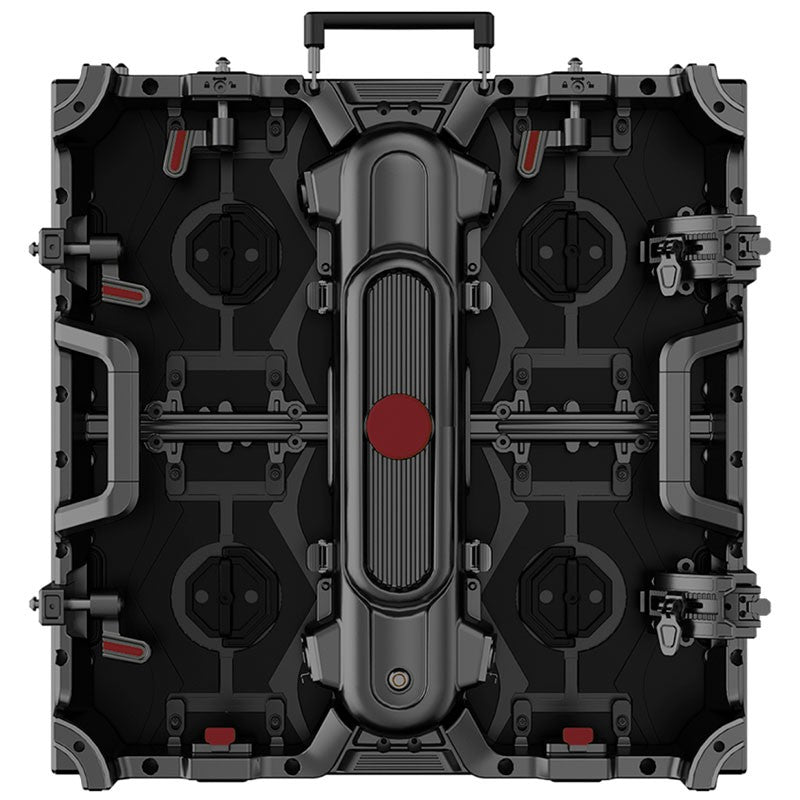

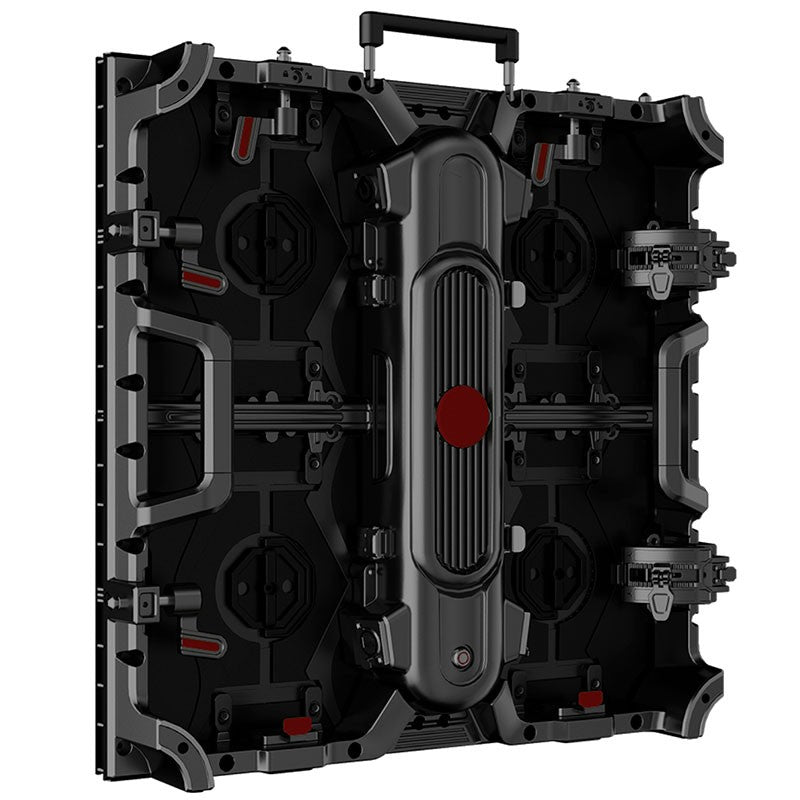

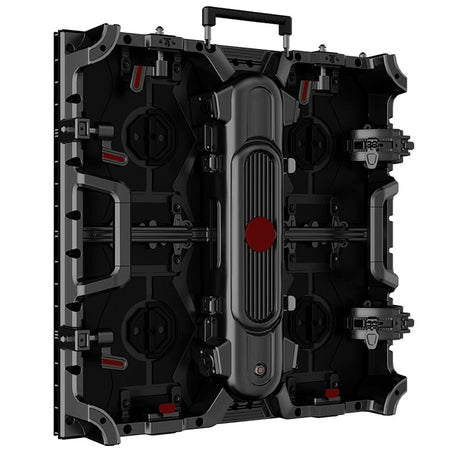

Built on a high-quality die-cast aluminum chassis, the DYNAMIC series is not only lightweight, weighing just 7.5 kg per panel, but also extremely robust, allowing for vertical configurations of up to 20 suspended cabinets. Its modular design, which includes both the LED modules and the power box, allows for near-instant replacement, minimizing downtime during an event—a critical factor for any rental company.
Main Features
-
Intelligent Modular Design: Both the LED modules and the power box are completely independent and quickly replaceable. This feature streamlines maintenance operations, allowing any issues to be resolved from the front or rear without disassembling the structure.
-
Total Creative Flexibility: The DYNAMIC series allows you to combine 500x500 mm and 500x1000 mm panels, both horizontally and vertically. Furthermore, thanks to its innovative curved locking system, it's possible to create concave and convex screens with angles ranging from -10° to +15°, as well as perfect 90° corners or cubic structures.
-
Exceptional Image Quality: Equipped with a high refresh rate of 3840 Hz, this display eliminates any flicker visible to cameras, making it perfect for live broadcasts and television productions. Its 14-bit grayscale ensures faithful color reproduction and smooth transitions, while its 600-700 nits brightness is ideal for bright indoor environments.
-
Lightweight and Durable Construction: Each panel is made of die-cast aluminum, a material that offers excellent heat dissipation, high assembly precision, and the robustness needed to withstand the demands of continuous use on tours and events.
Benefits for Professionals in the Audiovisual Sector
For rental companies, installers, and event organizers, the LuppaLED DYNAMIC LP-DYN2-9 represents a smart and cost-effective investment. Its quick and precise locking system significantly reduces setup and teardown times, optimizing human and logistical resources. Easy front and rear maintenance ensures the screen is always in perfect working order with minimal effort. The versatility to create curved shapes, corners, and combine different panel sizes with a single system allows for creative solutions tailored to any stage design, maximizing return on investment.
Use Cases
The versatility of the DYNAMIC series makes it the perfect choice for a wide range of indoor applications, such as:
- Trade fairs, congresses and exhibitions.
- Concerts, festivals and musical events.
- Television studios, broadcast productions and streaming events.
- Corporate events, product launches, and shareholder meetings.
- Stage design for theaters, award galas and live shows.
Frequently Asked Questions
- What does a pixel pitch of 2.976 mm mean?
- Pixel pitch is the distance between the centers of two adjacent pixels. A low value, such as 2.976 mm, indicates a high pixel density, which translates to higher resolution and image quality, allowing viewers to see the screen clearly from shorter distances without perceiving individual pixels.
- Can 500x500 mm panels be combined with 500x1000 mm panels from the same series?
- Yes, one of the great advantages of the DYNAMIC series is its full compatibility for mixing 500x500 mm and 500x1000 mm panels in the same configuration, both vertically and horizontally, offering enormous design flexibility.
- Can the maintenance be performed by a single person?
- Yes, thanks to the modular design and the quick-release systems for the LED modules and the power box, maintenance can be carried out quickly and easily by a single technician, either from the front or back of the screen.
- What level of brightness does it offer, and is it suitable for any indoor environment?
- It offers a brightness of 600 to 700 cd/m² (nits), which is perfect for most indoor applications, including professionally lit stages, TV studios, and exhibition halls. It guarantees a vibrant and visible image without causing eye strain.
Project description
The LP-DYN2-9 LED panel, part of the DYNAMIC series, is designed for indoor use. It features a 2.976 mm pixel pitch and a 500 x 500 mm cabinet size. Each panel has a resolution of 84 x 84 pixels. Constructed from die-cast aluminum, it weighs 7.5 kg. The panel offers a brightness of 600-700 nits and a refresh rate of 3840 Hz. It provides a 140° viewing angle (H/V) and a 14-bit grayscale. Maintenance is accessible from both the front and rear. Average power consumption is 185 W/m², and maximum consumption is 550 W/m². The panel is CE, EMC, RoHS, and FCC certified.
