beamZ LightBox7 - Dual Moonflower + Dual RGBW PAR with 8/24 Channel DMX and IR

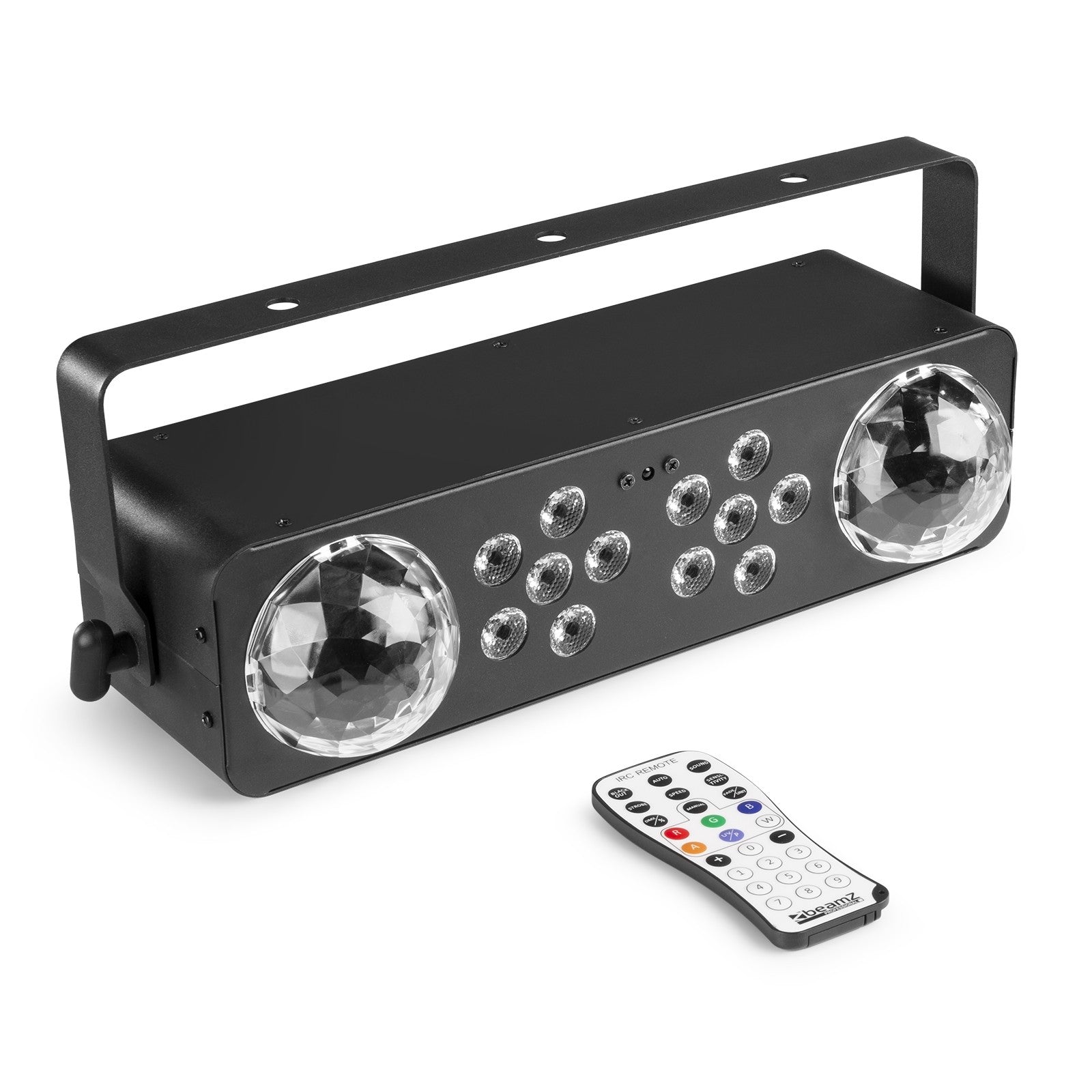

The beamZ LightBox7 combines two Moon Flower effects and two high-power PAR lights in a single chassis for a complete show with just one unit. The Moon Flower module integrates twelve 2W LEDs in an RGBAWP configuration (red, green, blue, amber, white, and pink) that project defined and highly colorful beams, while the PAR lights provide twelve 4-in-1 4W RGBW LEDs for intense color washes and clean whites. The effects are controlled independently , and the unit can operate autonomously with pre-programmed shows , sync to music with adjustable sensitivity, in manual mode , or via DMX with 8 or 24 channels for granular control. Its 25° beam angle , 1–20 Hz strobe , and included IR remote control facilitate quick adjustments for mobile events. Compact and robust (130 x 370 x 90 mm; 1.75 kg), with 3-pin XLR DMX in/out and 100–240 V~ power supply , it is a versatile solution for DJs, stages and fixed setups looking for professional performance with minimal assembly.
Main features
-

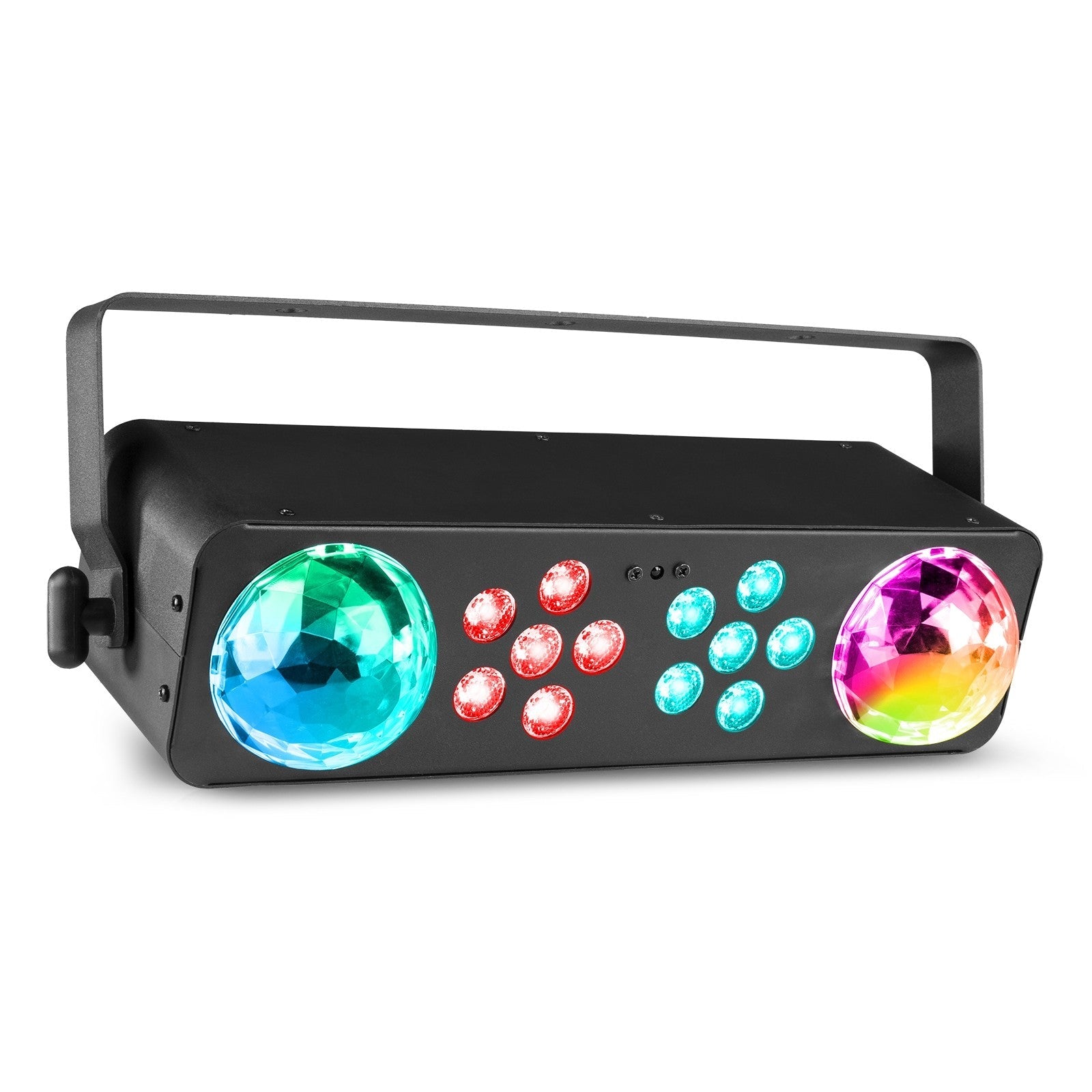

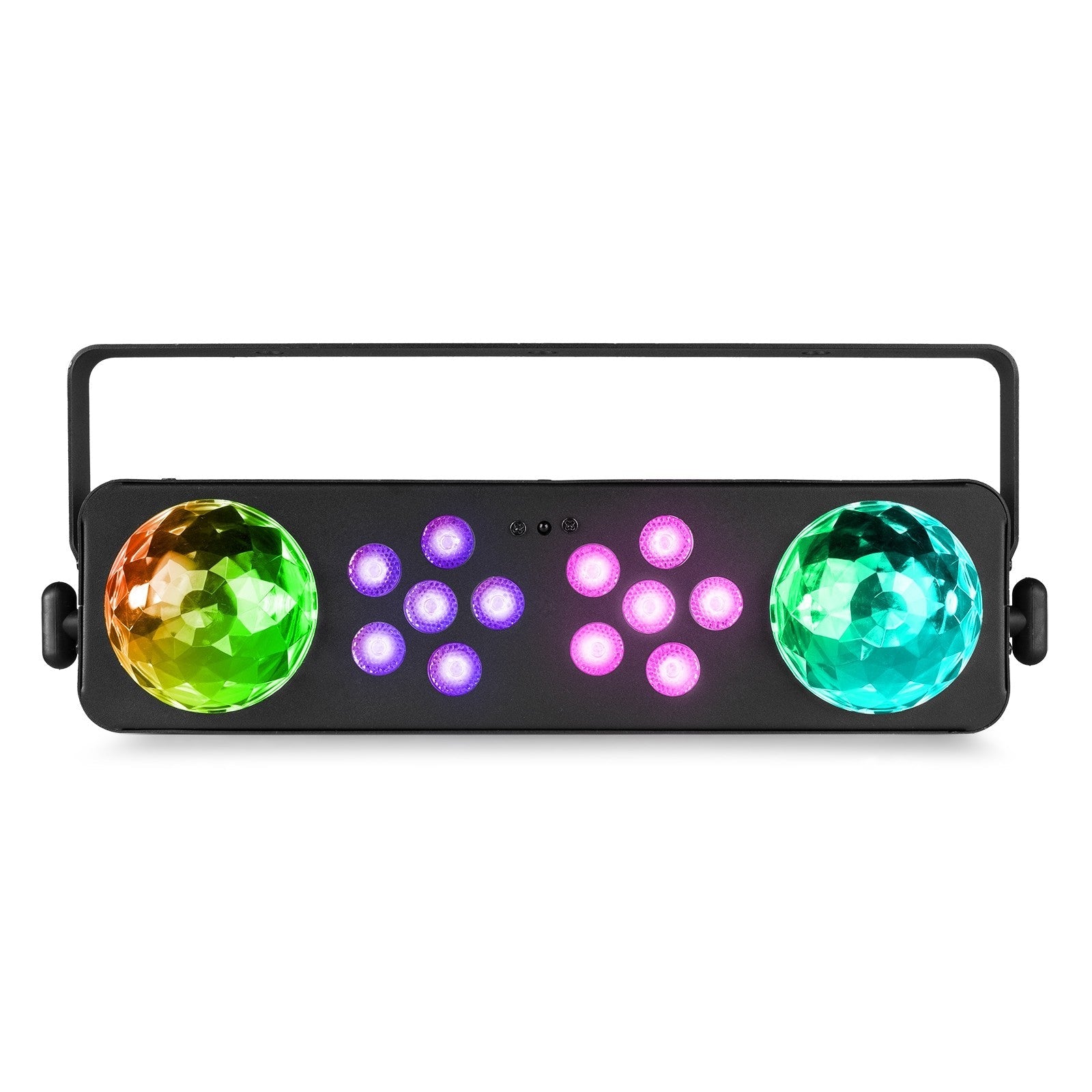

2 in 1: Double Moon Flower + Double PAR in a single device.
-
Moon Flower: 12 x 2 W RGBAWP for expanded palette (includes amber, white and pink).
-
PAR: 12 x 4 W RGBW for bright wash and defined whites.
-
Independent effects control (Moon Flower and PAR separately).
-
Modes: automatic (4 shows), sound-rhythmic , manual , DMX 8/24 channels and master/slave .
-
Optics and effects: 25° beam angle and 1–20 Hz strobe .
-

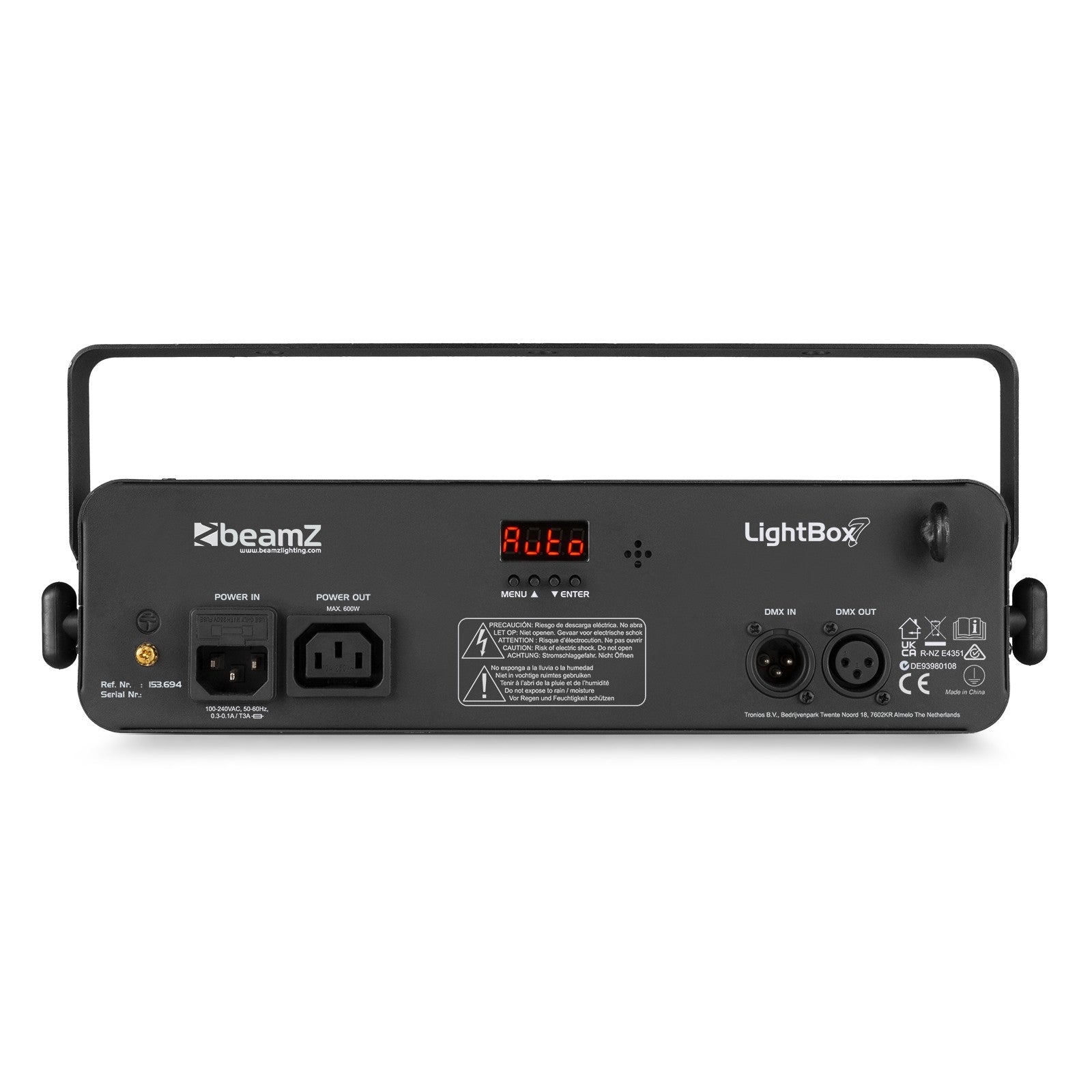

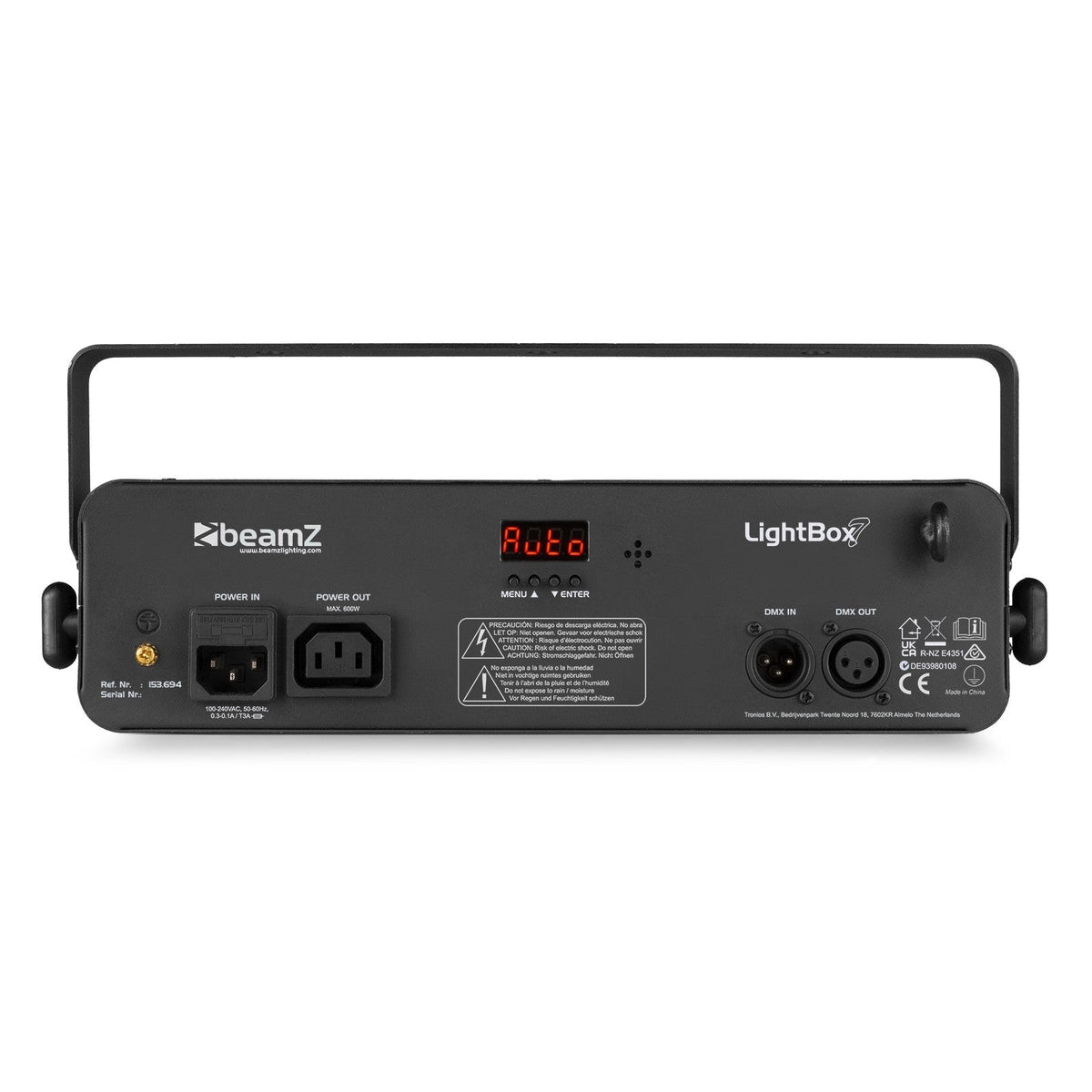

Connectivity: DMX in/out via 3-pin XLR; control panel with LED display .
-

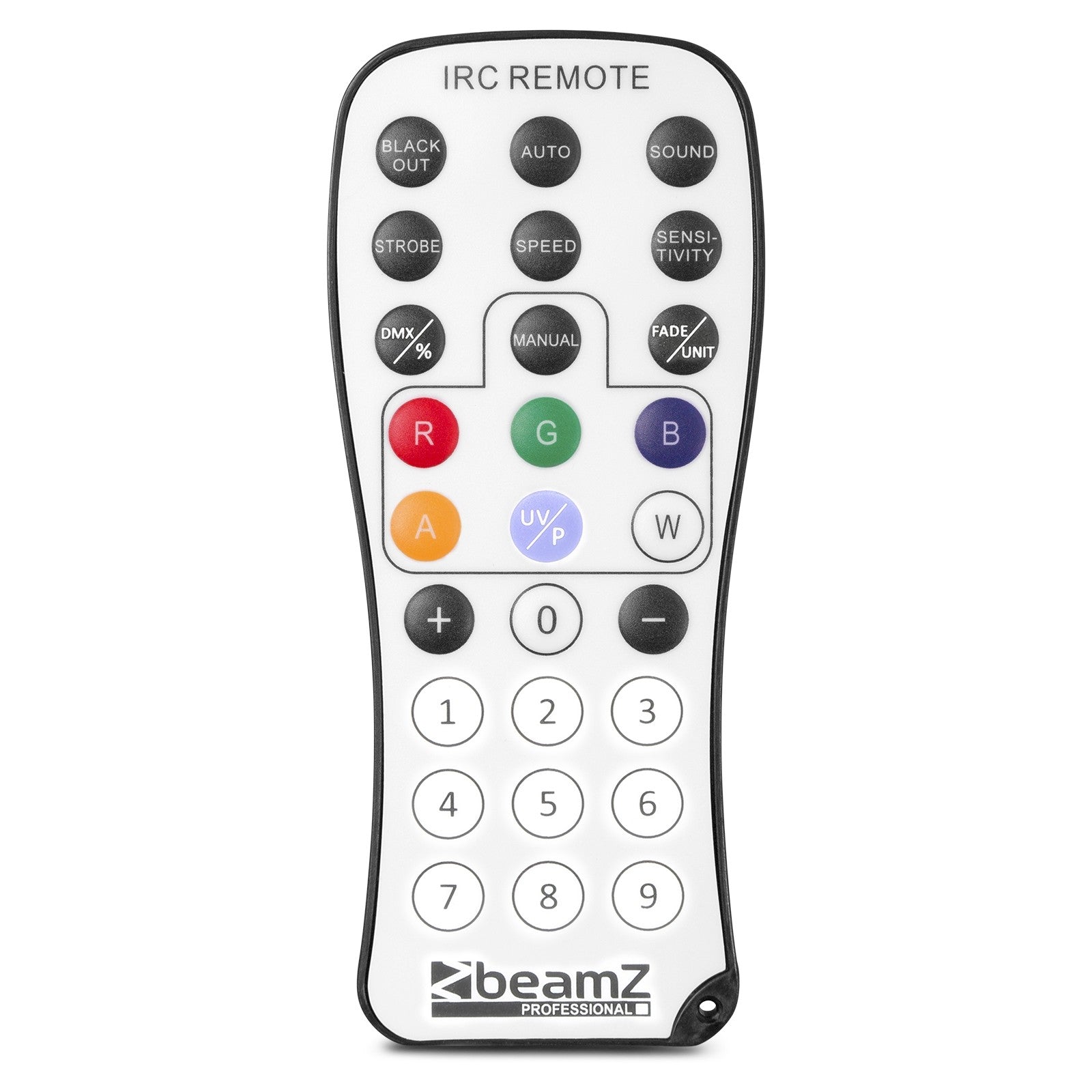

Remote control: IR remote included for program selection, speed, color and sensitivity.
-
Portable format: IP20 black casing, 130 x 370 x 90 mm and 1.75 kg.
Product benefits
-
More effect with less equipment: dynamic color and intense wash from a single unit, reducing assembly time and wiring.
-
Scalable control: from plug & play with internal shows and sound to detailed programming via DMX 8/24ch .
-
Extended color palette: RGBAWP + RGBW for warm tones, pastels and clean whites not possible with basic RGB.
-
Ready for tours and installations: robust chassis, included accessories and universal power supply.
Use cases
-

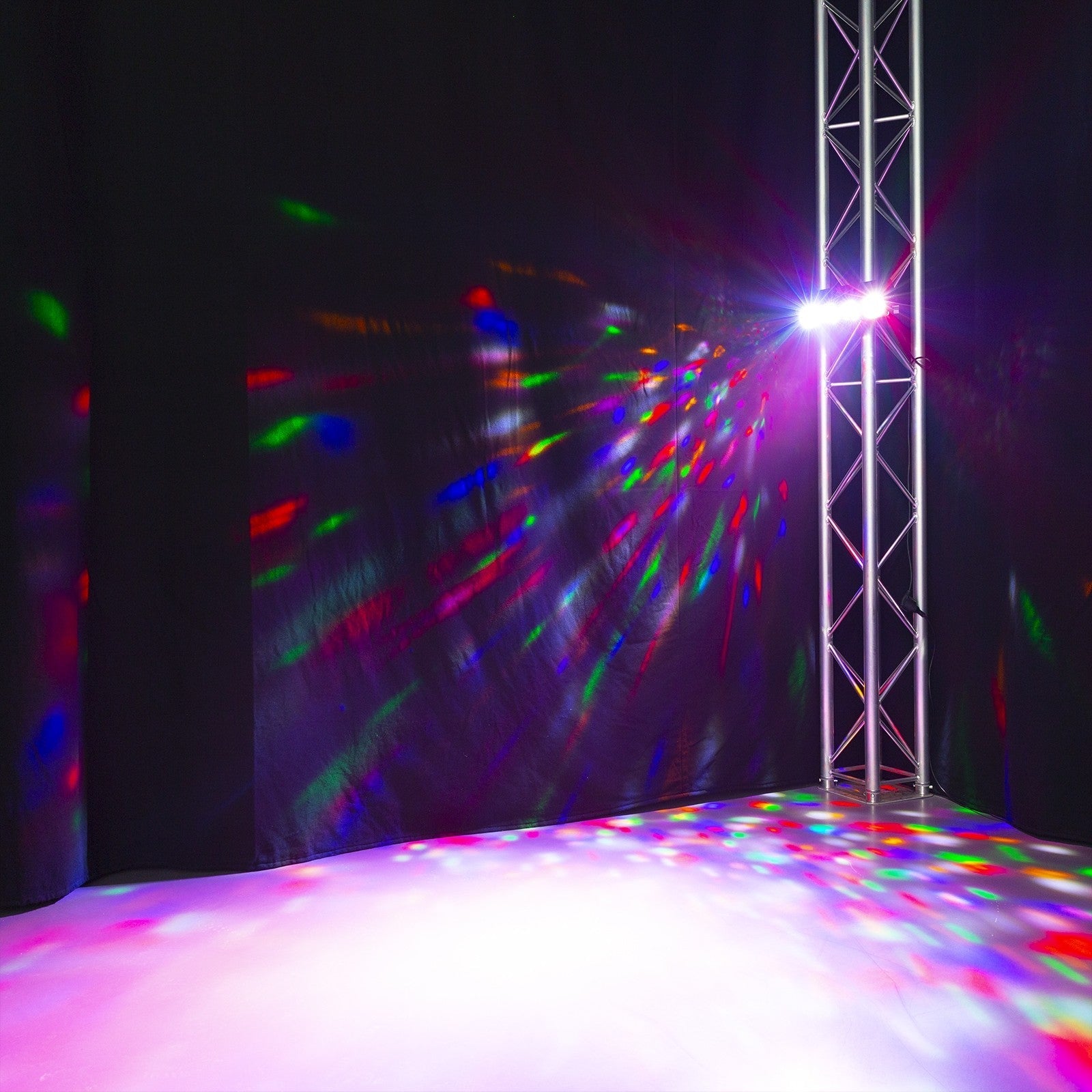

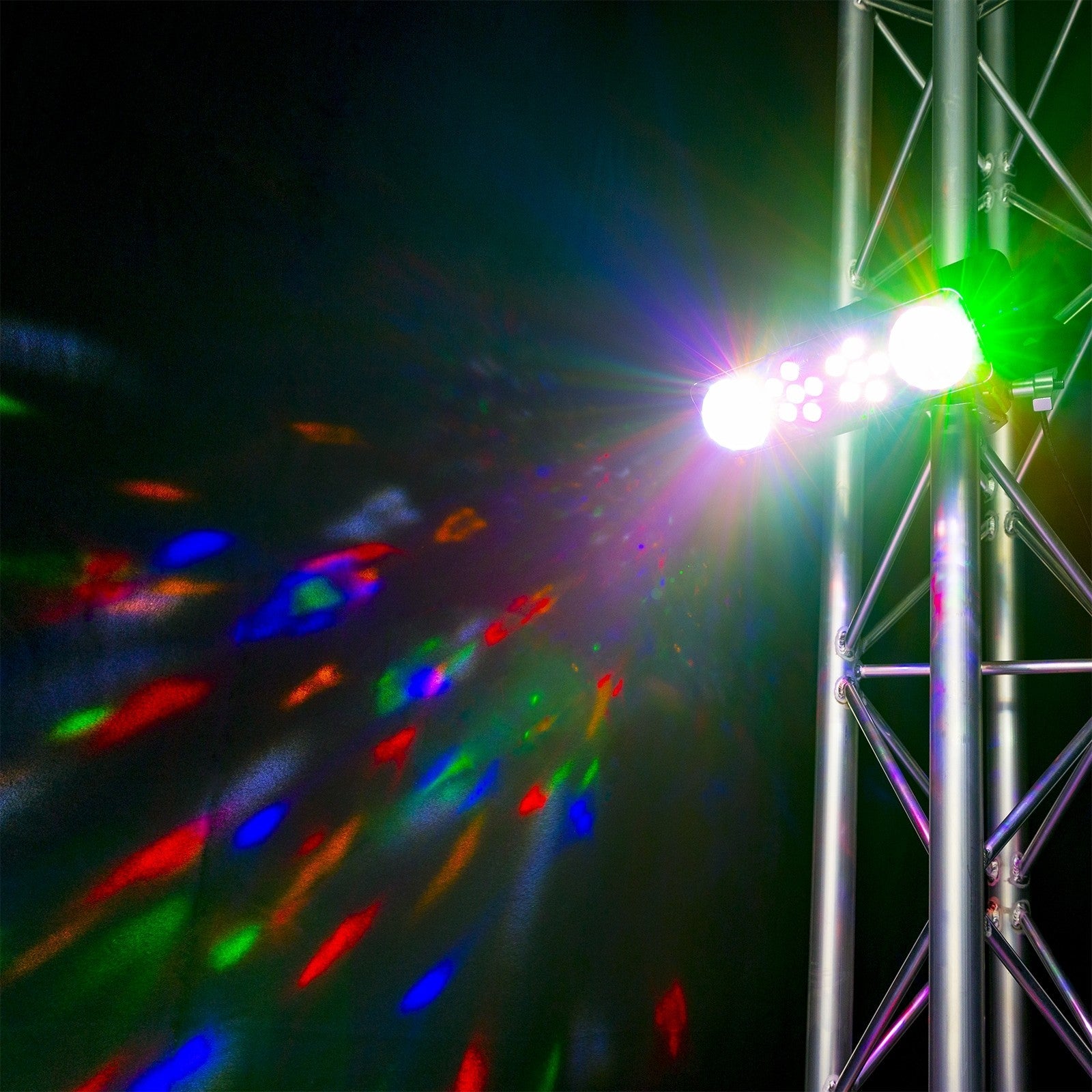

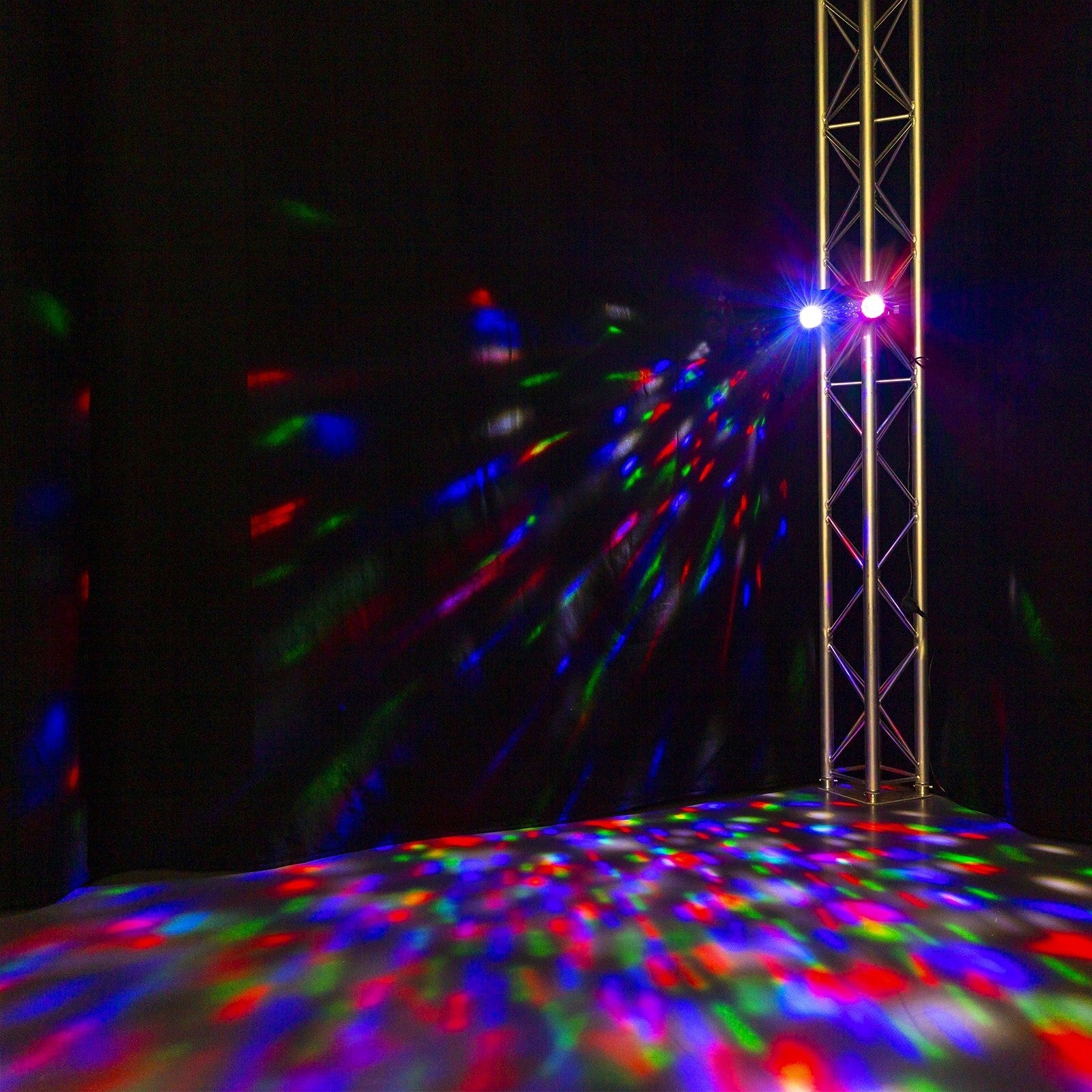

Mobile DJ and animation: a leading effect that fills the dance floor, walls and ceiling without complexity.
-
Clubs and bars: versatile ambiance with control by music or DMX depending on the session.
-
Events and weddings: smooth changes and energy spikes with the strobe when impact is needed.
-
Fixed installations: integration via DMX and autonomous operation on programmed schedules.
Frequently Asked Questions
-
How many LEDs does it incorporate? 24 in total (12 of 2W for Moon Flower and 12 of 4W for PAR).
-
What DMX modes does it have? 8 or 24 channels for basic or advanced control.
-
Does it include a remote control? Yes, IR remote control .
-
What is the beam angle? Approximately 25° .
-
Can it work without a console? Yes, it has automatic programs and a sound mode with adjustable sensitivity.
Installation and control tips

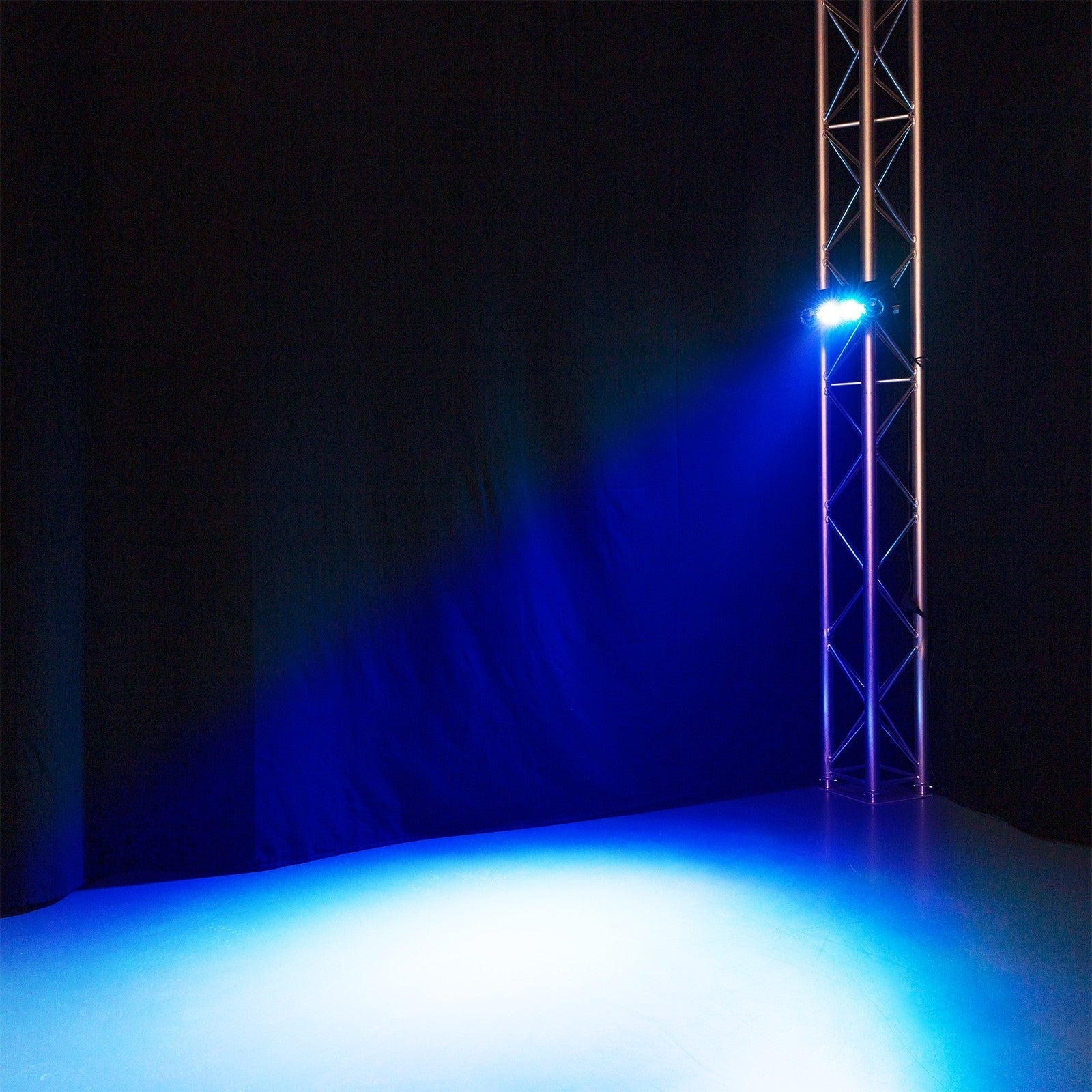

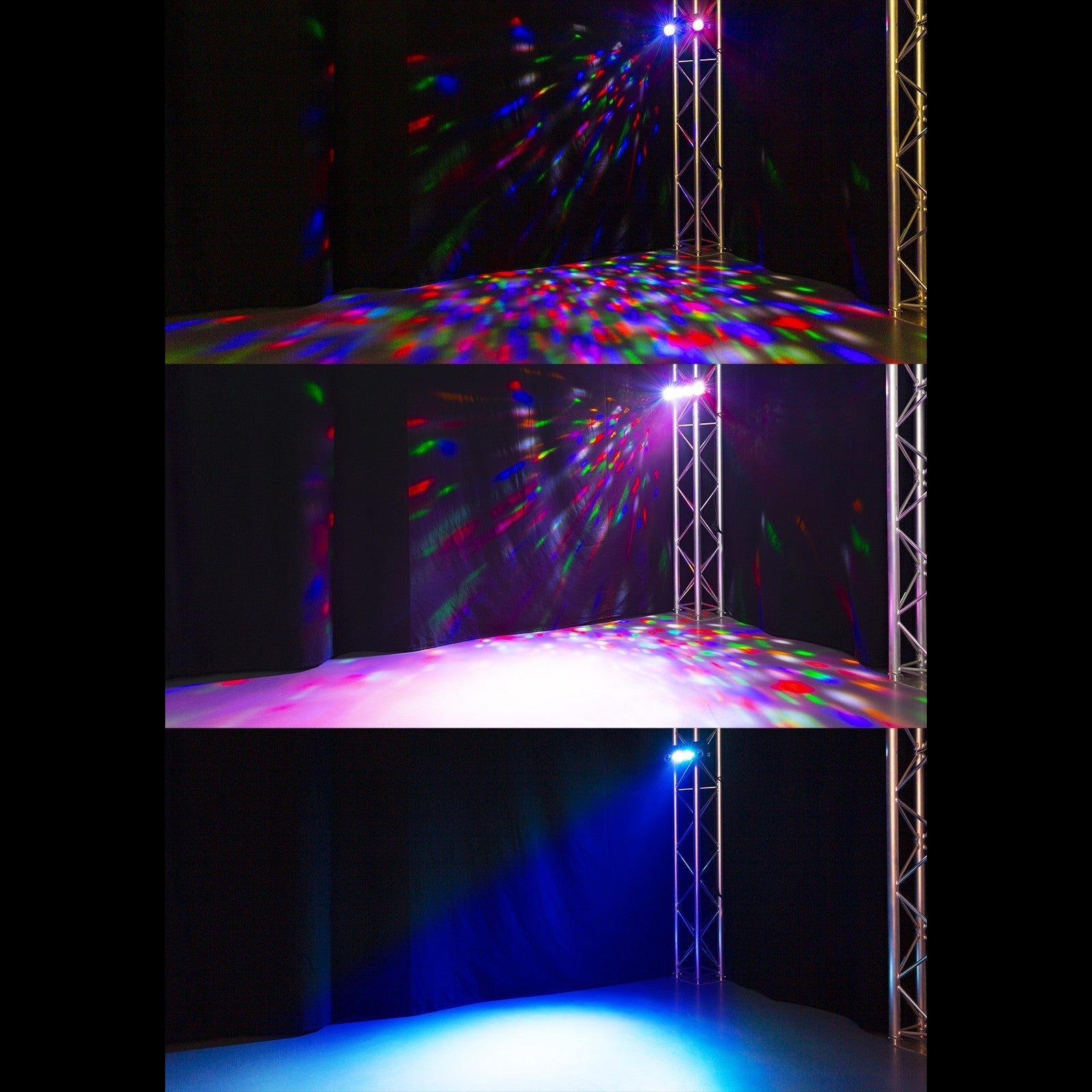

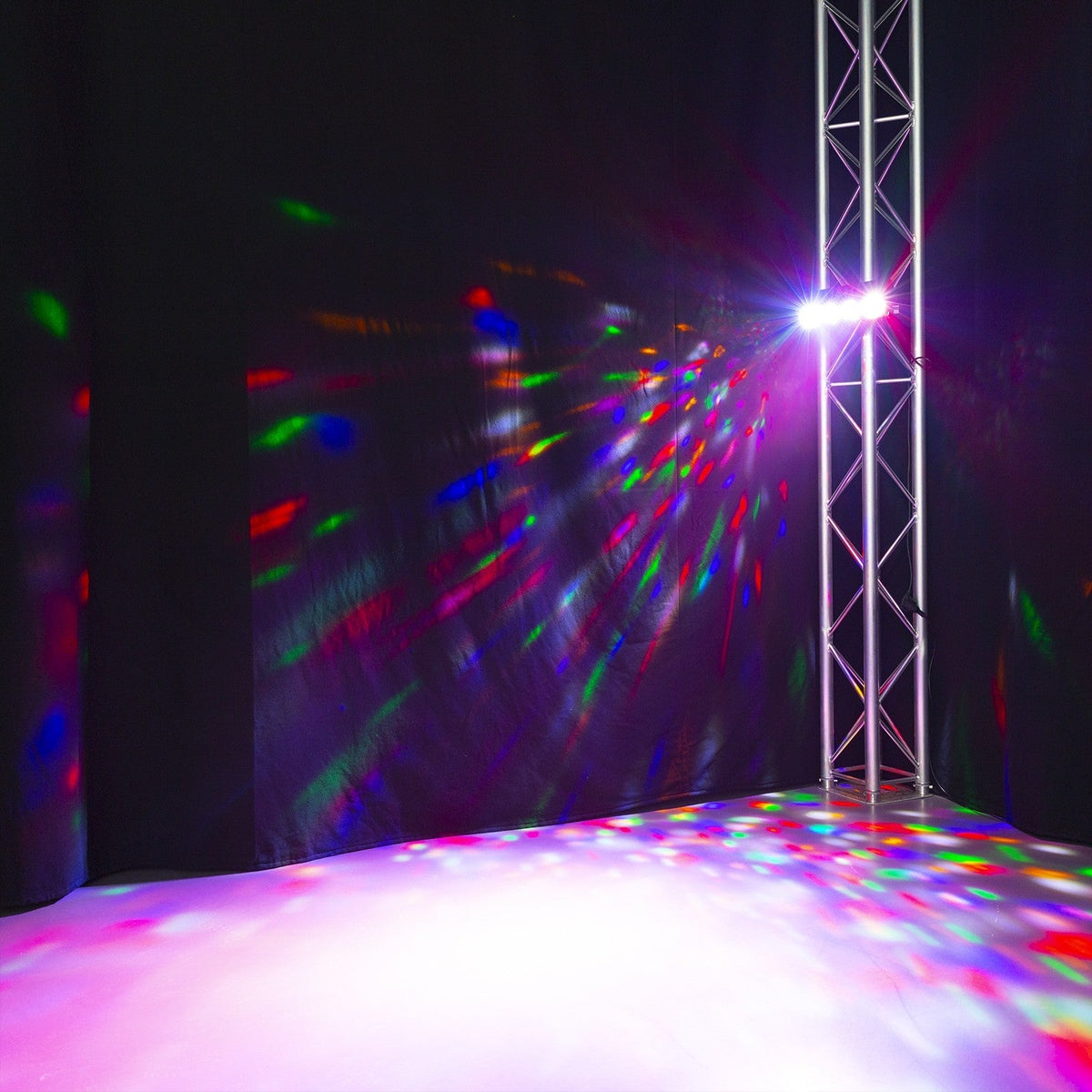

- Place the unit between 2 and 3 m high, with a slight incline, to cover the ceiling and perimeter with the Moon Flower lights, and use the PAR lights as a wash floor.
- In sound mode , adjust the microphone sensitivity to the actual room level to avoid erratic recordings.
- If you're working with DMX , use the 24-channel profile for independent control and fine transitions between color and strobe.
Project description
2-in-1 effect with dual Moon Flower (12 x 2 W RGBAWP) and dual PAR (12 x 4 W RGBW); DMX 8/24 channels ; automatic (4 shows), sound-activated , manual and master/slave modes; 25° beam angle ; 1–20 Hz strobe ; DMX in/out XLR 3 pins ; LED display and IR remote control ; power supply 100–240 VAC 50/60 Hz (nominal current 0.29–0.16 A ); dimensions 130 x 370 x 90 mm ; weight 1.75 kg ; color black.
