beamZ LCB244 - 24x4W RGBW LED Bar with 8 Zones, Automatic Shows and DMX 6/9/16/30/58

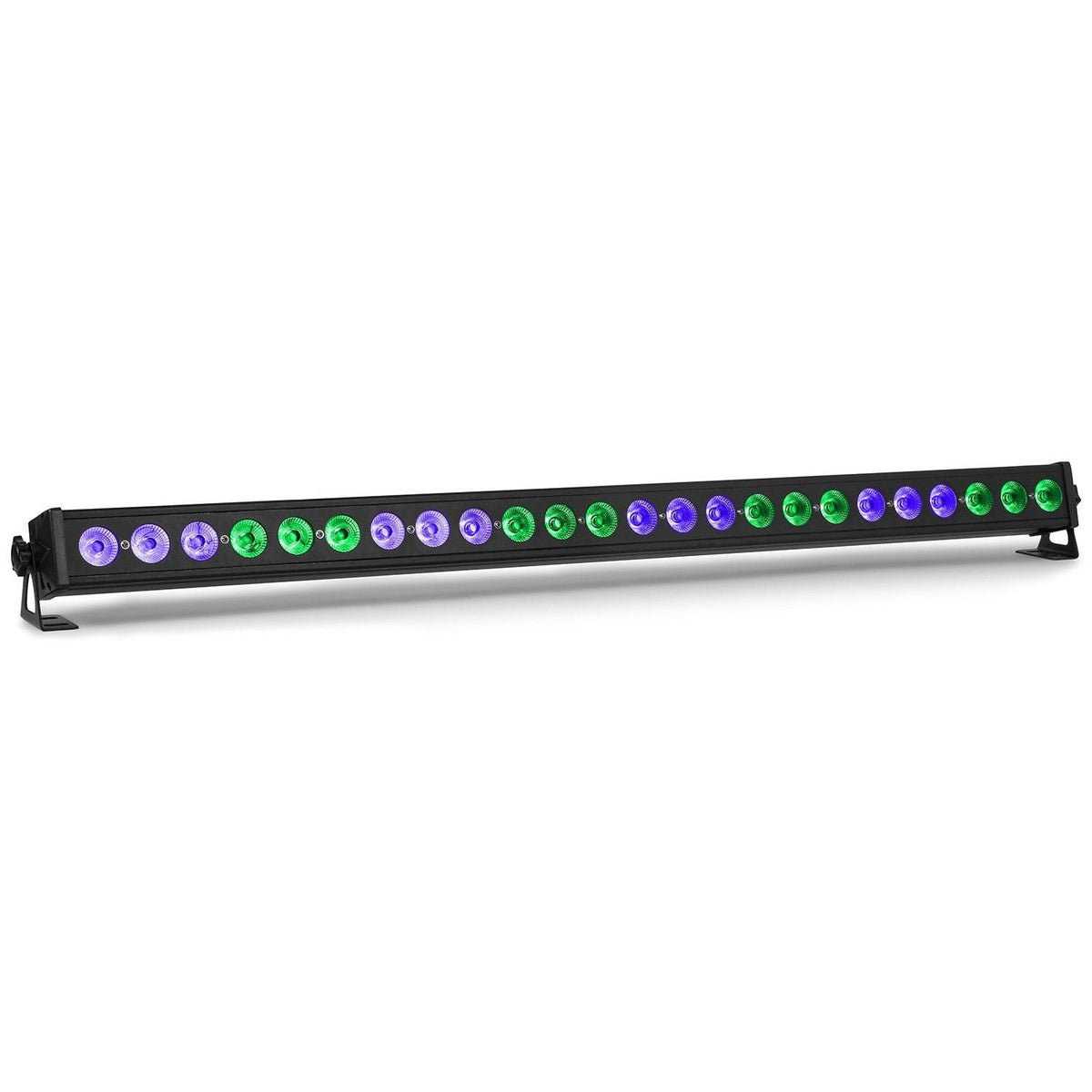

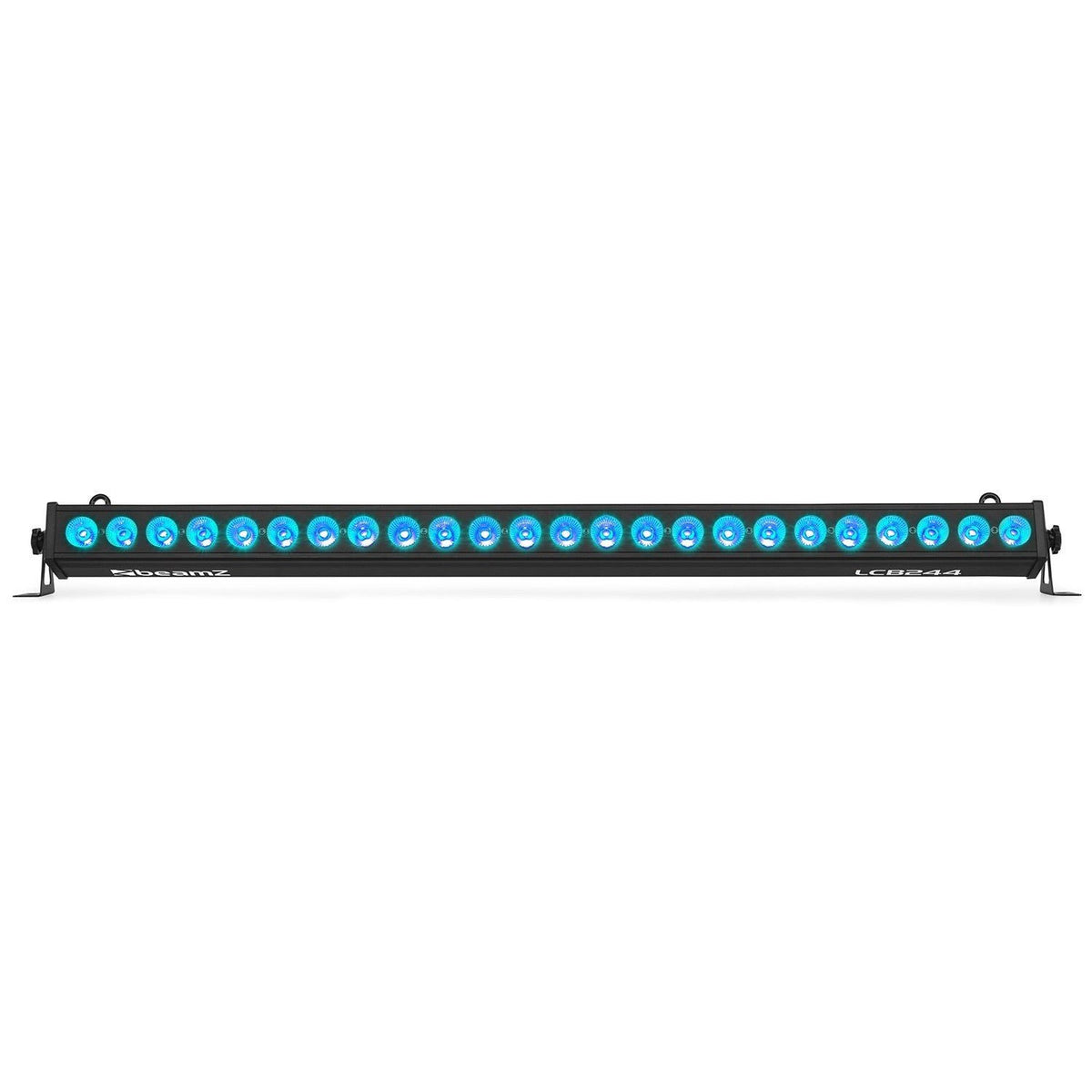

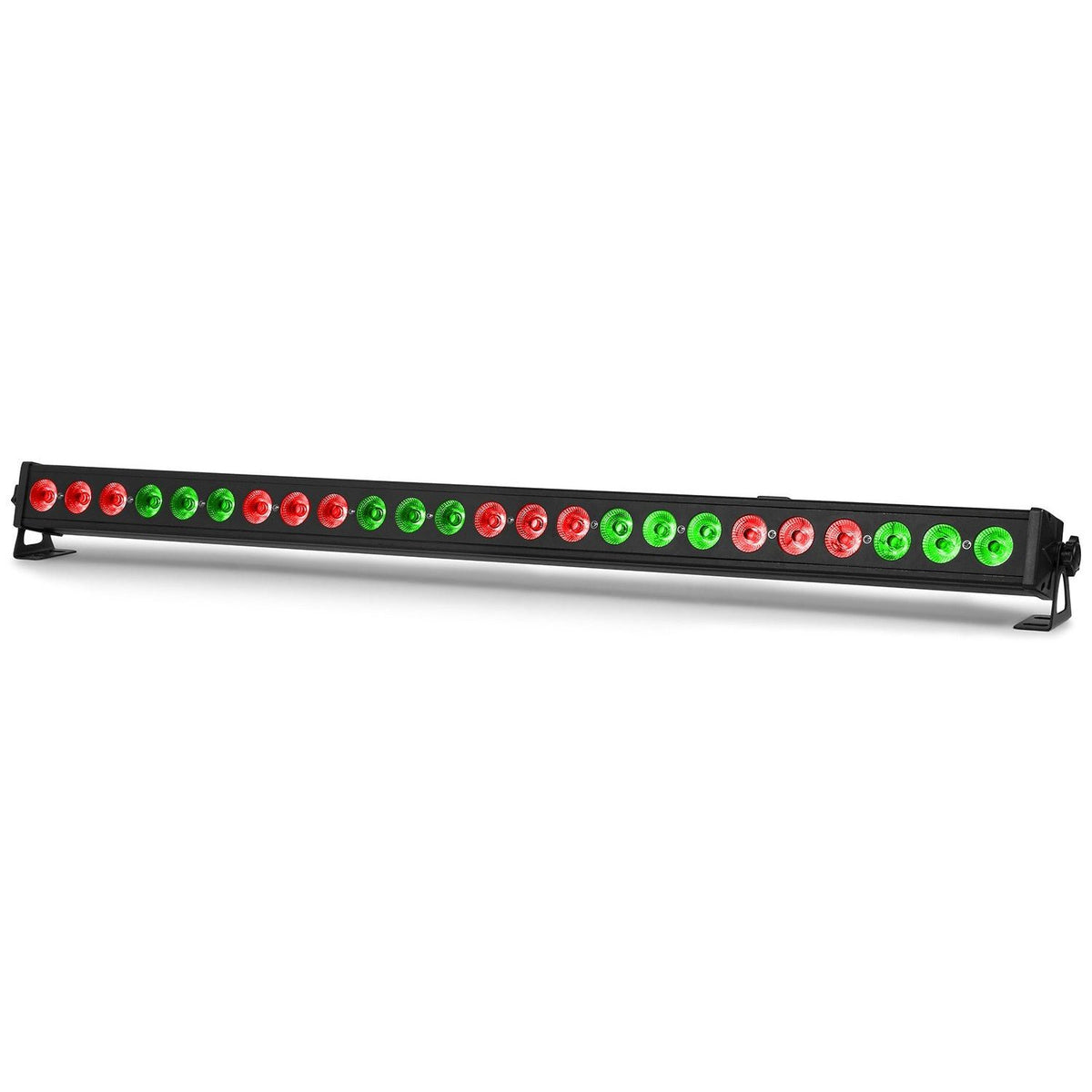

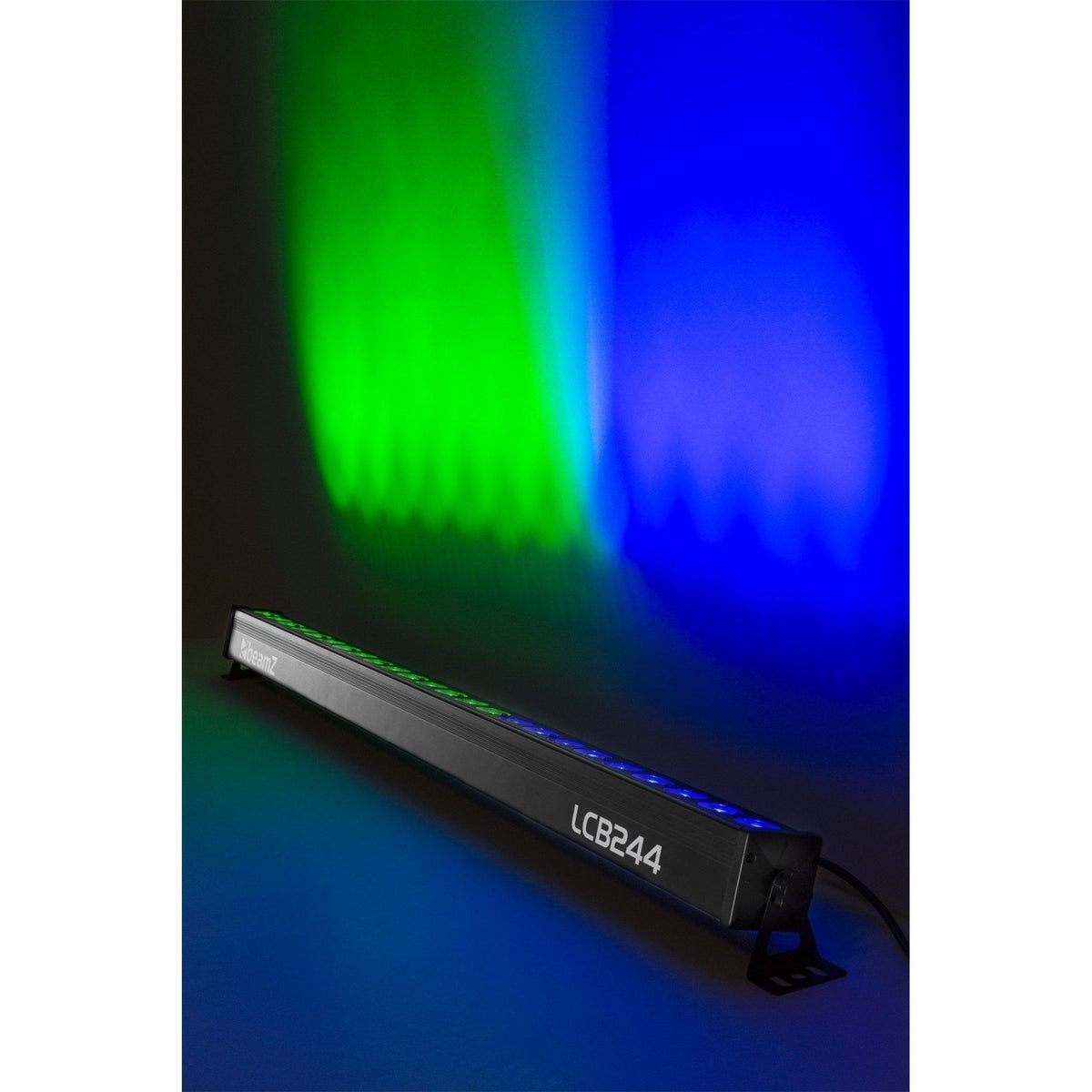

The beamZ LCB244 is a high-performance LED bar with 24 x 4W RGBW LEDs (4-in-1) and 8 independently controllable sections . Designed for wall washing, cycloramas, and zone effects, it combines standalone modes with 12 pre-programmed shows , music-activated lighting with adjustable sensitivity, and DMX control across 6/9/16/30/58 channels . Its optics offer a 20° beam angle ( 33° field of view) with 4,430 lx at 1 m , and convection cooling ensures quiet operation. The IEC in/out daisy-chain allows up to 6 bars to be powered from a single outlet, reducing installation time and wiring for rentals and tours.
Main features
-

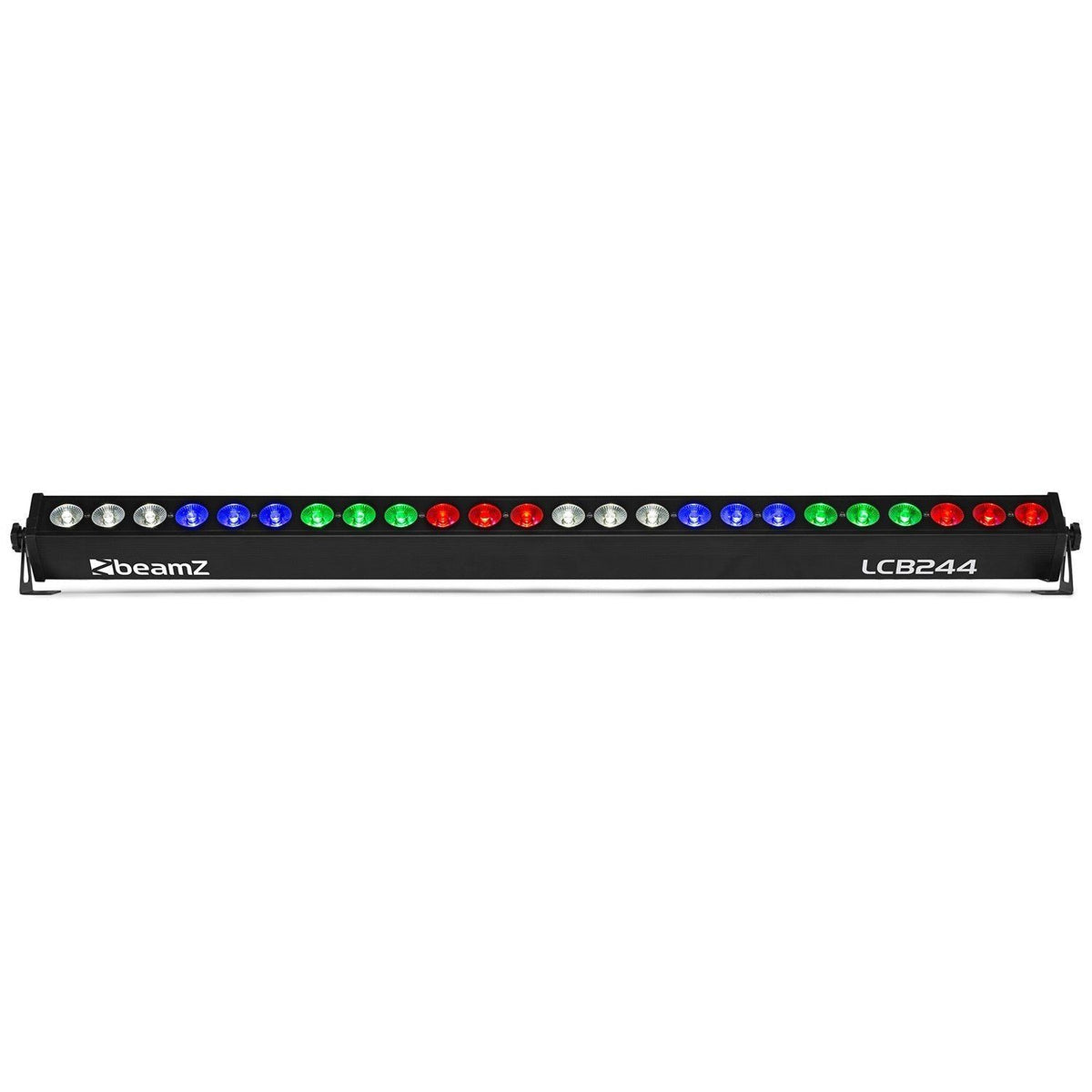

24 × 4 W RGBW (LED 4-in-1) with 8 independent zones .
-
Modes : standalone (12 shows), sound with sensitivity adjustment and DMX 6/9/16/30/58 channels.
-
RGBW mixing , color presets and 0–100% electronic dimming .
-
Optics : 20° beam / 33° field; 4,430 lx @ 1 m .
-

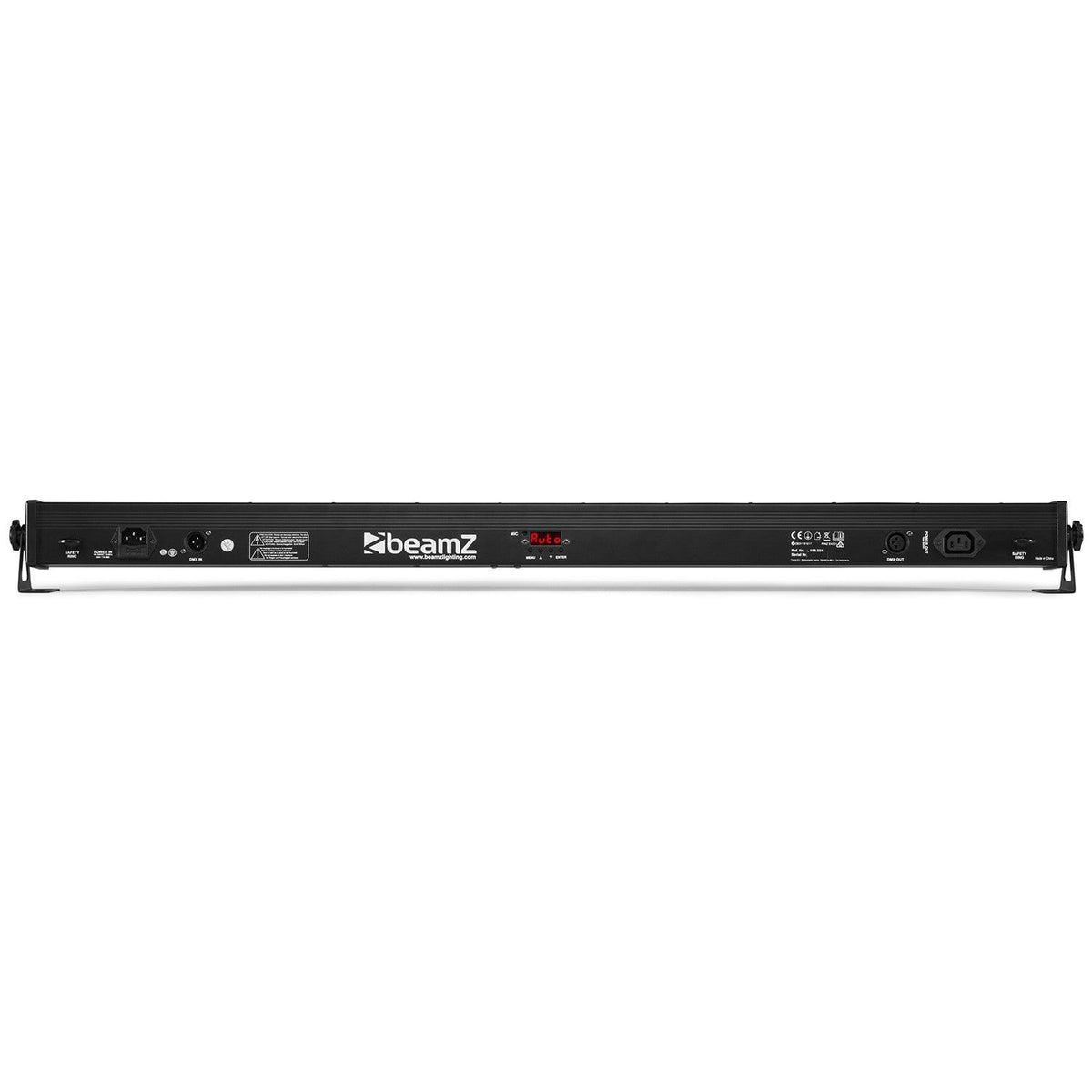

DMX in/out via 3-pin XLR ; IEC in/out for daisy chain (max. 6 bars).
-
IP20 , aluminum housing and fanless convection operation.
-
Power consumption : 160 W; power supply : 100–240 VAC, 50/60 Hz.
-
Dimensions : 1020 × 67 × 67 mm; weight : 2.6 kg.
Product benefits
-

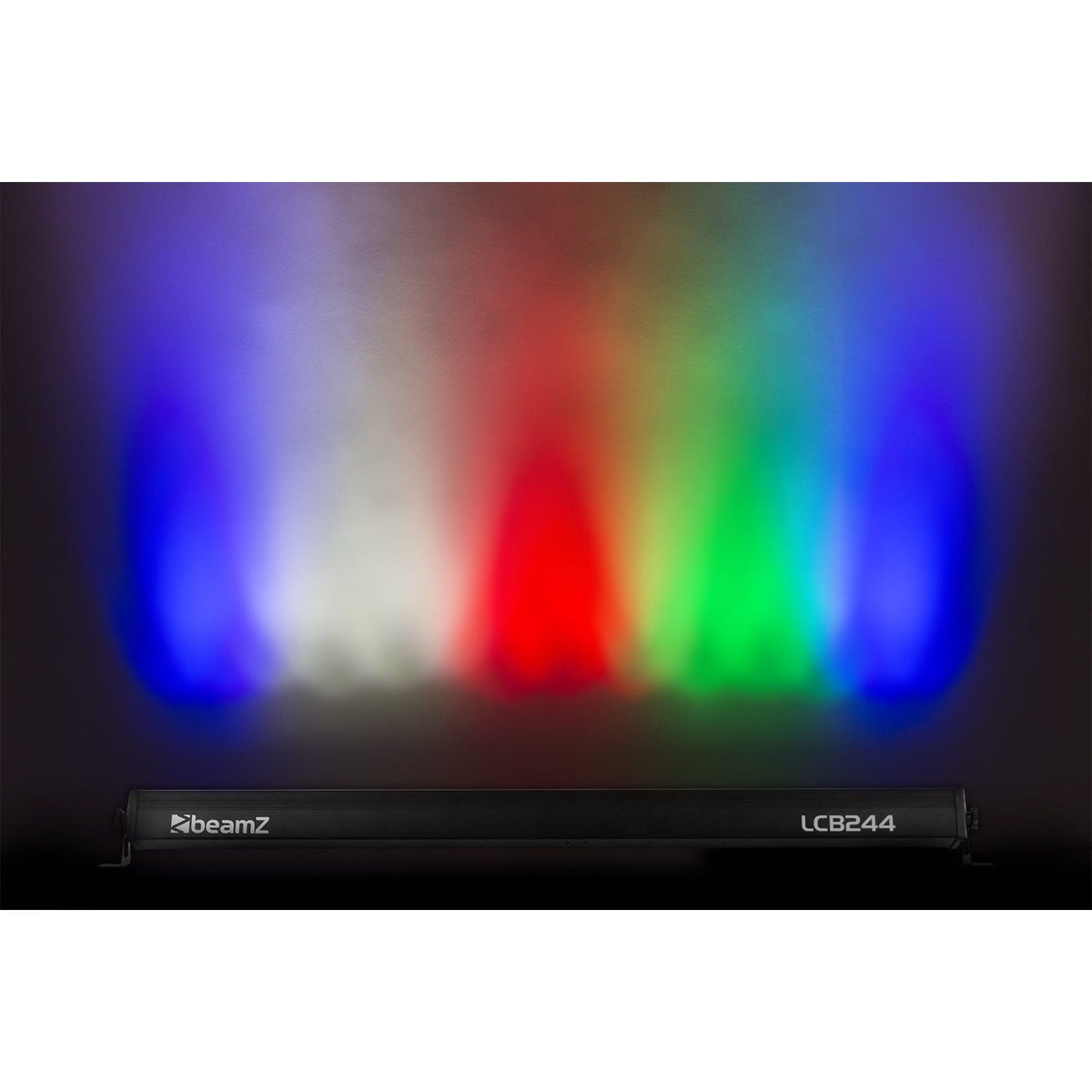

Creativity by zones : 8 sections for precise chases, sweeps and gradients.
-
Efficient assembly : power and signal chaining for clean lines on truss or floor.
-
Total silence : no fans, ideal for theater, film set and corporate events.
-
Immediate results : ready-to-use shows and macros without complex programming.
Use cases
-

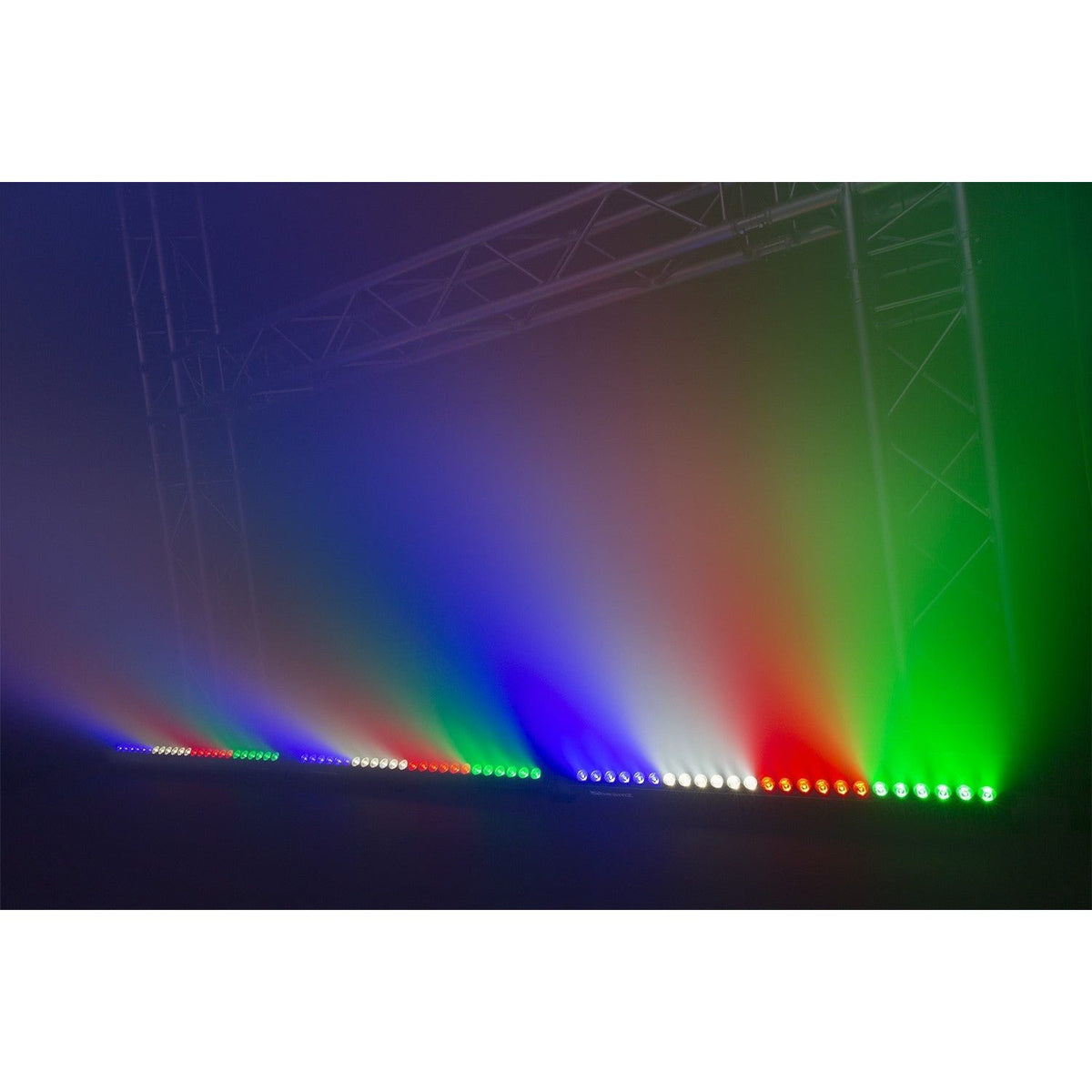

Events and rental : uniform coating of walls, backgrounds and sets.
-
Clubs and DJs : rhythmic effects synchronized by sound or DMX.
-
Theatre and TV : controlled chromatic atmospheres with zero acoustic noise.
Frequently Asked Questions
How many DMX channels does it use?
It has 5 DMX modes : 6 , 9 , 16 , 30 or 58 channels, to choose between basic or zone control.
How many bars can I link together in the same take?
Up to 6 units via IEC in/out , respecting the circuit capacity.
Does it make a fan noise?
No. Cooling is by convection (fanless).
Project description
beamZ LCB244 LED bar, 24 x 4W RGBW , 8 zones , DMX 6/9/16/30/58 channels , presets and 12 shows , 0–100% dimming. Beam angle: 20°/33° , 4,430 lx @ 1 m . Connections: XLR 3P DMX in/out , IEC in/out (max. 6 bars). IP20 , convection, aluminum housing. Power supply: 100–240 VAC 50/60 Hz , 160 W. Dimensions: 1020 x 67 x 67 mm . Weight: 2.6 kg .
