beamZ LCB224 - 224 SMD RGB LED Bar with 16 Sections and DMX Control (3/5/8/24/48/53 Channels)

beamZ LCB224 - 224 SMD RGB LED Bar with 16 Sections and DMX Control (3/5/8/24/48/53 Channels)

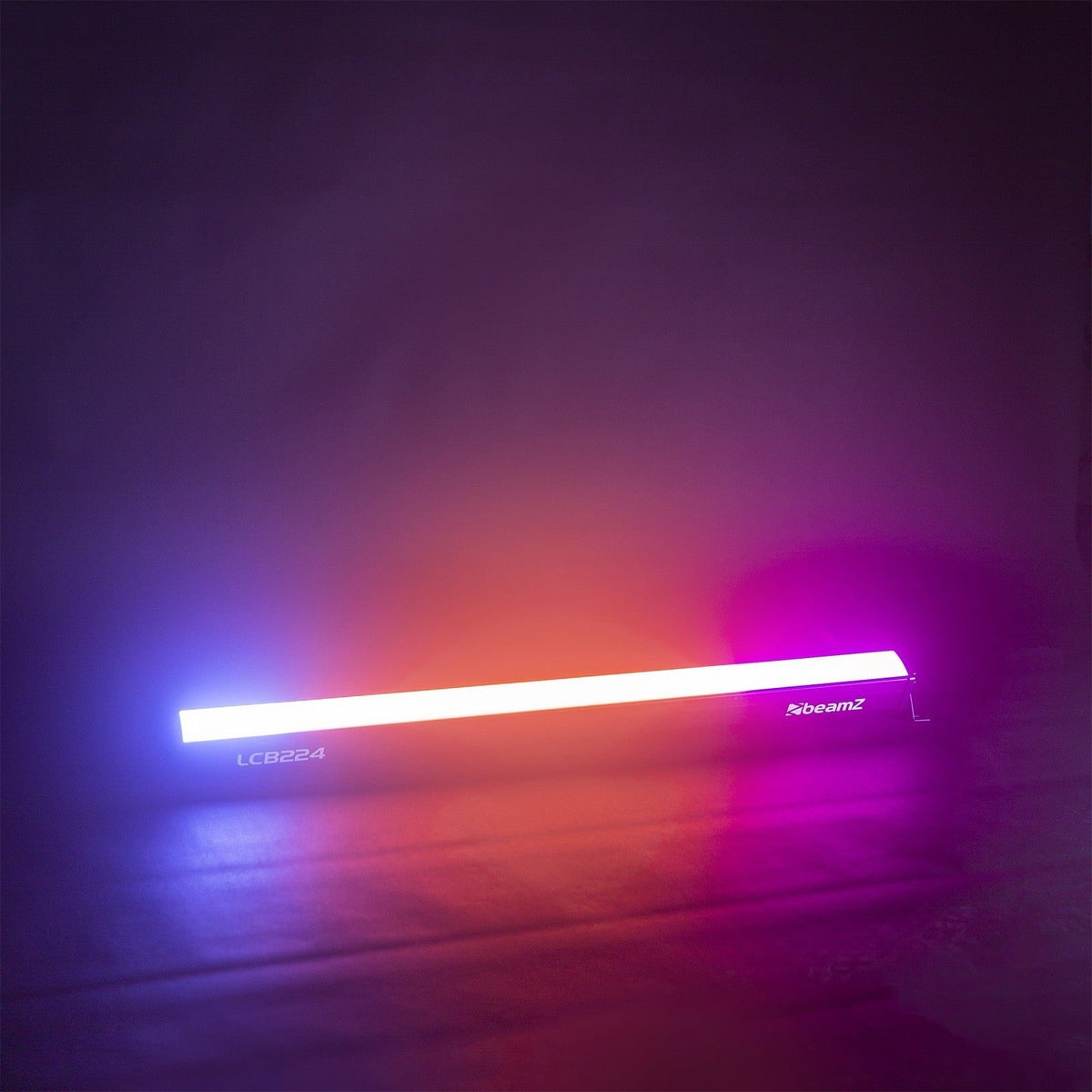

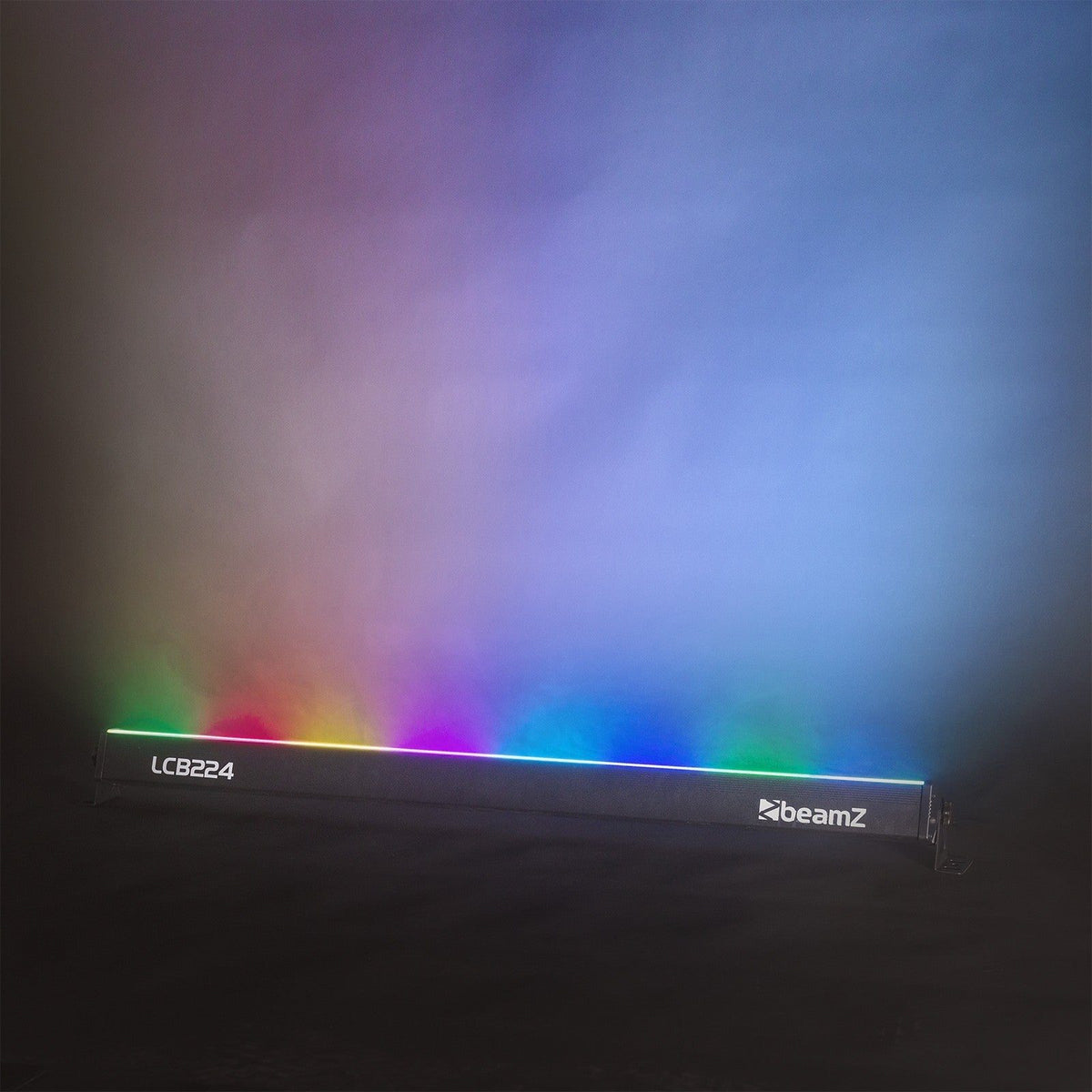

The beamZ LCB224 is a high-performance RGB LED bar integrating 224 SMD LEDs distributed across 16 independently controllable sections . In DMX mode, each section has its own RGB setting, allowing for precise chases , gradients, and color combinations without additional equipment. The unit offers standalone modes with pre-programmed shows , sound activation with adjustable sensitivity, and Master/Slave operation for synchronizing multiple units. Its IEC in/out connector facilitates daisy-chaining , while the 3-pin DMX control ensures direct integration with standard consoles. With a 90° beam angle , 1–19 Hz strobe , and 54 internal effects (including 25 color presets and 24 patterns ), the LCB224 is a versatile solution for stage washes , temporary architecture, events, and rental companies.

Main features

• 224 x SMD RGB LEDs with 16 independently controllable sections .
• DMX with 3, 5, 8, 24, 48 or 53 channels to choose between basic or advanced pixel control.
• Autonomous modes : automatic programs, Master/Slave and music rhythm with adjustable sensitivity.
• 54 built-in effects , 25 color presets , and 24 effect patterns .
• Adjustable strobe from 1 to 19 Hz with smooth dimmer curves.
• Connectivity : DMX XLR 3-pin in/out and IEC in/out for daisy-chaining power.
• Professional construction : black chassis, IP20 , convection cooling and LED display .
• Compact format : 1000 × 65 × 90 mm and 1.65 kg ; includes mounting bracket and power cable .

Product benefits

• Pixel-by-pixel creativity : Control 16 zones for precise chasers, sweeps, and gradients.
• Less programming time : extensive presets and patterns ready to use in quick events.
• Easy integration : multiple DMX modes to suit any console or show.
• Clean installation : daisy chain power and DMX in/out that simplifies wiring.

Use cases

• Corporate and social events : homogeneous color washes in backgrounds, cycloramas and structures.
• Clubs and stages : rhythmic and strobe effects synchronized with audio.
• Rental and touring : lightweight and reliable bars with section control for modern looks.

Frequently Asked Questions

• How many DMX modes does it have? 3, 5, 8, 24, 48 or 53 channels (selectable according to the required complexity).
• Can multiple busbars be daisy-chained? Yes, using IEC in/out and DMX 3-pin in/out.
• What effects does it include? 54 internal effects , 25 predefined colors , and 24 programmed patterns .
• What is the strobe frequency? Adjustable between 1 and 19 Hz .

Project description

RGB LED bar with 224 SMD LEDs , 16 sections ; DMX 3/5/8/24/48/53 channels , automatic, manual, Master/Slave and sound modes; strobe 1–19 Hz ; 90° beam angle; IP20 ; DMX XLR 3-pin in/out; IEC in/out; 100–240 VAC 50/60 Hz ; power consumption 0.75–0.41 A ; convection cooling ; LED display ; dimensions 1000 × 65 × 90 mm ; weight 1.65 kg ; includes mounting bracket and power cable .
