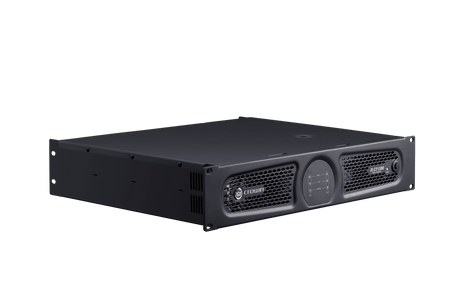

JBL Professional XLC-21300 - 2-Channel Power Amplifier (1,300 W/Channel at 4 Ω) for Professional Cinema

Out of stock
SKU: XLC-21300 EAN13: 691991033964
(0)
2.101,20 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The Crown XLC 21300, the newest and most powerful model in Crown’s XLC Series of competitively priced, high-power professional cinema amplifiers, delivers clean, reliable power in a versatile package. Features: Output Power: 1,000W at 8Ω, 1,300W at 4Ω Input Mode: Y-in, Dual Output Modes: Stereo, Bridged Mono Load Impedance: 4Ω per channel in stereo, 8Ω bridged HD-15 input enables easy connectivity with the JBL CPi2000 Cinema Processor to report amplifier status, load status, and errors to NOC systems. Built-in diagnostics monitor amplifier and speaker loading in third-party TMS and control systems Front-panel Power, Signal, Clip, Bridged Output, and Fault LED indicators Power LED indicates Standby, Normal, and Default operation Rear-panel volume control Forced-air cooling provides stable performance Output connectors: 4-pin barrier strip? Sensitivity: 1.4 V (@ 4 Ω)? Signal-to-noise ratio: > 100 dB? THD:
  • Brand:Crown (JBL Professional)
  • Model:XLC-21300
  • Guy:2-channel power amplifier for cinema
  • Channels:2
  • Output power (@1 kHz):1,000 W ×2 at 8 Ω; 1,300 W ×2 at 4 Ω
  • Bridge power:2,700 W ×1 at 8 Ω
  • Frequency response (1 W, 20 Hz–20 kHz):+0 / −1 dB
  • Signal-to-noise ratio (8 Ω, 1 kHz, ref. rated power):> 100 dB
  • THD (20 Hz–20 kHz):< 0.5%
  • IMD (60 Hz/7 kHz, 4:1):< 0.35%
  • Crosstalk:> 75 dB (1 kHz); > 59 dB (20 kHz)
  • Damping factor (8 Ω, 10–400 Hz):> 200
  • Voltage gain:36 dB
  • Input Sensitivity (Rated Power @ 4 Ω):1.4 V
  • Input impedance (nominal):20 kΩ balanced / 10 kΩ unbalanced
  • Load impedance:4–8 Ω per channel (stereo); 8 Ω (bridge)
  • Entry modes:Dual, Input-Y
  • Exit modes:Stereo, Bridge Mono

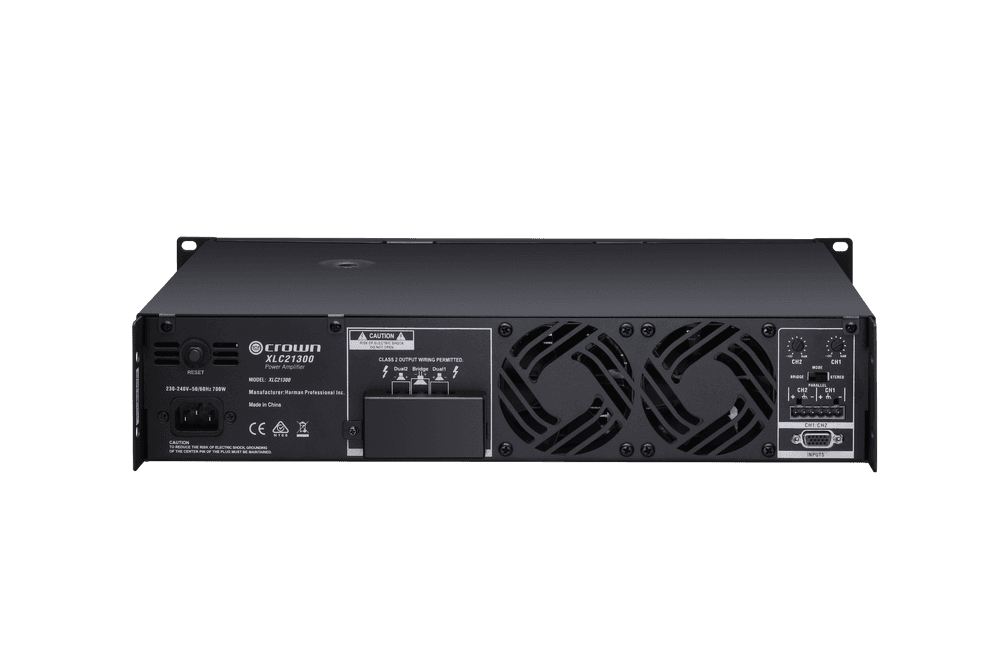

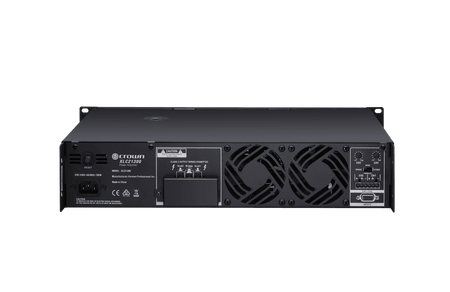

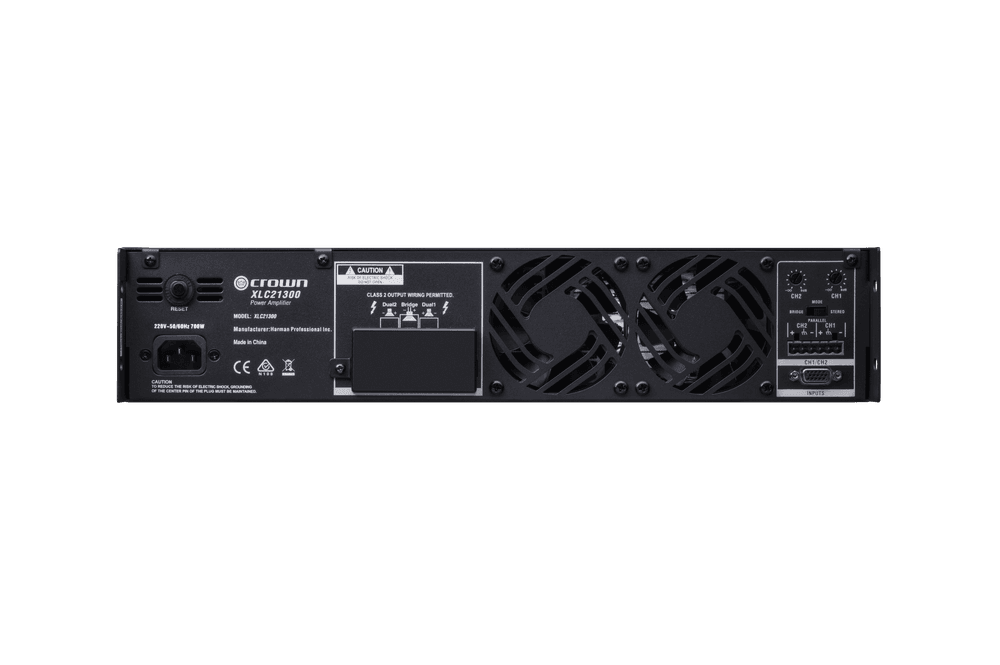

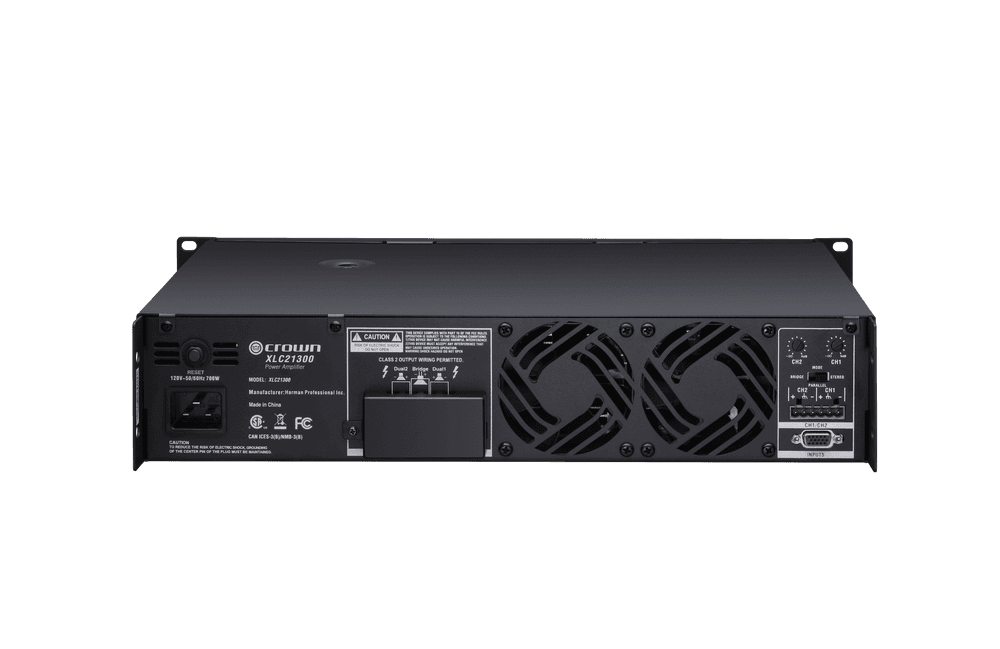

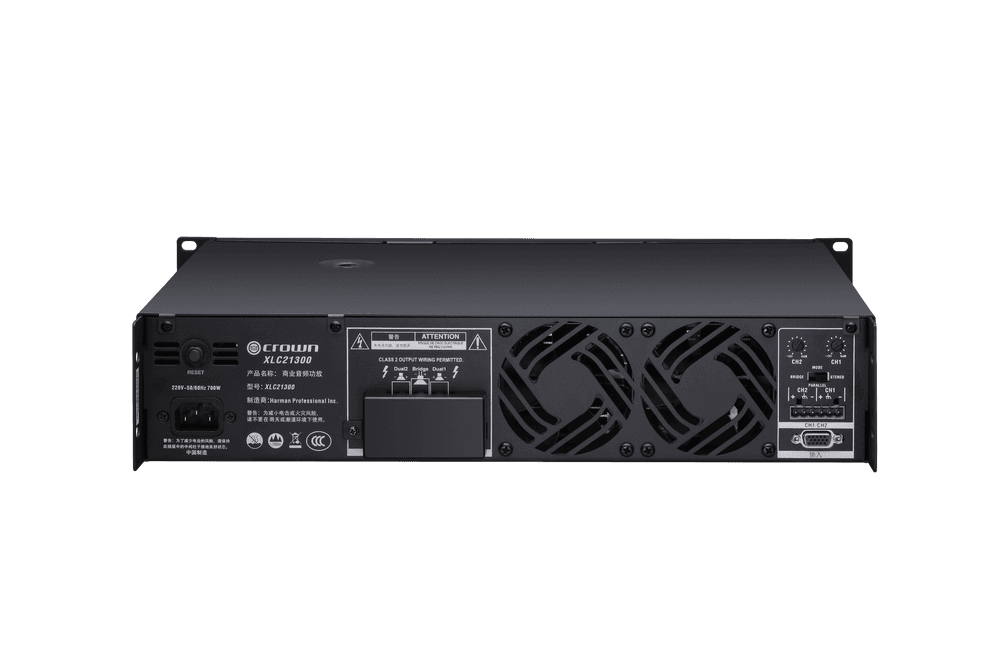

  • Input connectors:1 × Phoenix 6-pin (female), 1 × HD-15 (female)
  • Output connectors:4-pole power strip

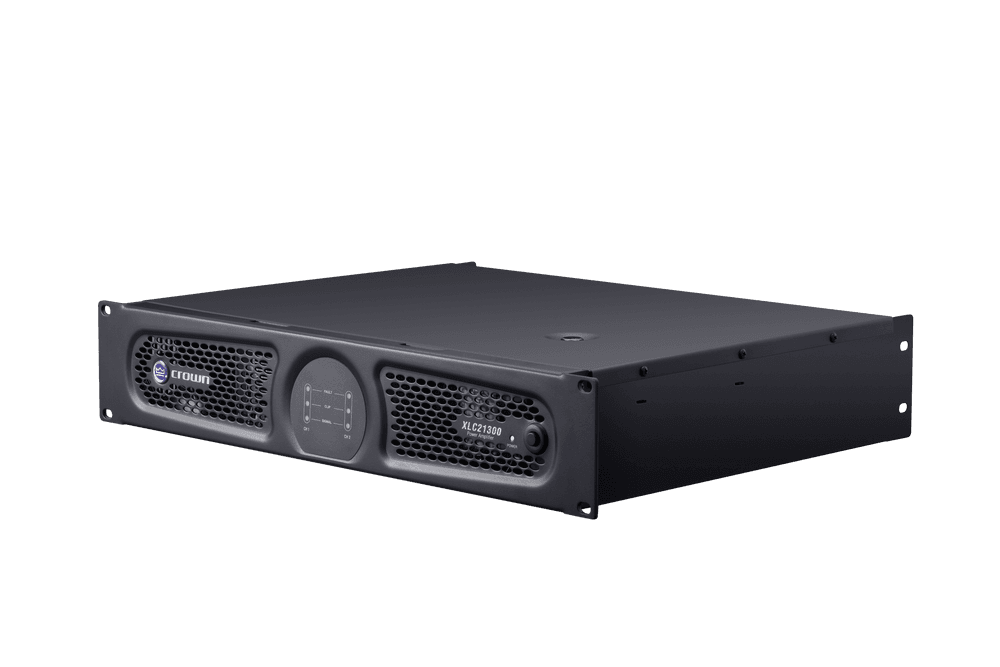

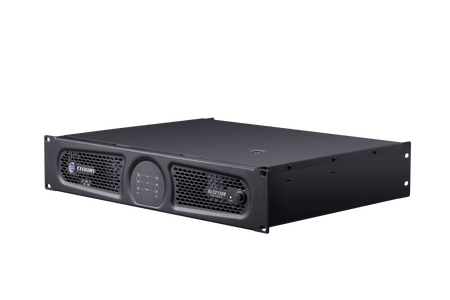

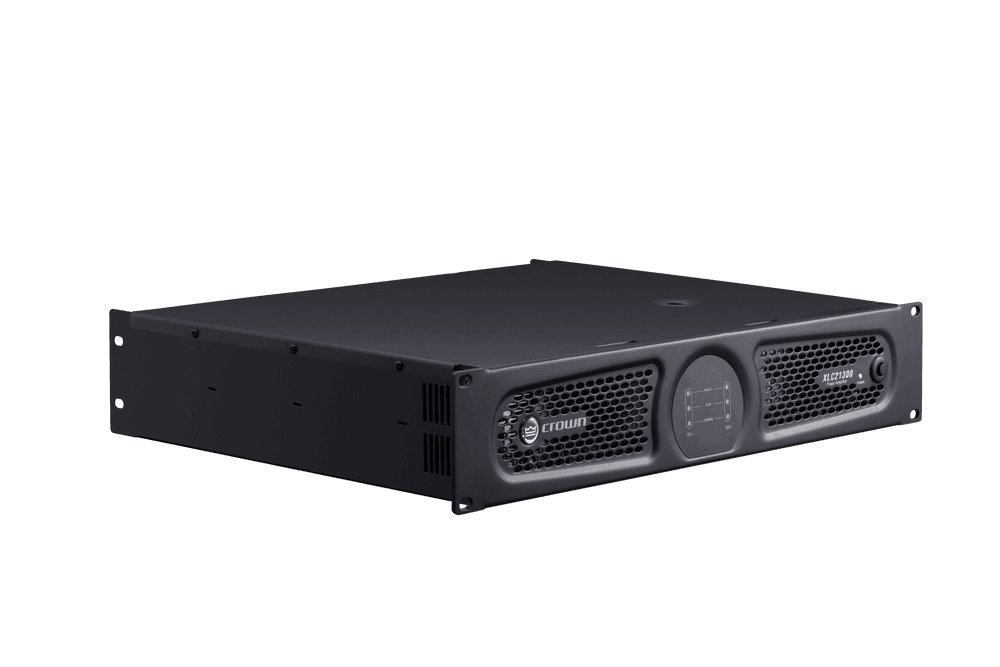

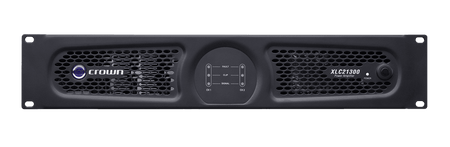

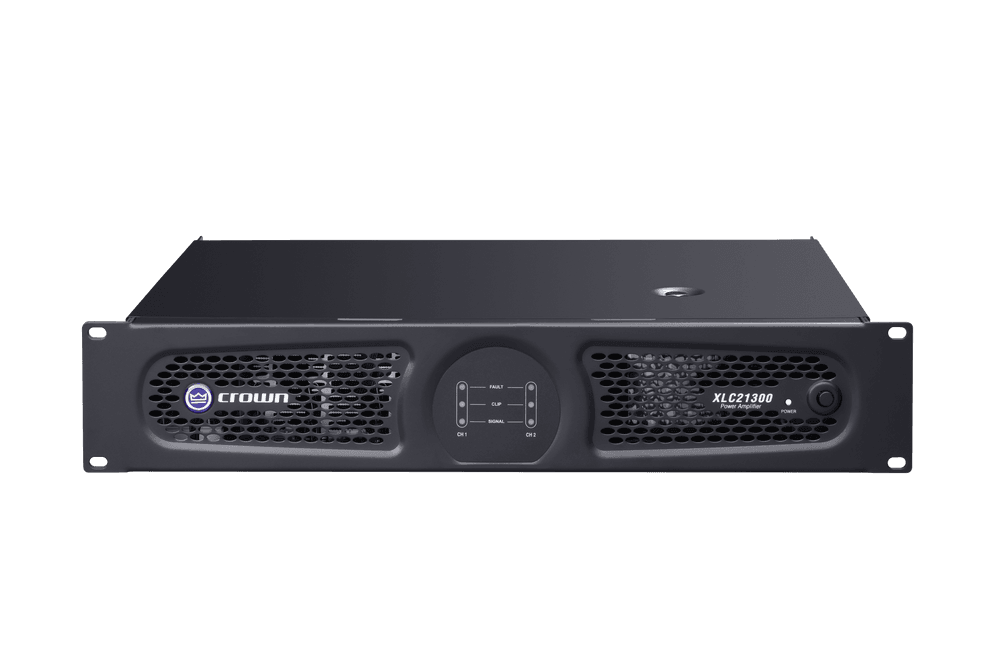

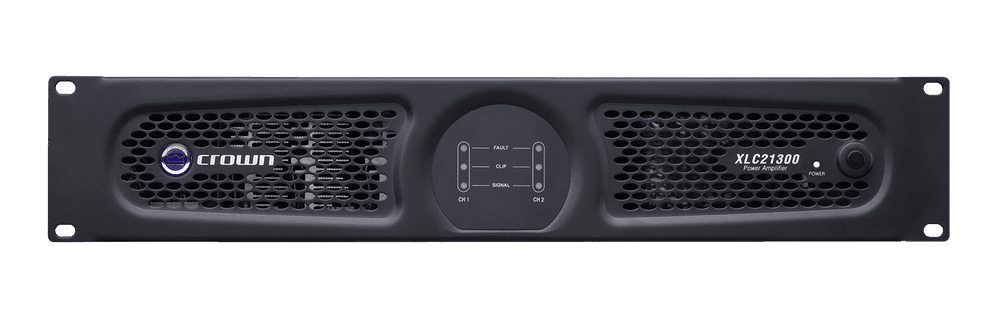

  • LED indicators:Power, Signal, Clip, Bridged Output, Fault
  • Refrigeration:Forced air
  • Power (±10%):120V~ 60Hz; 220V~ 50/60Hz; 230–240 V~ 50 Hz
  • Dimensions (D × W × H):366 × 482.6 × 88.9 mm
  • Net weight:17.9 kg
  • Shipping Dimensions (L × W × H):565 × 520 × 140 mm
  • Shipping weight:19.4 kg
  • Package contents:XLC-21300 amplifier, power cord, quick start guide
  • Recommended integration:JBL CPi2000 processor for monitoring and reporting to TMS/NOC
