JBL Professional VTX-V25-VTC - Vertical carrier for V25 arrays (3-4 cabinets), stackable and with braked casters

JBL Professional VTX-V25-VTC - Vertical carrier for V25 arrays (3-4 cabinets), stackable and with braked casters

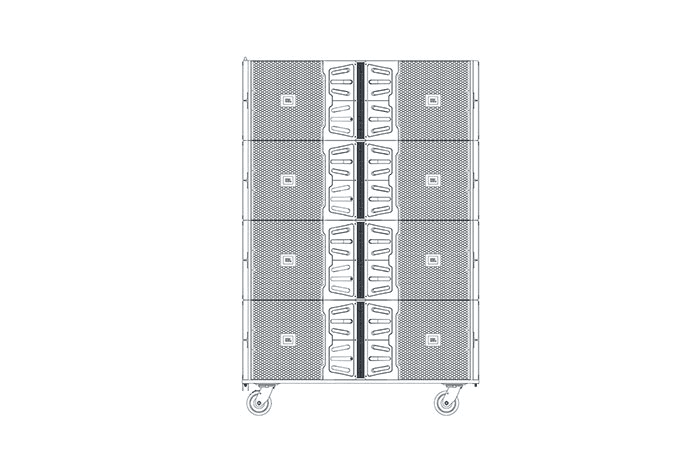

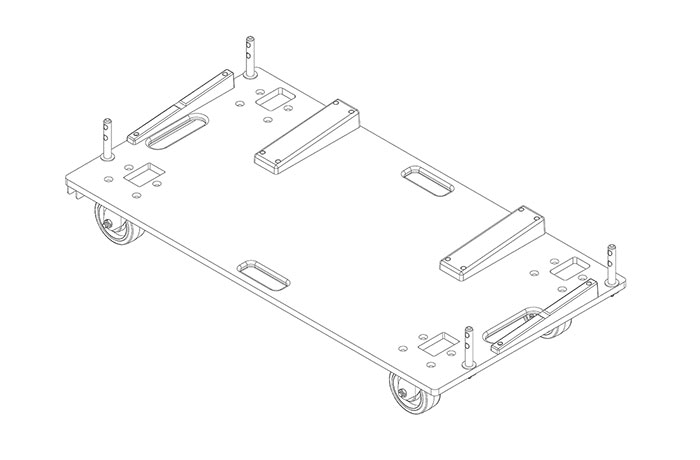

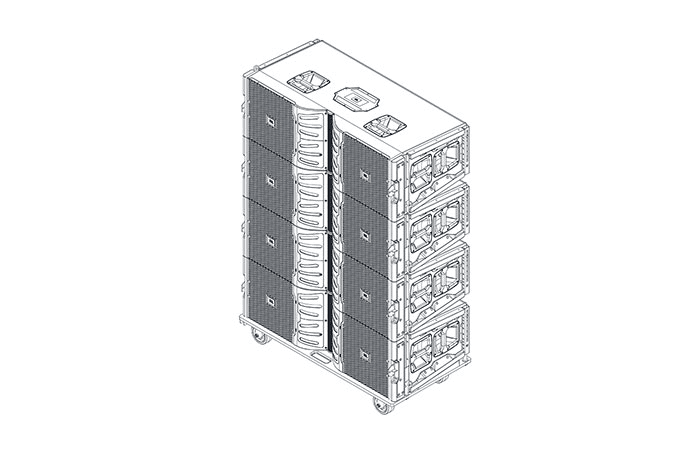

The JBL VTX-V25-VTC is a vertical transporter designed to quickly and safely move 3 or 4 VTX V25 cabinet columns in touring environments. It is sized for a truck pack size of 291 x 1222 x 635 mm (H x W x D), so it travels 4 abreast (lengthwise) on standard 100" trucks. It incorporates heavy-duty casters with brakes , is stackable for storage, and its construction combines exterior birch plywood with stainless steel/zinc plated steel hardware for maximum durability. It is compatible with VTX V25-II-CS and VTX V25-CS models; protective covers reference VTX-V25-VT-CVR are purchased separately.

Main features

• Capacity: vertical transport of 3 or 4 VTX V25 enclosures per cart.
• Compatibility: VTX V25-II-CS and VTX V25-CS .
• Heavy-duty locking casters .
• Stackable to optimize warehouse and backstage space.
• Efficient truck pack : 48.1" wide × 25" deep for traveling 4 abreast in 100" trucks.
• Robust and lightweight construction : exterior birch board and stainless steel/zinc plated hardware.
• Includes: 1 × VTX-V25-VTC. VTX-V25-VT-CVR rugged cases (optional).

Product benefits

• Faster logistics when moving complete columns of V25s without dismantling box by box.
• Safety on the road thanks to wheels with brakes and a platform sized for trucks.
• Longer lifespan thanks to professional materials (birch + stainless steel/zinc-plated hardware) and a design conceived for touring.
• Optimized storage through stable stacking when not in use.

Compatibility and accessories

• Compatible: VTX V25-II-CS / VTX V25-CS.
• Related Accessory: VTX-V25-VT-CVR Rugged Cases (Sold Separately).

Use cases

• Daily transport of V25 arrays on tours and festivals with a 100" truck.
• Internal movements and orderly storage in logistics facilities and warehouses.

Description for projects

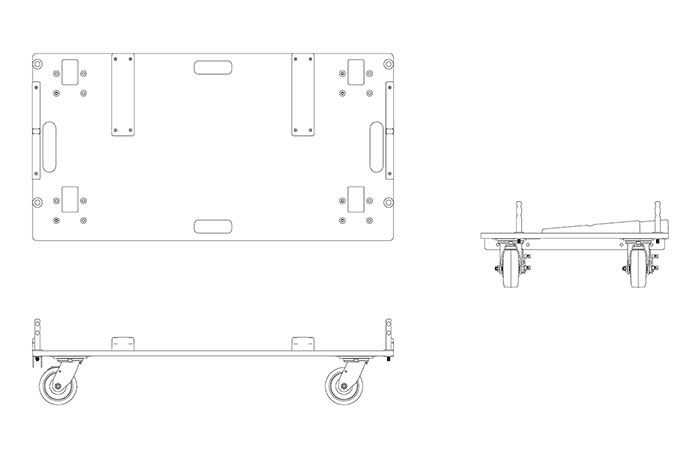

VTX-V25-VTC : vertical carrier for 3–4 VTX V25-II-CS / V25-CS enclosures; braked casters ; stackable ; birch ply construction with stainless steel/zinc-plated hardware; dimensions 291 × 1222 × 635 mm (H × W × D); net weight 23.6 kg; truck pack 48.1" × 25" (travels 4 abreast on 100" trucks); includes 1 × VTX-V25-VTC; optional VTX-V25-VT-CVR cases.
