JBL Professional VTX-V20-LH - Lever Hoist for VTX V20 Array Compression (3/4 t, 6.1 m Chain)

Out of stock
SKU: VTX-V20-LH EAN13: 50036904315
(0)
1.281,85 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

JBL Professional VTX-V20-LH - Lever Hoist for VTX V20 Array Compression (3/4 t, 6.1 m Chain)

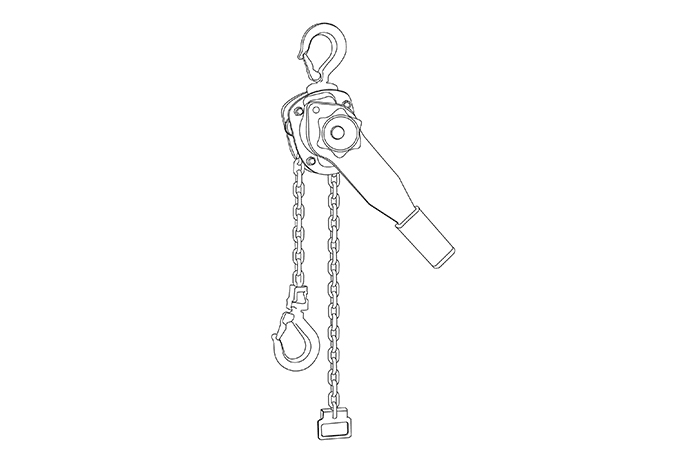

The JBL VTX-V20-LH is the factory-approved manual lever hoist for quickly, safely, and repeatably compressing VTX V20 columns . Based on the 3/4 ton rated CM Series 653 model with 20 ft of chain ( ≈ 6.1 m ), it allows up to 20 V20 enclosures to be compressed per column without the need for additional extension hardware. Its powder-coated steel construction and compact design with safety latches on hooks, directional lever, and free chain mode ensure agile handling in demanding tours and rigs. It natively integrates with the VTX V20 rigging ecosystem, both in configurations with the VTX-V20-AF-EB extension bar and with the VTX-V20-PB tie-down accessory .

Main features

  • Load capacity: 3/4 t (approx. 0.68 metric t ) for array compression.
  • Chain length: 20 ft ( ≈ 6.1 m ) included.
  • System Coverage: Compression of up to 20 VTX V20 enclosures per column without extensions.
  • Construction: Steel with powder-coat finish for high durability.
  • Touring ready: directional lever, free chain position and latch hooks.
  • Rigging Integration: Direct use with VTX-V20-AF-EB (Extension Bar Pullback) or with VTX-V20-PB in rear-motor pullback .
  • Includes: 1 × CM Lever Hoist (3/4 t) with 6.1 m of chain.

Benefits for the PA technician

  • Speed ​​and consistency in array curvature adjustment, reducing assembly times.
  • Operational safety thanks to OEM hardware and locking elements on hooks.
  • Full compatibility with the JBL VTX V20 rigging ecosystem.

Use cases

  • VTX V20 column compression for touring, festivals, and large-format venues.
  • Operates with VTX-V20-AF-EB (motor/hoist to frame) or with VTX-V20-PB (rear lifting point).

Description for projects

JBL VTX-V20-LH lever hoist for compressing VTX V20 arrays: capacity 3/4 t (≈ 0.68 t); 20 ft (≈ 6.1 m) chain included; compression of up to 20 enclosures without additional hardware; material steel; finish powder coated; weight 7.7 kg. Integration with VTX-V20-AF-EB and VTX-V20-PB . Scope of delivery: 1 × CM Series 653 (3/4 t) with 6.1 m chain.
  • Brand:JBL Professional
  • Model:VTX-V20-LH
  • Guy:Manual lever hoist for array compression
  • System compatibility:JBL VTX V20 arrays (up to 20 cabinets per column)
  • Nominal capacity:3/4 ton (≈ 0.68 metric tons)
  • Chain length:20 ft (≈ 6.1 m)
  • Material:Steel
  • Finish:Powder coating (powder coat)
  • Net weight:7.7 kg (17.3 lb)
  • Rigging integration:Use withVTX-V20-AF-EB(Extension Bar Pullback) orVTX-V20-PB(Rear-Motor Pullback)
  • Includes:1 × CM Lever Hoist (3/4 t) with 20 ft of chain

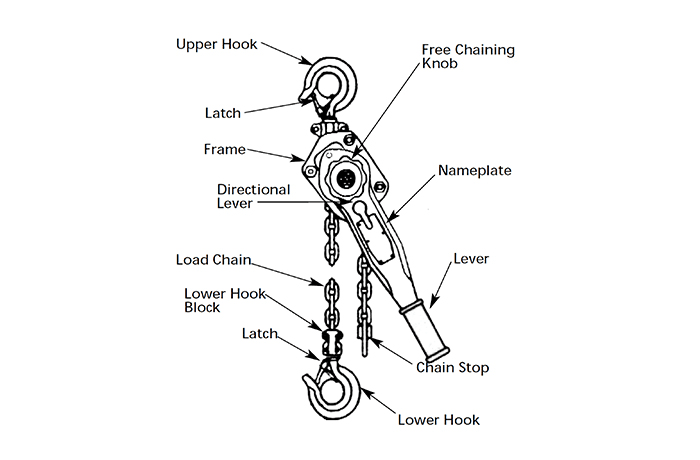

  • Identified elements (according to scheme):Upper/lower hook with latch, directional lever, free chain mode, chain stop
  • Dimensions (according to sheet, in inches → millimeters):A 12 5/8″ (≈ 320.7 mm); B 15/16″ (≈ 23.8 mm); C 1 1/8″ (≈ 28.6 mm); D 11/16″ (≈ 17.5mm); E 11″ (≈ 279.4 mm); F 4 3/8″ (≈ 111.1 mm); G 2 3/16″ (≈ 55.6 mm); H 2 3/16″ (≈ 55.6 mm); J 15/16″ (≈ 23.8 mm); K 2 3/8″ (≈ 60.3 mm); L 3 9/16″ (≈ 90.5 mm)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-V20-LH
  • Bar-code 50036904315
