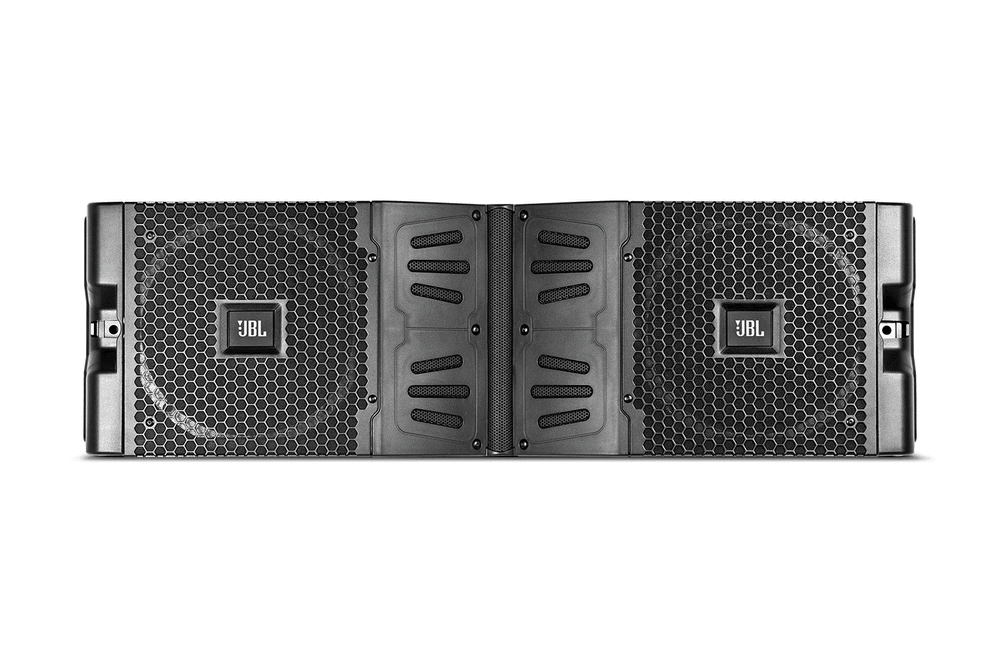

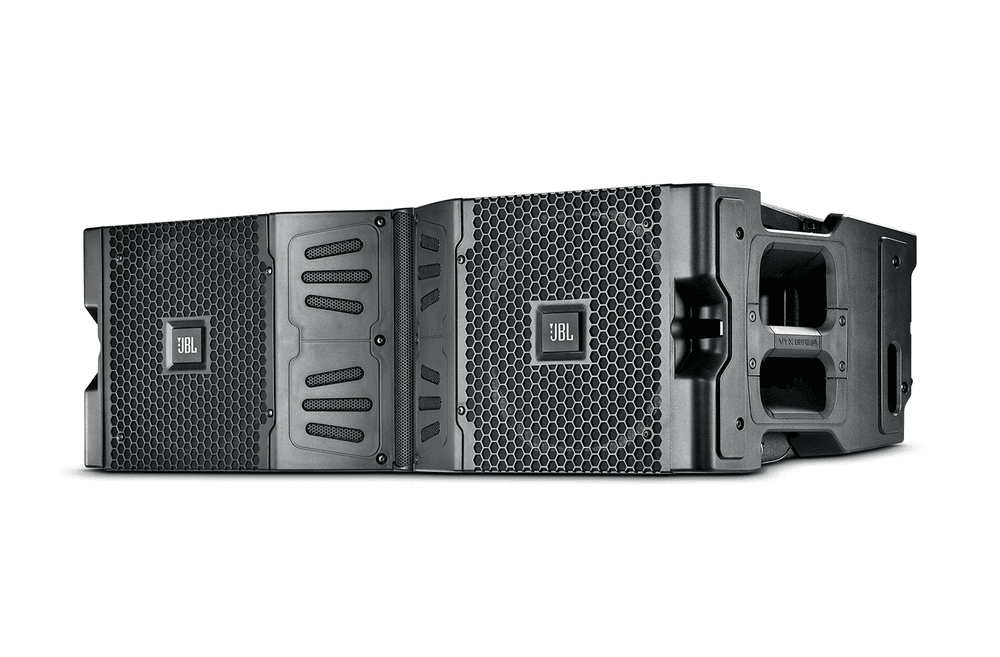

JBL Professional VTX-V20 - Three-way high-directivity line array element for touring and installations

Out of stock
SKU: VTX-V20 EAN13: 691991013034
(0)
19.901,32 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The VTX V20 features the advanced technology and extraordinary performance of the revolutionary VTX V25 in a smaller form factor—a high-power-density 3-way system complemented by a new suspension system that provides efficient transport, quick setup, and precise configuration. All components of the VTX V20 have been specifically designed to provide stable 105-degree horizontal coverage and effective linear source coupling in the vertical plane, while delivering linear, transparent sound up to surprisingly high output levels for its small size. Features: Differential Drive Technology Advanced 4th-Generation High-Frequency Waveguide Small-Format Version of the Patented Dual D2 Compression Driver ASM Suspension System V5 System Integration
  • Brand:JBL Professional
  • Model:VTX V20
  • System type:3-way high-directivity line array element with D2 technology
  • Frequency range (-10 dB):60 Hz – 20 kHz (short throw mode, free field)
  • Horizontal coverage (-6 dB):105° nominal (≈315 Hz – 16 kHz)
  • Angles between enclosures:0; 0.5; 0.75; 1; 1.5; 2; 2.5; 3; 4; 5; 7.5; 10; 12.5°
  • Maximum peak SPL:139 dB (Preset: VTX V20)
  • Operation:Switchable Bi-Amp/Quad-Amp (3-way)
  • Recommended amplification and control:Crown I-Tech HD/VRack with BSS OmniDrive HD (V5 library) and JBL Performance Manager

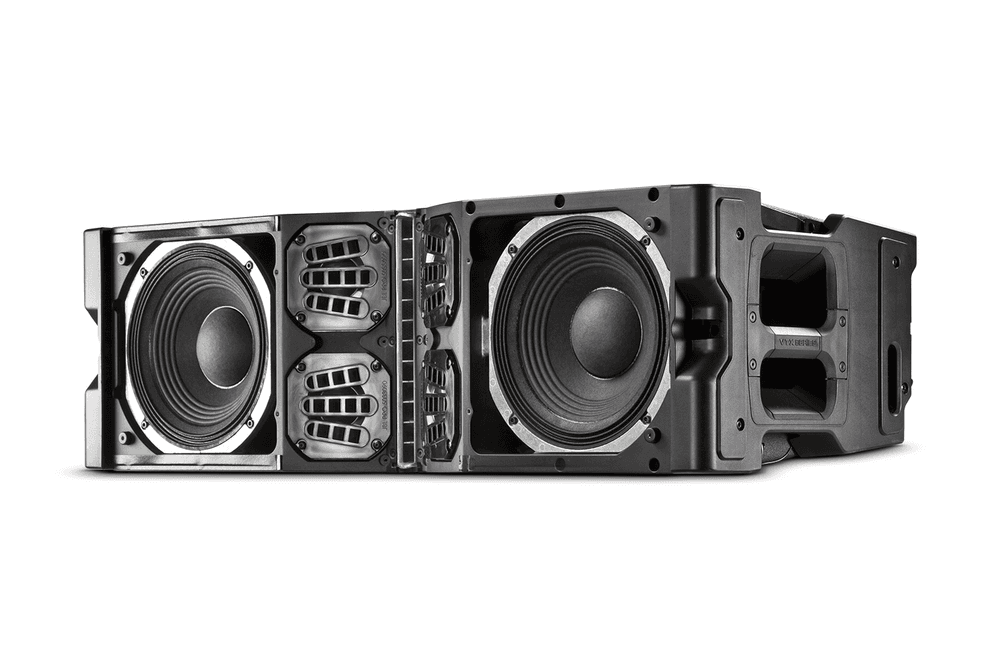

  • LF Transducers:(2) JBL 2261H, 10″, Neodymium, Differential Drive, Direct Cooled
  • MF Transducers:(4) JBL 2164H, 5″, ultralinear motor
  • HF Transducers:(3) JBL 2415K D2, dual diaphragm, double coil, 0.8″ exit
  • Impedances (active mode):LF 2×8 Ω; MF 8 Ω; HF 8 Ω
  • Impedances (passive mode):LF 16 Ω; MF/HF 8 Ω
  • AES Power (active):LF 2×600 W continuous / 2×2400 W peak; MF 550 W continuous / 2200 W peak; HF 315 W continuous / 1260 W peak
  • AES Power (Passive):LF 1180 W continuous / 4720 W peak; MF/HF 550 W continuous / 2200 W peak
  • Band sensitivity (active):LF 93 dB (1 W/1 m); MF 100 dB; HF 111 dB
  • Band sensitivity (passive):LF 111 dB; MF/HF 108 dB
  • Connectivity (active):2× NL8 (1± LF1; 2± LF2; 3± MF; 4± HF)
  • Connectivity (passive):2× NL4 (1± LF1+LF2; 2± MF/HF) and 2× NL8thru(1±/2± step; 3± LF1+LF2; 4± MF/HF)
  • Waveguide:Refined RBI (4th generation) for M/HF coupling
  • Suspension:ASM with hinges and quick-release pins; tension/compression modes
  • Construction of the enclosure:Cast aluminum front baffles and HF guide; 18 mm Finnish birch plywood panels; DuraFlex finish; steel grille with acoustic mesh
  • Dimensions (H × W × D):279.9 × 911.4 × 402.2 mm
  • Net weight:40.0 kg
  • System compatibility:Integration with VTX S25 subwoofer and V5 presets; use asdownfillon VTX V25-II / V25-II-CS arrays with V20-DF adapter
  • Array frame (optional):VTX-V20-AF; supports up to 24 enclosures per array (geometry dependent)
  • Transportation (optional):VTX-V20-VT (vertical conveyor)
