JBL Professional VTX-V20-AF - Structure (frame) for V20 / S25 line array with 11 pick points and leveling feet

JBL Professional VTX-V20-AF - Structure (frame) for V20 / S25 line array with 11 pick points and leveling feet

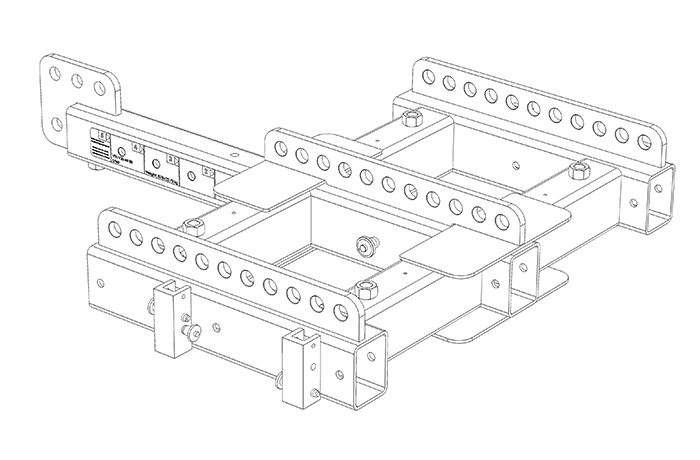

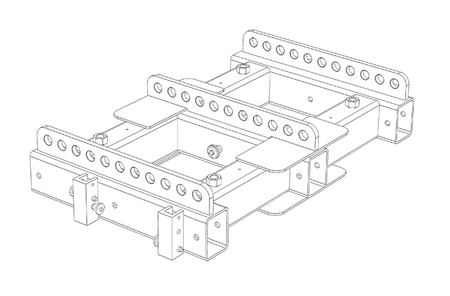

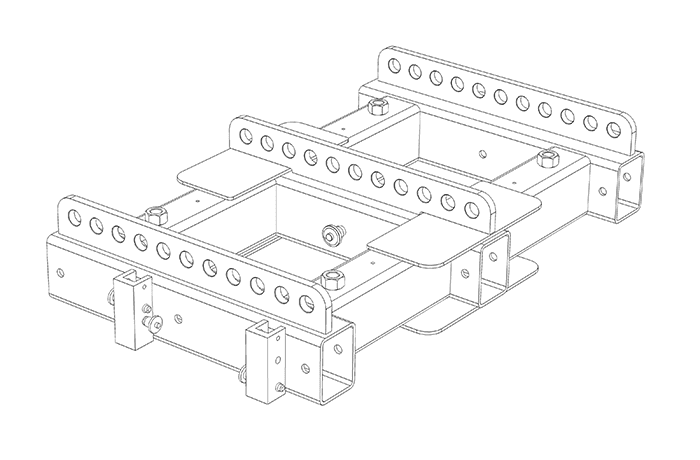

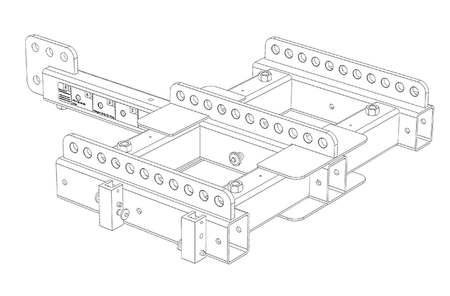

The JBL VTX-V20-AF is the official ground-stack array frame for the VTX V20 and VTX S25 subwoofer. Designed for touring and demanding installations, it offers 11 pick points that allow multiple single-point rigging positions ( front-to-back or side-by-side ) and supports up to 24 cabinets per column (depending on array geometry). It includes 4 adjustable leveling feet for fast, stable stacking and accepts 5/8" or 3/4" shackles. Its steel construction with a black powder coat finish ensures durability under intensive use, and it can be extended with the VTX-V20-AF-EB extension bar to extend the tilt range, separate points to 2 pick points and enable compression suspension.

Main features

• Direct compatibility with VTX V20 and VTX S25 .
• 11 pick points available for single-point suspension; front-to-back or side-by-side options.
• Capacity of up to 24 enclosures per column (depending on the geometry of the array and the load calculation).
• Adjustable leveling legs included for quick and secure ground-stacking .
• Accepted hardware : 5/8" or 3/4" shackles on pick points.
• Touring construction : steel with Black Powdercoat finish .
• Frame weight : 50 kg .

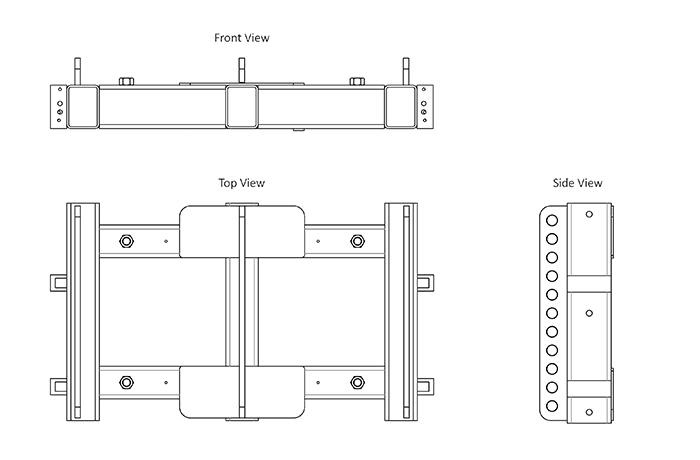

• Maximum dimensions (approx.): 895.7 mm (width) × 508.0 mm (height).
• Optional accessory : VTX-V20-AF-EB for greater up/down-tilt , separation of points to 2 pick points and dedicated point for compression.

Product benefits

• Rigging versatility : multiple lifting positions at 1 point and extension to 2 points with the AF-EB bar.
• Faster deployment and precise stacking leveling thanks to the included adjustable legs.
• Scalability for long columns (up to 24 boxes) with full compatibility across the VTX family.
• Robustness and reliability with professional specification materials and finishes.

Compatibility and accessories

• Compatible systems : JBL VTX V20 arrays and JBL VTX S25 subwoofer.
• Related Accessories : VTX-V20-AF-EB (extension bar) for tension or compression suspension and increased tilt range.

Use cases

• Flying VTX V20 arrays on tours, in theaters, arenas, and festivals.
• Floor stacked on V20 or S25 when top rigging is not available.
• Configurations that require specific point separation using AF-EB.

Description for projects

JBL VTX-V20-AF array frame in steel with Black Powdercoat finish; 11 pick points ( 5/8" or 3/4" shackles), front-to-back / side-by-side options; adjustable leveling feet included; capacity up to 24 cabinets (depending on geometry); weight 50 kg; maximum dimensions approx. 895.7 mm (width) × 508.0 mm (height); compatible with VTX V20 and VTX S25; optional VTX-V20-AF-EB extension bar for 2 points and compression.
