JBL Professional VTX-S28-VTC - Vertical Carrier for 3 VTX S28 Subwoofers with Optimized Truck Pack

JBL Professional VTX-S28-VTC - Vertical Carrier for 3 VTX S28 Subwoofers with Optimized Truck Pack

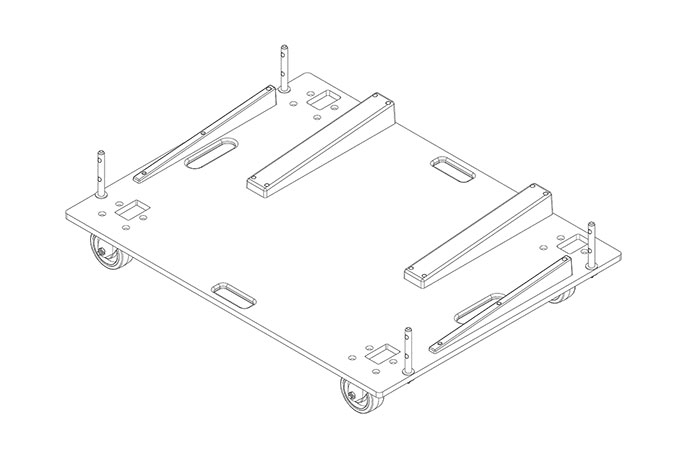

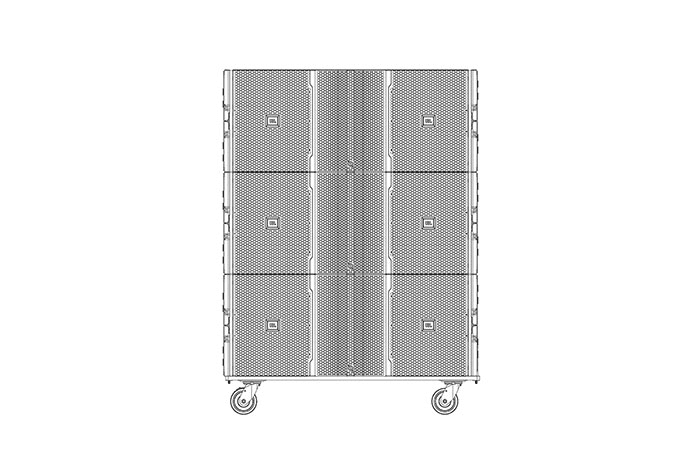

The JBL Professional VTX-S28-VTC is a vertical transporter specifically designed to safely and efficiently move stacks of 3 VTX S28 subwoofers , maintaining their orientation in either front or cardioid mode. Its lightweight, robust platform, constructed of exterior-grade birch plywood with stainless steel and zinc-plated steel hardware, features heavy-duty brake wheels and allows for space-saving stacking in warehouses and loading areas. Measuring 1,222 mm wide and 944 mm deep, it is sized for efficient truck packing , with two units traveling side-by-side across the width of standard 100″ trucks (≈2.54 m usable width). Its low weight (23.6 kg) and optimized geometry simplify touring workflow, speed up loading/unloading, and protect your investment during transport. Reinforced cases (reference VTX-S28-VT-CVR) are available separately, as an optional extra.

Main features

• Dedicated design for VTX S28: vertical transport of 3 enclosures per cart in front or cardioid configuration.
• Heavy-duty brake wheels: smooth and safe maneuvering on ramps, docks, and stages.
• Stackable: Stored in columns to optimize space in transit and in storage.
• Optimized truck pack: 1,222 × 944 mm to travel two across in standard 100″ trucks.
• Touring-grade construction: exterior-grade birch plywood and stainless steel/zinc-plated steel hardware.
• Lightweight and robust: 23.6 kg net weight for agile handling and greater durability.
• Matching accessory: VTX-S28-VT-CVR reinforced cover (sold separately).

Product benefits

• Save time in logistics: deploy and retrieve three subwoofers at a time, with fewer forklift passes.
• Order and consistency: Maintains the VTX S28's front-firing or cardioid configurations during transport, facilitating repeatable setup.
• Increased load security: stable platform with lockable wheels and high-strength materials.
• Space optimization: dimensions designed for truck packing and warehouse stacking .
• Full compatibility with the VTX ecosystem: integrates official accessories and maintains JBL Professional engineering quality.

Use cases

• Rental and touring companies that need quick rotation of VTX S28 subwoofers between shows.
• Festivals, tours, and corporate events with multiple stage changes and tight loading windows.
• Theaters and auditoriums looking for safe and orderly storage of VTX S28s.

Frequently Asked Questions

How many subwoofers does each carrier support? A block of 3 × VTX S28s vertically.

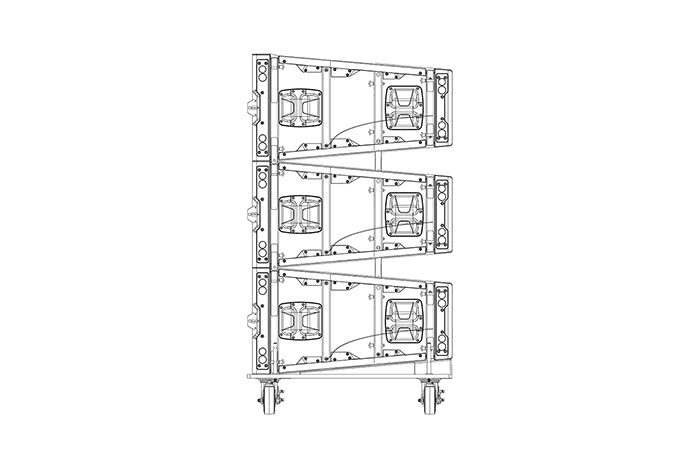

Can I transport the subwoofers in cardioid mode? Yes, the cart allows you to transport the unit configured in either a front-facing or cardioid configuration .

Is the protective case included? No. The VTX-S28-VT-CVR rugged case is purchased separately.

How does it fit on the truck? Its dimensions allow two cars to travel side by side across the width of standard 100″ (≈2.54 m) trucks.

Description for projects

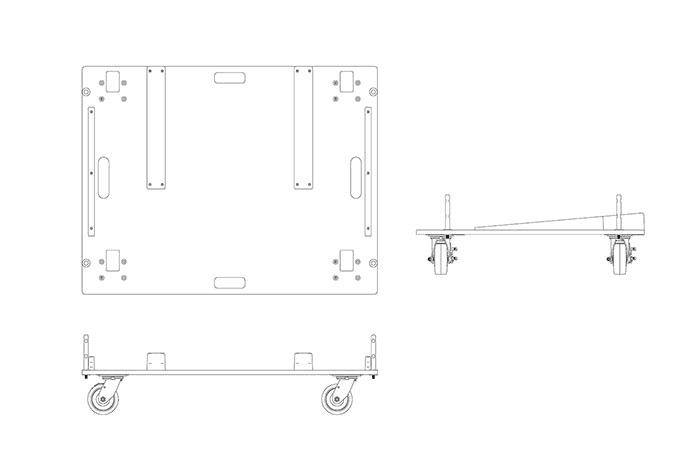

Vertical transporter for 3 JBL VTX S28 subwoofers , with heavy-duty brake wheels and stackable design. Exterior-grade birch plywood construction with stainless steel and zinc-plated steel hardware. Dimensions (H × W × D): 330 × 1,222 × 944 mm . Net weight: 23.6 kg . Sized to travel two units across in 100″ trucks. Optional accessory: VTX-S28-VT-CVR heavy-duty case.
