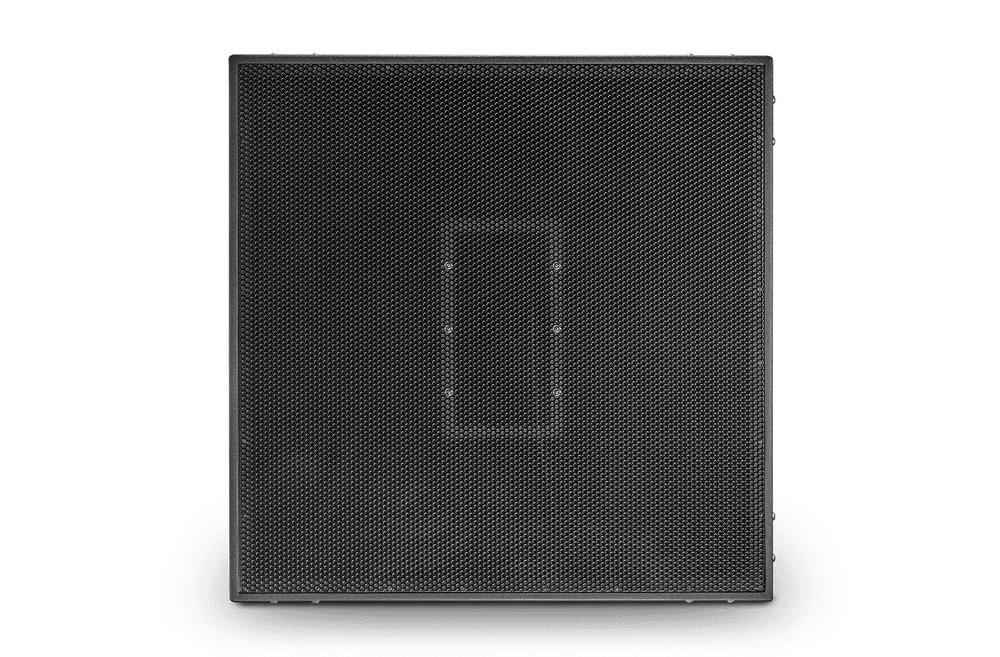

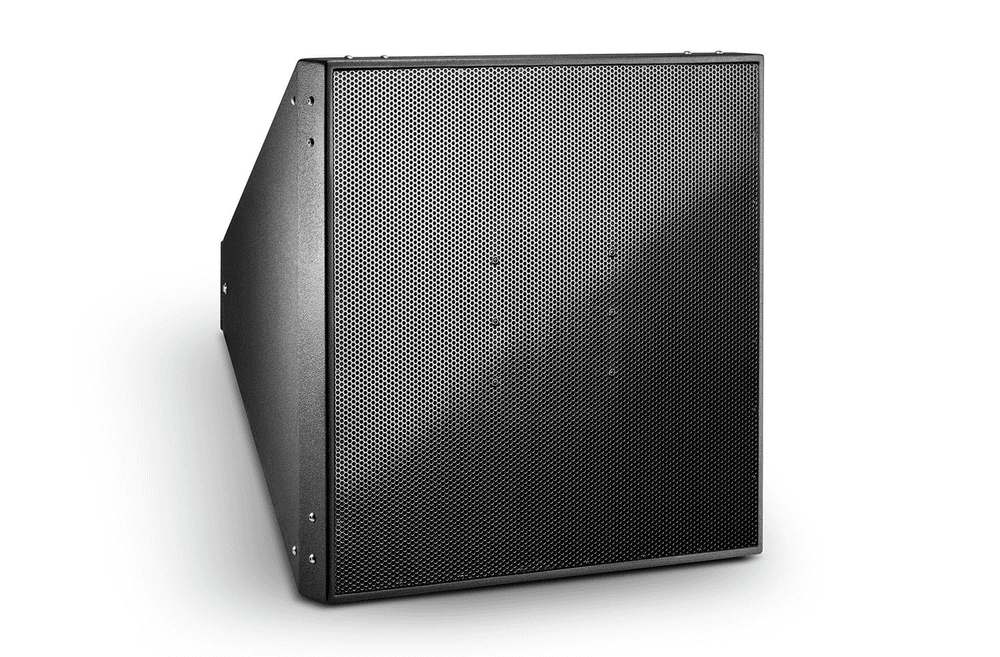

JBL Professional PD764i - Ultra-high output, horn-loaded 60° × 40° mid-high speaker system

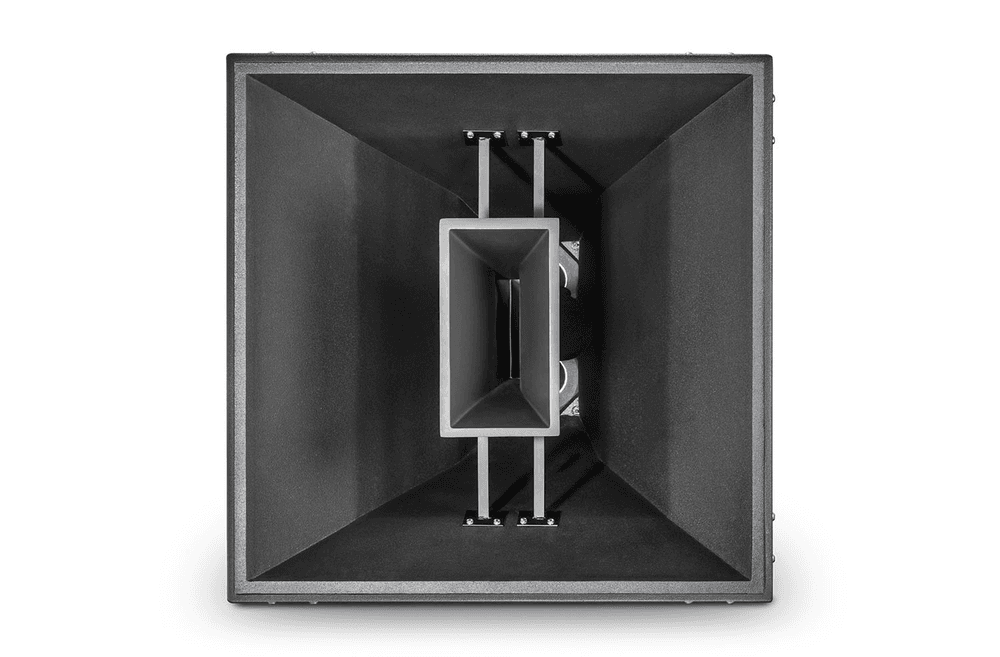

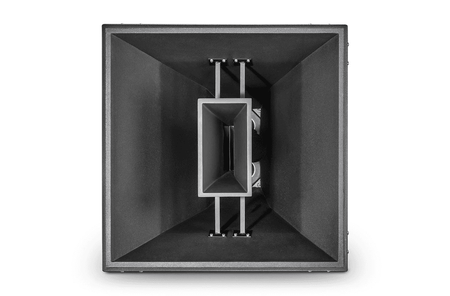

The PD764i Precision Directivity™ loudspeaker provides high-impact sound reinforcement at distances beyond the reach of single-driver designs. A single module produces over 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i can be used in arrays with other PD family modules or alone as part of a distributed system.Features? 60° by 40° coverage pattern: Symmetrical front dimensions allow horizontal or vertical orientation within an array.? Interference-Free Summing (IFS™) dual HF driver module eliminates destructive interference and increases output by 6 dB.? Dual 2432H compression drivers with 3” diaphragms? Dual 8” CMCD-82H loaded-cone midrange drivers provide 6 dB greater output than traditional designs.? Pattern control maintained below 400 Hz.? The design of the mid/high-frequency coaxial module improves mid-frequency handling and minimizes size. The integrated mounting system simplifies assembly design and construction.
