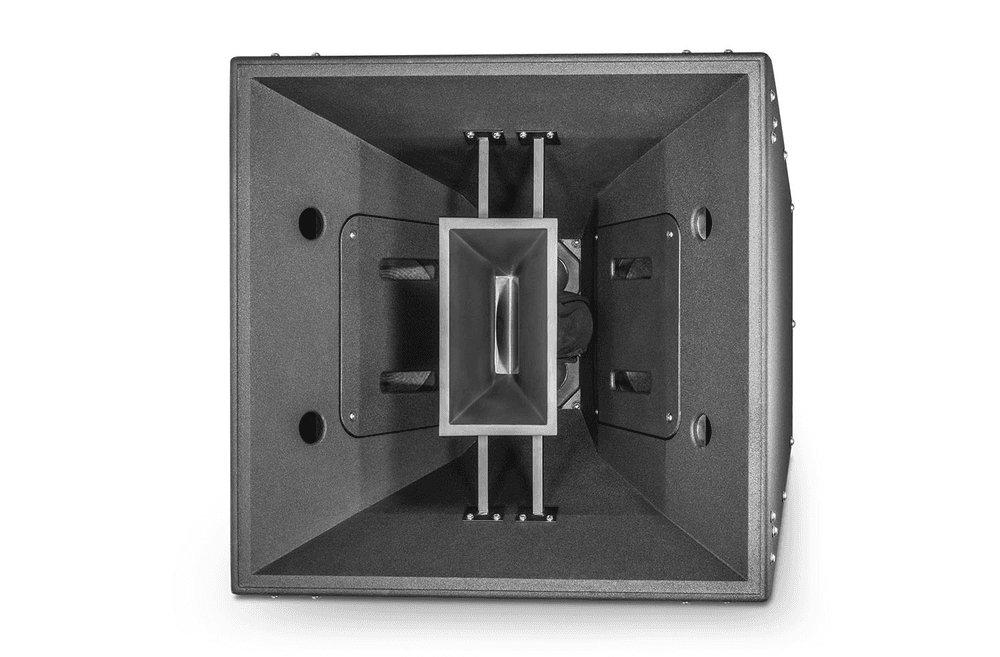

JBL Professional PD764i-215 - 3-Way, Horn-Loaded, 60° x 40°, Ultra-High Output Full-Range Loudspeaker System

The PD764i-215 Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances beyond the reach of single-driver designs. A single module produces over 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i-215 can be used in groups with other PD family modules or individually as part of a distributed system. Features 60° by 40° coverage pattern - Symmetrical front dimensions allow horizontal or vertical orientation within an array. IFS™ Interference-Free Summing dual HF driver module eliminates destructive interference and increases output by 6 dB. Dual 2432H compression drivers with 3″ diaphragms. Dual 8″ cone-loaded CMCD-82H midrange drivers provide 6 dB greater output than traditional designs. Dual 15″ Low-frequency Differential Drive®, dual voice coil woofers with dual magnetic separation. Pattern control maintained below 400 Hz. Coaxial mid/high-frequency module design improves midrange disposition and minimizes size. Integrated mounting system simplifies assembly design and construction.
