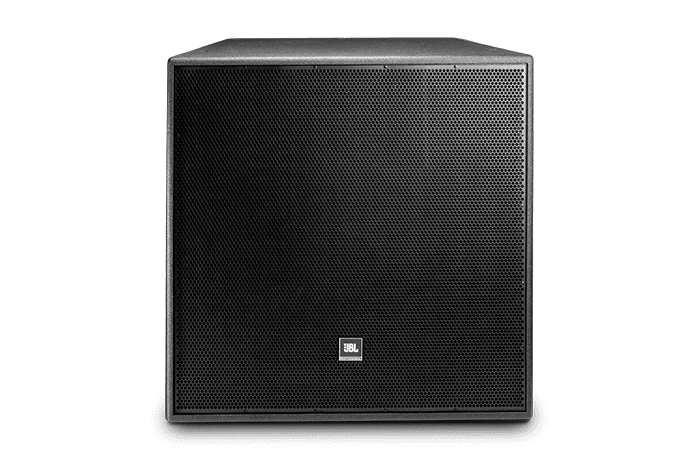

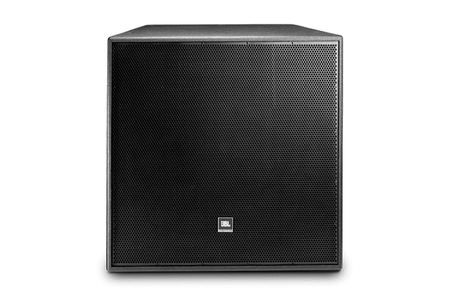

JBL Professional PD564 - 2-Way Full-Range Loudspeaker with 15" Horn and 60° x 40° Coverage

Out of stock
SKU: PD564 EAN13: 691991014826
(0)
6.677,10 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

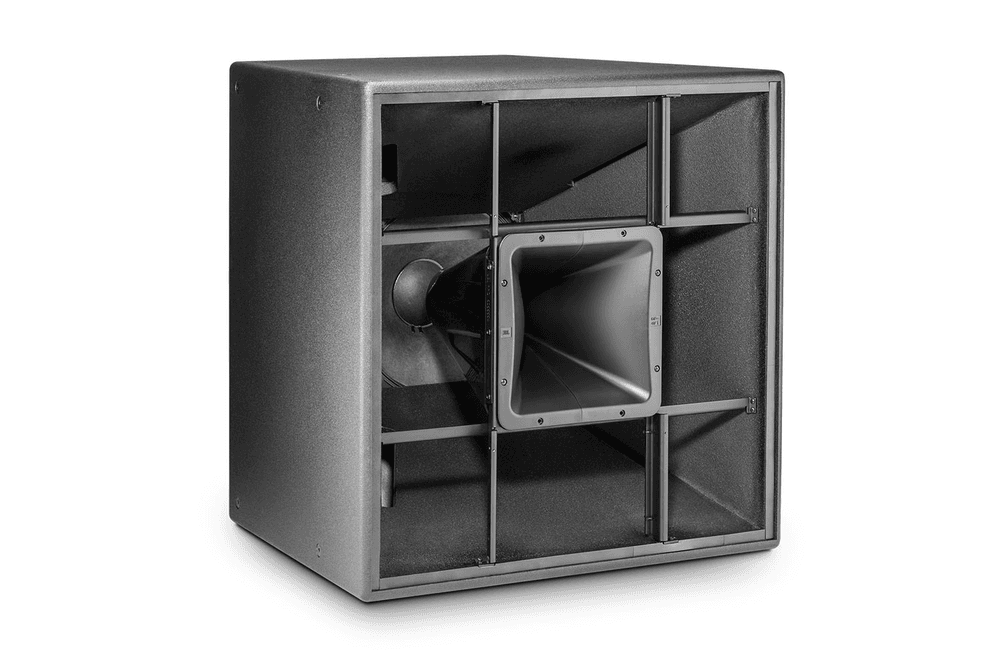

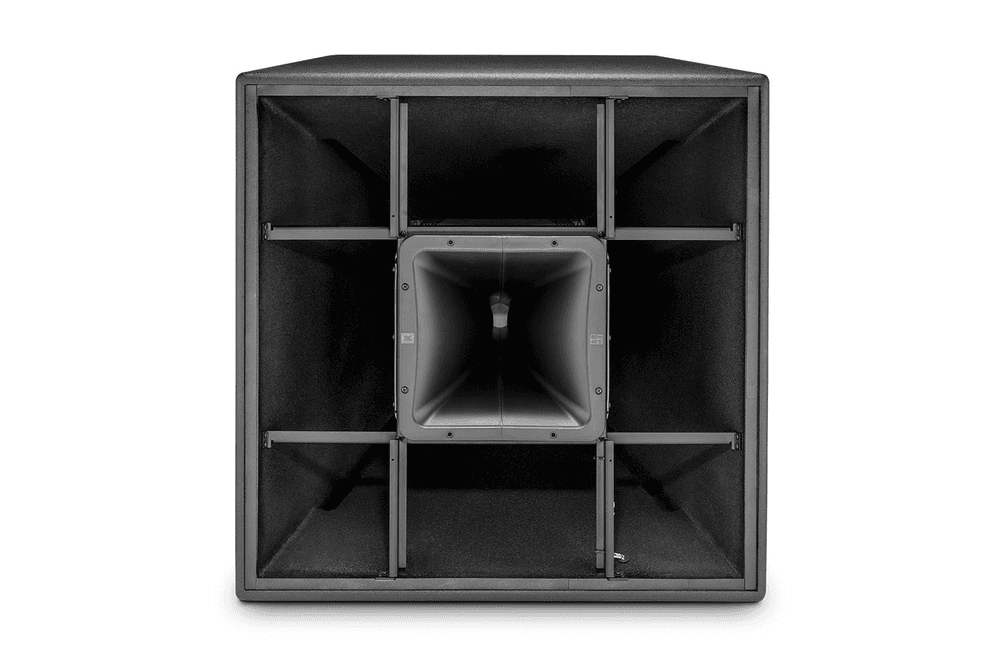

The PD564 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. The PD564 can be used in music or speech systems where frequency extension to 80 Hz is adequate, or combined with subwoofers to create full-range systems with extended bandwidth. Features: 380 mm (15″) horn-driven low-frequency driver. Oversized PT™ Progressive Transition™ waveguides provide 60° x 40° wideband pattern control, low distortion at high SPLs, and smooth frequency response. Rotatable waveguide allows horizontal or vertical cabinet orientation. Sophisticated, steep-slope passive crossover network with switchable passive/bi-amp crossover modes.
  • Brand:JBL Professional
  • Model:PD564
  • Guy:2-way full-range speaker, horn-loaded
  • Nominal coverage pattern:60° × 40°
  • Frequency range (−10 dB):50 Hz – 20 kHz
  • Frequency response (±3 dB):90 Hz – 17 kHz
  • Directivity Index (DI):13 dB
  • Directivity factor (Q):20
  • Modes of operation:Switchable passive/bi-amplified
  • Passive crossover frequency:1.2 kHz
  • System sensitivity (1 W/1 m):105 dB SPL
  • Maximum calculated SPL (1 m):Passive 132 dB cont. / 138 dB peak · Bi-amp LF 133/139 dB · Bi-amp HF 133/140 dB
  • Nominal impedance:8 Ω
  • LF Transducer:JBL 2031H, 380 mm (15"), 75 mm (3") coil, horn-loaded
  • HF Transducer:JBL 2432H, 38 mm (1.5") exit, 75 mm (3") voice coil, neodymium magnet, aluminum diaphragm
  • HF waveguide:PT-H64HF-1, 300 × 300 mm, rotatable
  • Connectivity:CE covered terminal block (up to 5.2 mm² / max. blade 8 mm)
  • Suspension points:20 × M10 (5 top, 5 bottom, 4 per side, 2 rear)
  • Enclosure:Trapezoidal with 10° sides, 18 mm Finnish birch plywood (11 layers)
  • Finish:DuraFlex™ black; white version (−WH) on request
  • Rack:14-gauge powder-coated perforated steel with heavy-duty fabric backing
  • Environmental specification (standard model):IP55C (IEC 529), Mil-Std 810
  • Heavy duty versions:WRC (IP55) / WRX (IP56); field rotation of the horn is not recommended; dimensions may vary.
  • Dimensions (H × W × D):782 × 783 × 670 mm
  • Net weight:69.0 kg
  • Optional accessories:Kit of 3 forged eyebolts M10 × 35 mm (ref. 229-00009-01)
  • Available documentation:Specification Sheet, PD500 User Guide, CLF/GLL Files, CAD Drawings, Library ofpresetsDCi
