JBL Professional PD525S - Dual 15" High Output Subwoofer (Vented, Front Loaded) for Installations

Out of stock
SKU: PD525S EAN13: 691991014789
(0)
4.761,27 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

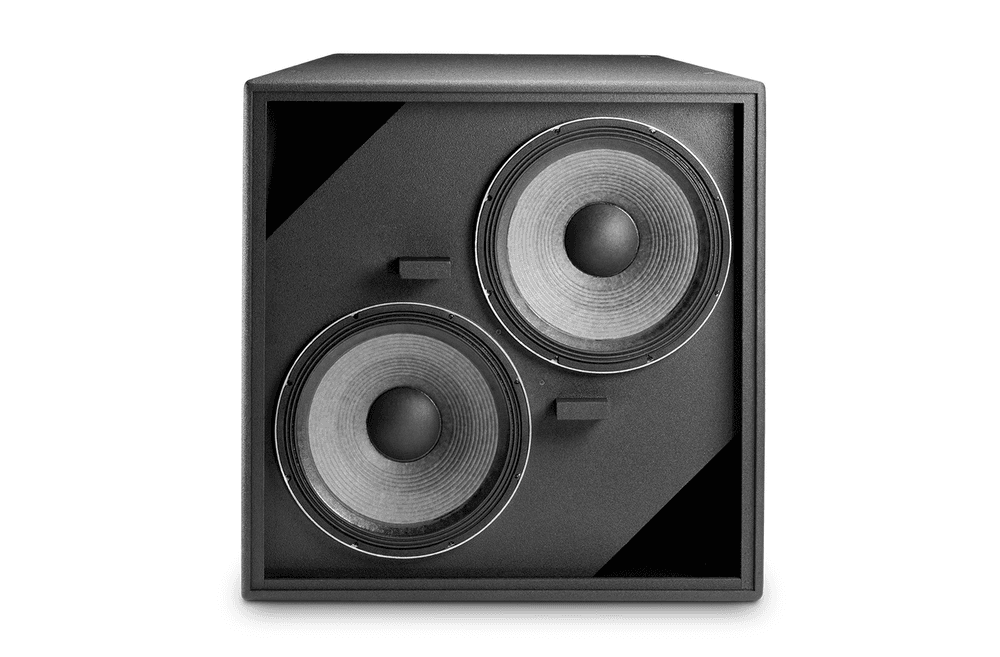

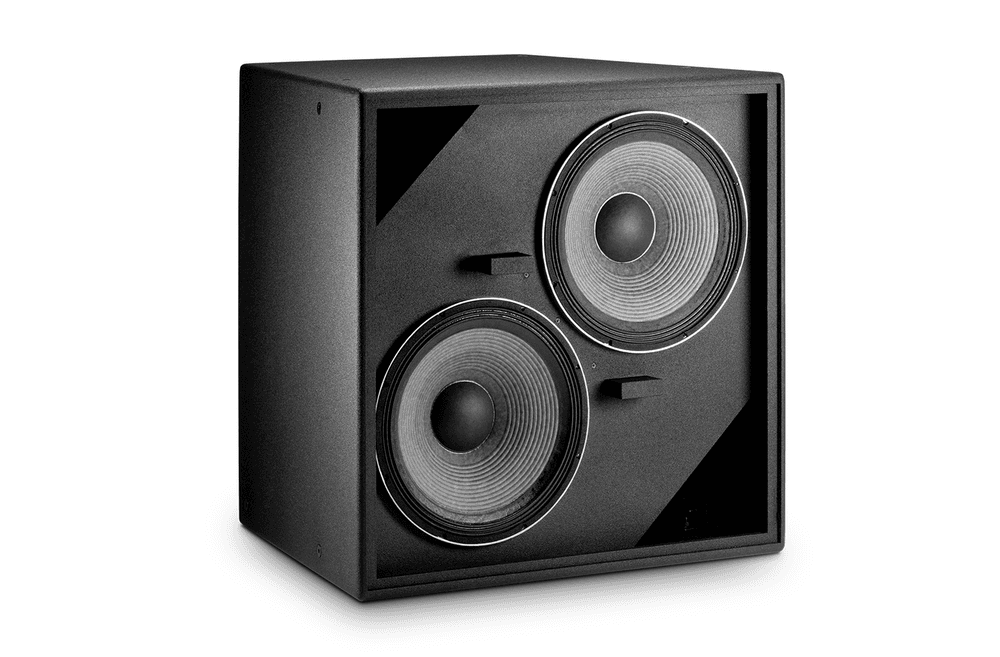

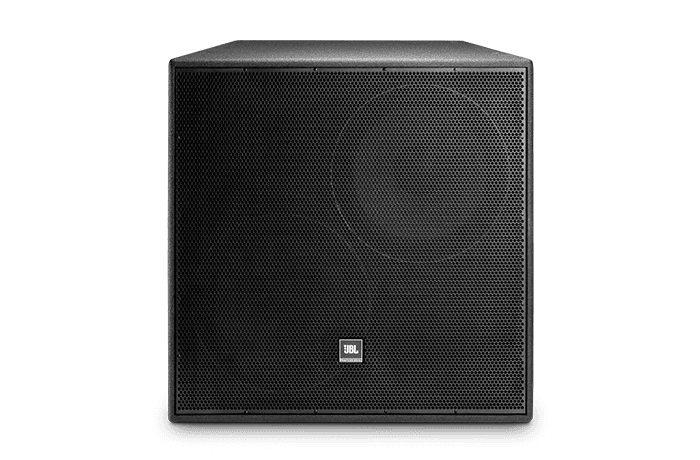

The PD525S is a high-power low-frequency loudspeaker comprising two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® low-frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Features: Two high-power 380 mm (15 in) low-frequency drivers Low-frequency extension to 40 Hz Enclosure dimensions compatible with all PD500 series models
  • Brand:JBL Professional
  • Model:PD525S
  • Guy:High-power subwoofer, dual 15", front-loading, vented
  • LF Transducers:2 × JBL 2275H, 380 mm (15"),Dual Coil – Dual Gap Differential Drive®, 75 mm (3") coil, VGC™
  • Frequency range (−10 dB):28 Hz – 3.8 kHz
  • Frequency response (±3 dB):40 Hz – 1.1 kHz
  • Sensitivity (1 W/1 m):102 dB (average 40–1 kHz)
  • AES Power (2 h):2000 W (peak 8000 W)
  • System power (IEC, 100 h):1000 W
  • Maximum SPL (1 m):135 dB continuous / 141 dB peak
  • Entry modes: Parallel Drivers/Discrete Drivers
  • Nominal impedances:4 Ω (parallel) · 2 × 8 Ω (discrete)
  • Connectivity:CE covered terminal block (up to 5.2 mm² / blade 9 mm)
  • Enclosure:Trapezoidal (10° sides), 18mm Finnish birch plywood (11 layers)
  • Suspension points:20 × M10 (5 top, 5 bottom, 4 per side, 2 rear)
  • Rack:14-gauge perforated steel with acoustic fabric backing
  • Finish:DuraFlex™ Black; available in white (−WH) upon request
  • Dimensions (H × W × D):782 × 783 × 670 mm
  • Net weight:53.4 kg
  • Physical compatibility:Housing dimensions compatible with 2-way PD500 models
  • Environmental specification (standard model):IP55C (IEC 529); WRC (IP55) / WRX (IP56) options
  • Optional accessory:Set of 3 forged eyebolts M10 × 35 mm (ref. 229-00009-01)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU PD525S
  • Bar-code 691991014789
