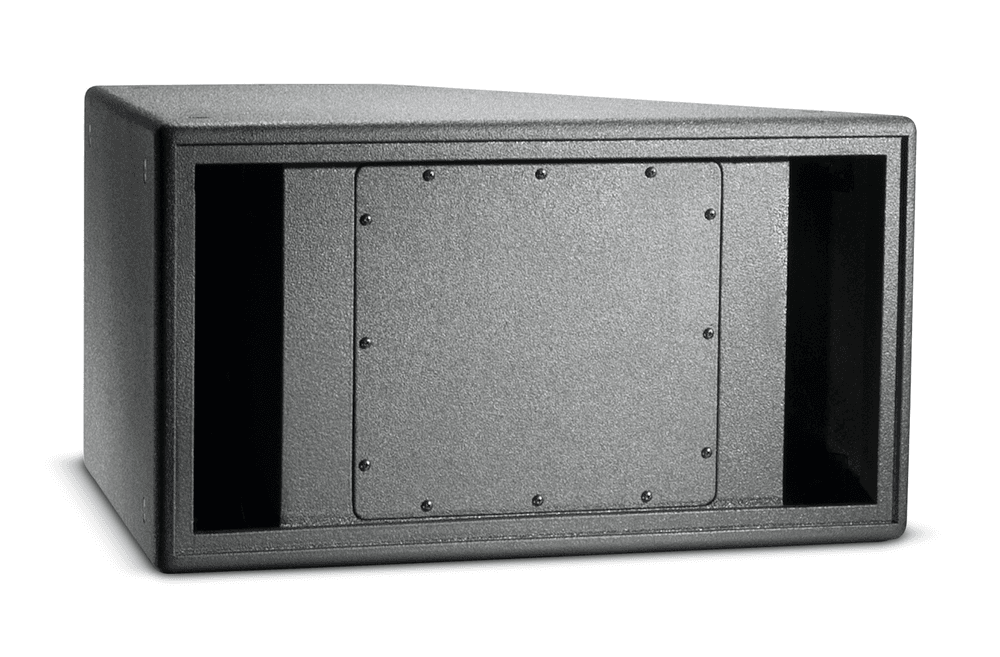

JBL Professional PD5122 - Dual 300mm Slot-Loaded Low-Frequency Module for PD Systems

Out of stock
SKU: PD5122
(0)
5.394,06 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The PD5122 is designed to be used as a high-power low-frequency module, either flown or floor-standing, in conjunction with PD5000 Series mid/high-only or full-range systems. Features? Dual high-power 300 mm (12 in) low-frequency transducers.? Designed to extend the LF pattern control of PD6322 systems.? Slot-loaded configuration doubles the LF performance of the PD6322.
  • Brand:JBL Professional
  • Model:PD5122
  • Guy:High power low frequency module (double 300 mm) for installations
  • Acoustic configuration:Slot-loaded (ventilated front loading)
  • LF Transducers:2 × JBL 2206H, 300 mm, 100 mm coil, VGC™
  • Frequency range (−10 dB):41 Hz – 1 kHz
  • Frequency response (±3 dB):49 Hz – 300 Hz
  • Sensitivity (1 W/1 m, 60–250 Hz):96 dB SPL
  • Maximum SPL (1 m):128 dB continuous / 134 dB peak
  • Entry modes:Parallel Drivers / Discrete Drivers
  • Nominal impedances:4 Ω (Parallel) · 2 × 8 Ω (Discrete)
  • Transducer power (AES, 2 h):1600 W (6400 W peak)
  • System power (IEC, 100 h):1200 W (4800 W peak)
  • Connectivity:Speakon® NL4 + CE covered terminal block (up to 5.2 mm² / 9 mm blade), in parallel (loop-through)
  • Enclosure:Trapezoidal, 11-ply 16 mm birch; 15° sides
  • Finish:DuraFlex™ black; white version (−WH) on request
  • Rack:14-gauge perforated steel with acoustic foam (fabric back on white units)
  • Suspension points:20 × M10 (5 top, 5 bottom, 4 per side, 2 rear)
  • Dimensions (H × W × D):375 × 673 × 706 mm
  • Net weight:36.4 kg
  • System compatibility:Designed to extend LF pattern control in 2x12" PD arrays
  • Environmental specifications (standard model):Mil-Std 810; IP-x3
  • Heavy duty versions:WRC (IP55) / WRX (IP56); dimensions may vary
  • Optional accessory:Kit of 3 M10 × 35 mm eyebolts (ref. 229-00009-01)
