JBL Professional Intellivox DS115 - Powered column with active beamforming (DDS), 1,149 m and coverage up to 15 m

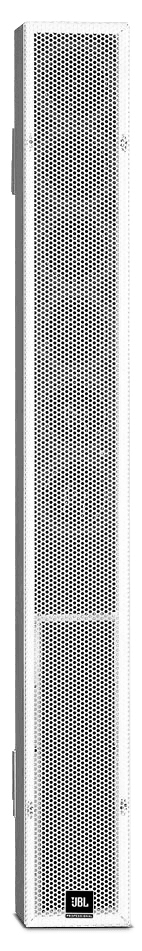

The Intellivox-DS115, the smallest member of the Intellivox DDS range, is primarily designed for use as an "infill system" in larger Intellivox installations, providing high-frequency coverage in off-axis or shaded areas. The Intellivox-DS115 offers remarkable directivity and is capable of covering an area of ​​up to 15 m while maintaining a uniform sound pressure level over the audience area. The six custom-designed 4" speakers and two dome tweeters are driven by an eight-channel Class-D amplifier, fed by a sophisticated switching power supply, all of which combine to ensure years of reliable operation. An extensive set of supervisory features has been implemented to meet the demanding requirements of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user-friendly control of Beam DDS files, audio processing and supervisory functions. Its compact array length makes the Intellivox-DS115 suitable for easy and unobtrusive deployment, even in the most architecturally sensitive environments. The Intellivox-DS115, with its extended high-frequency response, is well suited to musical applications and can offer "full range" operation when combined with a JBL active subwoofer system. Features? Excellent speech intelligibility? Slim, unobtrusive design? Extended frequency response, up to 20 kHz? Wide horizontal dispersion? Vertical Beamforming (DDS technology)? 32-bit floating-point DSP? Vertical beamforming control? Dual line inputs? Volume control? Delay (up to 20 seconds)? 8-band parametric EQ? 8 onboard, password-protected, user-definable presets (recallable via third-party control devices)? AVC (Automatic Volume Control) via the built-in ambient microphone? Firmware upgradeable? Network-ready? Comprehensive surveillance? Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3
